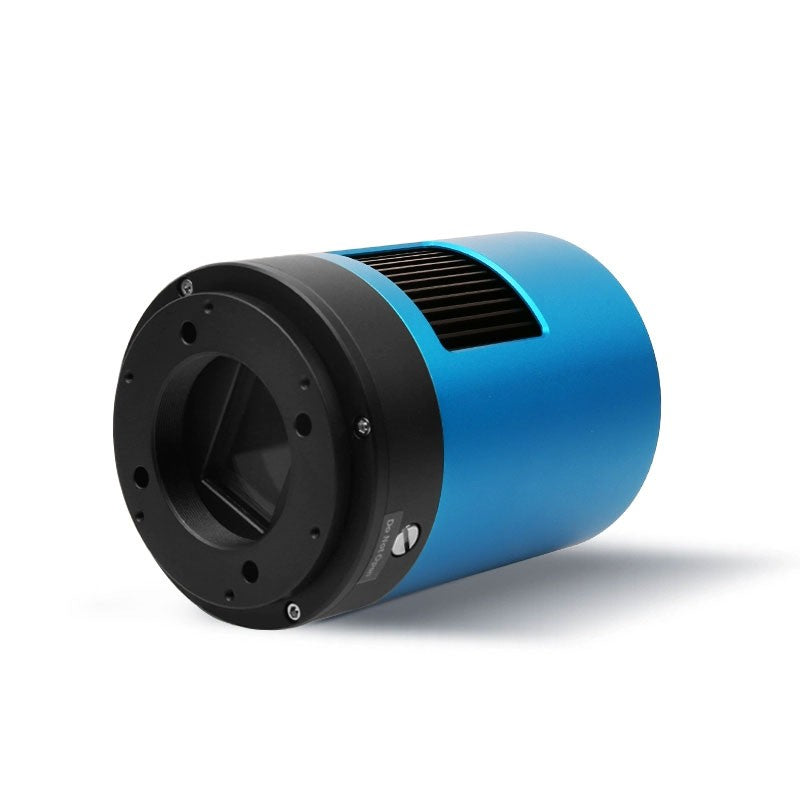

ToupTek ATR3CMOS10300KPA/ATR3CMOS10300KMA Astronomical IMX294 Camera 512MB DDR3 Buffer with 4/3-inch Optical Format

ToupTek ATR3CMOS10300KPA/ATR3CMOS10300KMA Astronomical IMX294 Camera 512MB DDR3 Buffer with 4/3-inch Optical Format

Description:
- The ATR3CMOS10300KPA camera is designed specifically for astrophotography. It is mainly used for deep sky photo shooting, since the camera has cooled CMOS sensor, ultra-low readout noise and zero amp-glow. It can be also used for planetary photo shooting. Its extraordinary performance and extensive usage will give you great astrophotography experience.

ATR3CMOS10300KPA
Features:
- IMX 294 Color CMOS Sensor
- Resolution: 4128 x 2808
- 4.63 um Square Pixels
- 4:3 Optical Format
- 14-bit ADC
- 512Mbyte Memory
- Precise Temperature Regulation
- G Sensitivity: 419.02 mv with 1/30s
- Zero Amp-Glow
- Ultra-Low Noise: 0.87 to 4.1e- (Low Noise Mode)
- Support Low Noise Mode/ High Frame Rate Mode (16.6 FPS at all Pixel Readout 14 bit)
- SNR Max: 48.0 dB (Low Noise Mode)
- Dynamic Range: 84.4 dB (Low Noise Mode)
- -35°C below ambient under short exposure/ -40°C under long exposure time(> 1s)

ATR3CMOS10300KMA
- IMX 294 Mono CMOS Sensor
- Resolution: 4128 x 2808
- 4.63 um Square Pixels
- 4:3 Optical Format
- 14-bit ADC
- 512Mbyte Memory
- Precise Temperature Regulation
- G Sensitivity: 419.02 mv with 1/30s
- Zero Amp-Glow
- Ultra-Low Noise: 0.87 to 4.1e- (Low Noise Mode)
- Support Low Noise Mode/ High Frame Rate Mode (16.6 FPS at all Pixel Readout 14 bit)
- SNR Max: 48.0 dB (Low Noise Mode)
- Dynamic Range: 84.4 dB (Low Noise Mode)
- -35°C below ambient under short exposure/ -40°C under long exposure time(> 1s)

Specification:
- Sensor: for Sony IMX294 back illuminated sensor
- Diagonal: 23.1 mm
- Image Resolution: 11 mega pixels (4128 x 2808)
- Pixel Size: 4.63µm x 4.63µm
- Image Area: 19.1mm x 13.0mm
- Shutter Type: Rolling shutter
- Exposure Time: 0.1ms - 3600s
- Gain: 1x - 160x
- SNR: 48.0dB
- Dynamic Range: 84.4dB
- Read Noise: 4.1 - 3.38e-
- Read Noise (HCG): 0.97 - 0.87e-
- QE Peak: > 80%
- Full Well: 64ke-
- ADC: 14bit
- DDR3 Buffer: 512MB (4Gb)
- Connection Port: USB3.0/USB2.0
- Camera Adaptor: M42 x 0.75mm
- Protect Windows: IR-cut filter/AR-window
- Spectral Range 380-690nm (with IR-cut filter)
- Control SDK: for Windows/Linux/macOS/Android Multiple Platform SDK (for Native C/C++, for C#/VB.NET, for Python, for Java, for DirectShow, for Twain, etc.)
- Recording System: Still picture and movie
- Camera Dimensions: (Diameter) 80mm x (height) 103mm
- Camera Weight: 0.552kg
- Back Focus Distance: 17.5mm
- Cooling: Two stage TEC
- Effective Cooling Temp: -35°C below ambient under short exposure/-40°C under long exposure (> 1s)
- Supported OS:
  for Microsoft Windows XP / Vista / 7 / 8 /10 (32 & 64 bit)
  for OSx (for Mac OS X)
  for Linux

Max FPS at Resolution (USB 3.0):
- 14 bit: 16.6 FPS at 4128 x 2808; 69.5 FPS at 2048 x 1080; 96.0 FPS at 1360 x 720; 4.0 FPS at 8184 x 5616
- 8 bit: 33.3 FPS at 4128 x 2808; 69.5 FPS at 2048 x 1080; 96.2 FPS at 1360 x 720; 8.0 FPS at 8184 x 5616

Max FPS at Resolution (USB 2.0):
- 14 bit: 1.7 FPS at 4128 x 2808; 7.6 FPS at 2048 x 1080; 16.7 FPS at 1360 x 720; 0.4 FPS at 8184 x 5616
- 8 bit: 3.3 FPS at 4128 x 2808; 15.2 FPS at 2048 x 1080; 33.3 FPS at 1360 x 720; 0.8 FPS at 8184 x 5616

Package Included:
- 1 x Camera
- 1 x Cover
- 1 x M42 Adapter (12.5mm)
- 1 x Extender (16.5mm)
- 1 x Extender (21mm)
- 1 x M48 - M42 Extender
- 1 x Power Adapter
- 1 x Power Cable
- 1 x USB3.0 Cable (1.5m)
