TeSeek FG-17 Harmonic Equatorial Mount Double 17-100 Harmonic Right Ascension and Declination Equatorial Mount
Couldn't load pickup availability
Specifications
Brand
Product type
Technical specs
Design and durability

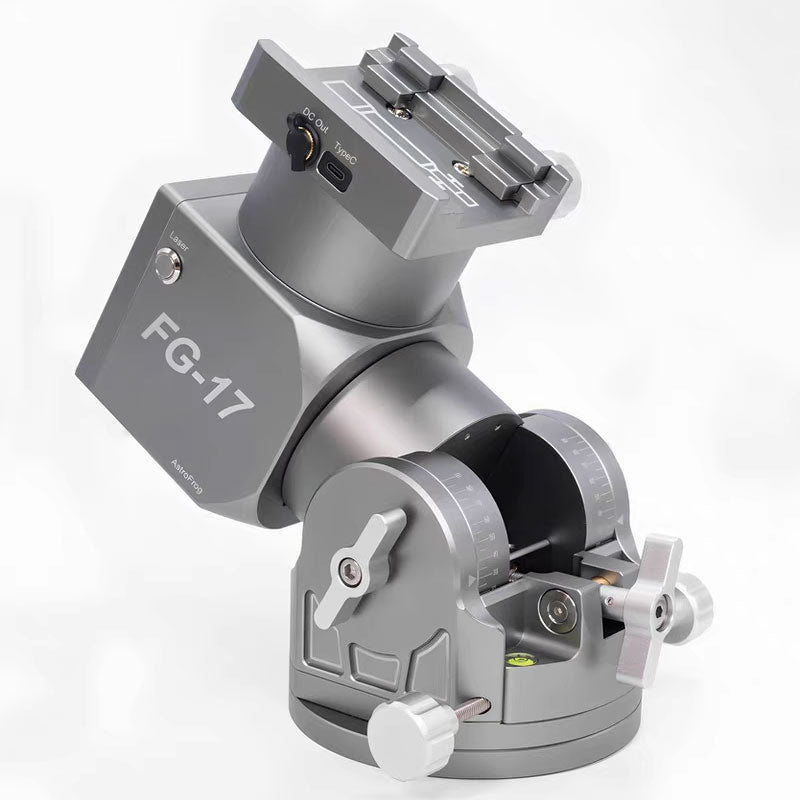

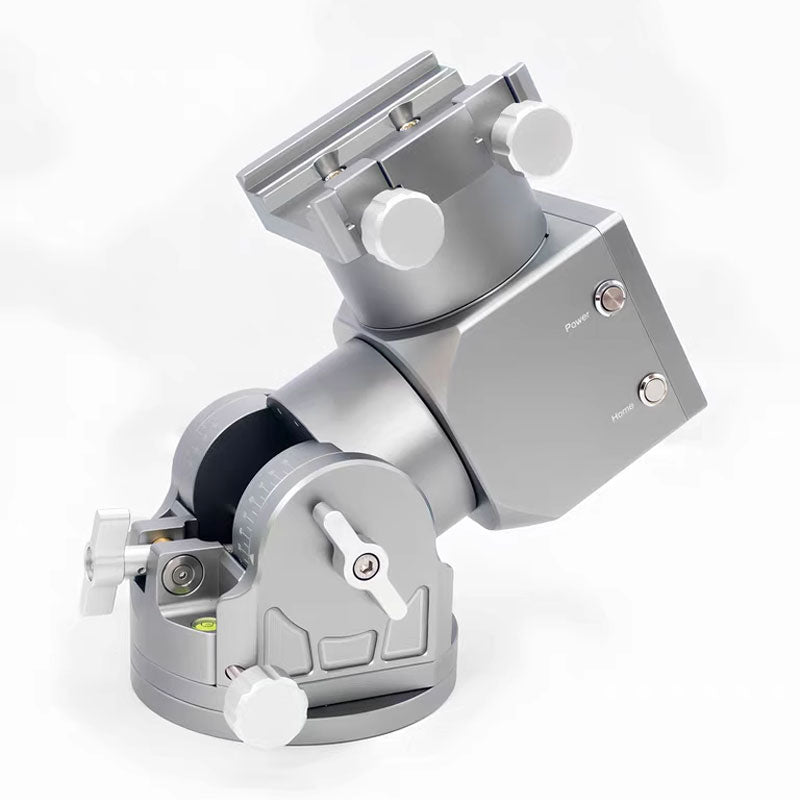

FG-17 Harmonic Equatorial Mount Double 17-100 Harmonic Right Ascension and Declination Equatorial Mount
Specification:
- Model: FG17
- Main body structure: 6061 integrated CNC empty ultra-stable structure (non-square tube)
- Reducer: customized high torque ultra-thin double 17-100 harmonic reducer (right ascension axis: 0.6N/M; declination axis: 0.45N/M)
- Load capacity: 13KG (without counterweight); 20KG (with counterweight)
- Brake: right ascension physical electromagnetic brake
- Zeroing: mechanical home
- Limit: mechanical limit
- Reducer lifespan: 15 thousand hours
- Laser polar alignment: yes
- Dovetail slot: DC interface x 1; USB interface x 1, wide and narrow double slot
- Large adjust base: 0-90° stable latitude adjustment base
- Speed ratio: 300:1
- Precision: industry equivalent level
- Control system: ONSTEP
- Communication interface: Bluetooth, WiFi, USB, ST4
- Power supply: 12V DC2.1 interface
Package Included:
- 1 x Equatorial Mount
