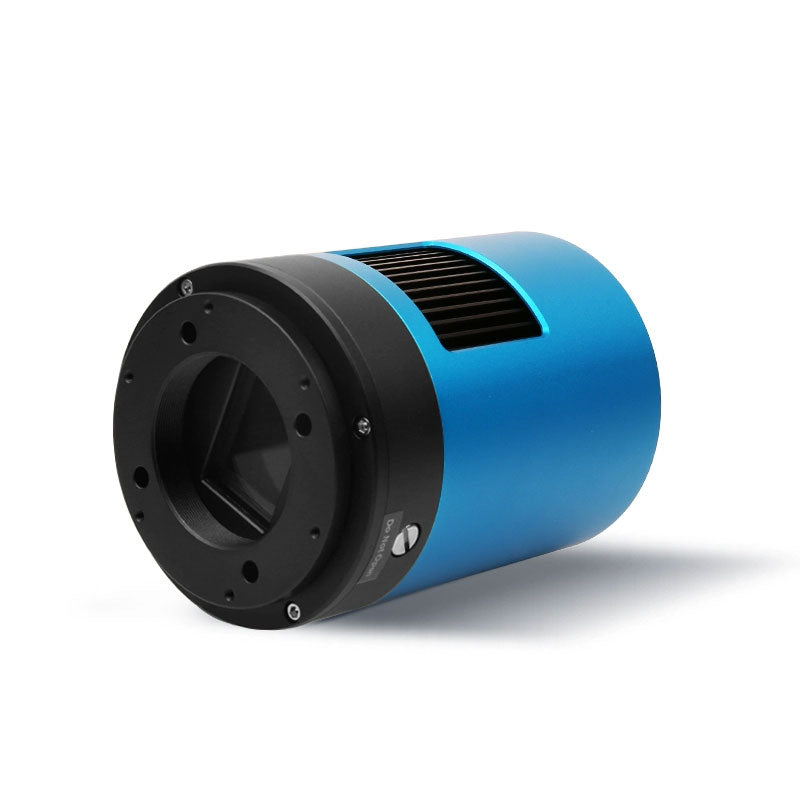

ToupTek ATR3CMOS26000KMA Astronomical IMX571 Mono Camera 512MB DDR3 Buffer with APS-C Optical Format

ToupTek ATR3CMOS26000KMA Astronomical IMX571 Mono Camera 512MB DDR3 Buffer with APS-C Optical Format

Description:
- The ATR3CMOS26000KMA camera is designed specifically for astrophotography. It is mainly used for deep sky photo shooting, since the camera has cooled CMOS sensor, ultra-low readout noise and zero amp-glow. It can be also used for planetary photo shooting. Its extraordinary performance and extensive usage will give you great astrophotography experience.

Features:
- IMX 571 Mono CMOS Sensor
- Resolution: 6224 x 4168
- 3.76 um Square Pixels
- APS-C Optical Format
- 16-bit ADC
- 512Mbyte Memory
- Precise Temperature Regulation
- G Sensitivity: 484.6mv with 1/30s
- Zero Amp-Glow
- Ultra-Low Noise: 1.43 to 2.06e- (Low Noise Mode)
- Support Low Noise Mode/ High Frame Rate Mode (6.8 FPS at all Pixel Readout 16 bit)
- SNR Max: 47.1 dB (Low Noise Mode)
- Dynamic Range: 87.9 dB (Low Noise Mode)
- -35°C below ambient under short exposure/ -40°C under long exposure time (> 1s)

Specification:
- Sensor: for Sony IMX571 back illuminated sensor
- Diagonal: 28.3 mm
- Image Resolution: 26 mega pixels(6224 x 4168)
- Pixel Size: 3.76µm x 3.76µm
- Image Area: 23.4mm x 15.7mm
- Shutter Type: Rolling shutter
- Exposure Time: 0.1ms - 3600s
- Gain: 1x - 100x
- SNR: 47.1dB
- Dynamic Range: 87.9 dB (Low Noise Mode)
- Read Noise: 2.27 – 1.41 e-
- Read Noise: 2.06 – 1.43 e-
- QE Peak: > 80%
- Full Well: 51ke-
- ADC: 16bit
- DDR3 Buffer: 512MB (4Gb)
- Connection Port: USB3.0/USB2.0
- Camera Adaptor: M42 x 0.75mm
- Protect Windows: IR-cut filter/AR-window
- Spectral Range: 380-690nm (with IR-cut filter)
- Control SDK: for Windows/Linux/macOS/Android Multiple Platform SDK (Native C/C++, for C#/VB.NET, for Python, for Java, for DirectShow, for Twain, etc.)
- Recording System: Still picture and movie
- Camera Dimensions: (diameter) 80mm x (height) 103mm
- Camera Weight: 0.552kg
- Back Focus Distance: 17.5mm
- Cooling: Two stage TEC
- Effective Cooling Temp: -35°C below ambient under short exposure / -45°C under long exposure (> 1s)
- Supported OS:
  for Microsoft Windows XP / Vista / 7 / 8 /10 (32 & 64 bit)
  for OSx (Mac OS X)
  for Linux

Max FPS at Resolution (USB 3.0):
- 16 bit: 6.8 FPS at 6224 x 4168; 28 FPS at 3104 x 2084; 63 FPS at 2064 x 1386
- 8 bit: 13.2 FPS at 6224 x 4168; 37.1 FPS at 3104 x 2084; 110 FPS at 2064 x 1386

Max FPS at Resolution (USB 2.0):
- 16 bit: 0.6 FPS at 6224 x 4168; 3.6 FPS at 3104 x 2084; 8.5 FPS at 2064 x 1386
- 8 bit: 1.2 FPS at 6224 x 4168; 7.0 FPS at 3104 x 2084; 15.7 FPS at 2064 x 1386

Max FPS at Resolution (Low Noise, USB 3.0):
- 16 bit: 3.4 FPS at 6224 x 4168 (Low Noise Mode is only available in All Pixel Readout Mode)
- 8 bit: 12.7 FPS at 6224 x 4168 (Low Noise Mode is only available in All Pixel Readout Mode)

Max FPS at Resolution (Low Noise, USB 2.0):
- 16 bit: 0.3 FPS at 6224 x 4168 (Low Noise Mode is only available in All Pixel Readout Mode)
- 8 bit: 1.2 FPS at 6224 x 4168 (Low Noise Mode is only available in All Pixel Readout Mode)

Package Included:
- 1 x Camera
- 1 x Cover
- 1 x M42 Adapter (12.5mm)
- 1 x Extender (16.5mm)
- 1 x Extender (21mm)
- 1 x M48 - M42 Extender
- 1 x Power Adapter
- 1 x Power Cable
- 1 x USB3.0 Cable (1.5m)
