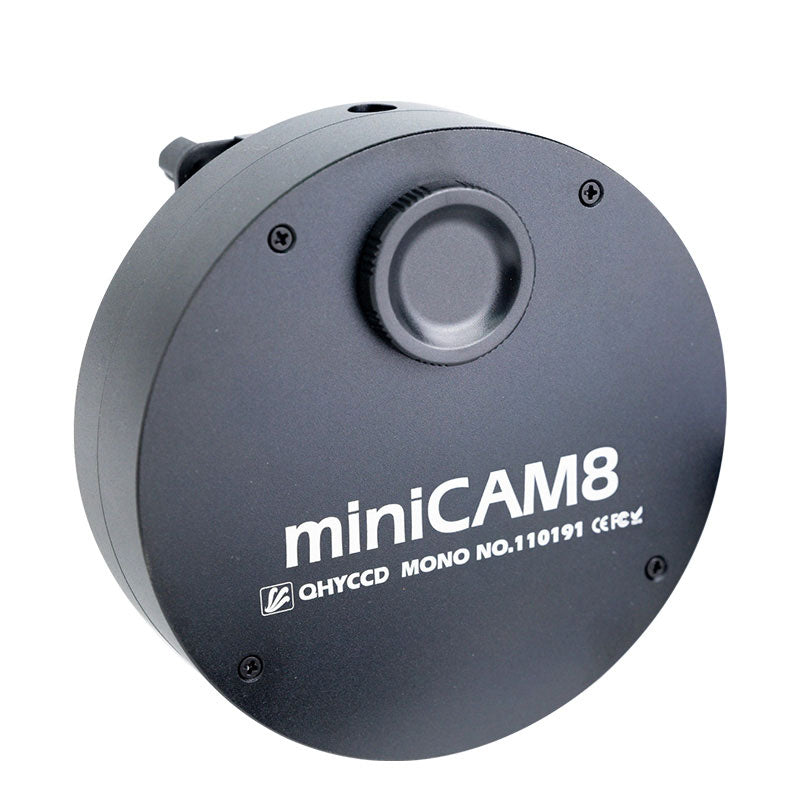

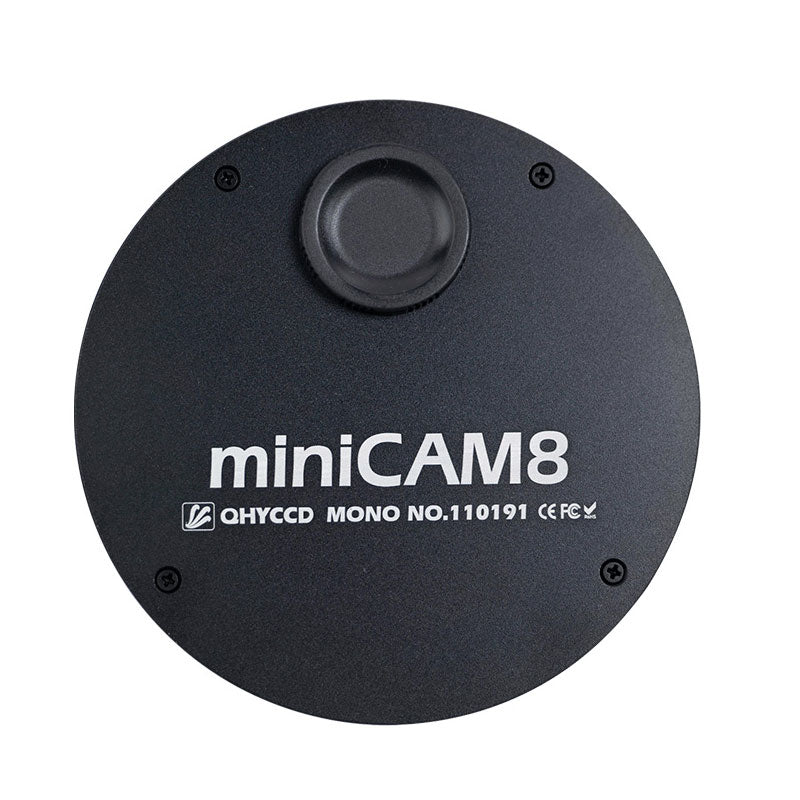

Teseek Black MiniCAM8M IMX585 CMOS Portable Astronomical Planetary Mono Camera Support Linear HDR Mode
Verfügbarkeit für Abholungen konnte nicht geladen werden
Specifications
Brand
Product type
Technical specs
Design and durability
Teseek Black MiniCAM8M IMX585 CMOS Portable Astronomical Planetary Mono Camera Support Linear HDR Mode
Description:
- At just over 4 inches in diameter and a few inches thick (IMX585), the new miniCAM8M is a compact, high-resolution, high-performance, cooled imaging system capable of exceptional, high-quality deep space images as well as high-quality, high-resolution planetary images.
- So often, compactness in astroimaging is achieved at the expense of some other critical feature found in multi-component cooled systems, such as sensor quality or thermoelectric cooling, etc. Such is not the case with the new miniCAM8M. Based on IMX585 8 MP sensor for Sony, the miniCAM8M includes full TE cooling capable of reaching a delta of -45℃ from ambient along with a built-in 8-position filter wheel for complete LRGB and narrowband imaging.
Specification:
- Model: miniCAM8M
- CMOS sensor: for Sony IMX585
- BSI/FSI: BSI
- Sensor size: 1/1.2inch
- Pixel size: 2.9μm x 2.9μm
- Total pixel area: 3856 x 2180
- Effective pixels: 8MP
- Full well capacity: 54ke-
- Linearity HDR mode: 46ke-
- Readout noise: 0.76 – 7.8 e-
- Linearity HDR mode: 1.0e-
- Peak QE:
M: 92%
C: R: 82%
G: 87%
B: 75%
- Dynamic range: linearity HDR mode: the dynamic range reaches up to 46,300:1, equivalent to 93 dB or 15.5 stops.
- A/D: dual 12-bit (output as 16-bit)
- Full frame rates: full resolution 41.5FPS at 8bit, 23.5FPS at 16bit
- ROI frame rates: full resolution 1080Lines, 82FPS at 8bit, 47FPS at 16bit; 640Lines, 177FPS at 8bit, 105FPS at 16bit
- Exposure time range: 11μs-900sec
- Shutter Type: electronic rolling shutter
- Built-in image buffer: 512MB DDR3
- Computer interface: USB3.0
- Telescope interface: 1.25, 2 inch
- Optic window type: AR+AR
- Filter wheel: built-in 8-position carousel
- Back Focal Length: 17.5mm
- Cooling System:
Dual Stage TEC cooler: long exposures (> 1 second) typically -45℃ below ambient
- Weight: 480g
Package Included:
- 1 x Set of MiniCAM8M Camera
