Askar 140APO 140mm Aperture F7 Professional Astronomical Telescope with 1.25-inch/2-inch Interfaces

Askar 140APO 140mm Aperture F7 Professional Astronomical Telescope with 1.25-inch/2-inch Interfaces

Description:

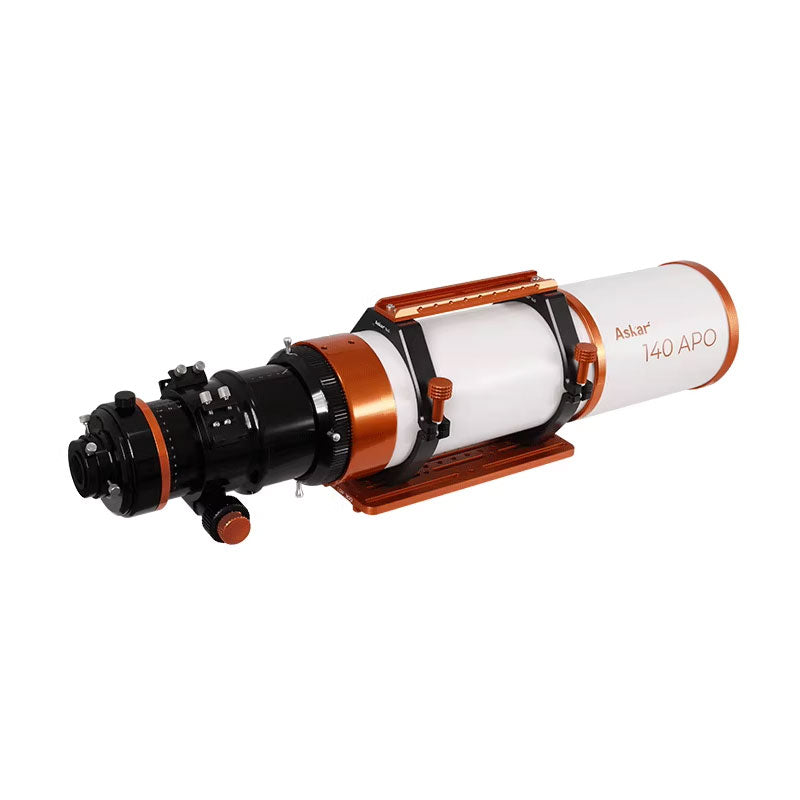

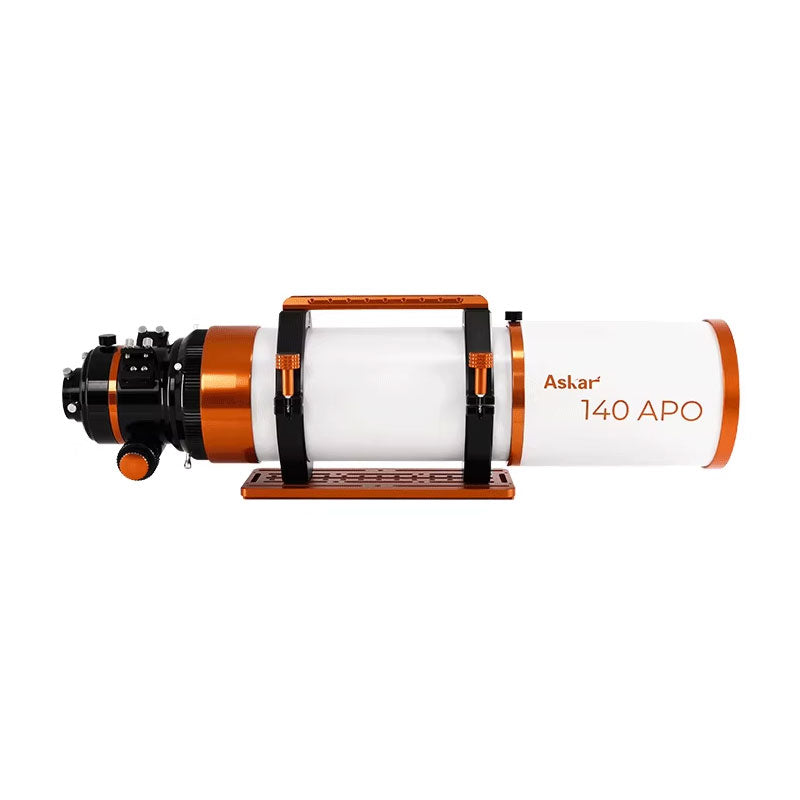

- The 140APO is an OTA with a 140mm aperture, 980mm focal length, and f/7 native focal ratio.

- The aperture of 140mm gives it an inherent advantage in terms of light-gathering power, resolution, brightness, and contrast, allowing the photographer to gather more light and present more details and brighter objects in the image. Along with more light coming into the astrograph, the limiting magnitude can reach 12.5.

- The 140APO adopts a triplet air-spaced APO lens design, including one piece of ED glass.

- The APO series employs special optical designs and multiple lens elements to correct chromatic aberration, naturally providing higher-quality object details and color accuracy.

- In the refractor's element structure, increasing the number of lens elements and designing lens combinations can effectively improve chromatic aberration correction. However, this also means increased production costs and design complexity.

- ED glass, also known as low-dispersion glass, is a type of optical glass specifically designed to reduce chromatic aberration.

- As a large aperture, long focal ratio telescope, the 140APO was designed with portability in mind. The shortest overall length is only 735mm, the net weight is 9.2kg, and the gross weight is 10.9kg (including the handle, tube ring, and dovetail plate).

- Each piece of 140APO is equipped with a unique name ring for identification.

- The retractable design of the dew shield, along with the enlarged locking screws, provides convenient usage. The dew shield serves the purpose of protecting the lens from the impact of external and internal light.

- The 140APO has an overall lightweight design for the tube ring, with an overall weight of 1.7 kg. The thumb screws enable easy opening and locking of the tube rings. Meanwhile, the base of the tube rings is heightened, providing more space.

- The handle of the 140APO has a special slot design, making it also a base for installing a finder scope. The handle itself is 220mm long.

- The dovetail plate of the 140APO is the standard Losmandy dovetail plate, which is compatible with most equatorial mounts and bases on the market. We extended the length and added screw holes, making the length 300 mm, which is easier to balance on the mounts. With the slotted handle, the spacing between the tube rings can be adjusted as desired.

- It is worth mentioning that the rear lens tube of the 140APO has an integrated retractable design. We strengthen the overall stability and ensure that the optical axis will not be affected when the lens tube is stretched, thus guaranteeing the quality of the image. The retractable part also features a rudder-type locking ring that makes it easy to loosen or tighten.

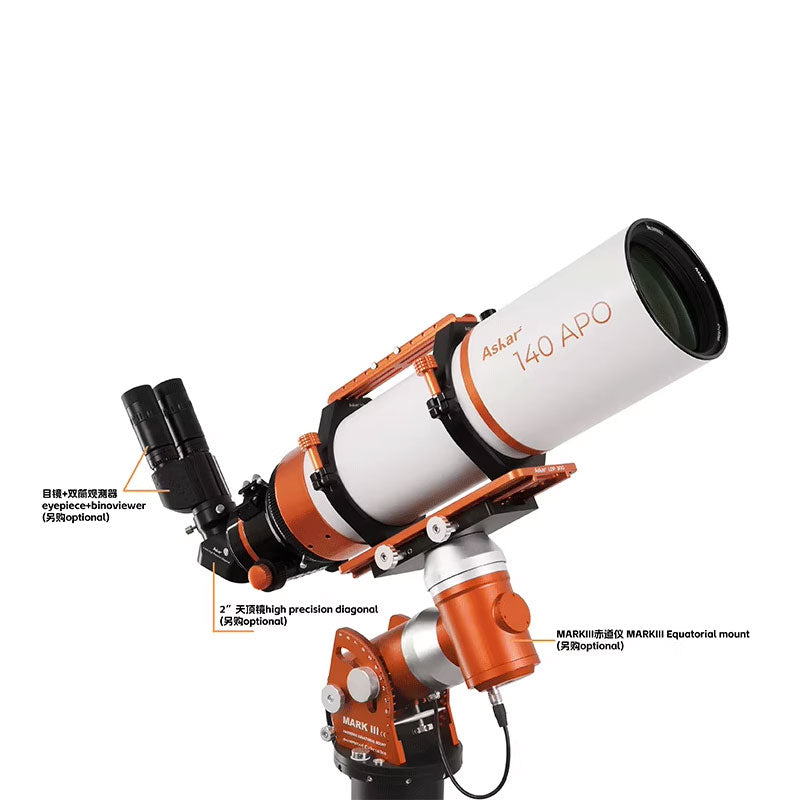

- When the lens tube is contracted, the 140APO can be used with a binoviewer for visual observation. When the lens tube is stretched, the 140APO can be equipped with a specific reducer or flattener for imaging or a diagonal and eyepiece for observing.

- In terms of visual observation,it can easily achieve focus when connected to 1.25" or 2" diagonals or various eyepieces. Because of the retractable lens tube design, it can also be attached to a binoviewer for visual observation.

- In terms of the focuser, the 140APO is equipped with a dual-speed rack and pinion large 3.5-inch rigid focuser, which can be compatible with most motorized focusers on the market. There is a high-precision scale on the 10-cm focusing travel. The entire focuser barrel is CNC machined with an anti-reflective internal design and matting paint, providing extra measures to eliminate stray light.

- There are two finder bases on both sides of the focuser, which not only eliminates the need for disassembling when changing the position of the finder scope but also provides additional mounting positions for other astronomical accessories.

- The rear of the focuser features a 360° high-precision big rotator, along with precise scales for convenient adjustment and saving of rotation angles, enabling precise rotation. It is also equipped with an enlarged rotator locking screw that can be easily secured even under high loads.

- The telescope interface at the rear comes with a 1.25"/2" adapter.

- The entire 140APO tube is crafted using high-quality CNC machining with anodized and surface spray paint treatments. The orange accents on the ivory-white tube add a bright and eye-catching touch, presenting a stylish and elegant overall appearance.

- The 140APO has two optional accessories: a 1x flattener and a 0.8x reducer. Both accessories come with a built-in 2" filter thread for direct filter mounting. The 0.8x reducer is equipped with M54/M48 adapters, and the 1x flattener is equipped with M68/M54/M48 adapters for easy connection.

- The 1x flattener does not change the telescope's focal ratio itself. After connecting with the 140APO, it still maintains a focal ratio of f/7. The flattener corrects field curvature and coma, resulting in flatter field edges and finer star points.

- The 0.8x reducer can bring the 140APO's focal ratio down to f/5.6. This is a standard reducer with field flattening capabilities as well. A shorter focal ratio allows the OTA to have a wider field of view and faster exposure times, making it suitable for shooting large areas of nebulae, star clusters, and faint, fast-moving celestial objects.

Specification:
- Aperture size: 140mm
- Focal length: 980mm
- Focal ratio: f/7
- Objective lens: Triplet air-spaced APO (including one ED glass)
- Total length: 735mm (when the dew shield is contracted); 870mm (when the dew shield is stretched)
- The length of the rear retractable lens tube: 125mm
- OTA weight: 9.2kg
- Gross weight (including tube ring and dovetail plate): 10.9kg
- Rear-end thread type: 2"/1.25" visual adapters

Package Included:
- 1 x Telescope
- 1 x Pair of Tube Rings
- 1 x Handle
- 1 x Askar 300mm Losmandy Dovetail Plate
- 1 x Storage Case
- 1 x User Manual

Askar 1x Triplet Full-frame Flattener

Description:
- The 1.0x flattener does not change the telescope's focal ratio itself. After connecting with the Askar 140APO, it still maintained a focal ratio of 7. The flattener corrects field curvature and coma, resulting in flatter field edges and finer star points.

- The 1.0x flattener adopts a triplet design and supports a 44mm full-frame image circle. The overall weight is 0.75kg. The back focus from the M48 thread is a standard 55mm. The front thread is M92x1. At the camera end, it is equipped with M68x1, M54x0.75 and M48x0.75 three sizes of adapters, which are convenient for connection. At the same time, it has a built-in M48x0.75 2-inch filter thread, which can be directly installed and used. The overall CNC machined, both end threaded metal caps prevent ash when not in use.

Specification:
- (After attaching) 140APO Focal length: 980mm
- (After attaching) 140APO Focal ratio: f/7
- Lens number: Triplet design
- Back focus: 55mm (from the base of M48 male thread)
- Weight: 0.79kg
- Rear-end thread type: M68x1; M54x0.75; M54x0.75-M48x0.75 (M48x0.75 filter thread inside)

Package Included:
- 1 x Flattener

Askar 0.8x Triplet Full-frame Reducer

Description:
- The 0.8x reducer can bring Askar 140APO's focal ratio down to F5.6. This is a standard reducer with field flattening capabilities as well. A shorter focal ratio allows the OTA to have a wider field of view and faster exposure times, making it suitable for shooting large areas of nebulae, star clusters, and faint, fast-moving celestial objects.

- The 0.8x reducer adopts a triplet design and supports a 44mm full-frame image circle. The overall weight is 0.75kg. The back focus from the M48 thread is a standard 55mm. The front thread is M92x1. At the camera end, it is equipped with M54x0.75 and M48x0.75 two sizes of adapters, which are convenient for connection. At the same time, it has a built-in M48x0.75 2-inch filter thread, which can be directly installed and used.  The overall CNC machined, both end threaded metal caps prevent ash when not in use.

Specification:
- (After attaching) 140APO Focal length: 784mm
- (After attaching) 140APO Focal ratio: f/5.6
- Lens number: Triplet design
- Back focus: 55mm (from the base of M48 male thread)
- Weight: 0.63kg
- Rear-end thread type: M54x0.75; M54x0.75-M48x0.75 (M48x0.75 filter thread inside)

Package Included:
- 1 x Reducer
