AstroFrog FT-20 High Precision Harmonic Equatorial Mount 30KG Load Dual 20-100 Type Harmonic Reducer

Introduction:
- FT-20 is a double 20 type heavy-duty harmonic equatorial instrument, with a main structure made of 8mm thick square tube CNC machining. It is equipped with 20-100 type harmonic reducers for both right ascension and declination, and a stable integrated adjustment base for 0-90 degree. With a load capacity of up to 20-30kg and a speed ratio of 375:1, it provides strong support for large telescopes and heavy equipment.

Key Features:
- Equipped with laser polar axis as standard, heavy-duty dual speed universal configuration, capable of bearing heavy loads stably throughout the entire range, reliable and efficient stargazing. Load capacity of 20kg (without counterweight) and 30kg (with counterweight), providing strong support for large telescopes.
- Built-in mechanical home, standard mechanical limit, cost-effective choice, solid safety protection. All scene adaptation, convenient operation, safe and stable, reliable and durable.

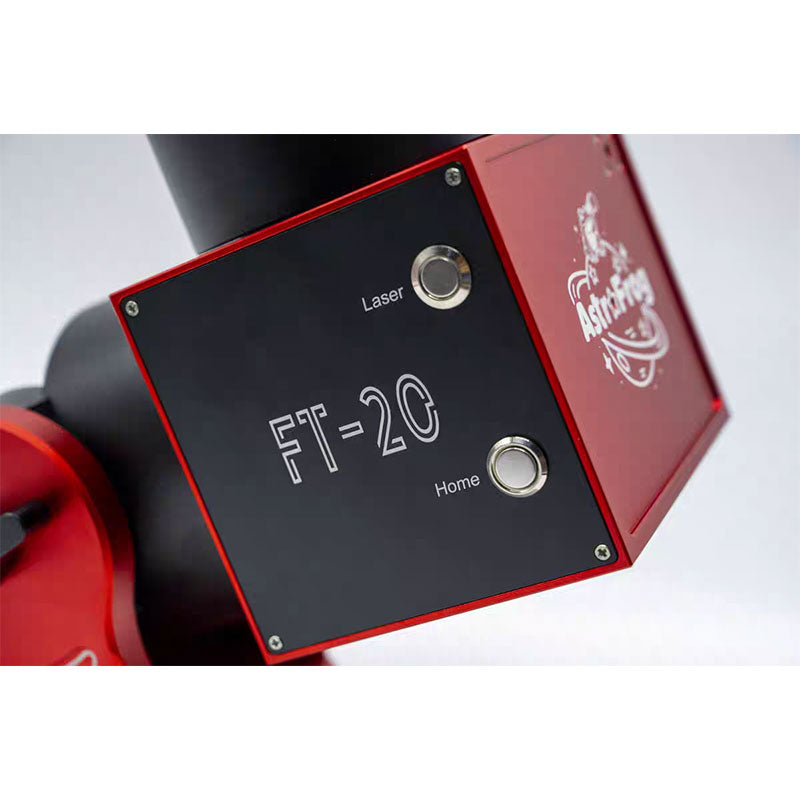

- The peripheral intelligent control button integrates functions quickly, with clear operation logic and worry free one click control. The multifunctional buttons on the shell support laser switch, button reset to zero position, power switch, etc.

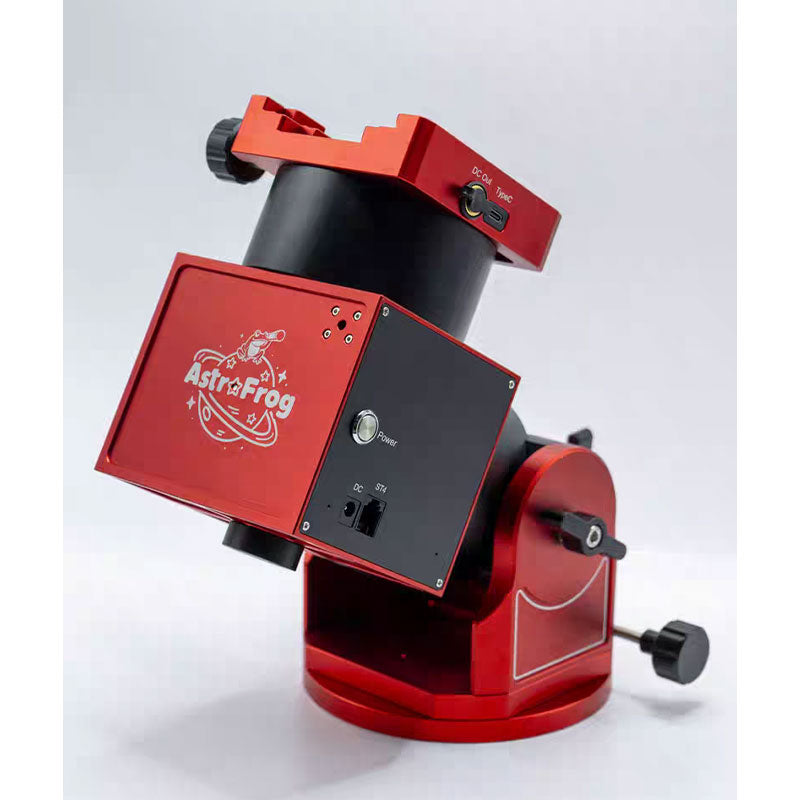

- Integrated dovetail wiring, integrated power interface, winding protection design, efficient and convenient observation. The equatorial mount has a dove tail slot with power and data interfaces, multiple types of button layouts, and a complete range of interfaces.

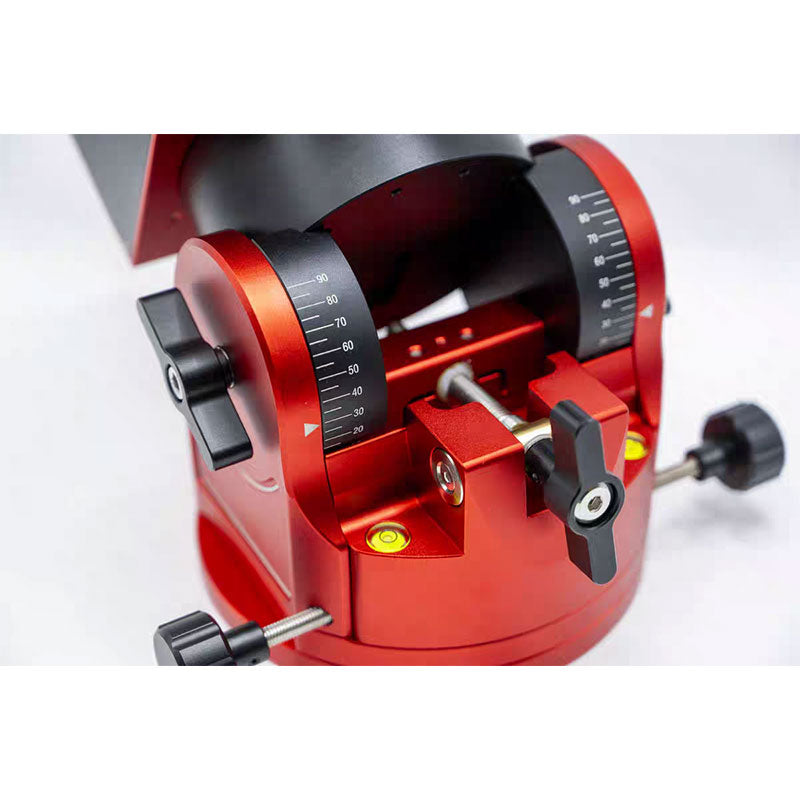

- The latitude base supports a large range adjustment of 0-90 degrees at once, without the need for a second flip, making the operation simple and convenient. Global stable load-bearing capacity, reliable and efficient stargazing, adapting to the observation needs of different latitudes around the world.
- Thoughtful packaging: Customized sponge lined carrying case, supporting placement at any latitude from 0-90 degrees, making your outdoor transportation more worry free.

Specification:
- Model: FT-20
- Main structure: 8mm thick square tube CNC machining
- Latitude base: 0-90 degree stable adjustment base
- Reducer model: right ascension 20 - 100
- Net weight: 7.9kg
- Load capacity: 20kg (without counterweight) - 30kg (with counterweight)
- Brake: right ascension axis motor damping brake
- Zeroing: mechanical home
- Limit: mechanical limit
- Reducer lifespan: 15000 hours
- Laser polarity: support
- Dovetail slot: DC interface x 1, USB interface x 1, wide and narrow dual slots
- HOME button: support
- Speed ratio: 375:1
- Control system: for ONSTEP
- Communication interface: Bluetooth, WiFi, USB, ST4
- Power supply: 12V DC5521

Package Included:
- 1 x FT-20 Equatorial Mount
- 1 x 12V DC5521 Power Cable
- 1 x USB Type-C Data Cable
- 1 x Carrying Case
- 1 x User Manual
