Introduction:

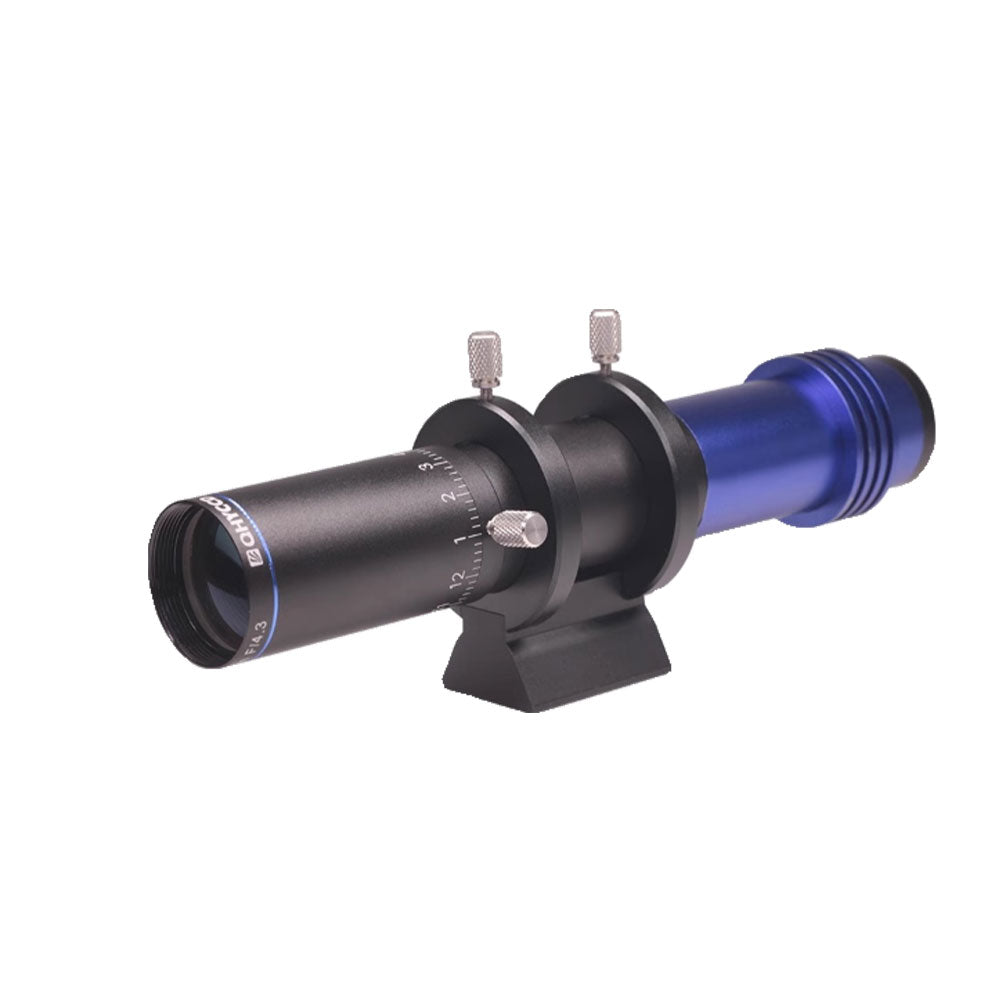

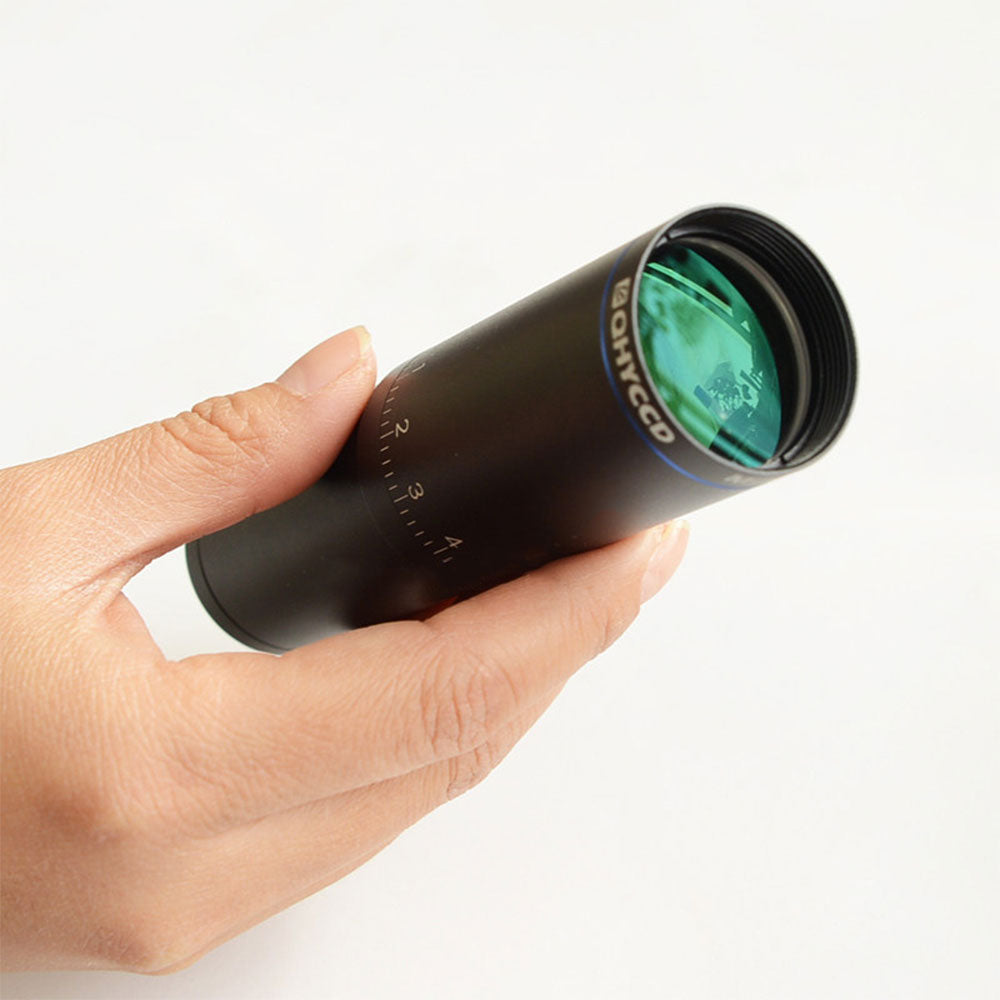

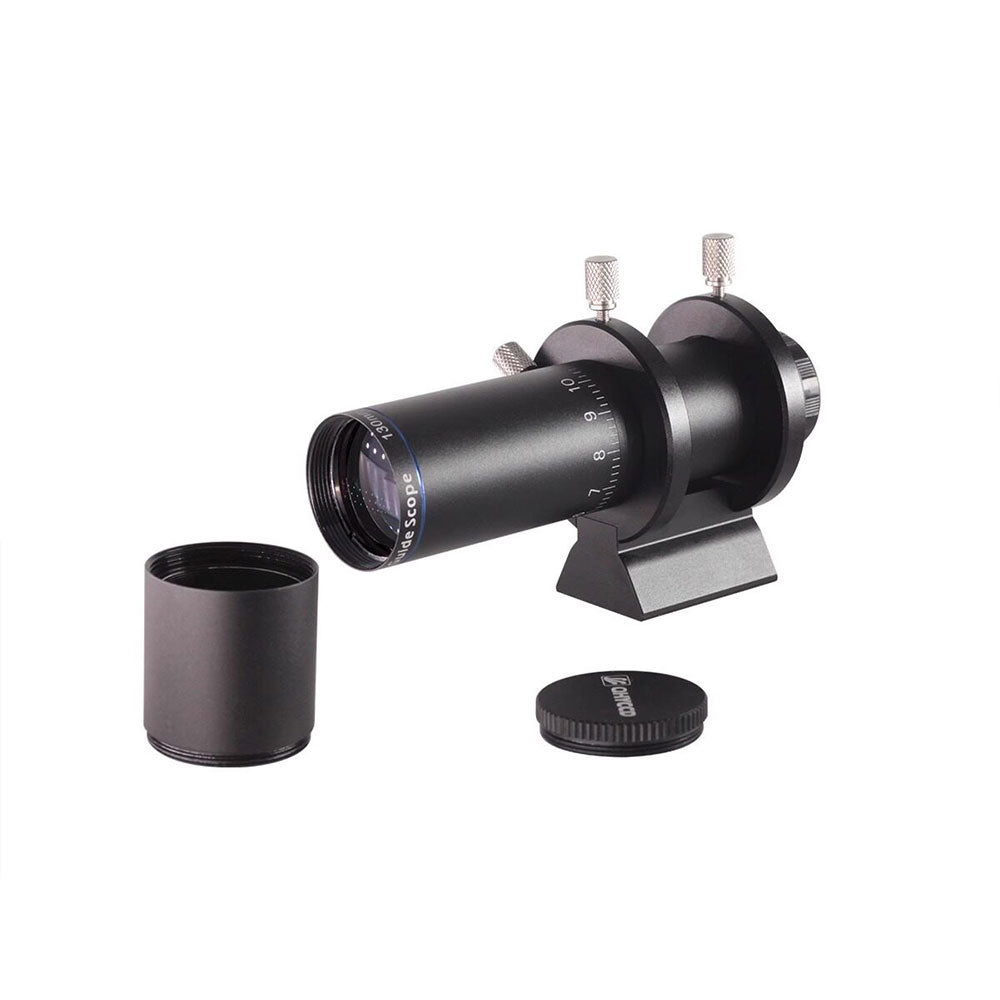

- The mini guide scope can be adapted to guide cameras and adopts a front threaded focusing design with locking screws, greatly simplifying the focusing mechanism without losing accuracy. Engrave numbers on the front focusing ring for easy memory of the focal position. Even short screws can be used to permanently lock the focus, once and for all. The focal length of the mini guide scope is 130mm, with a diameter of 30mm. It weighs only 120 grams. By using broadband anti reflective film achromatic lenses, the imaging quality is sharper than when using telephoto industrial lenses. The sharp star points are conducive to feedback errors and improve star guidance accuracy.

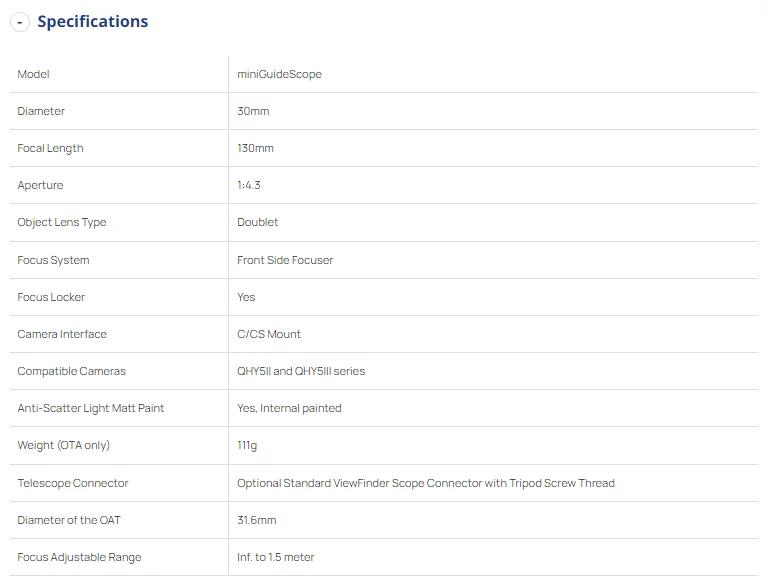

Specification:
- Model: miniGuideScope
- Diameter: 30mm
- Focal length: 130mm
- Aperture: 1:4.3
- Object lens type: doublet
- Focus system: front side focuser
- Focus locker: yes
- Camera interface: C/CS mount
- Compatible cameras: QHY5II and QHY5III series
- Anti-Scatter light matt paint: yes, internal painted
- Net weight: 111g
- Telescope connector: compatible with universal viewfinder scope connector
- Diameter of the OAT: 31.6mm
- Focus adjustable range: inf. to 1.5 meter
Package Included:
- 1 x Guide Scope
