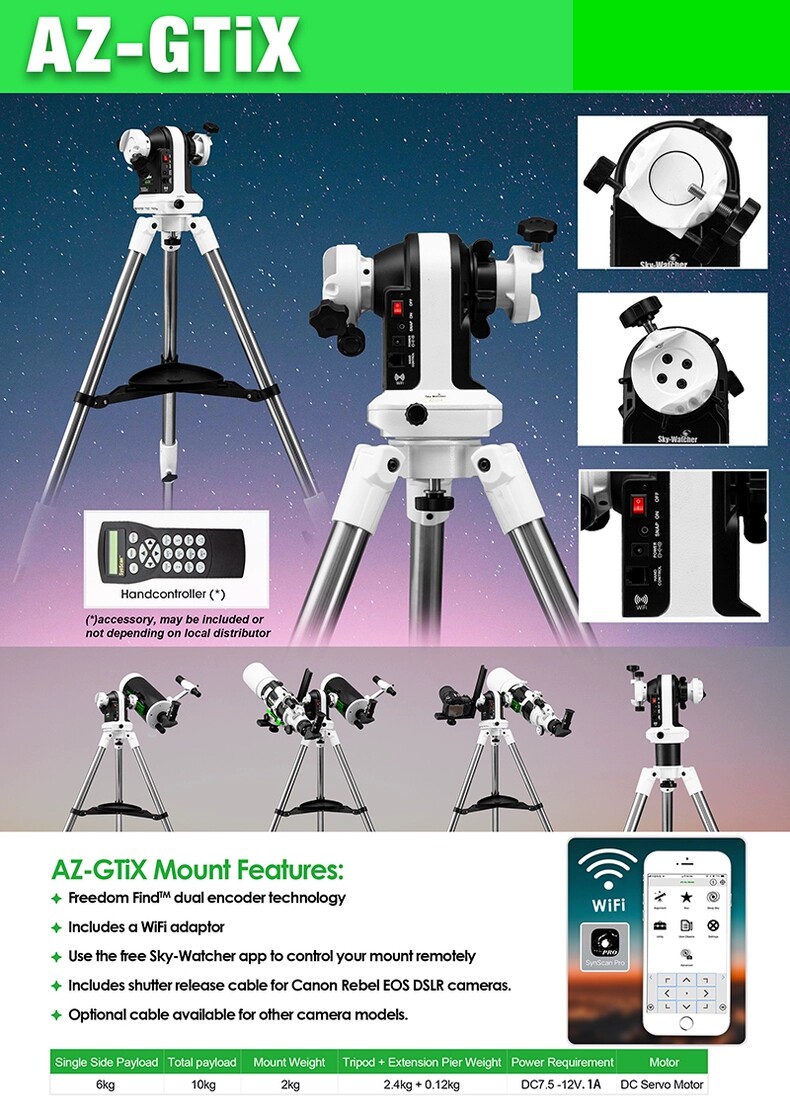

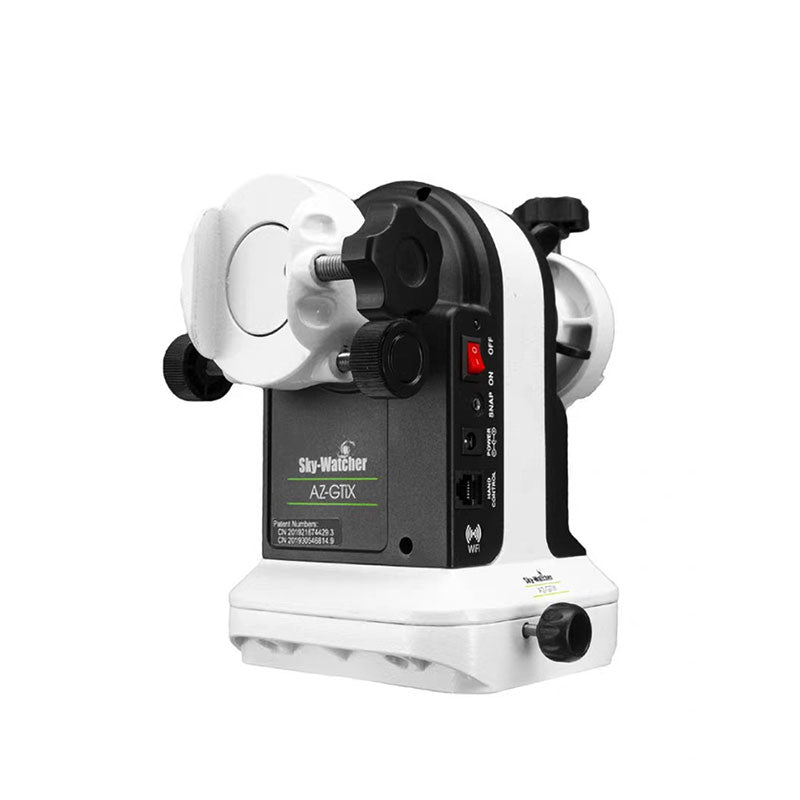

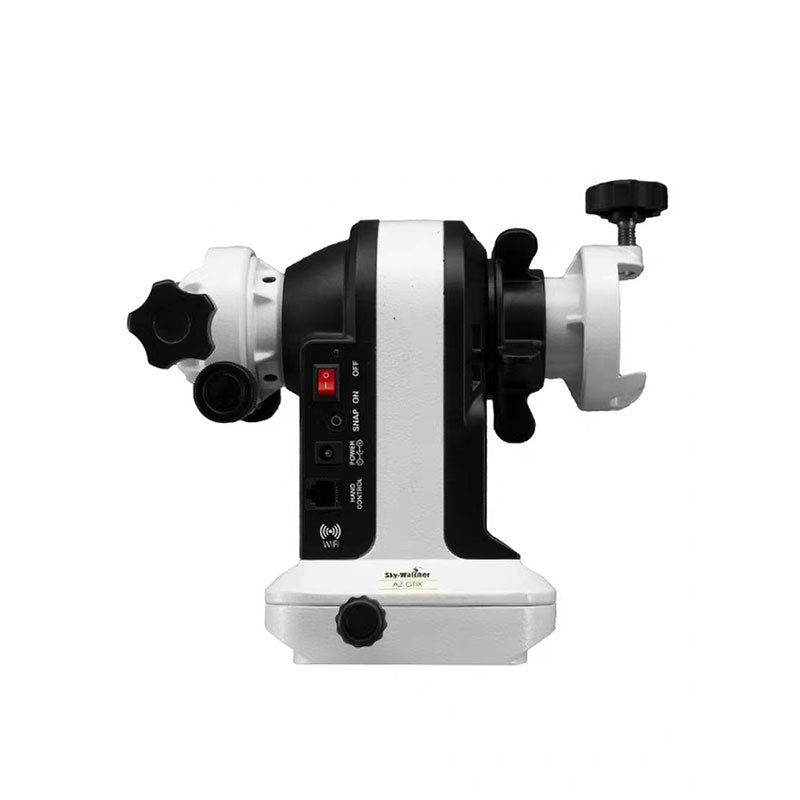

Sky-Watcher AZGTIX Theodolite WiFi Dual Saddle Automatic Star Finding Astronomy Mount
Features:
- Control via Smartphone or tablet via the free SynScan app for iOS and Android mobile devices.
- It can also be controlled via Synscan Hand Controller (available separately).
- SynScan app database has 10,000+ objects, including 10759 deep-sky-objects, including Messier, NGC, IC, Caldwell catalogues, named DSOs, named Stars: 305, Double Stars: 55, Solar system objects: 7 planets, Sun, Moon. (Unlimited objects when working with a 3rd party planetarium software).
- SynScan App Alignment Method: Brightest Star Alignment, North-Level Alignment.
- SynScan App's Other Features: Tonight's Best Sky Tour, Point and Go with a mobile device, Identification of Celestial Objects, Remote control over the Internet, User defined objects, Pointing Accuracy Enhancement (PAE).
- Pointing Accuracy: up to 10 arc-minute (RMS)
- Resolution: 2073600 Counts/Rev., 0.625 arc-second
- Resolution of Aux. R.A./Dec. Axis Encoders: 1068 Counts/Rev., approx. 20 arc-minutes
- For Freedom-Find™ Dual-Encoder Technology
- Tracking Rates: Sidereal, Lunar, Solar, Alignment-Free Solar Tracking
- Slewing Speeds: 0.5X, 1.0x, 8.0x, 16x, 32x, 64x, 128x, 400x, 800x
- Tracking Mode: Dual Axis Tracking
- Motor: DC Servo Motor, Gear Ratio 6480
- Payload Capacity: 10kg Total Payload, 6kg Total Side Payload

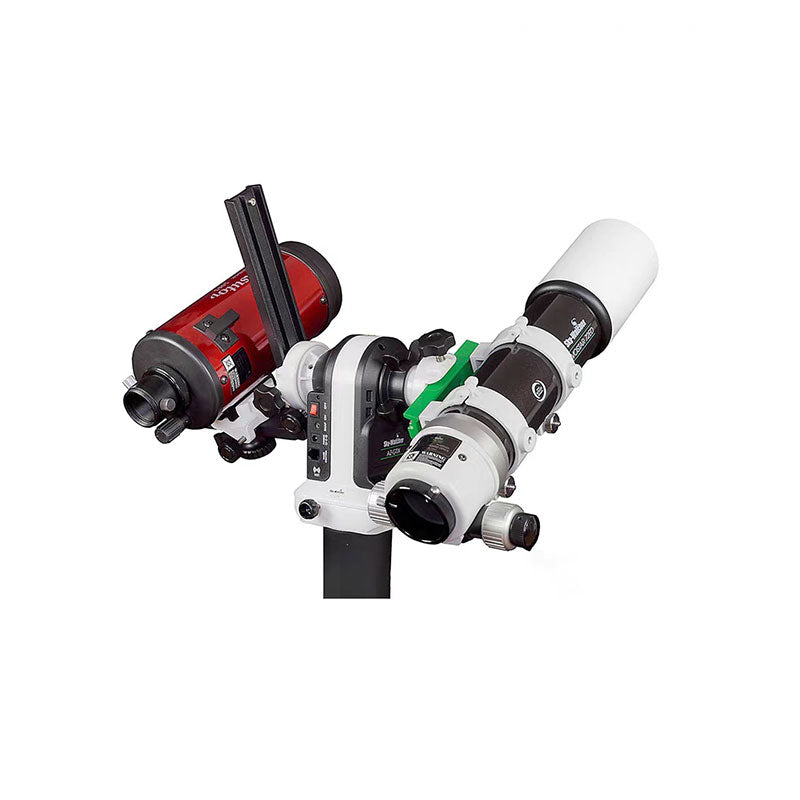

- 45mm Sky-Watcher/Vixen-type dovetail saddles.
- Interface: SynScan Hand Control Port, DSLR Shutter Release Port (optional cables available separately), built-in Wi-Fi module.
- Connectivity: ASCOM platform for Windows PC, Mobile planetarium App for iOS and Android (SkySafari Plus/Pro, more are coming).
- Network Protocol: UDP, Port 11880
- 3/8" Tripod Bush
- Height of Tripod/Mount (excl. OTA): 100cm - 139cm
- Mount Head Weight: 2kg
- Power Requirement: 8 AA-size batteries or external power supply DC 7.5~14V, 1A, tip-positive (not supplied).
Package Included:
- 1 x Theodolite

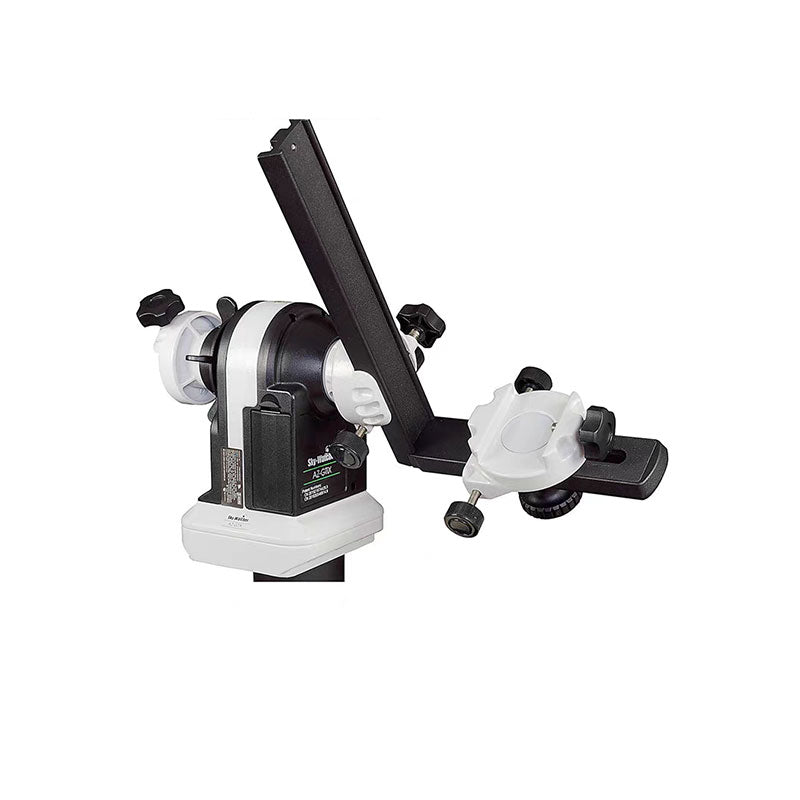

- 1 x L-Bracket
- 1 x Short Column
Note:
- The battery is not included.
