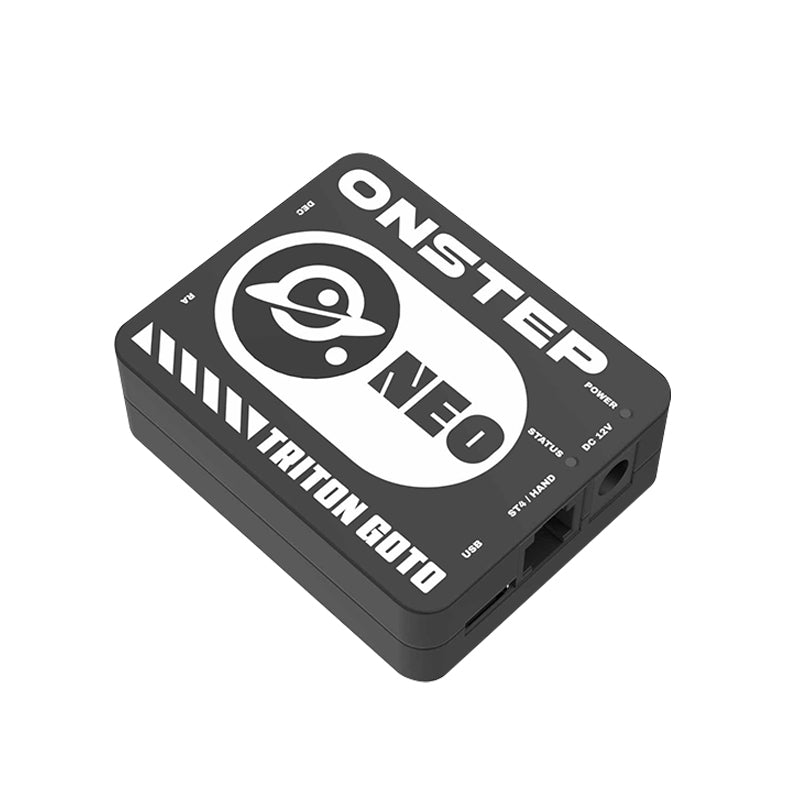

TeSeek TRITON GOTO NEO Compact ONSTEP Main Controller Astro Auto Finderscope Controller Equatorial Mount Tracker

Introduction:
- It is designed for DIY harmonic equatorial mount users, and the main controller uses Dynamic Braking technology to brake in a timely manner in case of unexpected power failure of the equipment; Support electronic home memory and external mechanical limit, quickly recover from power failure, and effectively prevent the equatorial mount from kicking.

- Multiple connection control methods, multi platform compatibility: Supports USB/WiFi/Bluetooth/ST4 communication, supports control from terminals such as mobile phones, computers, handheld controllers, industrial control and astronomical boxes. Supports for NINA, ASIAIR, and ToupTek Box, compatible with astronomical control platforms and protocols for ASCOM and INDI.

- TRITON GOTO's self-developed mobile and computer apps come with built-in star maps and one click automatic star finding. Without the need for other apps, target selection and GOTO control can be completed, allowing beginners to quickly get started. Support for Android, iOS, and Windows.

- TRITON GOTO's self-developed exclusive matching APP allows for one click adjustment of transmission parameters without the need to flash motherboard firmware, making equatorial mount configuration adjustment easier and reducing the difficulty of secondary development. Even beginners can easily get started.

- The volume is only 52x64.5x20mm, which is extremely mini in size. Coupled with the newly upgraded CNC aluminum alloy integrated molding shell, the structure is more compact and solid. Innovative hidden antenna design with no exposed physical antenna.

- The new stepper motor drive scheme and software and hardware architecture further unleash the powerful potential of TMC2209 drive, balancing the delicate and smooth low-speed tracking with the strong output of high-speed GOTO. The firmware and hardware design are deeply optimized for the use scenarios of harmonic equatorial mount and theodolite, supporting mode switching between equatorial and theodolite, which is more user-friendly than the original version.

- Compared to the common CH340 series solutions, the use of CP2102 serial port chip can further enhance the stability of USB connection and data communication. The USB port is designed with ESD protection circuit, which can further reduce the probability of disconnection and interference during the control of the equatorial instrument on the PC end.

- TRITON GOTO uses original ESP32 chip modules and does not use third-party chip modules, ensuring the main control performance, wireless connection signal quality, and stable and reliable long-term operation from the core hardware.

- TRITON GOTO-NEO equipped with StealthShop™ With SpreadCycle™ Drive algorithm, supporting dynamic switching of drive mode, drive current, and drive subdivision, balancing high-precision tracking and high torque of GOTO.

Specifications:
- Control system: deep customization based on OnStepX & MaxESP4
- Main controller size: 52 x 64.5 x 20mm
- Motherboard size: 48.5 x 61mm
- Power supply interface: DC5.5x2.1mm (12V)
- Motor drive: TMC2209 UART high precision stepper motor drive x 2
- Communication method: USB/WiFi/Bluetooth/ST4 (hand-controller & guiding)
- Expansion interface: mechanical limit interface x 3, one click home button interface x 1
- Software support: TRITON GOTO (for Android/iOS/Windows)

Package Included:
- 1 x Main Controller
- 1 x Type-C Cable
- 2 x Silicone Motor Cables
