TeSeek LED Intelligent ONSTEP SHC GOTO Hand Controller V3 with 1.3-inch OLED for Astronomical Telescope
Verfügbarkeit für Abholungen konnte nicht geladen werden
Specifications
Brand
Product type
Technical specs
Design and durability
TeSeek LED Intelligent ONSTEP SHC GOTO Hand Controller V3 with 1.3-inch OLED for Astronomical Telescope
Description:

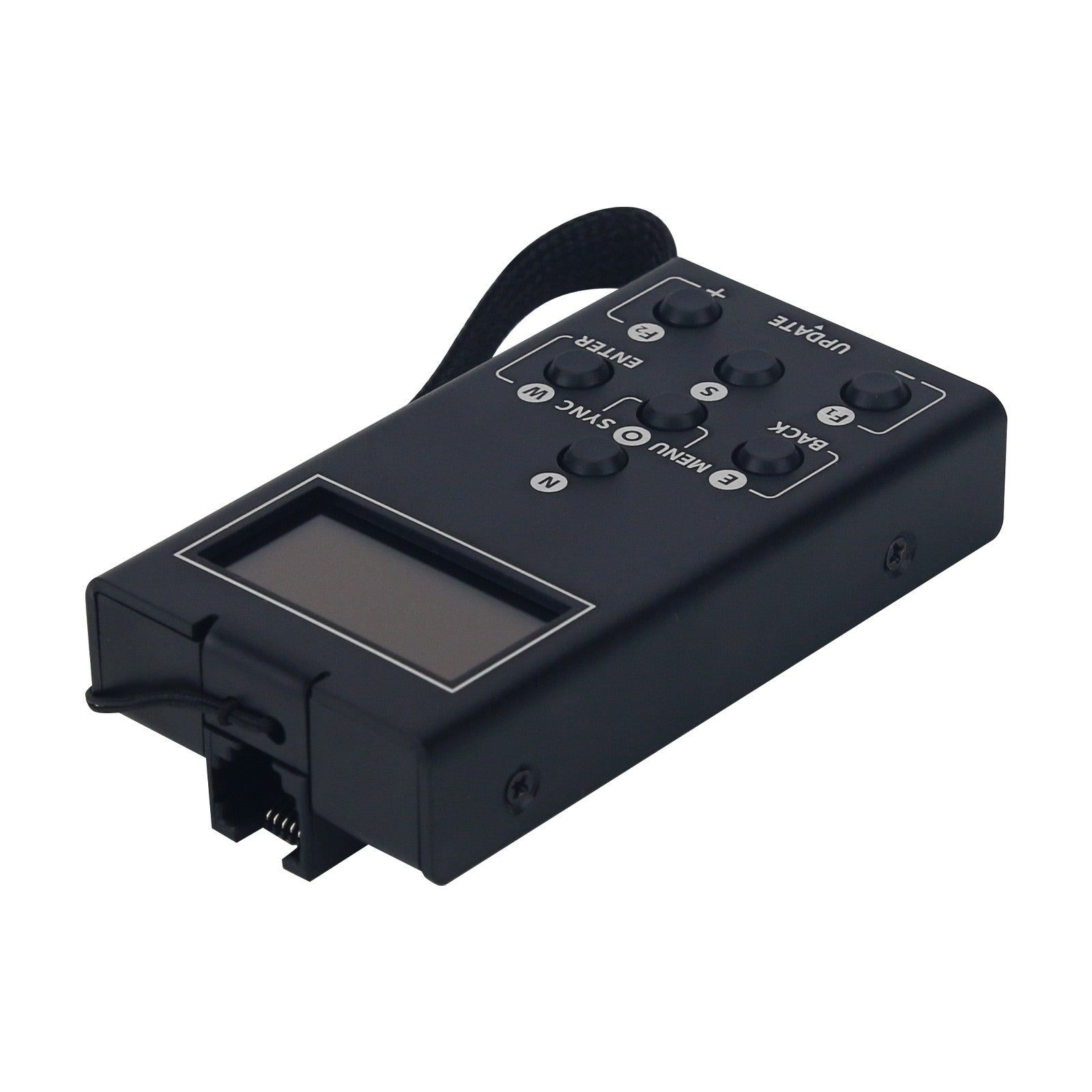

- The hand controller is designed based on official OnStep hardware and software, therefore in theory the controller should work with other equatorial\alt-az mounts and equipment that follow the original OnStep design standards. The hand controller by default is designed to communicate with OnStep devices via the onboard ST4 port. The OnStep devices compatible with this hand controller must meet the following hardware and firmware requirements:
ST4 Port Pin-map:

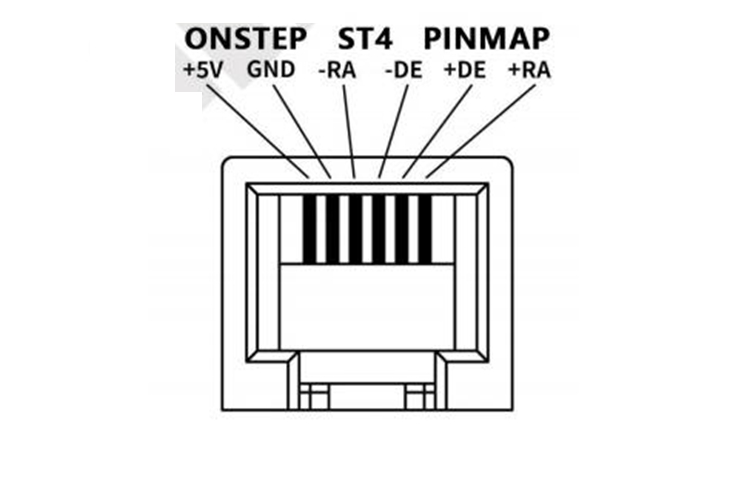

- The OnStep device must include an ST4 port, and the +5V pin must be connected. Otherwise, the hand controller will not be able to draw power from the ST4 port. The official pin-map of ST4 defined by OnStep is shown below, which should be carefully verified and strictly adhered to.
ST4 Cable:

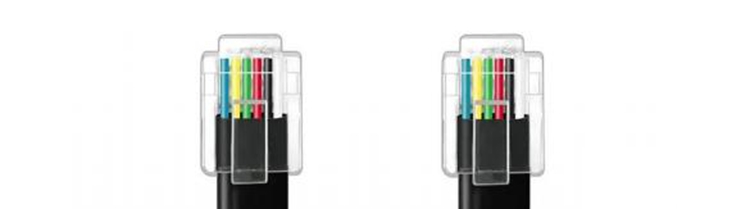

- The hand controller uses the standard RJ12 6P6C ST4 guiding cable which should have identical wiring order on both ends, as shown below:
OnStep Firmware Configuration:
- ST4 port and the support for hand controllers must be enabled in the OnStep firmware to use the hand controller. Configure the two following macro definitions in Config.h:
#define ST4_INTERFACE ON //Enable ST4 port
#define ST4_HAND_CONTROL ON //Enable support for hand controllers
Features:
- Aluminum alloy shell.
- 1.3-inch OLED screen (red LED/white LED is optional).
- Silicone rubber button, comfortable to press.

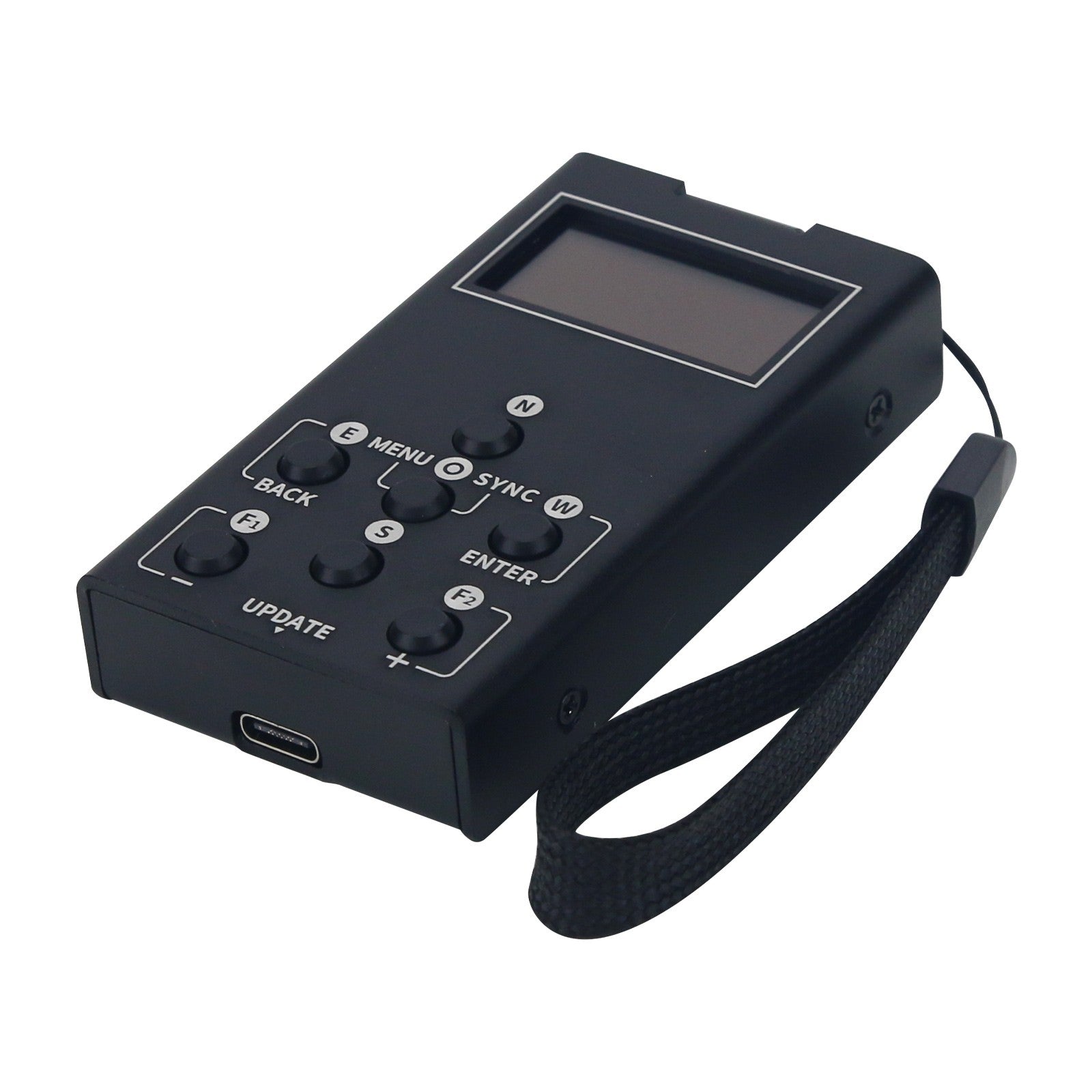

- Type-C programming, convenient to use.
- Mini size of 40x80x15mm.
- Based on deep optimization of the original ONSTEP controller firmware.
- Optimize display layout: Optimize UI style according to the text characteristics of Chinese to enhance the display effect of Chinese.
- Add practical functions: Refactor the main menu and adjust common functions such as zeroing to the first level menu; Added equatorial/theodolite mode switching, convenient and fast.
- Localization of the entire star catalog: Matching Chinese star names for stars brighter than magnitude 4 one by one to meet observation needs.
- The integrated firmware upgrade function is more convenient to upgrade: the controller reserves a TYPE-C interface for firmware upgrade, which can be used in conjunction with a self-developed APP, bidding farewell to tedious compilation environment configuration and redefining a new way of firmware upgrade.

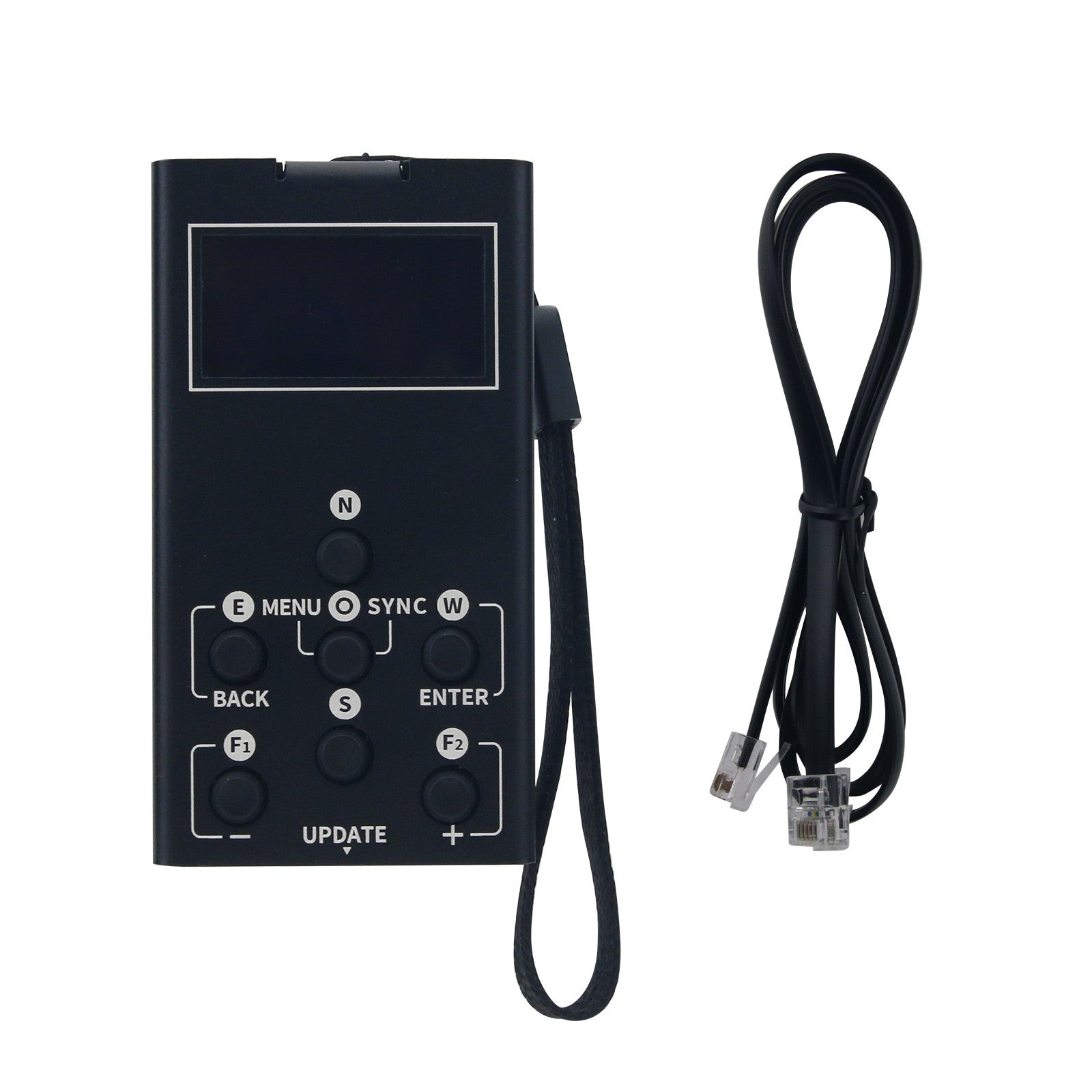

Package Included:
- 1 x Hand Controller
- 1 x ST4 Cable
