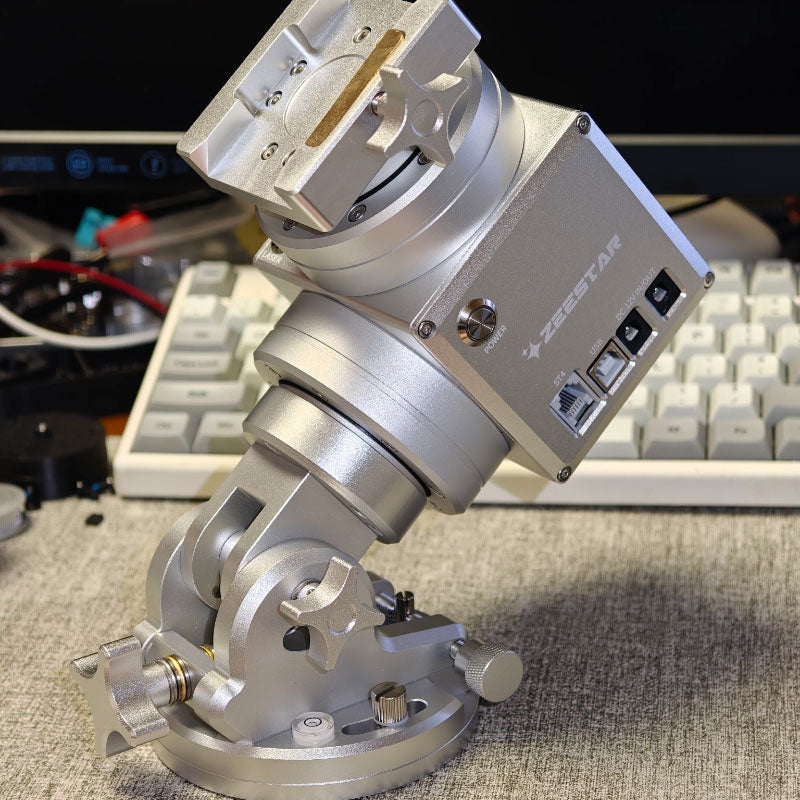

ZEESTAR X14 Harmonic Equatorial Mount 6KG Load Capacity with Vixen Narrow Dovetail Slot
No se pudo cargar la disponibilidad de retiro
Specifications
Brand
Product type
Technical specs
Design and durability
Specifications:
- Material: aluminum alloy CNC anodizing oxidation
- Right ascension transmission system: new high-precision domestic 14 harmonic reducer
- Declination transmission system: new high-precision domestic 14 harmonic reducer
- Driving motor: high precision stepper motor
- Tracking precision: industry equivalent level
- Net weight: about 3kg
- Dovetail slot: vixen (narrow)
- Load capacity: 7kg / 12kg (with counterweight)
- Typical application: 80 aperture refractor, DSLR lens
- Control system: universal ONSTEP (support astronomy box/PC control)
- Power supply: DC 12V x 2
- Dovetail slot hub: no
- Communication interface: ST4, USB Type-B
- Wireless communication: Bluetooth
- Right ascension power-off brake: electromagnetic damping power-off braking
- Counterweight thread: M12
- Base interface: 3/8 inch thread, M6 thread x 3 (compatible with AM5)
- Theodolite mode: support
- Polar axis lens installation: support for iOptron iPolar electronic polar axis lens (not included)
- Laser polarization axis: built-in right ascension laser
Package Included:
- 1 x Equatorial Mount
- 1 x USB Connection Cable
- 1 x Storage Bag
- 1 x Counterweight (diameter of 10mm)
FAQ:
Q: What is the guiding accuracy of the equatorial mount?
A: The measured average can reach around 0.5-0.7. However, due to the excessive external factors that affect the accuracy of the guiding star, no guarantee is made for the accuracy of the guiding star. Only under normal conditions (equipment not overweight, no wind, accurate polar axis, etc.) can a single exposure of 600 be guaranteed without dragging the line.
Q: Does it have mechanical zero and mechanical limit functions?
A: There are no mechanical zero and limit functions.
Q: Does it support theodolite mode?
A: Support, simply switch using specific software after connecting to the PC. If you need the theodolite mode, please contact customer service in advance to pre flash the 10.2 version onsite firmware before shipment.
Q: Why does it need dovetail slot hub?
A: After integrating the power output and equatorial data port into the dovetail slot, all cables of the entire machine except for the power input will move synchronously with the dovetail slot, greatly reducing the situation of pulling cables due to the movement of the lens barrel.
