TeSeek Mini Dual-axis 14 Harmonic Equatorial Mount with 3D-Printing Shell 10KG Load Capacity Support for ZWO Box and NINA
No se pudo cargar la disponibilidad de retiro
Specifications
Brand
Product type
Technical specs
Design and durability
TeSeek Mini Dual-axis 14 Harmonic Equatorial Mount with 3D-Printing Shell 10KG Load Capacity Support for ZWO Box and NINA
User Manual:
https://teseek.comseek.com/download/95856_TeSeek_Mini_14_User_Manual.pdf
Features:
- The 2.5-generation double 14 harmonic design has been adopted, and a motor with higher torque has been replaced, which can carry a load of 10kg without the need for a counterweight.
- Supports for ZWO box and NINA, but NINA debugging is very complicated. For NINA users also suggest getting a second-hand ZWO first generation box to use.
- The guiding camera accuracy of 0.5-0.8 is within the normal range.
- C8 or 200F4 can be used for planetary photography. If high precision is required for deep space photography, we recommend using for Askar 103APO, Sky Rover 102APO, Sky Watcher 150 F4 version, RC6, and all camera lenses.
- The laser can definitely align with the shaft within 5 minutes of use. Do not keep it on for too long as it is prone to overheating and damage, which is not covered by warranty.
Other Improvements:
- The shell has been changed to all internal wires, which can be directly plugged into the power supply and data port, making it much more convenient than before. The latitude adjustment seat and equatorial instrument have been integrated for greater stability.
Specification:
- Optical system of astronomical telescope: refractive reflection type
- Types of astronomical telescope mounts: equatorial mount
- Main lens aperture: 100 - 200mm
- Counterweight rod dimension: 11mm (diameter) x 15cm (length), suitable for 12mm aperture counterweight (not included)
- Net weight: 2.4kg
- No counterweight load: about 10kg

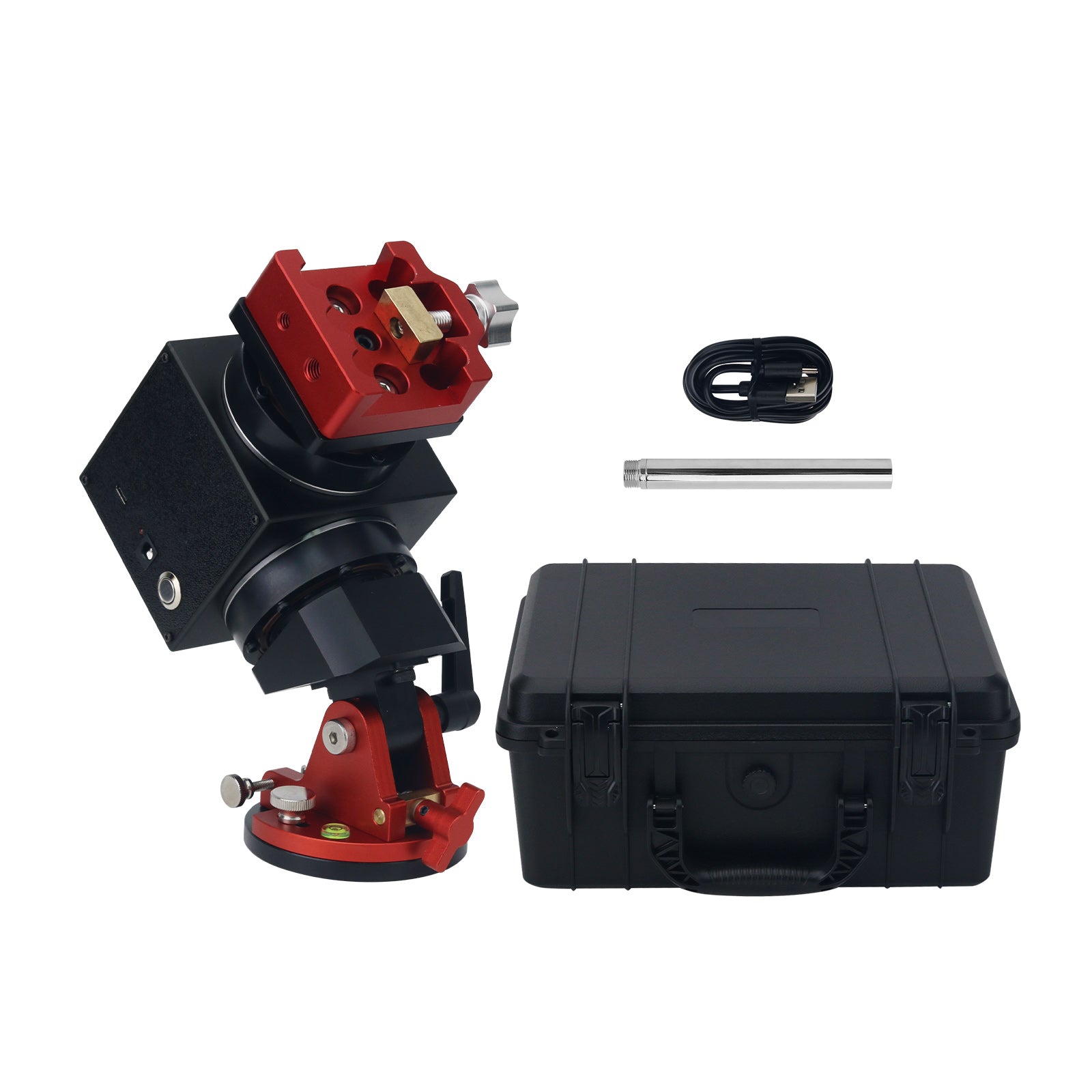

Package Included:
- 1 x Equatorial Mount
- 1 x Counterweight Rod
- 1 x Storage Box
Note:
- The tripod is not included.
