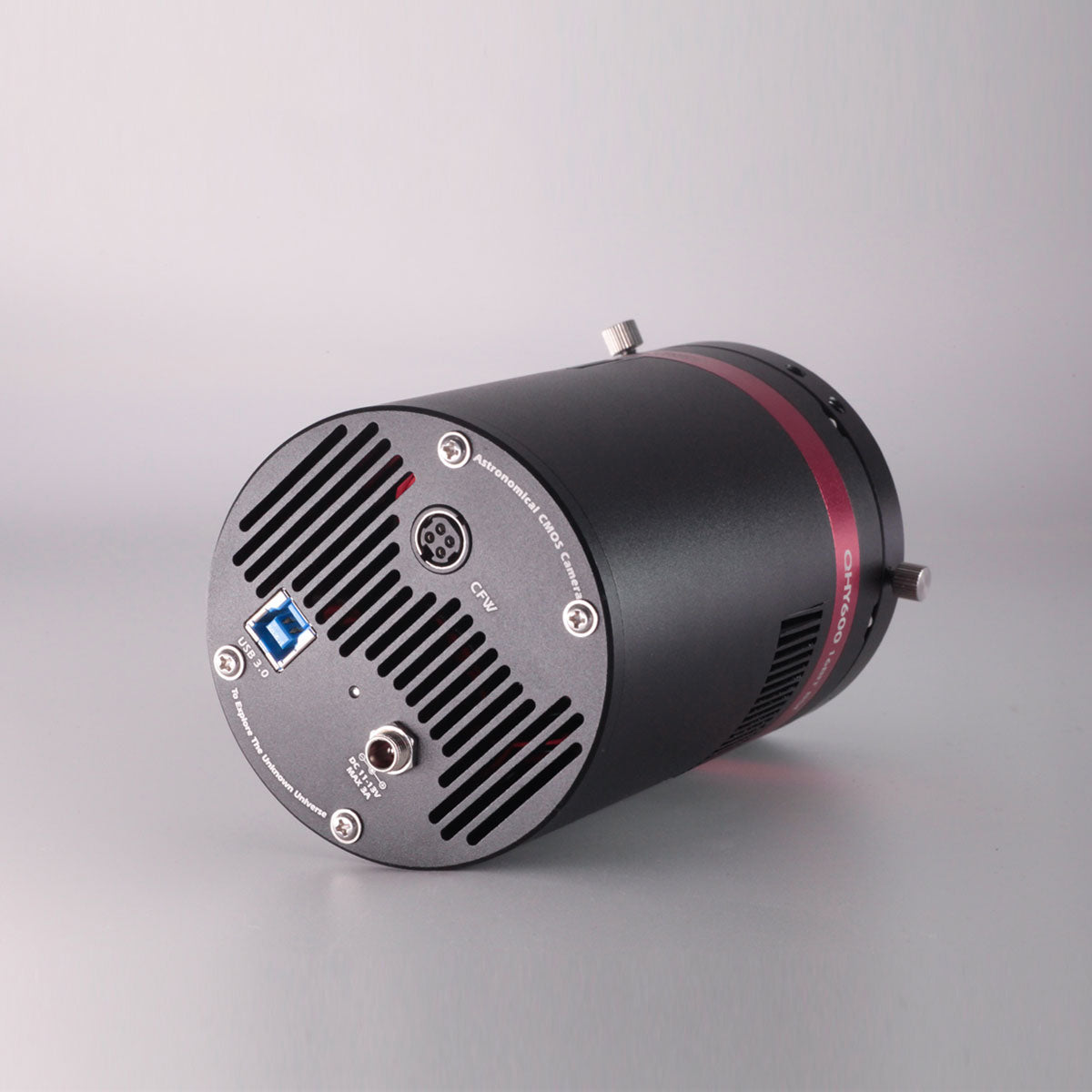

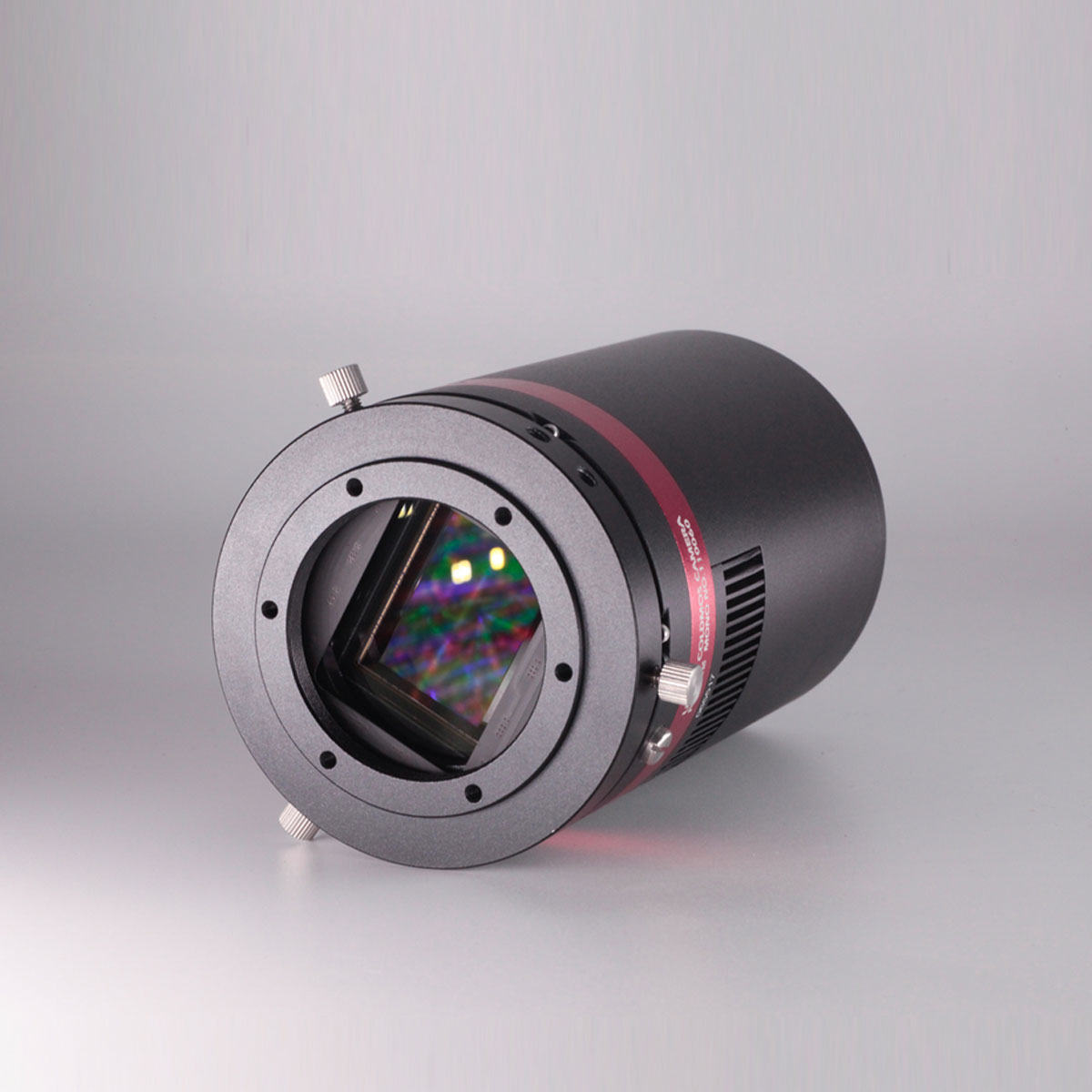

Teseek QHY600M Full-frame Backlight IMX455 Mono Camera 16Bit A/D Cooling Anti-dew Control Astronomical Camera
Specification:
- Model: QHY600M

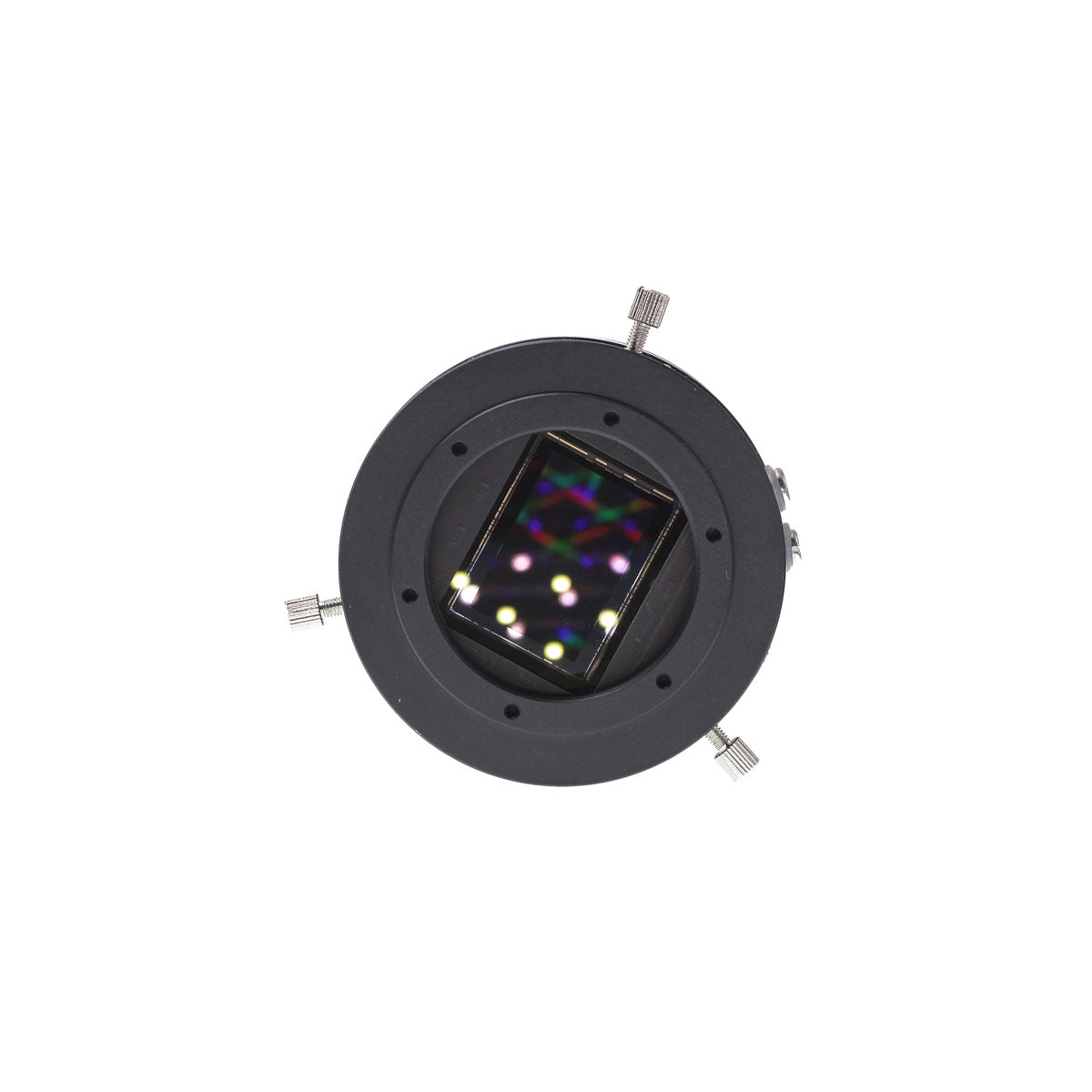

- CMOS sensor: for SONY IMX455
- Mono/color: mono
- FSI/BSI: BSI
- Pixel size: 3.76um x 3.76um
- Effective pixel area: 9576x6388 (9600x6422 with over-scan and optically black area)
- Effective pixels: 61.17Megapixels
- Sensor size: full frame (36mm x 24mm)

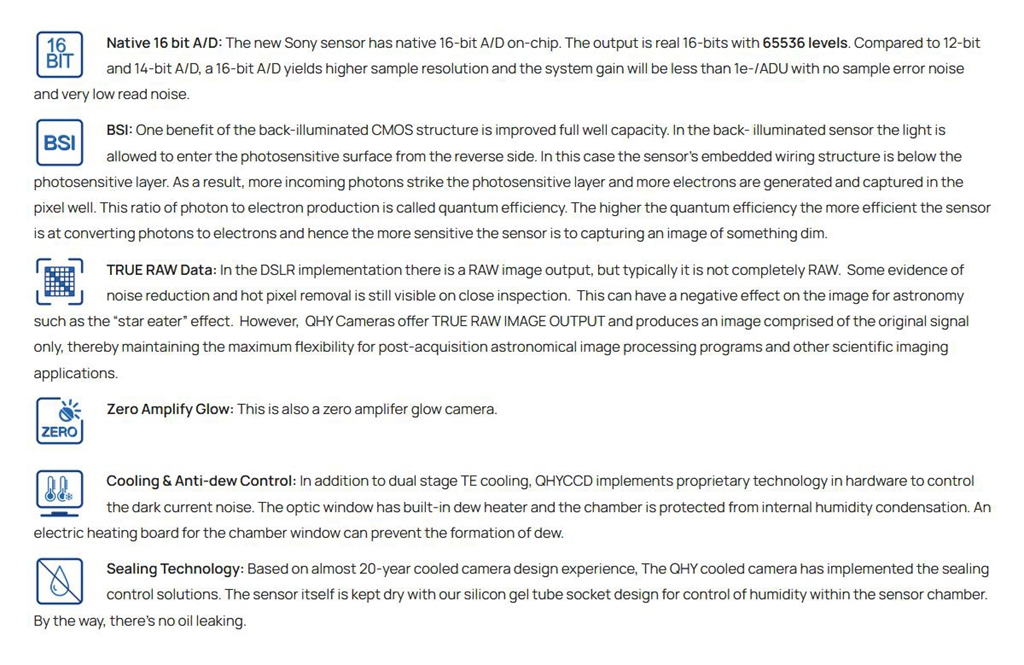

- A/D sample depth: native 16-bit (0-65535 greyscale) A/D

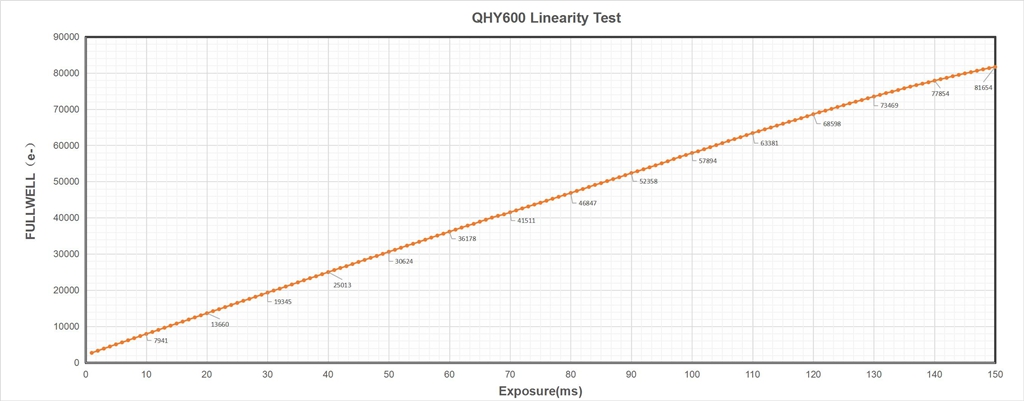

- Full well capacity (1x1, 2x2, 3x3):
Standard mode: >51ke- / >204ke- / >408ke-
Super full well mode: >80ke- / >320ke- / >720ke-
- Frame rate: full resolution: 4.0FPS (8-bit output); 2.5FPS (16-bit output)
- ROI: 7.2FPS at 9600 x 3194, 22.5FPS at 9600 x 1080, 28FPS at 9600 x 768, 47FPS at 9600 x 480, 160FPS at 9600 x 100

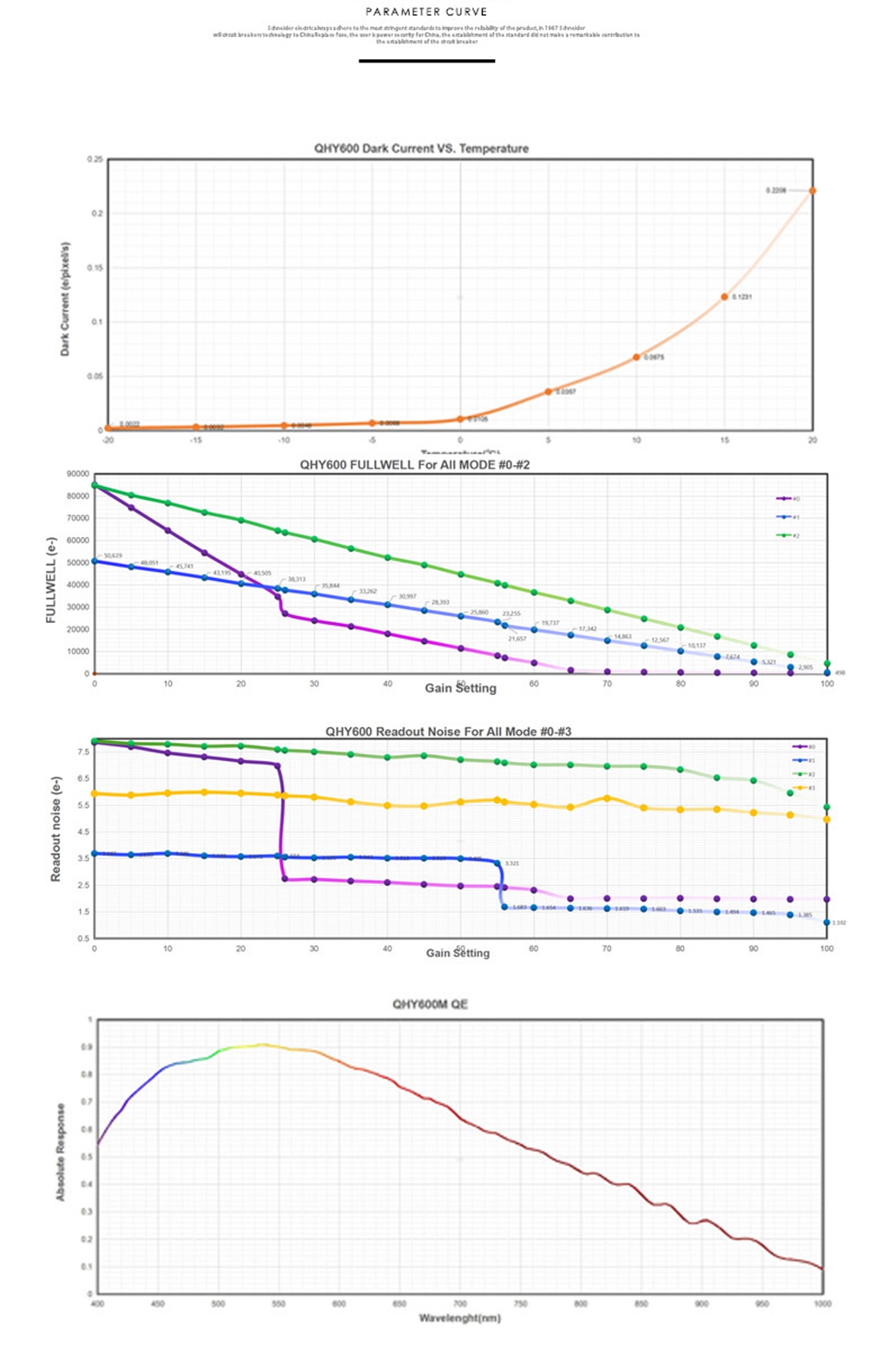

- Readout noise: 1.0e- to 3.7e- (standard mode)
- Dark current: 0.0022e-/p/s at -20℃; 0.0046e-/p/s at -10℃
- Exposure time range: 40us - 3600sec
- Unity gain: 25 (PH Mode, or Extended Full Well Mode); 56 (High Gain Mode)
- Amp control: zero amplifier glow
- Firmware/FPGA remote upgrade: support via camera USB port
- Shutter type: electric rolling shutter
- Computer interface: USB3.0
- Built-in image buffer: 2GB DDR3 memory
- Cooling system: long exposures (> 1 second) typically -35℃ below ambient; short exposure (< 1second) high FPS, typically -30℃ below ambient (Test temperature +20℃)
- Optic window type: AR+AR high quality multi-layer anti-reflection coating
- Anti-dew heater: Yes
- Telescope interface: support M54 or M48 (combined with adapters)
- Back focal length: 17.5mm+6mm (CAA)
- Weight: about 850g
Package Included:
- 1 x Camera
- 1 x Locking Power Cable
- 1 x USB3.0 Cable
- 1 x 12V Power Adapter
- 1 x AV Power Cable
- 1 x M54 to 2” Nosepiece
- 1 x Adapter Kit
- 1 x Drive Download Instruction
