ZWO Portable ASI2600MM-Pro P25 Frame IMX571 Mono Camera USB3.0 16Bit ADC Astronomical Camera

ZWO Portable ASI2600MM-Pro P25 Frame IMX571 Mono Camera USB3.0 16Bit ADC Astronomical Camera

Refined Design:

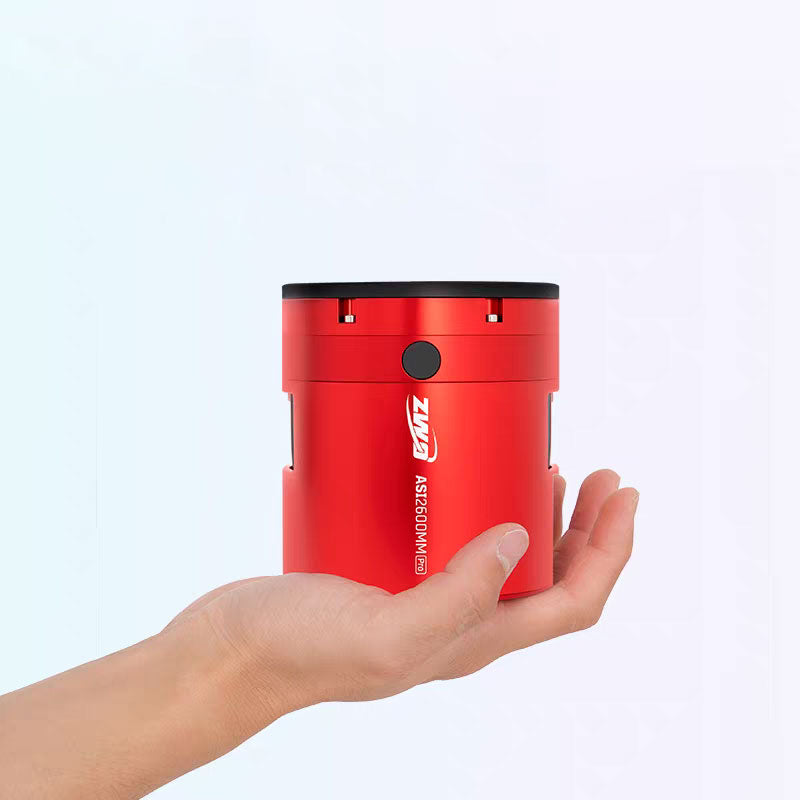

- The body weighs just 0.7kg (1.54 lbs), yet delivers outstanding image performance.

APS-C IMX571 Sensor for Sony:

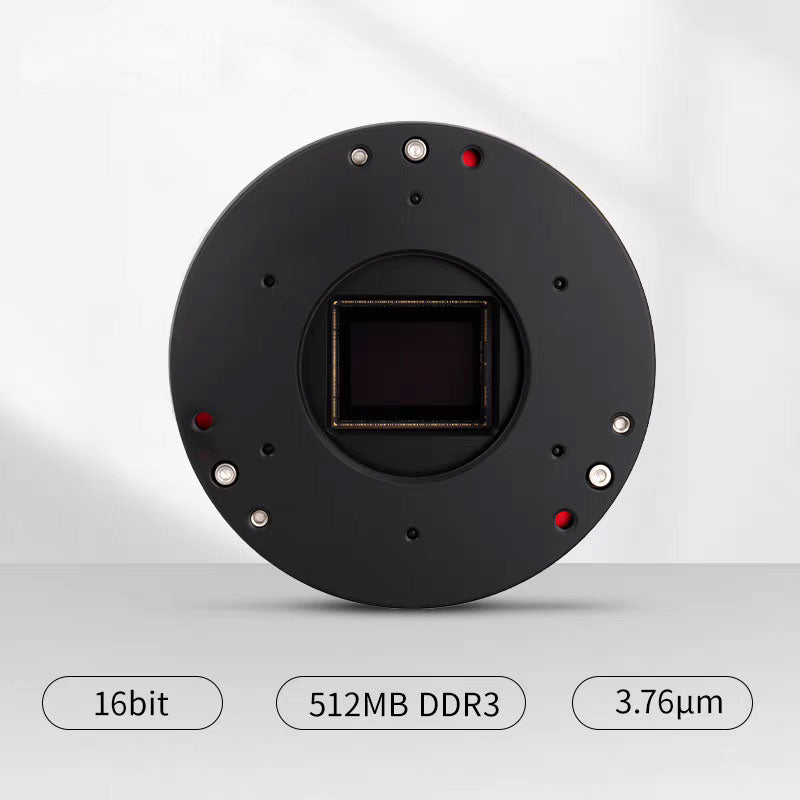

- The ASI2600MM/MC Pro is equipped with the APS-C format IMX571 sensor for Sony, measuring 23.5mm x 15.7mm with a 28.3mm diagonal. It delivers an outstanding resolution of 6248 x 4176 pixels, making it a true 26-megapixel powerhouse. Each 3.76μm pixel offers an impressive full-well capacity of 73ke⁻, ensuring exceptional dynamic range and image quality.

Native 16bit ADC:
- The advanced CMOS architecture of the ASI2600 enables a true 14-stop dynamic range. This ensures exceptionally smooth tonal transitions, richer color gradients, and the ability to shoot both the faintest details and the brightest highlights within a single frame.

Zero Amp Glow:
- As the ASI2600MM/MC Pro uses zero amp glow circuitry, you won’t have to worry about amp glow even when using high gain, long exposure imaging.

Anti-dew:
- The ASI2600MM/MC uses a built-in polyimide heater bonded to the protective window, preventing dew and frost for clear, reliable imaging all night long.

USB 3.0 & 512MB DDR3 Memory:
- The ASI2600MM/MC Pro incorporates a high-speed USB 3.0 interface paired with a dedicated 512MB DDR3 memory buffer. This architecture minimizes data loss and latency, delivering fast, stable, and secure transmission even during long exposures and continuous high-resolution shooting.

Sensor Tilt Adjustment:
- The camera incorporates a tilt plate with three sets of adjustment screws. In combination with the three mounting screws, they enable precise fine-tuning of the sensor plane for accurate alignment with the telescope’s optical axis, ensuring a flat imaging field and consistent star shapes across the entire frame.

Two-stage TEC Cooling:
- Thanks to its two-stage TEC cooling system, the ASI2600MM/MC Pro can reduce the CMOS sensor temperature by 30°C-35°C below ambient, significantly lowering dark current and sensor noise even during long exposures.
- The ΔT of 35°C is measured at 30℃ ambient temperature.

Camera Performance:
- The ASI2600MM/MC Pro achieves a dynamic range of up to 14 stops. When the gain setting reaches 100, the HCG (High Conversion Gain) mode is automatically enabled, which substantially reduces readout noise while preserving dynamic range. For optimal deep-sky imaging performance, a gain setting of 0 or 100 is recommended.

QE Value:
- The QE peak value of the ASI2600MC Pro camera is 80%.

Ultra-low Dark Current:
- The ASI2600MM/MC Pro adopts advanced dark current suppression technology. At a cooling temperature of 0 °C, the dark current is only 0.0022e⁻/s/pix, which means that even with a 5-minute (300s) exposure, the total dark current noise is just 0.7e⁻—lower than the readout noise. At –20 °C, the dark current drops further to 0.00012e⁻/s/pix, making it virtually negligible.

Package Included:
- 1 x Camera
