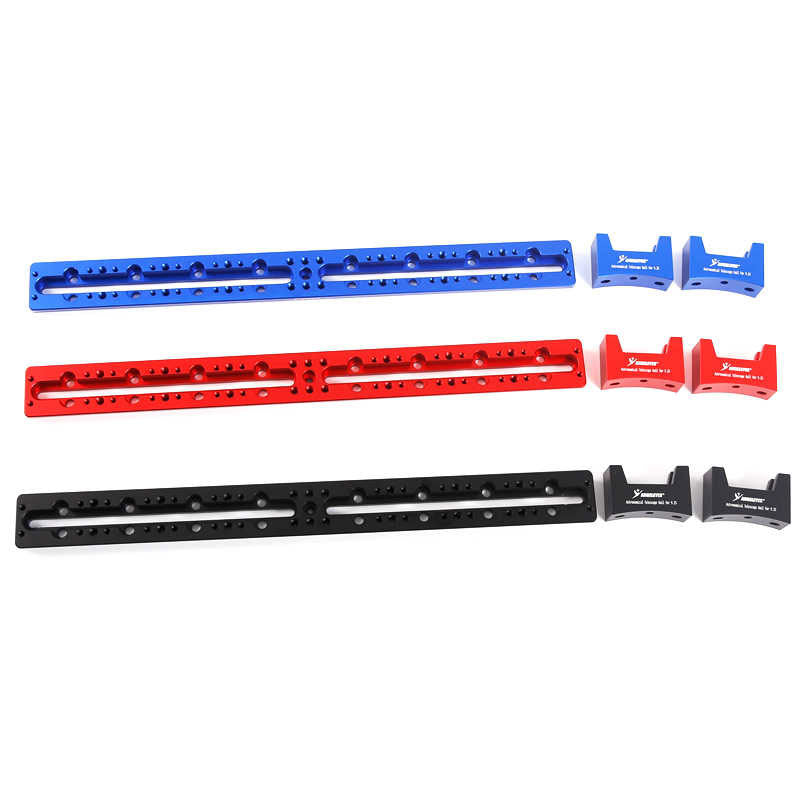

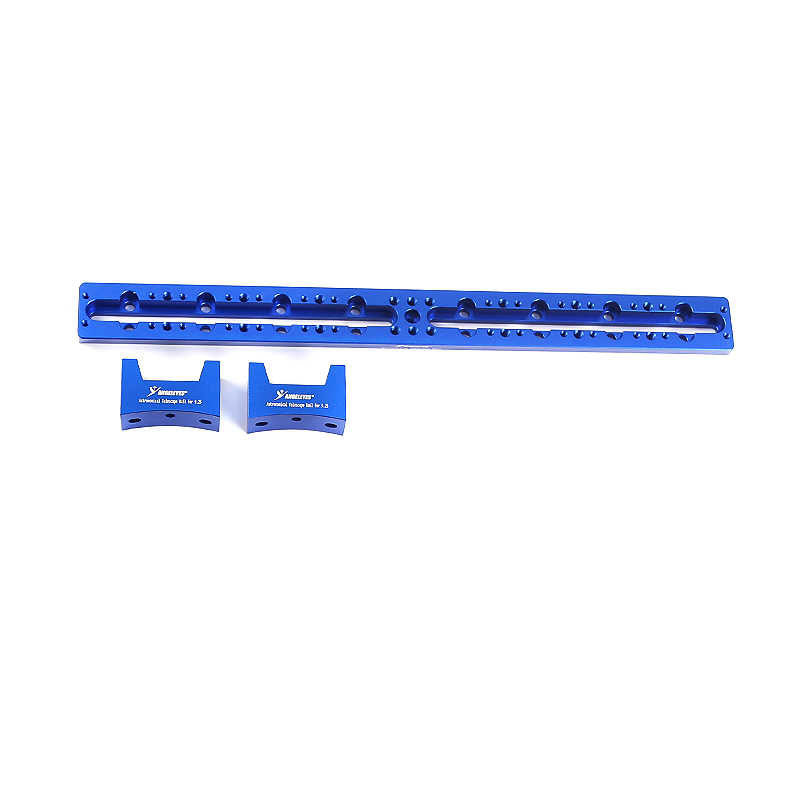

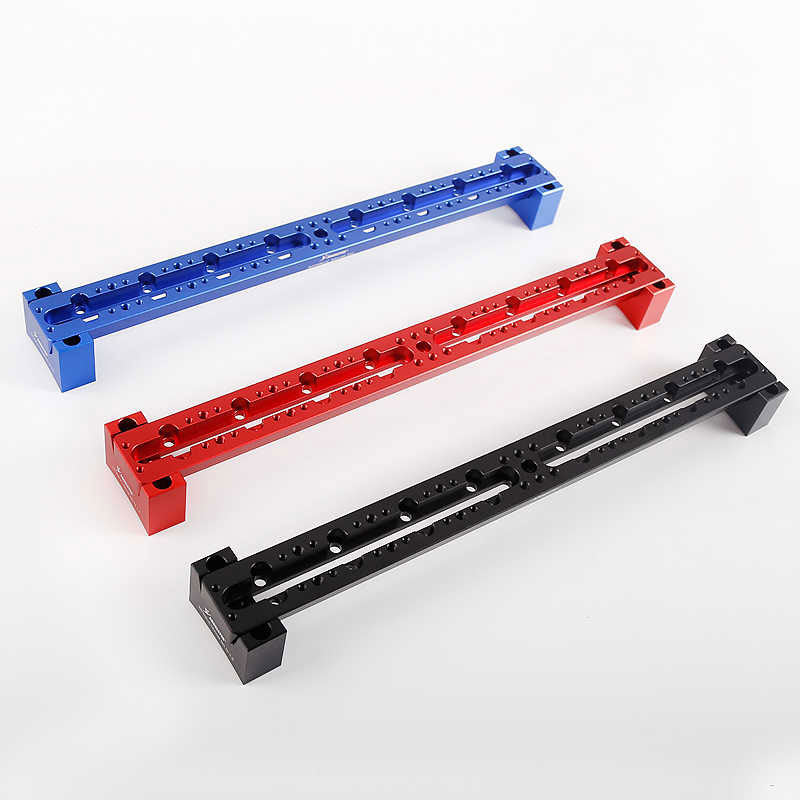

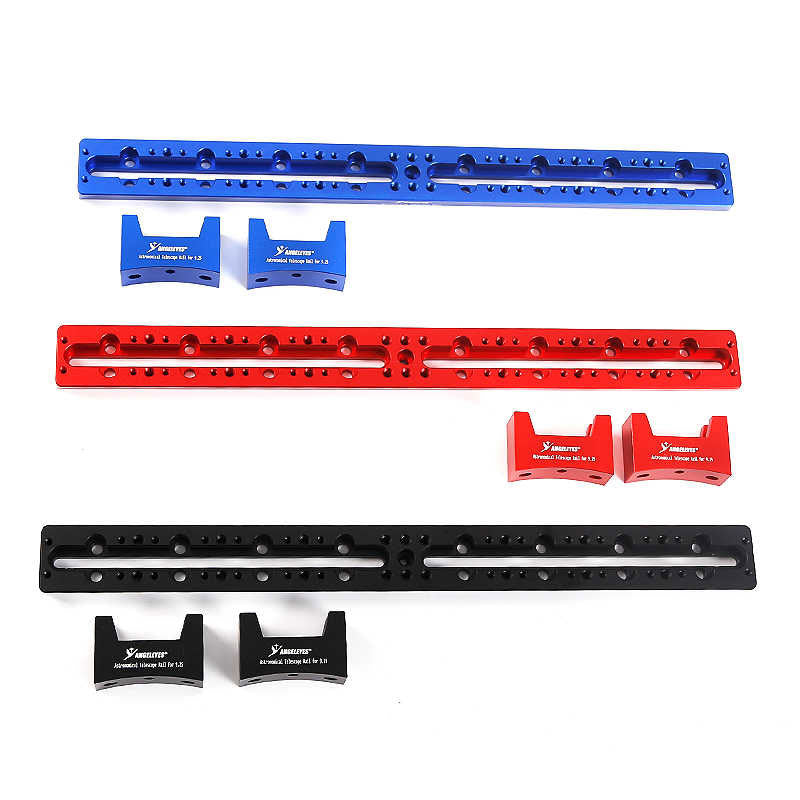

Angeleyes XY-230802 17.3" Dovetail Plate Dovetail Mounting Plate (Blue) for Celestron C925/C925HD
Impossible de charger la disponibilité du service de retrait
Specifications
Brand
Technical specs
Design and durability
Angeleyes XY-230802 17.3" Dovetail Plate Dovetail Mounting Plate (Blue) for Celestron C925/C925HD
Precautions for the installation of the base of the dovetail plate:
1. Remove the screws on your tube and replace them with the long screws delivered. The original screws are put away for future backup. C925/925HD have one screw on the objective lens end and two screws on the eyepiece end.
2. Twist the screw by hand first. The screw you used may be wrong if it cannot be all screwed in or cannot be screwed after a few turns. Please not continue to install the screw.
3. For the end with two screws, when you are tightening the screws, please not tighten the screw on one side at once. Tighten the screws evenly several times. If you tighten the screw on one side at one time, the screw on the other side may not be tightened. Or the screw on the other side can not be screwed all the way in, which will lead to a safety hazard.
Description:
The dovetail plate set is suitable for installing guide scopes, ZWO guiding boxes, finderscopes and other accessories on the primary mirror of C925/C925HD for Celestron. It can also be used as a carrying handle, but please be careful to use it safely.
It is easy to reach when the dovetail mounting plate is used as a carrying handle. It can be used as a carrying handle because the screws have enough strength. However, in the process of practice, the handle may fall off and cause losses if the bolts used are too short, the number of teeth used is less, the tooth is slippery, and the bolts are not processed and the strength is not enough. Users should install it correctly, check before use, and use this product with caution (users with a heavier tube are not recommended to use this product as a handle for the primary mirror)!
Product parameters:
- Item name: Dovetail plate set (with screws) for C925/C925HD
- Model NO.: XY-230802
- Compatible model numbers: For Celestron C925/C925HD
- Product material: Aluminum alloy + oxide coating
- Product weight: 584g/1.3lb
- Length of dovetail plate: 440mm/17.3"
Package included:
- 1 x Set of Dovetail Plate
Packaging details:
- Weight: 0.7kg
Note:
- The dovetail plate can be used as
a carrying handle. Please use the long screws included to prevent your
primary mirror from slipping off.
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
