AstroFrog FT-17 Astronomical Harmonic Equatorial Mount Theodolite Patent Mechanical Limit Function
Impossibile caricare la disponibilità di ritiro
Specifications
Brand
Product type
Technical specs
Design and durability
AstroFrog FT-17 Astronomical Harmonic Equatorial Mount Theodolite Patent Mechanical Limit Function
Features:
- Laser and power independent switch.
- Patented mechanical limit function.
- Native dual specification dovetail groove, dovetail groove routing design, eliminates your wiring troubles.
- Mature synchronous belt transmission structure, customized low backlash harmonics, with guaranteed accuracy.
- Can be directly installed on 3/8 specification tripods (excluding EQ6R).
Specification:
- Transmission mode: harmonic reducer + timing belt
- Material: anodic oxidation 6061 aluminum
- Right ascension: 42 step motor, 17-type harmonic, 300:1 reduction ratio
- Declination: 42 step motor, 17-type harmonic, 300:1 reduction ratio
- Load: 13kg (without counterweight); 18kg (with counterweight)
- Main unit weight: 5.2kg
- GOTO speed: 2.5°/s
- Electronic polar lens: iPolar /PoleMaster
- Power input: 12 - 15V/2 - 5A
- Power-off brake: right-ascension declination electronic brake, ≥48N*m
- Zeroing: Mechanical Home
- Limit: mechanical limit
- Communication method: USB, BT, WiFi, ST4
- Control system: for ONSTEP
- Tripod connection: 3/8”, M6, TC40

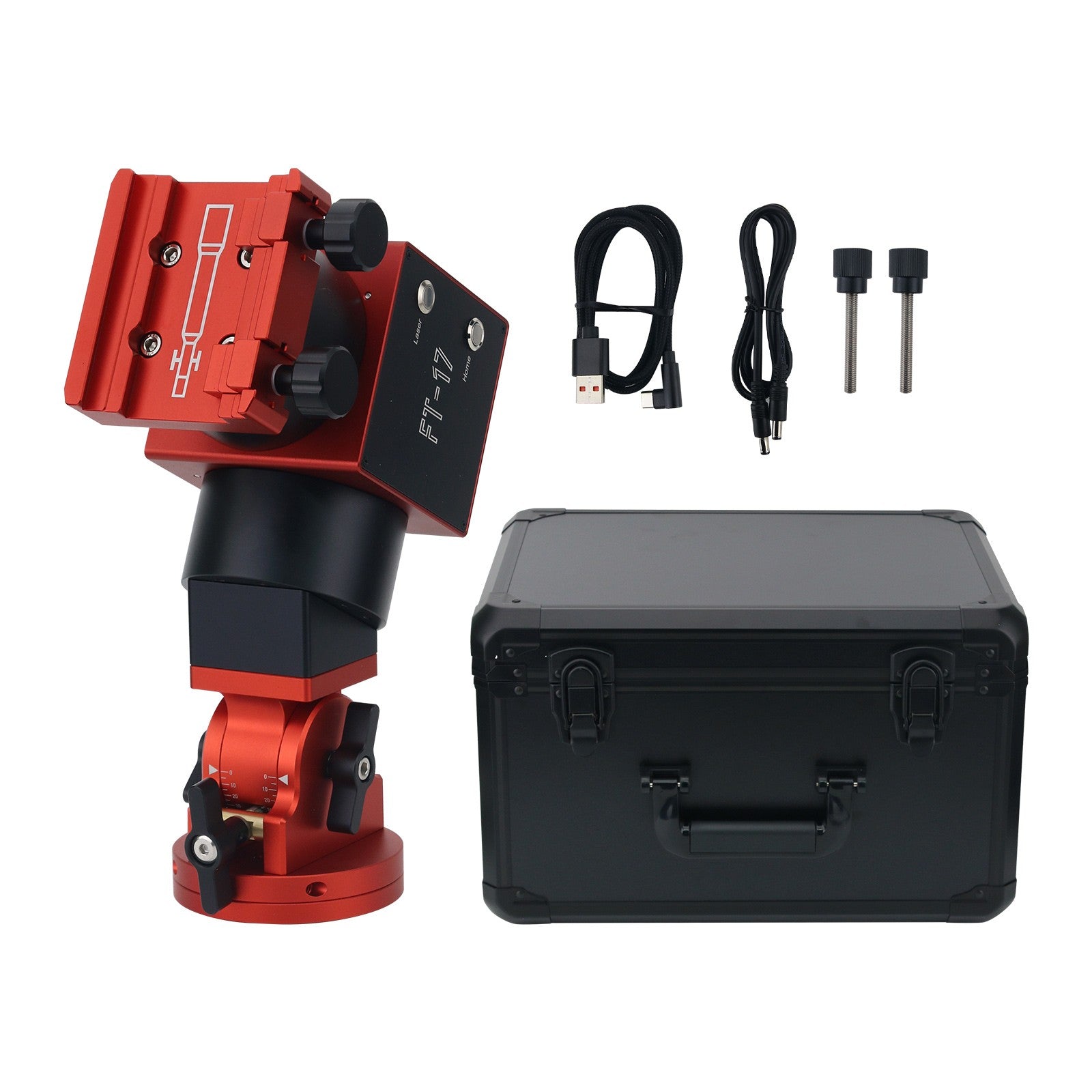

Package Included:
- 1 x Equatorial Mount
