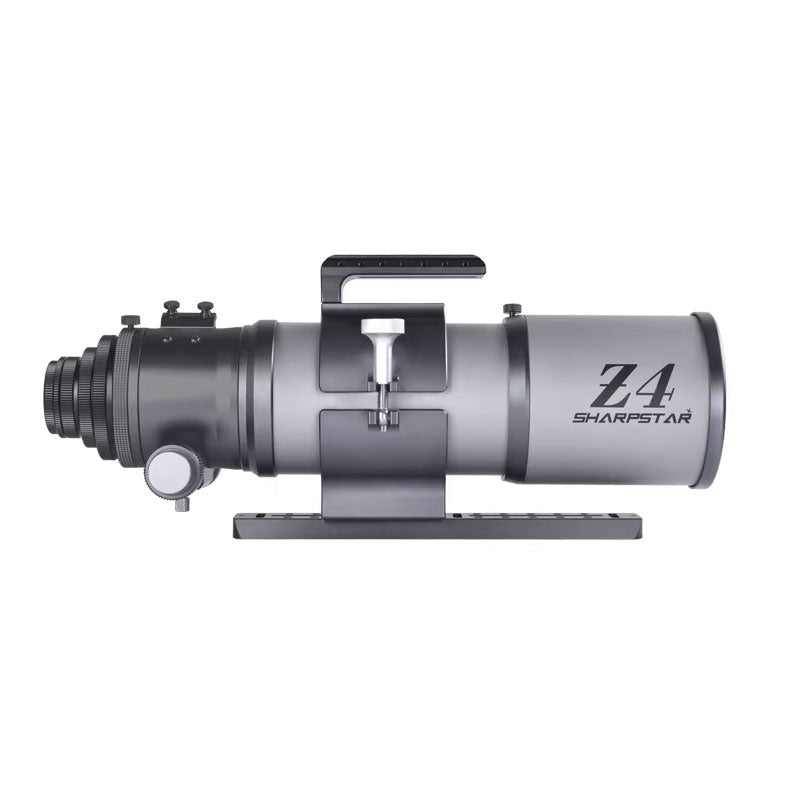

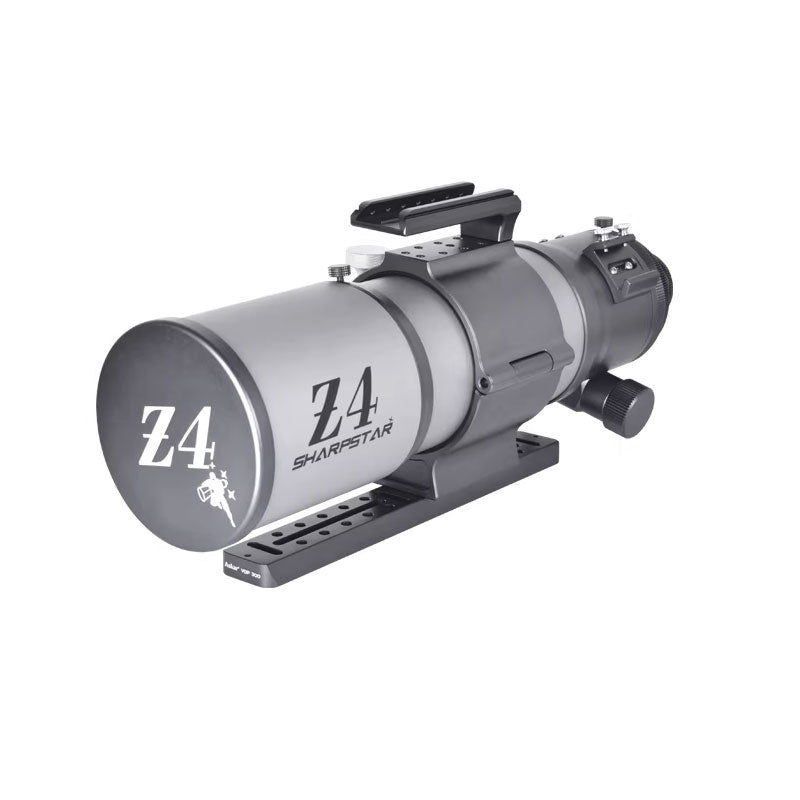

Sharpstar Z4 100mm Aperture F5.5 Professional Astronomical Telescope with 300mm Vixen Dovetail Plate
Description:
- It has an aperture of 100mm and the focal ratio is f/5.5. Z4 is a sextuplet astrograph with three pieces of lens at the front and three pieces at the back, and two of them are ED glasses. Z4 is designed as self-flattened so there is no need to calculate the back focus. You can just make the target stay at the focus, and the optical system is perfect for imaging.
- The appearance of Z4 breaks through the previous style of Sharpstar with its matte gray coating. Light gray lens tube plus dark gray focuser and tube ring, make the astrograph looks calm but vibrant. The tube ring has a handle on the top which is easy to carry and assemble. The handle is designed as a slot on which you can mount a finder base, etc.
- Z4 uses a large 3.4” focuser with a 1:10 fine adjustment knob and a 360° rotator for easy focusing and angle adjustment. It has M86, M68, M54, M48 adapters, and the M48 one has an internal thread that can fit 2” filters. And a 300mm Vixen-style dovetail plate, makes it easier to balance on the equatorial mount.
Key Features:
- 100mm aperture
- 550mm focal length
- Sextuplet air-spaced APO design
- APS frame
- Central RMS radius 3um
- No need for flattener
- No need to calculate the backfocus
- Various adapter
- Retractable lens hood
- 300mm dovetail plate
- Multi-functional handle
- 3.4-inch rack pinion focuser
- 1:10 fine adjustment
Specification:
- Focal ratio: f/5.5
- Objective lens: sextuplet fully air-spaced APO (including two ED glasses)
- Image circle: 36mm
- Total length: 482mm
- Net weight: 4.3kg
- Rear-end thread: M48x0.75 male thread
- Tapered adapter: M86x1-M68x1; M68x1-M54x0.75; M54x0.75-M540.75; M54x0.75-M48x0.75 (with M48x0.75 filter thread)
Package Included:
- 1 x Telescope
- 1 x Tube Ring
- 1 x Dovetail Plate
- 1 x Handle
- 1 x 4-piece Photographical Adapter
- 1 x User Manual
