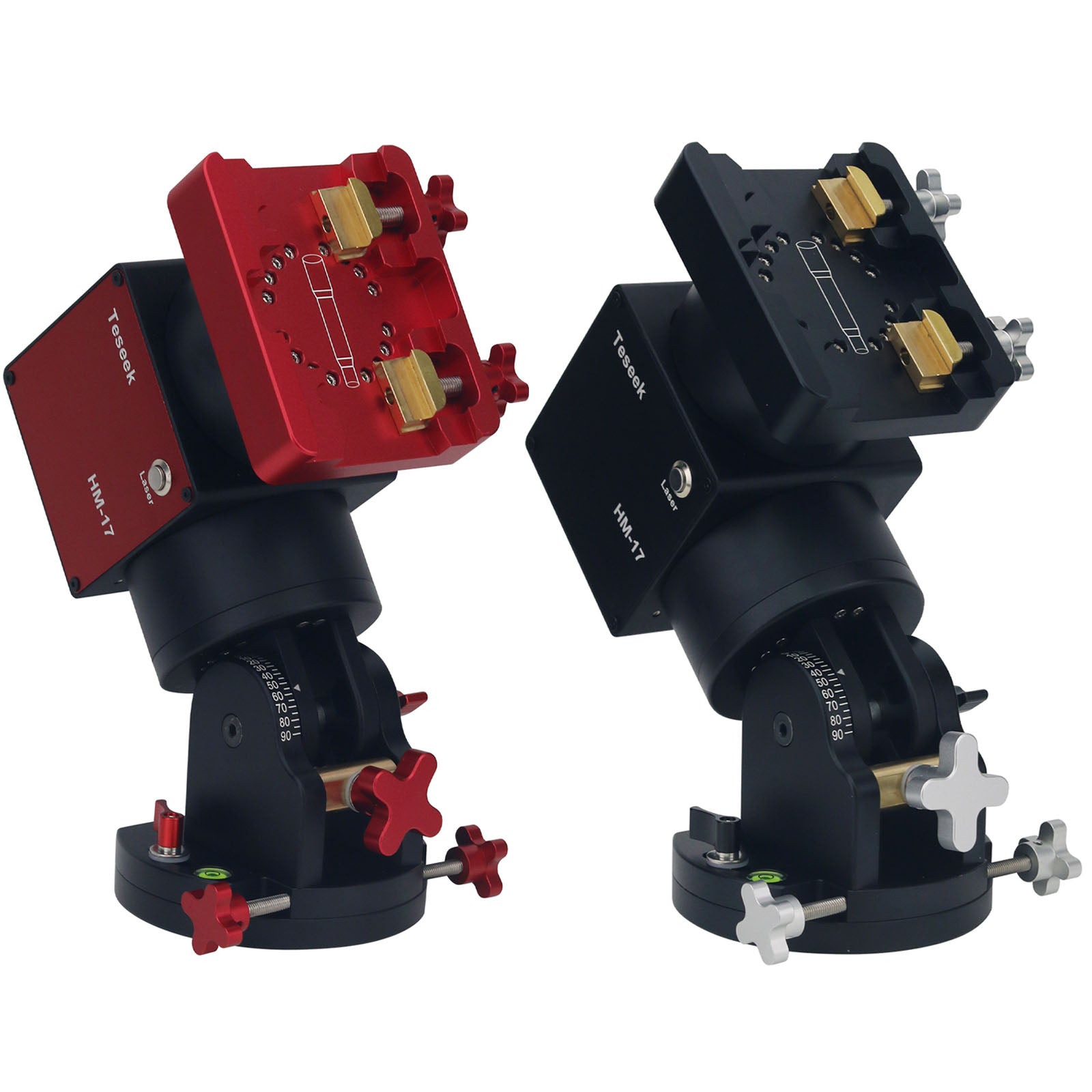

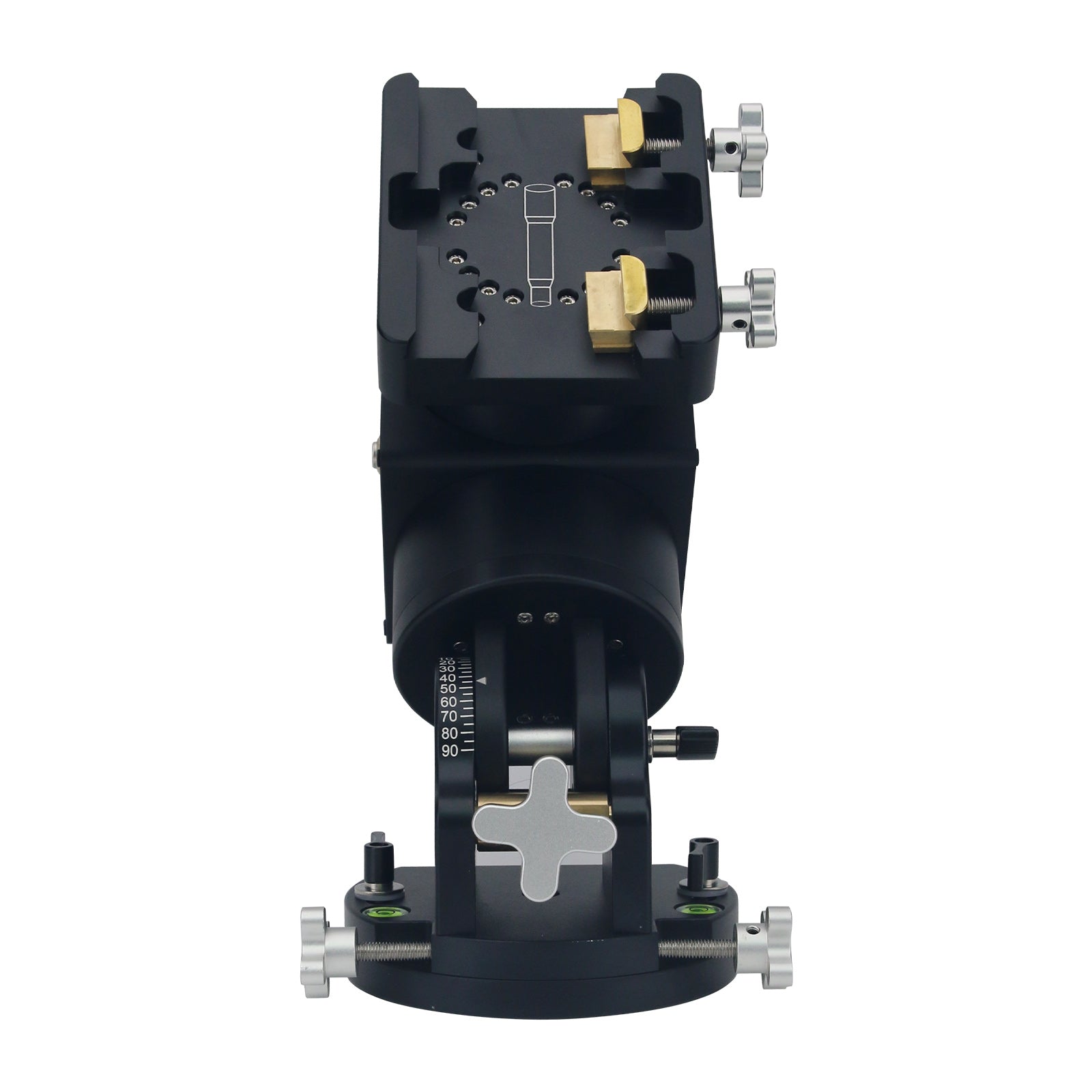

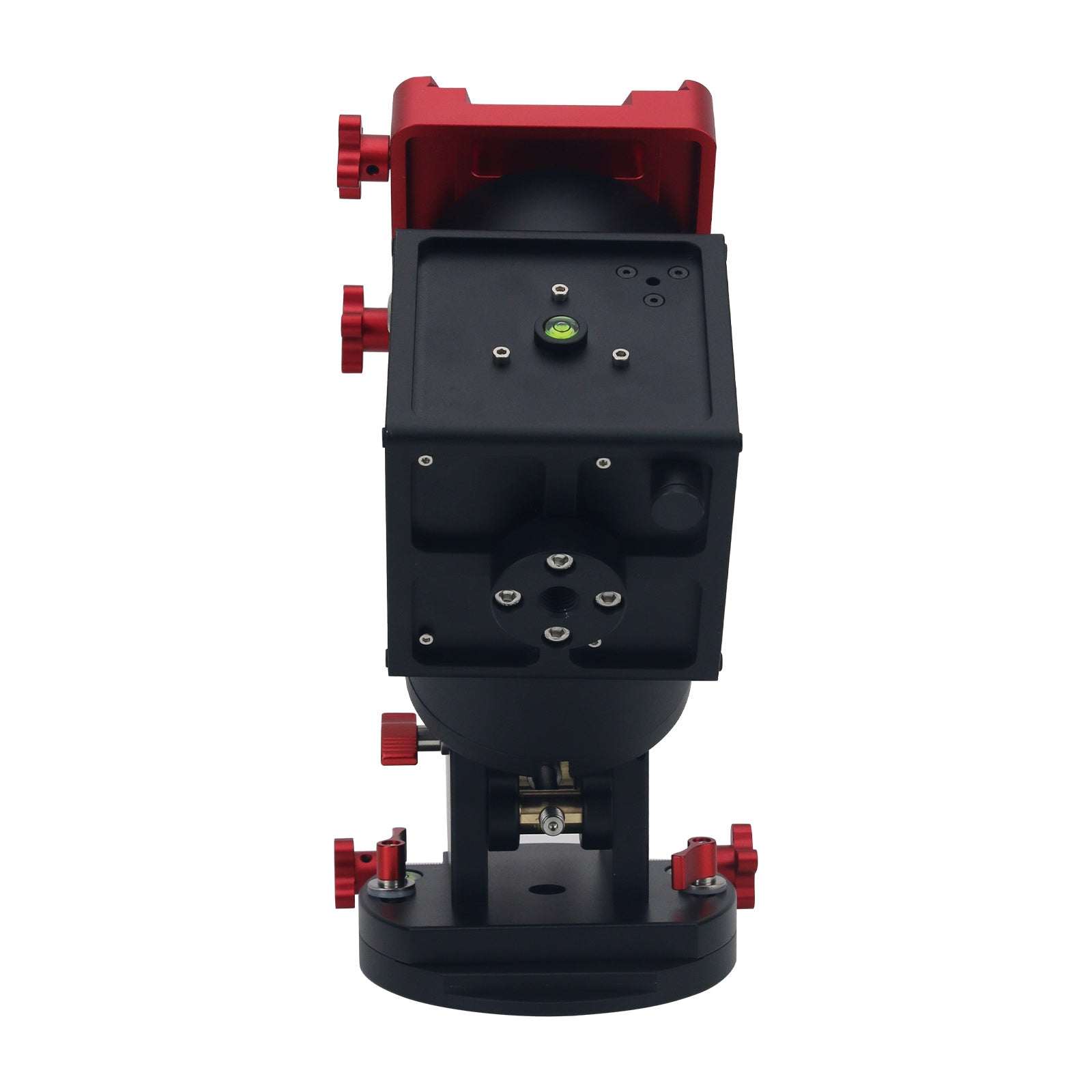

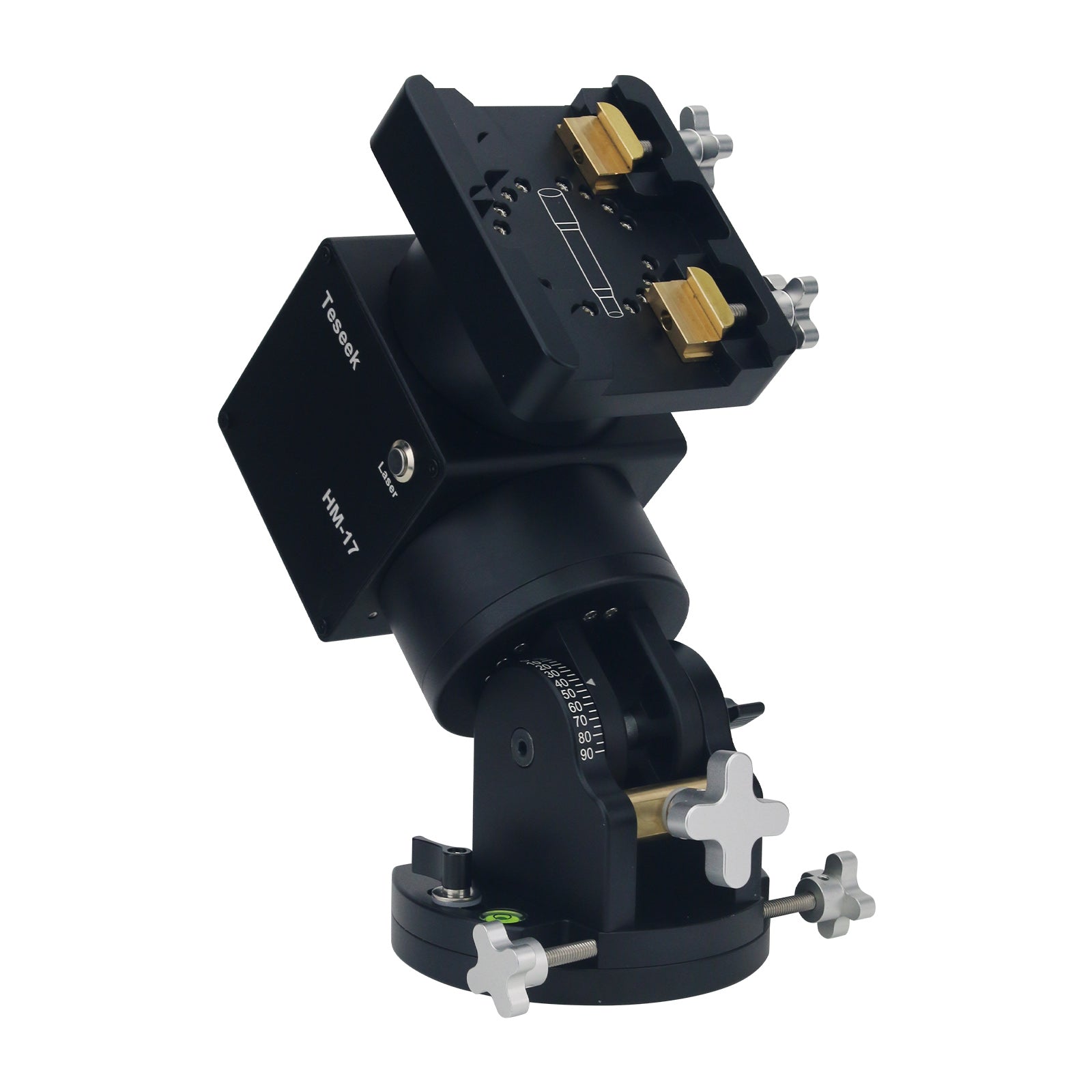

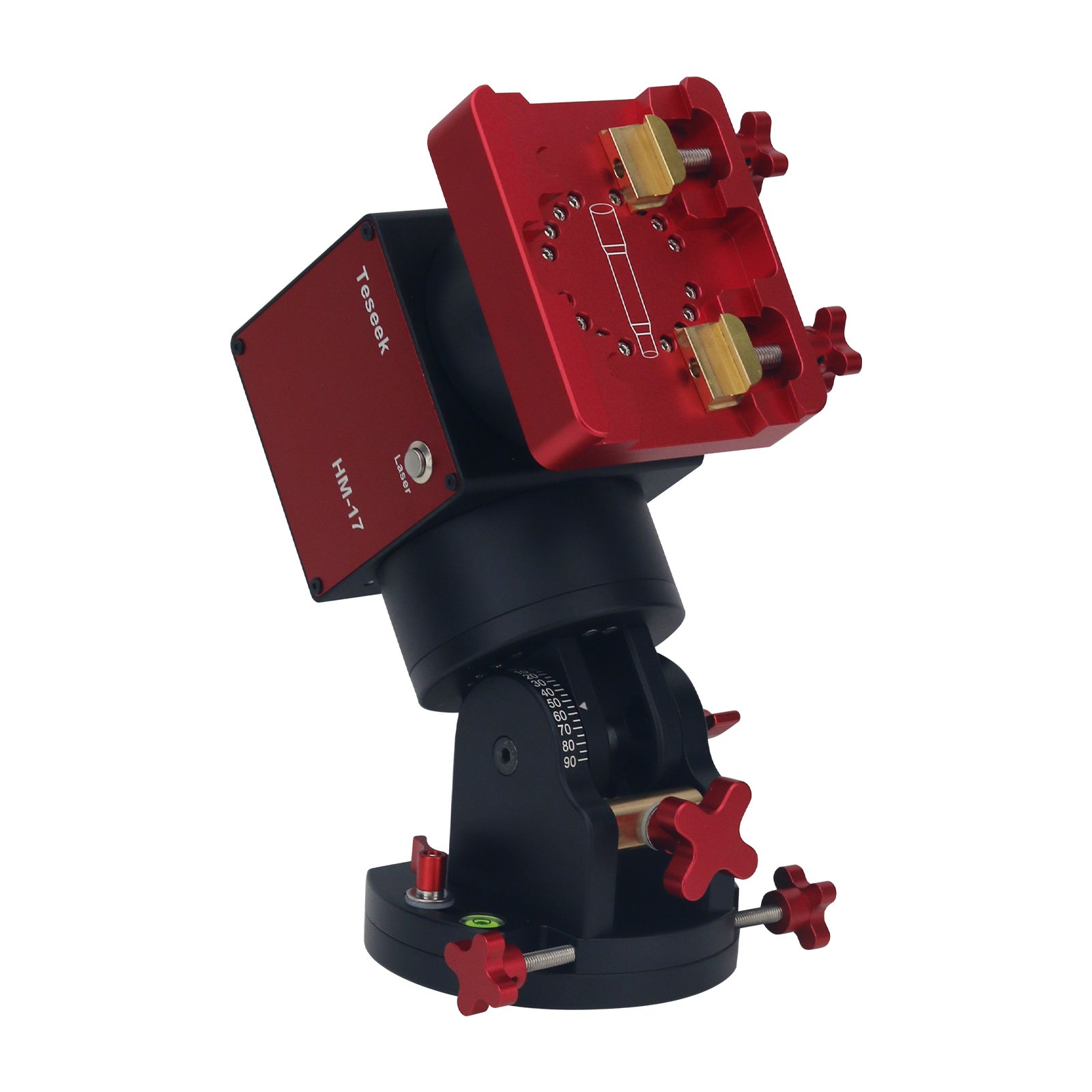

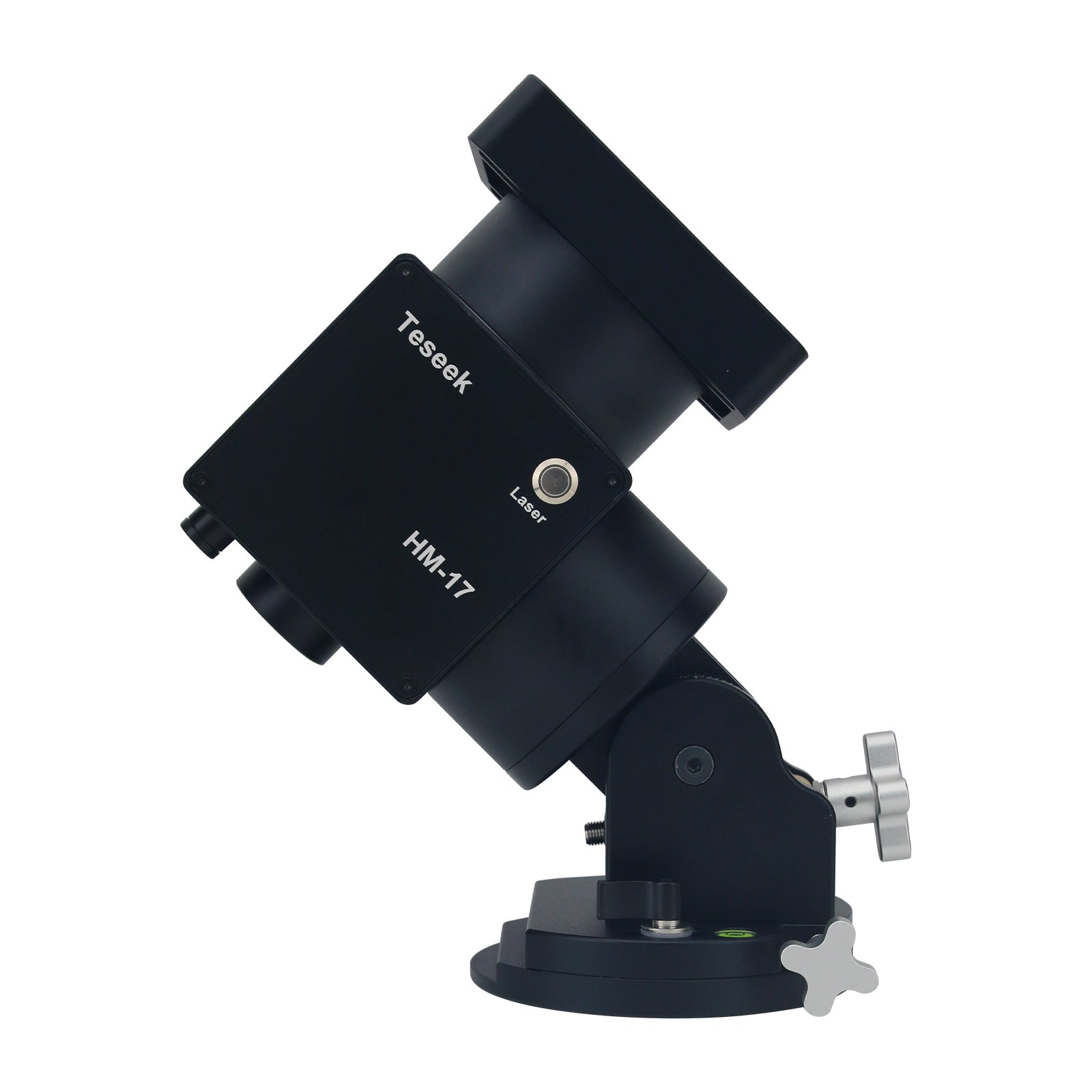

TeSeek HM-17PE Harmonic Equatorial Mount Set 18KG Load Capacity EQ Mount for Telescopes
受取状況を読み込めませんでした
Specifications
Brand
Product type
Technical specs
Design and durability
This can be used in the southern hemisphere. Please leave a note or email us when placing your order, and we will set it up for you before shipping.
Download User Manual:
https://teseek.comseek.com/download/97103_watermarked_User_Manual.pdf
Features:
- Harmonic equatorial mount for deep space telescopes.
- Your ideal stargazing companion.
- Lightweight, portable, precise, stable, and high load-bearing.
- High-quality materials.
- Durable and sturdy.
Functions:

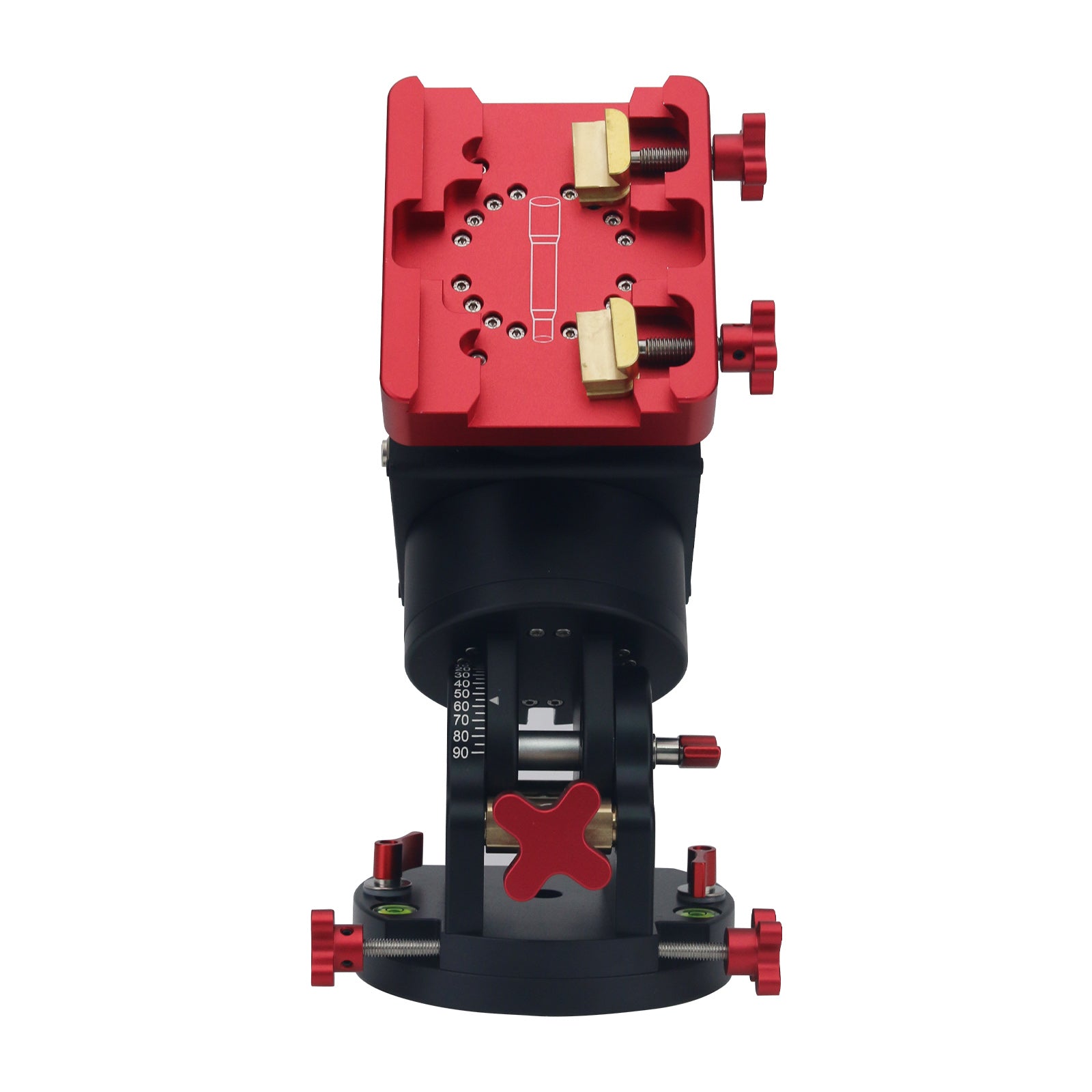

- Universal Dovetail Groove: Made from high-quality thickened metal plate with precision machining. Compatible with both wide and narrow rail telescopes.
- Stainless Steel Counterweight Rod: Constructed from stainless steel with a smooth surface, designed to balance the weight of the telescope.
- Hand-Tightening Screws: Featuring a smooth surface and fine workmanship, these screws are easy to use and provide strong, reliable fastening.
Technical Parameters:
- Latitude adjustment base: built-in
- Load capacity (without counterweight): 13kg
- Load capacity (with counterweight): 18kg
- PE (periodic error): < ±10"
- Drive type: Harmonic + Timing Belt (400:1 Reduction Ratio)
- RA drive: 42-48 stepper motor + 17-100 reduction harmonic + electronic brake
- DEC drive: 42-40 stepper motor + 17-100 reduction harmonic
- Base diameter: 125mm
- Latitude adjustment range: 0-90°
- Azimuth adjustment range: ±9°
- Electronic polar scope: iPolar/QHY
- GOTO speed: 2.5°/s
- Counterweight rod interface: M12x1.75 Coarse Thread
- Counterweight rod diameter: 20mm
- Counterweight rod length: 230mm

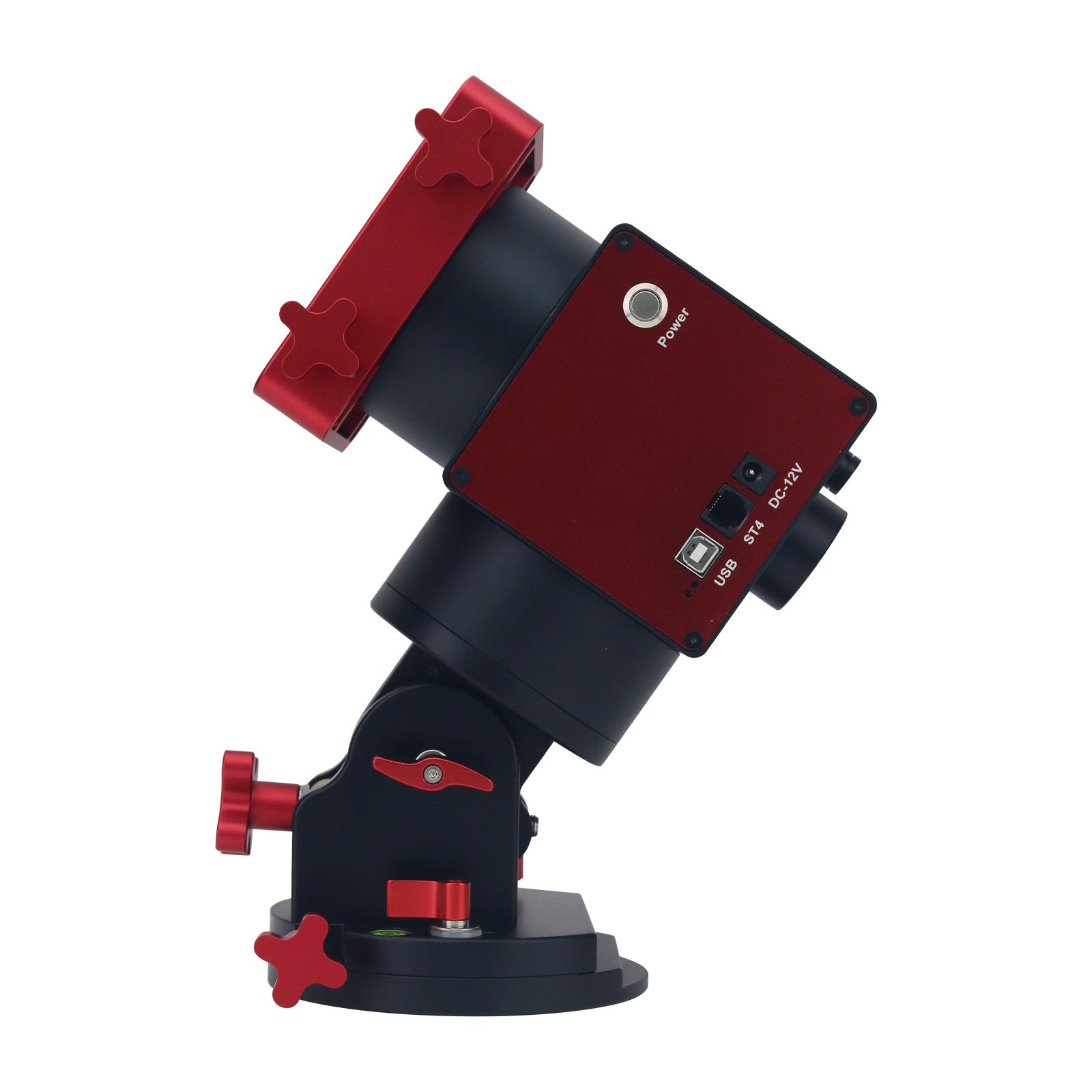

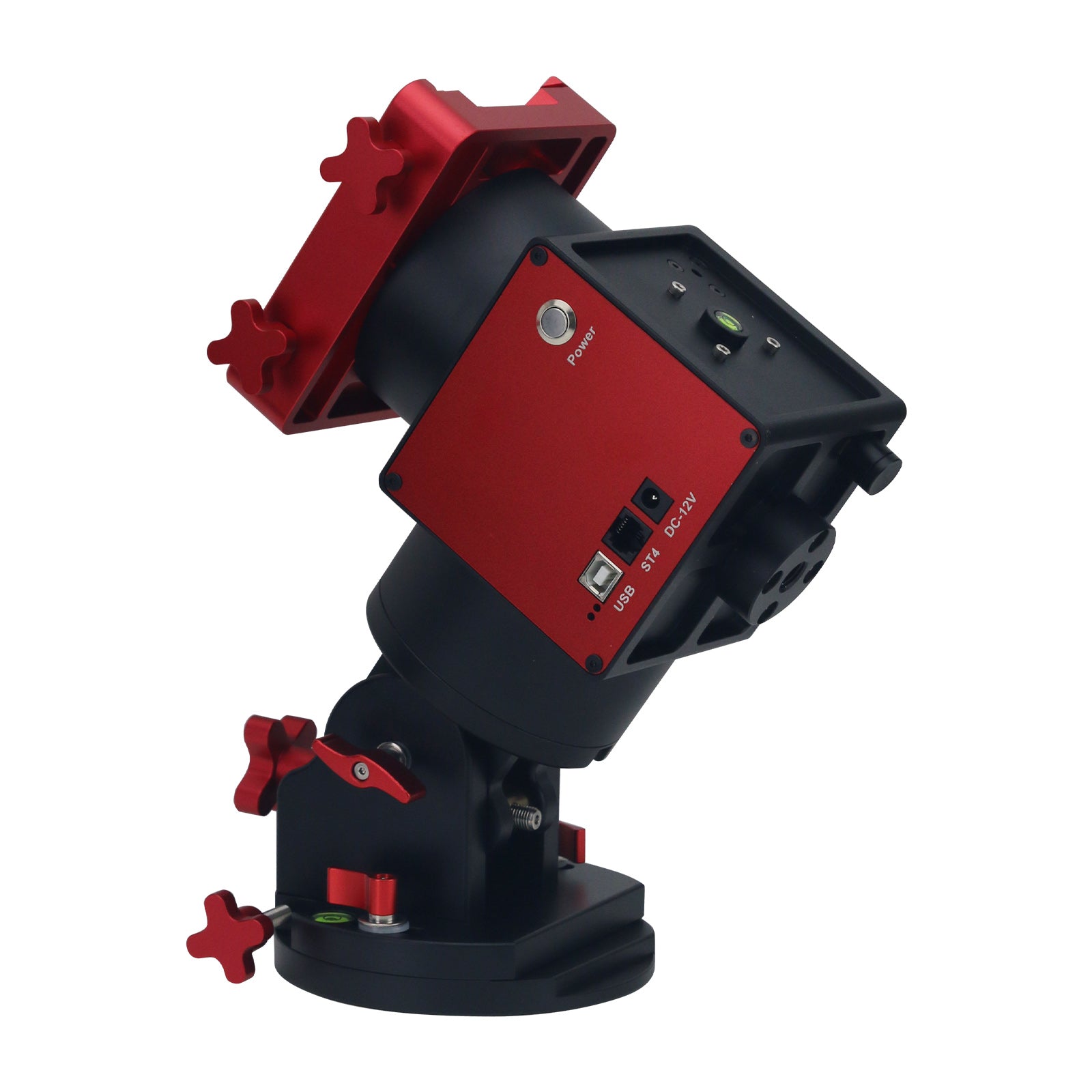

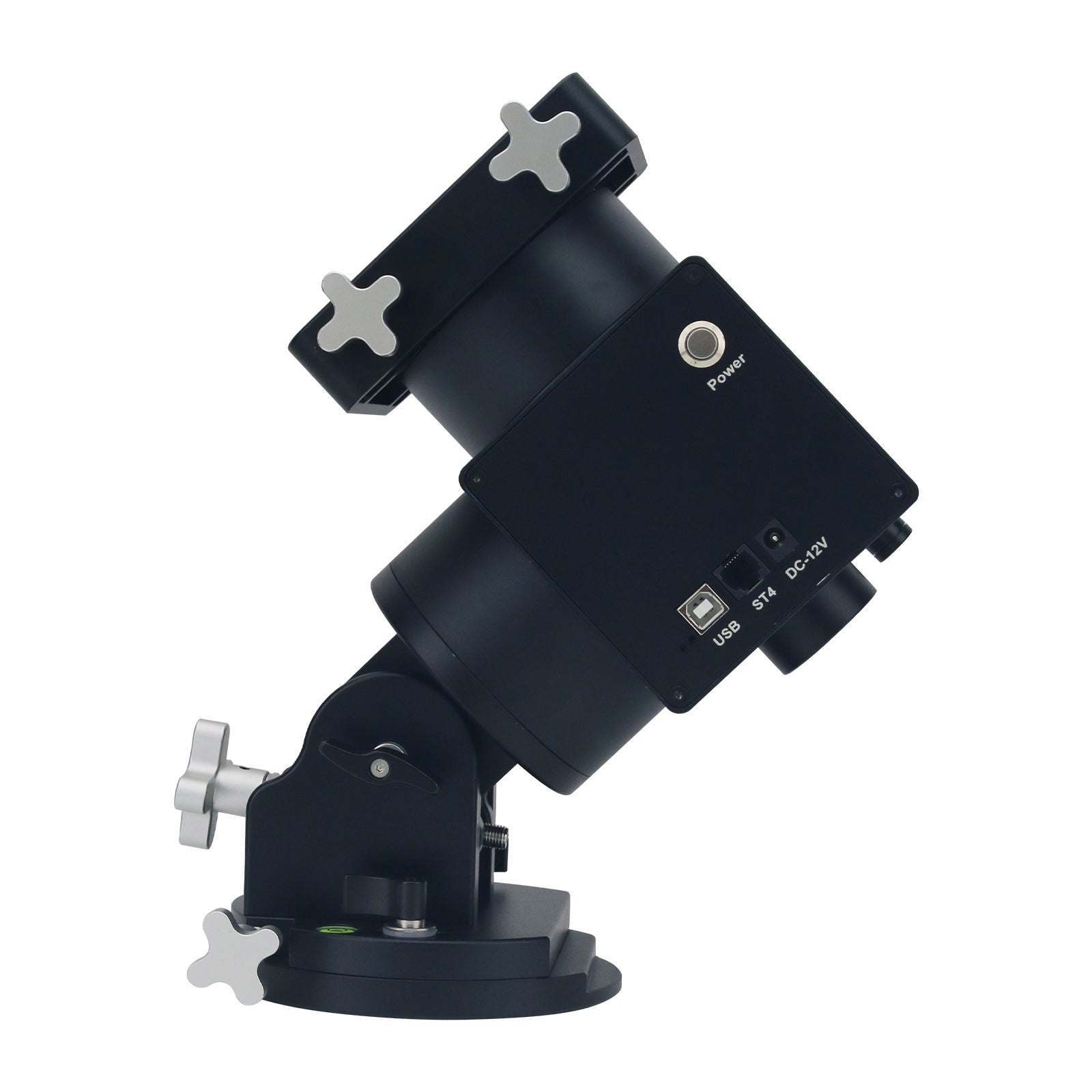

- Power interface: DC5.5-2.1 (12-15V and 2-5A)
- Data interface: USB2.0/WiFi
- Guiding interface: Hand Controller & ST4
- Compatible OnStep system: supports for PC, Mobile, ZWO ASIAIR Smart Controller, NINA, WiFi, Bluetooth, Hand Controller, etc.
- Other features: bubble level/mechanical home position
- Material: aluminum alloy
- Net weight of EQ mount: 4.8kg

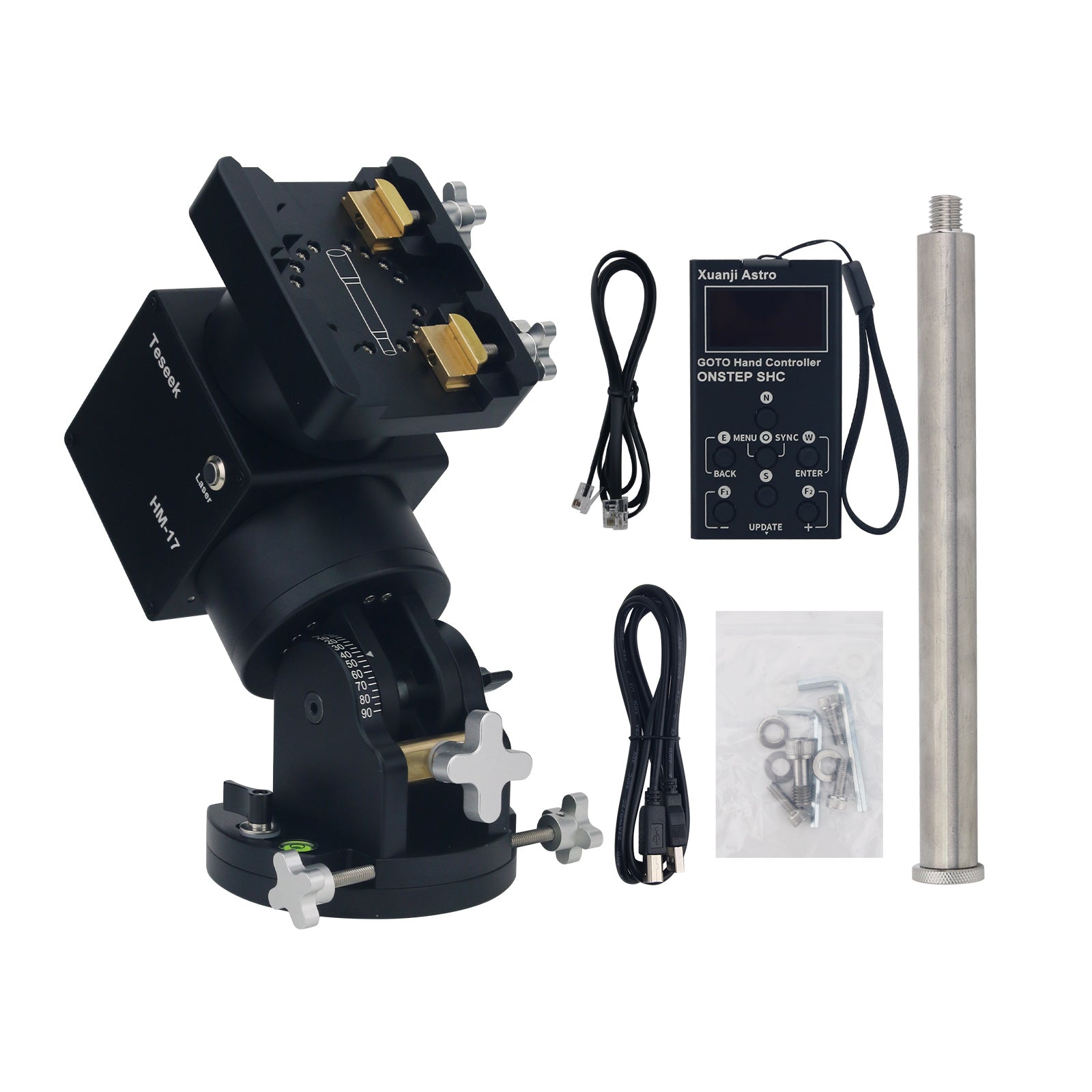

GOTO Hand Controller:
- Low delay control.
- 1.3-inch white light OLED screen.
- Full metal shell, exquisite and durable.
- Chinese/English interface firmware can be freely switched.
- Designed ergonomically, the handle size is easy to grasp.
- The handle adopts a hanging rope design, which is safe, portable, personalized and practical.
- Product size: 81 x 45 x 16mm

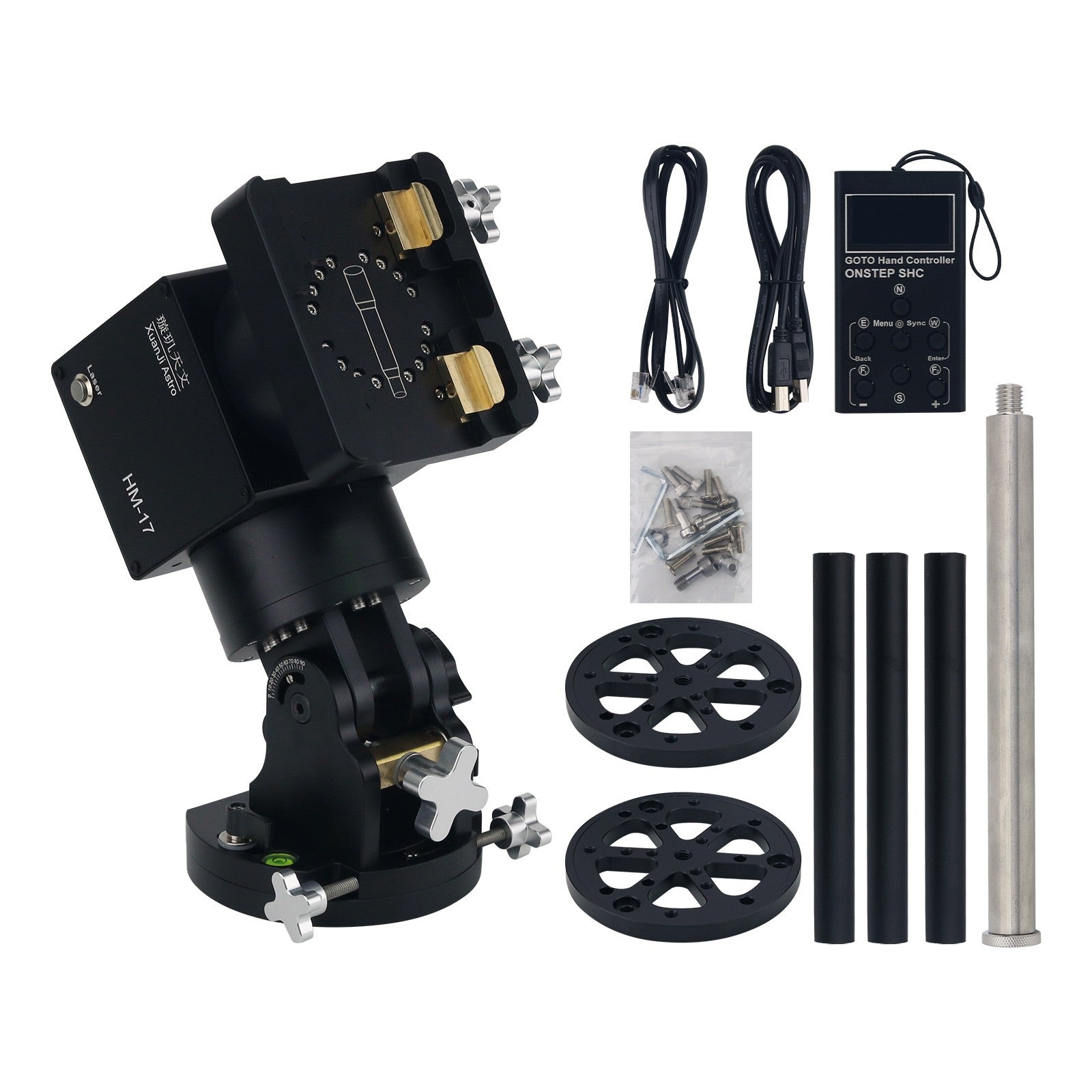

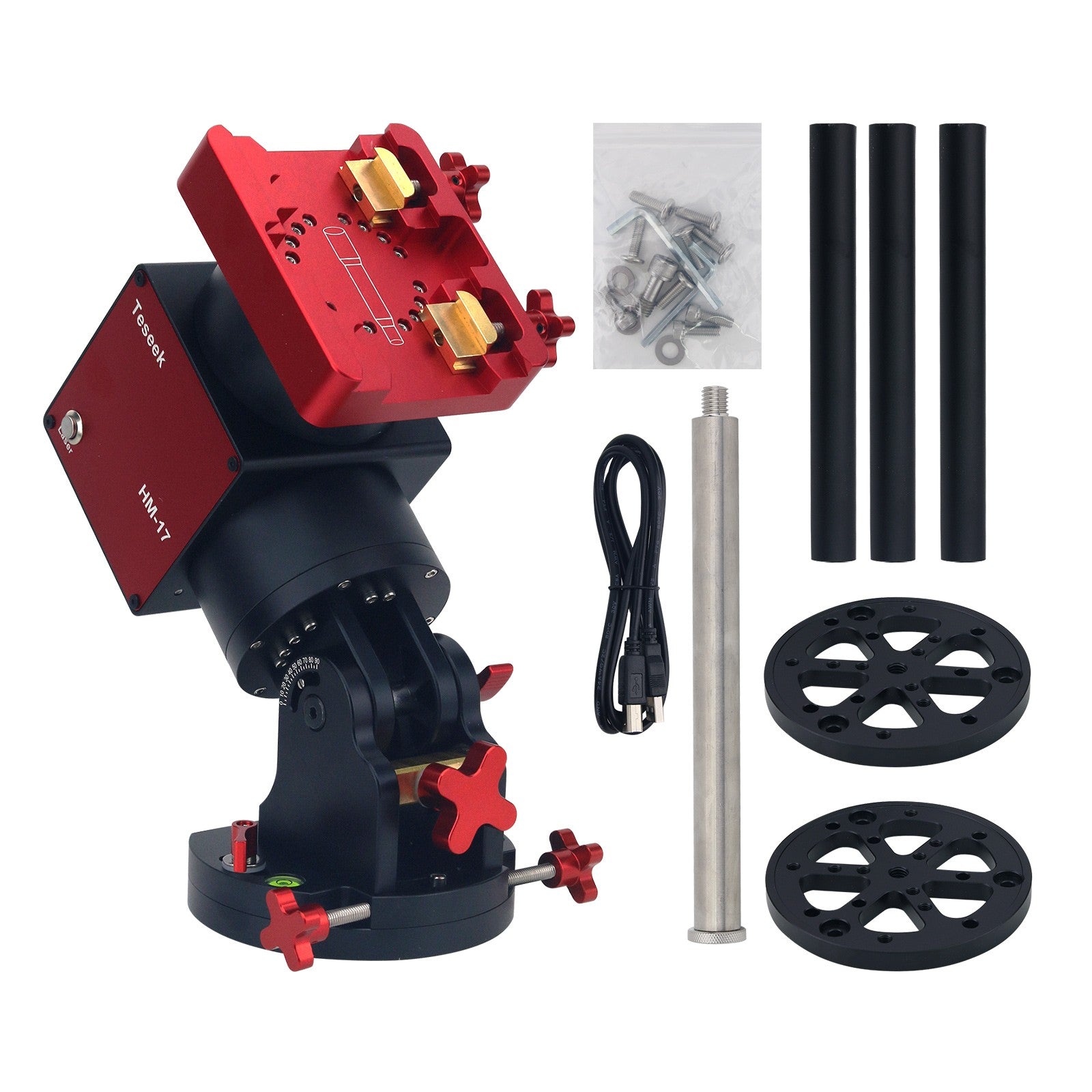

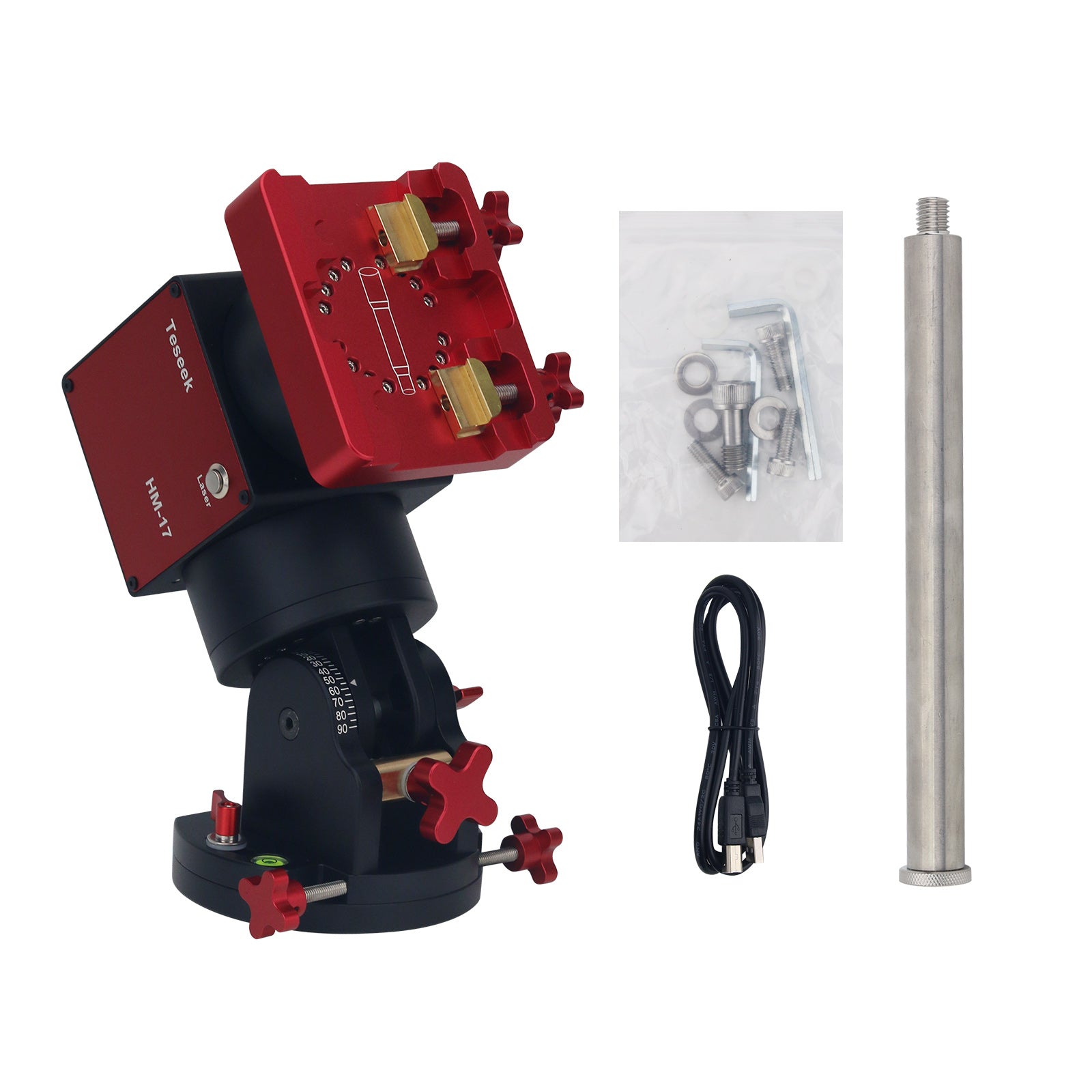

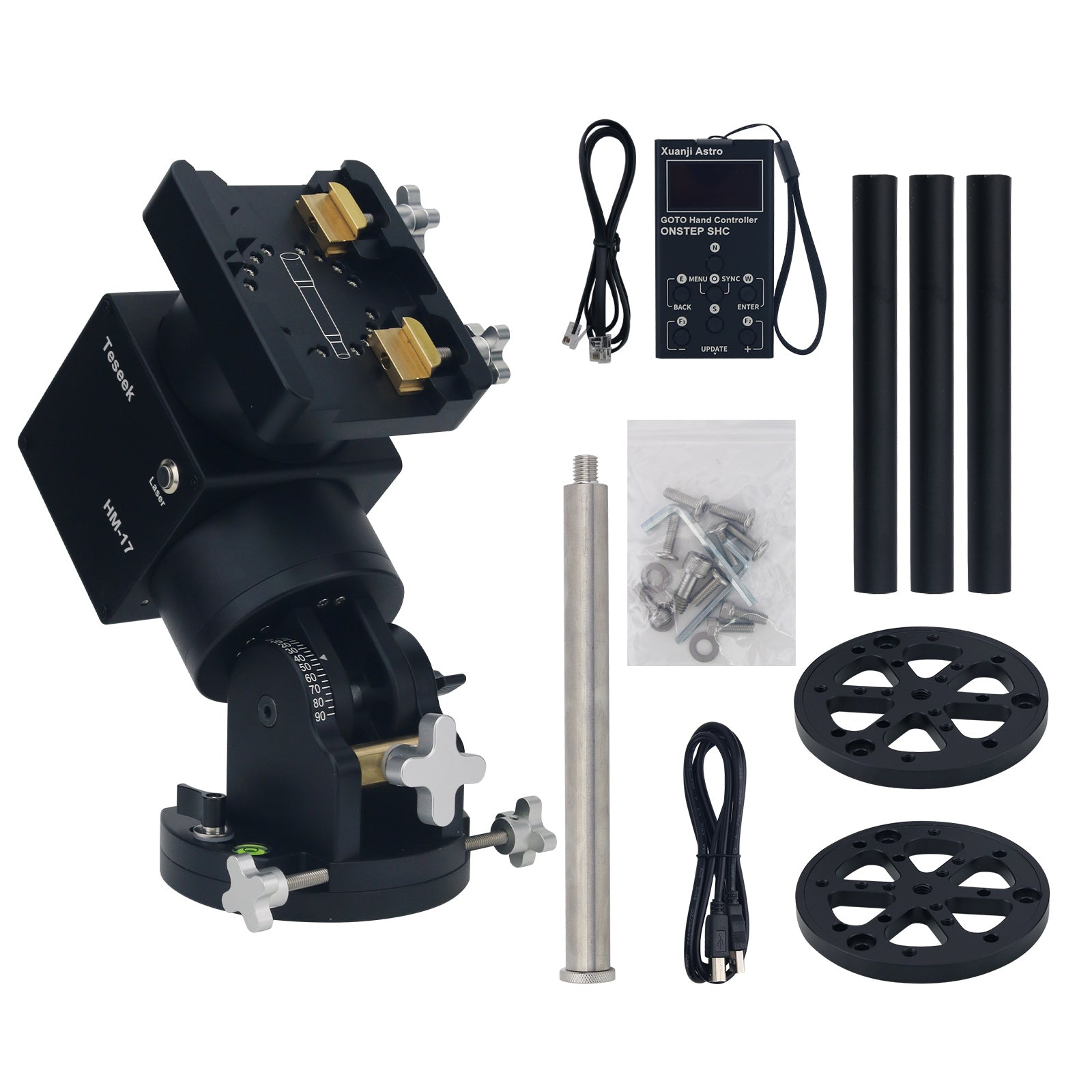

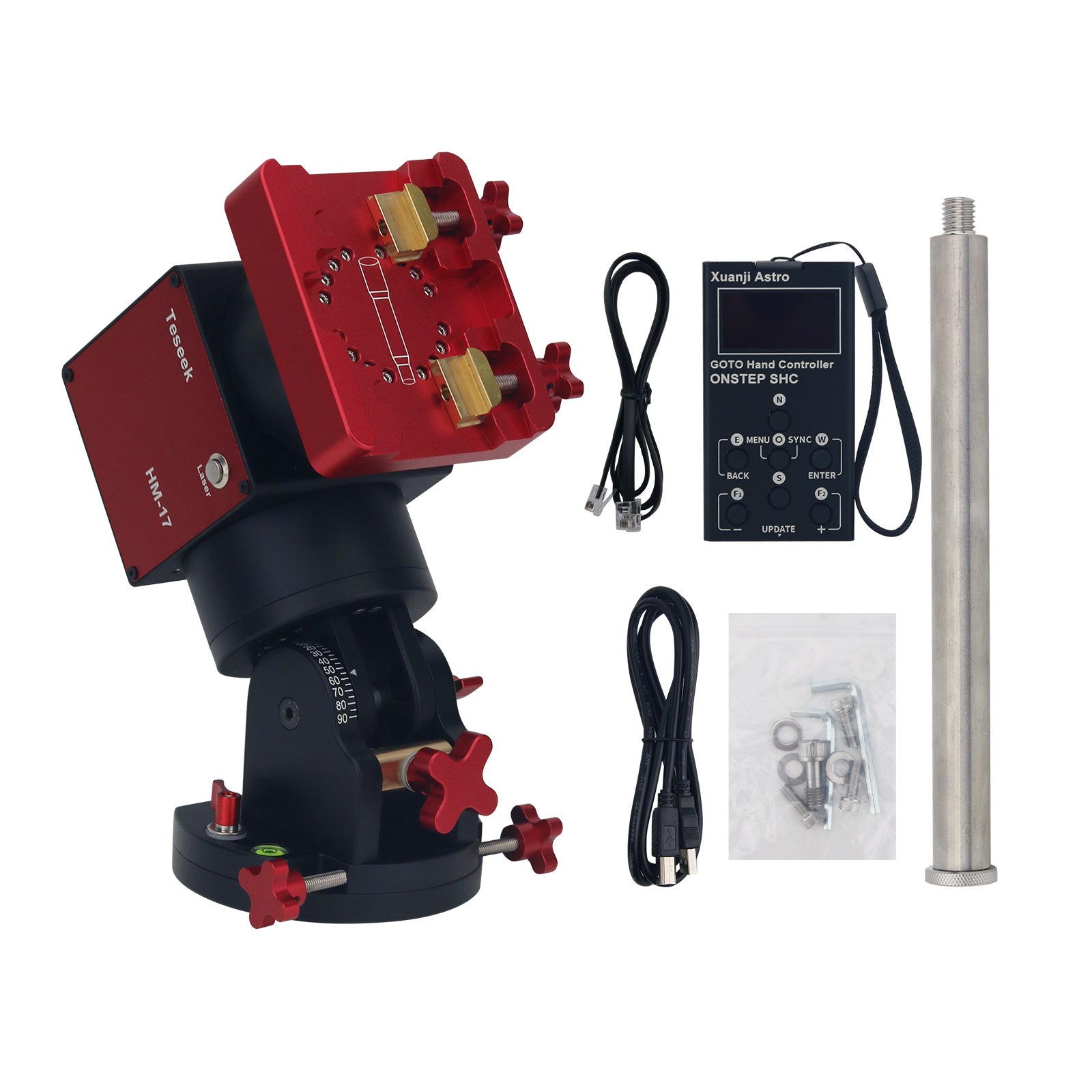

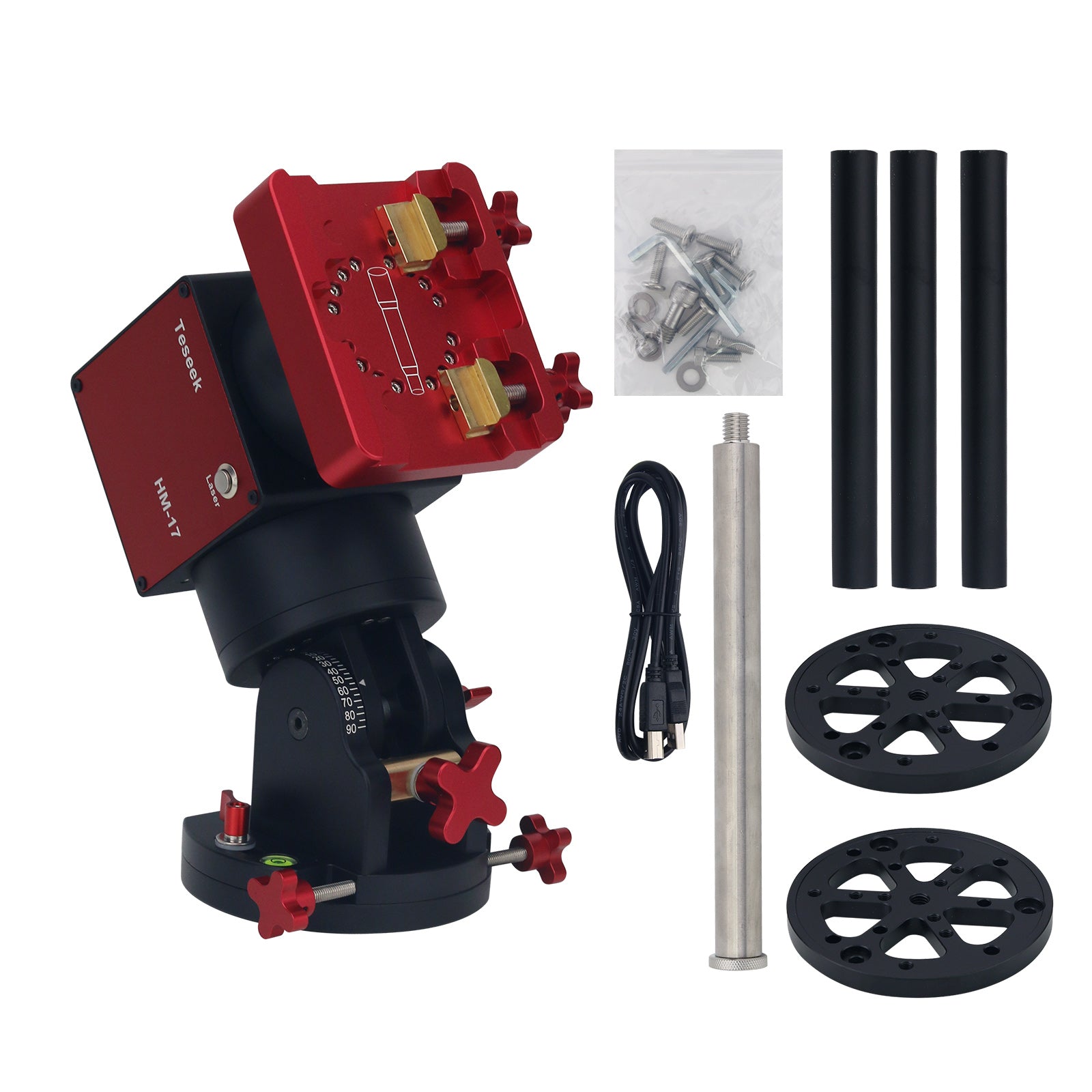

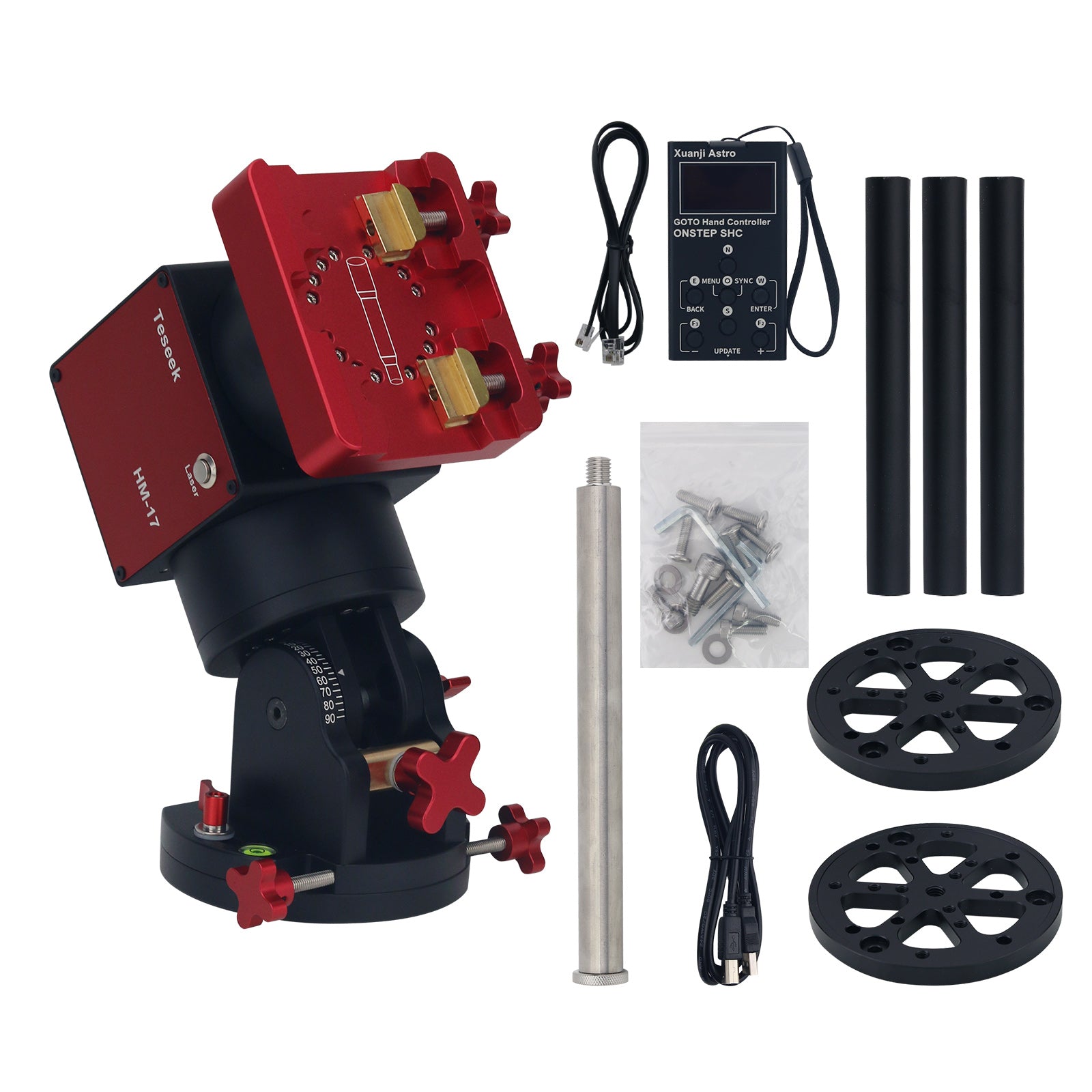

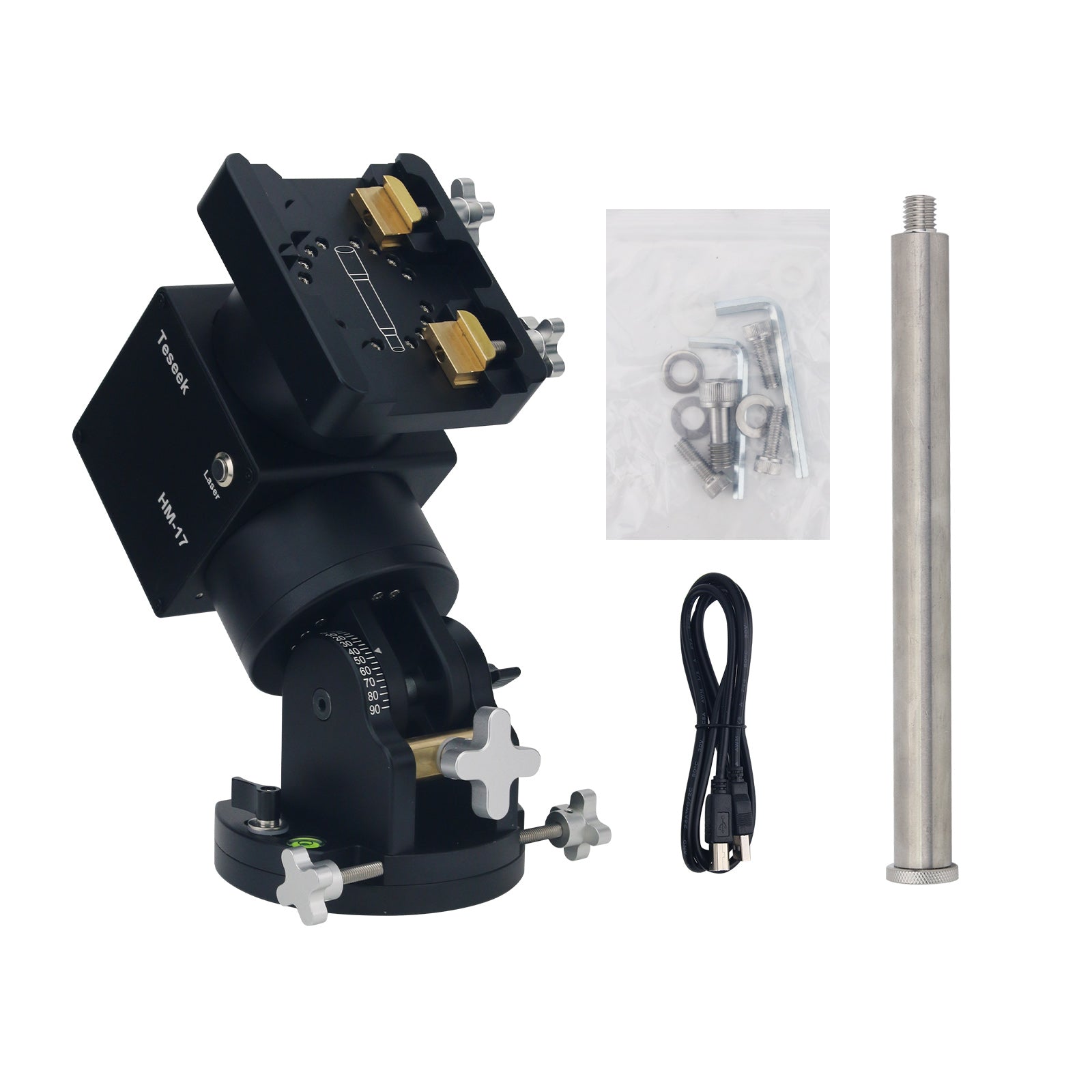

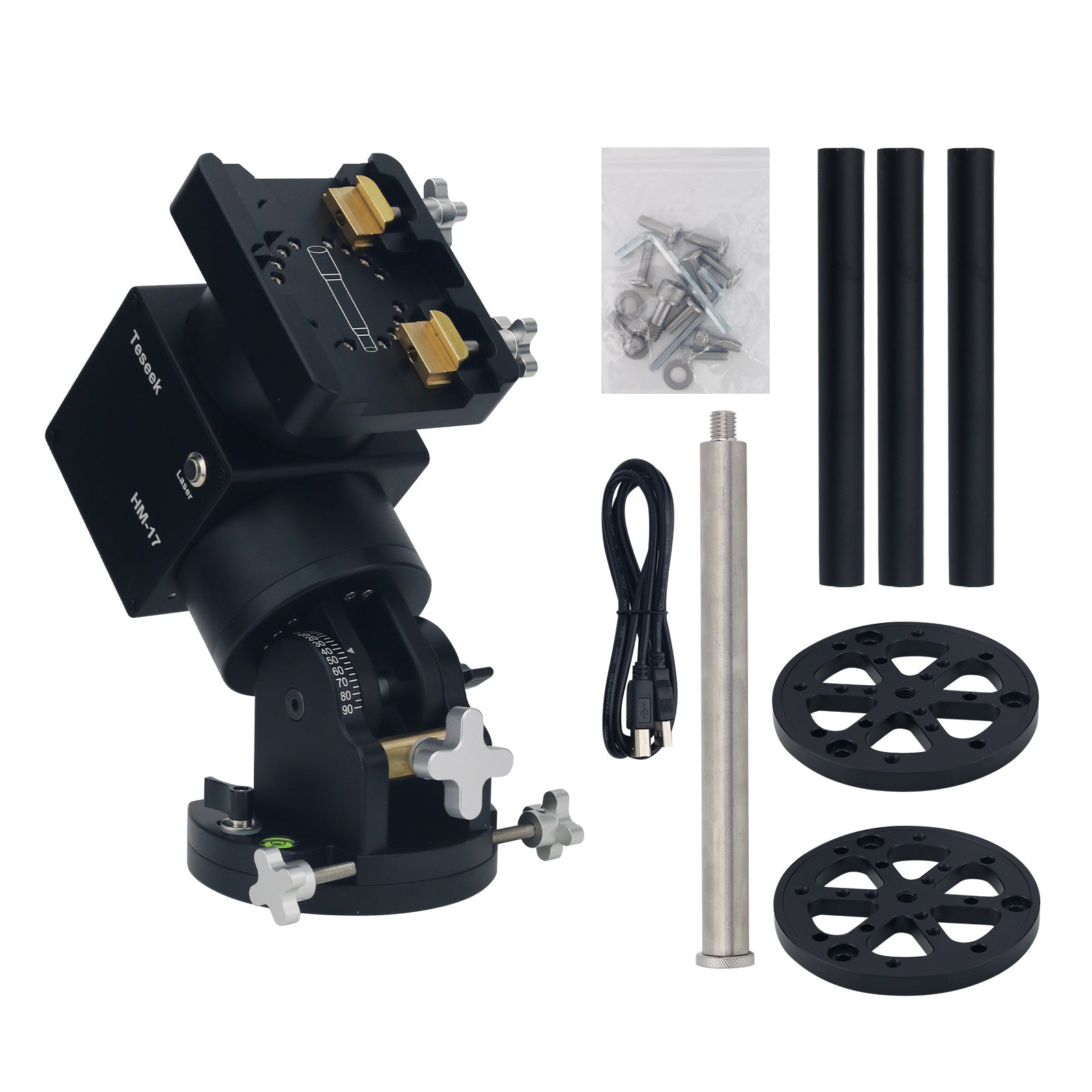

Package Included:
- 1 x Equatorial Mount
- 1 x Pier Extension (Optional)
- 1 x GOTO Hand Controller (Optional)
