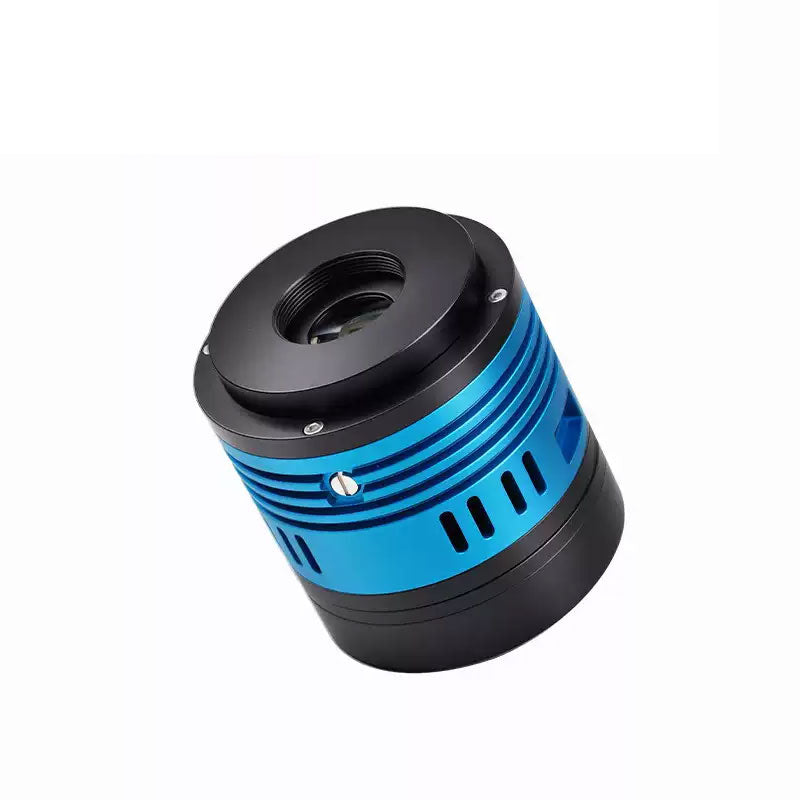

ToupTek AE676M Multi-purpose Astronomy Mono Camera IMX676M with AFW-mini Electronic Filter Wheel and 1.25-Inch LRGB Filters
受取状況を読み込めませんでした
Specifications
Brand
Product type
Technical specs
Design and durability
Introduction:
- Powered by the Sony IMX676 mono CMOS sensor, the AE676M combines full-spectrum sensitivity, Bayer-free pixel-level sharpness, NIR (Near-Infrared) penetration, and an ultra-compact design. Built to effortlessly master high-resolution solar/lunar mosaics, narrow-band deep-sky imaging, and NIR planetary photography.
- The AFW-mini is compatible with planetary cameras, AstroEye Series multifunction cameras, and deep-sky cameras with smaller sensors. Its compact, lightweight design accommodates five 1.25" astronomical filters and enables fast, precise automatic switching. With no need for repeated disassembly, LRGB, narrowband, and other multi-channel imaging becomes simpler and more efficient, providing a lightweight filter-switching solution for automated astrophotography.

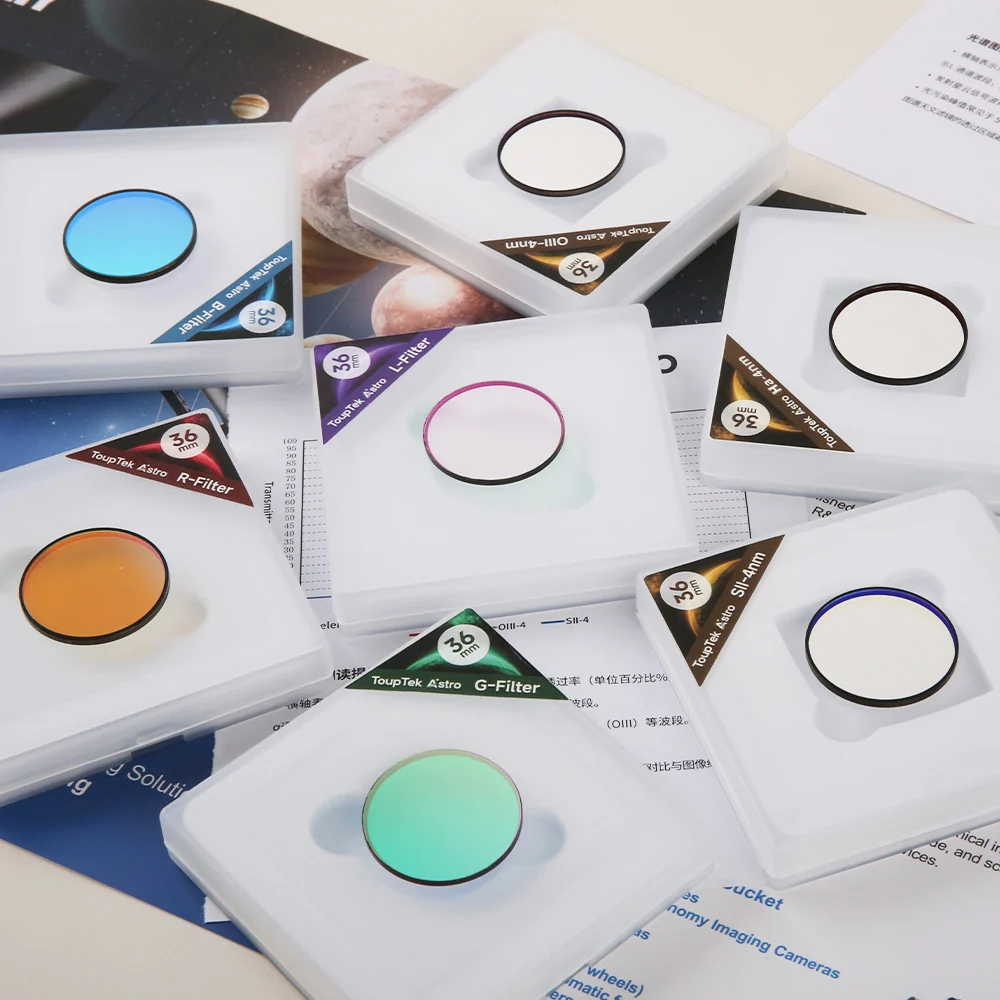

- Designed to overcome light pollution, the ToupTek Astro LRGB filter set empowers astrophotographers to reveal the universe's authentic chromatic splendor.
- The RGB three-channel filters are essential tools for monochrome astronomy cameras to capture professional-grade images.
- ToupTek Astro LRGB filters utilize advanced optical materials and precise coating technology to selectively transmit celestial emissions while blocking urban light pollution. This brings the true colors of the starry sky vividly to life and significantly enhances image contrast.
- Even faint celestial targets can reveal rich details. The extremely low halo effect ensures each image has excellent fidelity, elevating your astrophotography to the next level.

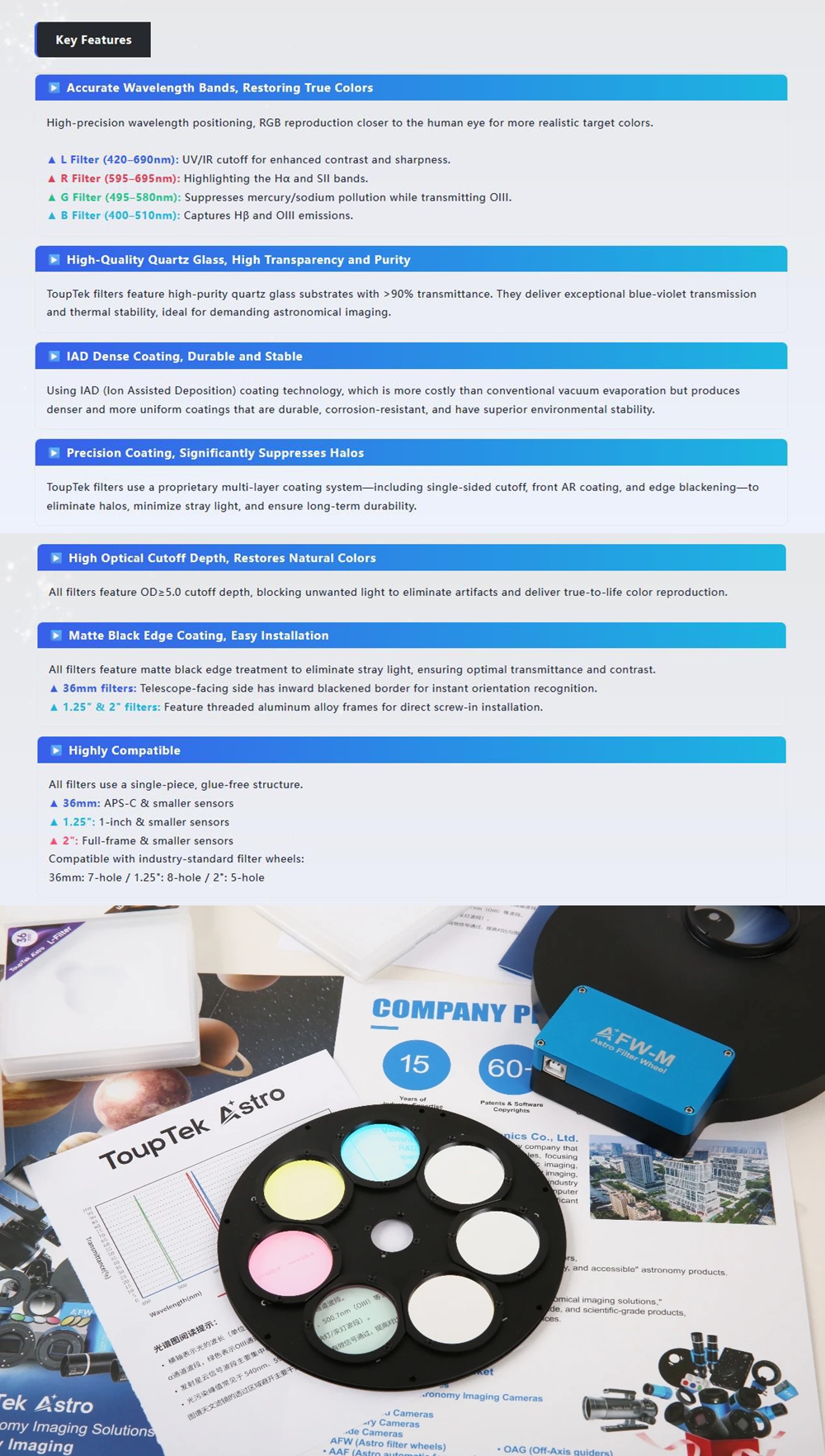

LRGB Specifications:
- Size: 1.25” (31.77mm)
- Glass thickness: 2mm

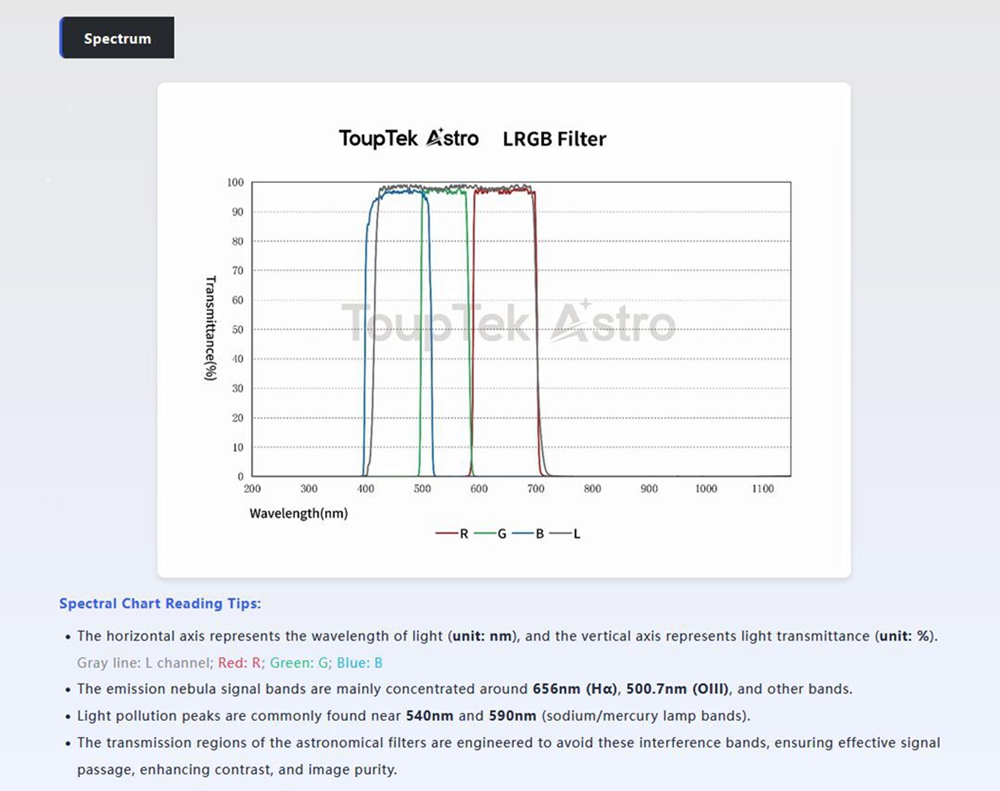

- Transmission range: L (420 - 690nm); R (595 - 695nm); G (495 - 580nm); B (400 - 510nm)
- Transmittance: >95%
- Glass material: Quartz glass
- Frame material: aluminum alloy
- Surface treatment: double-sided high-precision optical polishing
- Coating technology: IAD (Ion Assisted Deposition) coating technology
- Coating system design: AR anti-reflection coating + quartz glass + precision cutoff coating layer
- OD: ≥5.0
Package Included:
- 1 x AE676M Camera
- 1 x Magnetic Fan Module
- 1 x M42F-M42F Adapter Ring (11mm)
- 1 x Extension Tube (1.25-inch)
- 1 x CS-to-C Adapter Ring (5mm)
- 1 x CS-mount Fisheye Lens
- 1 x LP825 Long Pass IR Filter Cap
- 1 x USB3.0 High Speed Cable (1.5m, Type-A male to Type-C male)

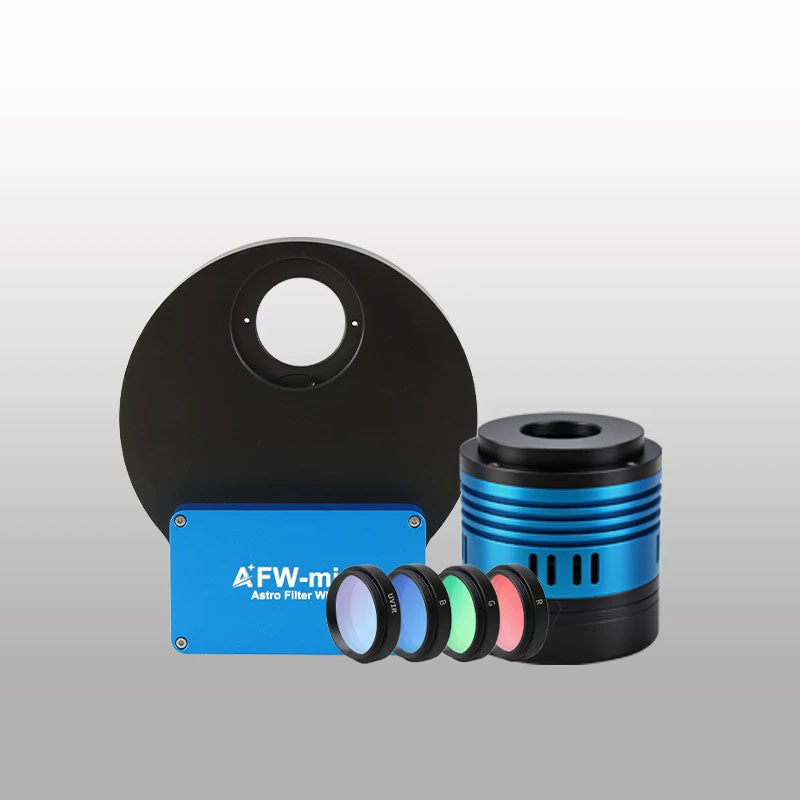

- 1 x AFW-mini Kit
- 1 x 1.25-Inch LRGB Filter Set
