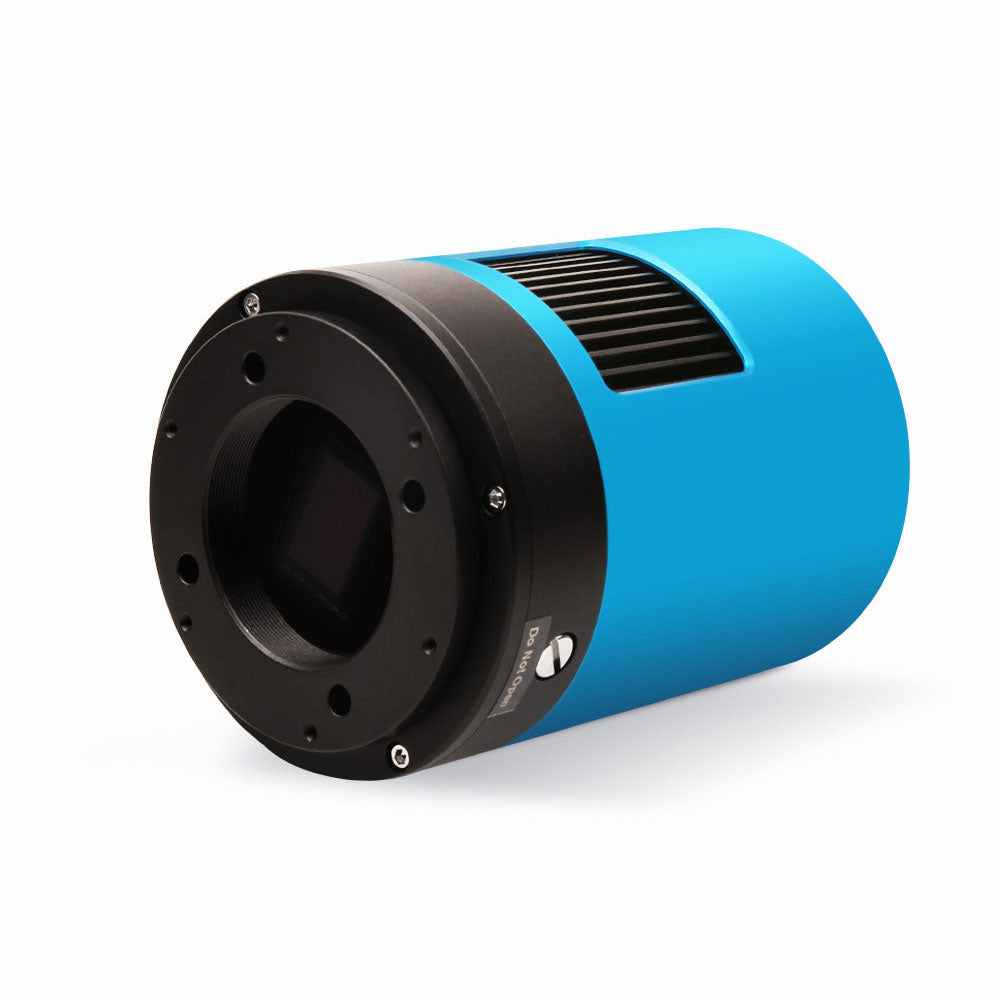

ToupTek ATR428M Solar Astronomy Camera Cooled Mono Camera IMX428 Large Pixel Camera for Solar Imaging
픽업 사용 가능 여부를 로드할 수 없습니다.
Specifications
Brand
Product type
Technical specs
Design and durability
Introduction:
- The ATR428M/C is equipped with the Sony IMX428 monochrome/color CMOS sensor, featuring a 1" format, 4.5μm large pixel size, and a native 12-bit ADC. It offers low noise, high sensitivity, and a global shutter supporting high-frame-rate capture. At a resolution of 1600x1100, it achieves up to 133.3fps (M) / 133.1fps (C) in 8-bit mode, and approximately 96.1fps (M) / 66.5fps (C) in 12-bit mode, making it ideally suited for solar photography.
Compatible Software:
- The ATR series deep-sky imaging cooled cameras can be controlled using the native ToupSky software and are also compatible with ASCOM, INDI, and DirectShow SDKs.
Reminder:
- All ToupTek Astro DSO cooled cameras can only be powered by a 12V3A DC power supply. We recommend using the power adapter that comes with the camera or a lithium-ion battery with stable output of 11-14V. Please do not use power supplies that have falsely stated specifications or unstable outputs to power the camera, as this may affect image capture or even damage the camera.
Package Included:
- 1 x Camera
- 1 x M42 Adapter (12.5MM)
- 1 x Extender (16.5MM)
- 1 x Extender (21MM)
- 1 x M48-M42 Extender
- 1 x Power Adapter
- 1 x Power Cable
- 1 x USB3.0 Cable (1.5m)
