Second Generation Oasis Focuser Clutch Electronic Focuser USB Type-C/12VDC for Astronomical Observation and Photography
Improvements:
1. Flexible power supply method - can be powered separately by USB Type-C interface or by 12V DC interface.
2. Stall detection and protection equipment - When the focuser moves beyond the minimum or maximum range, or when the focuser cannot move normally due to other reasons, the stall detection function can detect this abnormal situation and stop moving, thereby avoiding equipment damage.
3. Built in heating, worry free in winter - with a built-in heating module, it can still focus normally in the cold winter in the north. Heating can be controlled at a constant temperature, making it easy to use.
4. Gear installation auxiliary positioning - The second-generation product includes a gear locator that can assist in locating the installation position of the gear during the gear installation process, or check whether the installation position of the gear is correct after the gear installation is completed.
5. Reliability improvement - The motor has been upgraded and redesigned, making it more reliable and durable compared to the old model. At the same time, the circuit board has also been redesigned to reduce the failure rate of power modules and USB, DC, and temperature sensor sockets. When the DC terminal voltage is too high, it will automatically protect or alarm.
6. Improved connection method - The connection method between the fixed front-end part and the active back-end part of the main body has been improved, from single point connection to hidden multi-point connection. By adopting this approach, the front-end and back-end appear more coordinated as a whole.

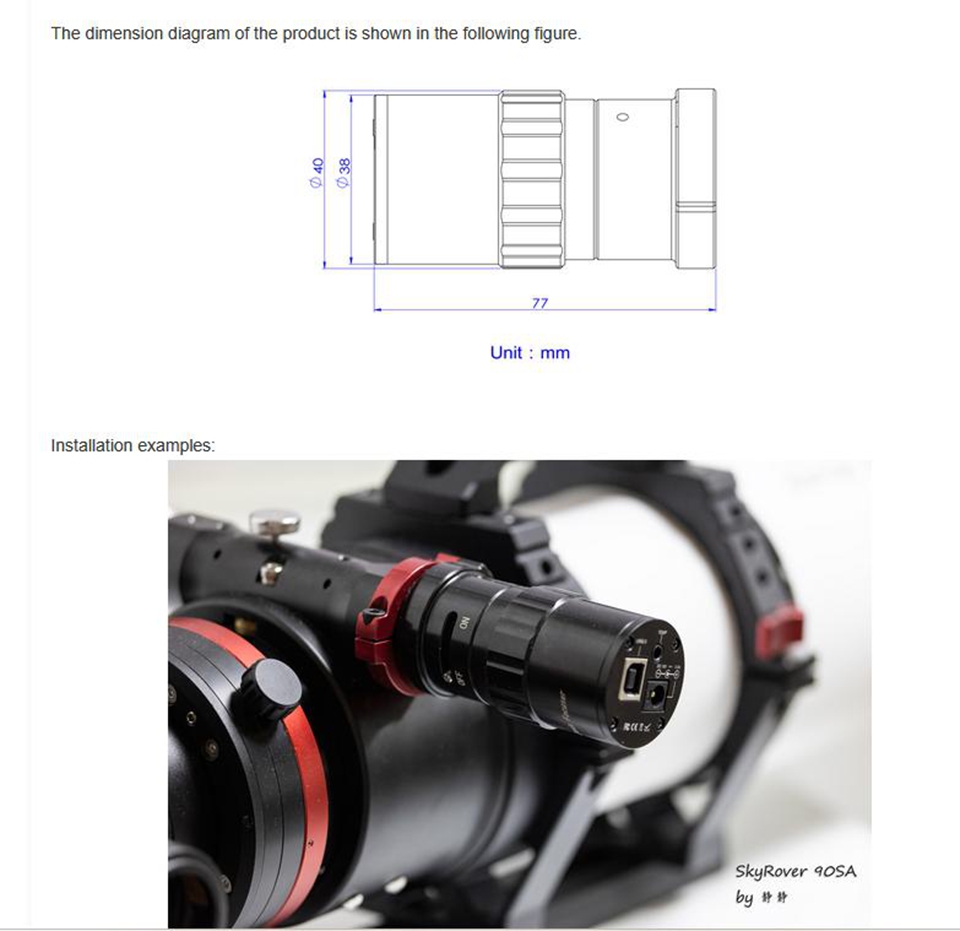

7. More compact and exquisite appearance - compared to the first generation, the second generation has reduced its length by 14.5mm and the rear diameter by 4mm, making it very compact and exquisite.
Description:

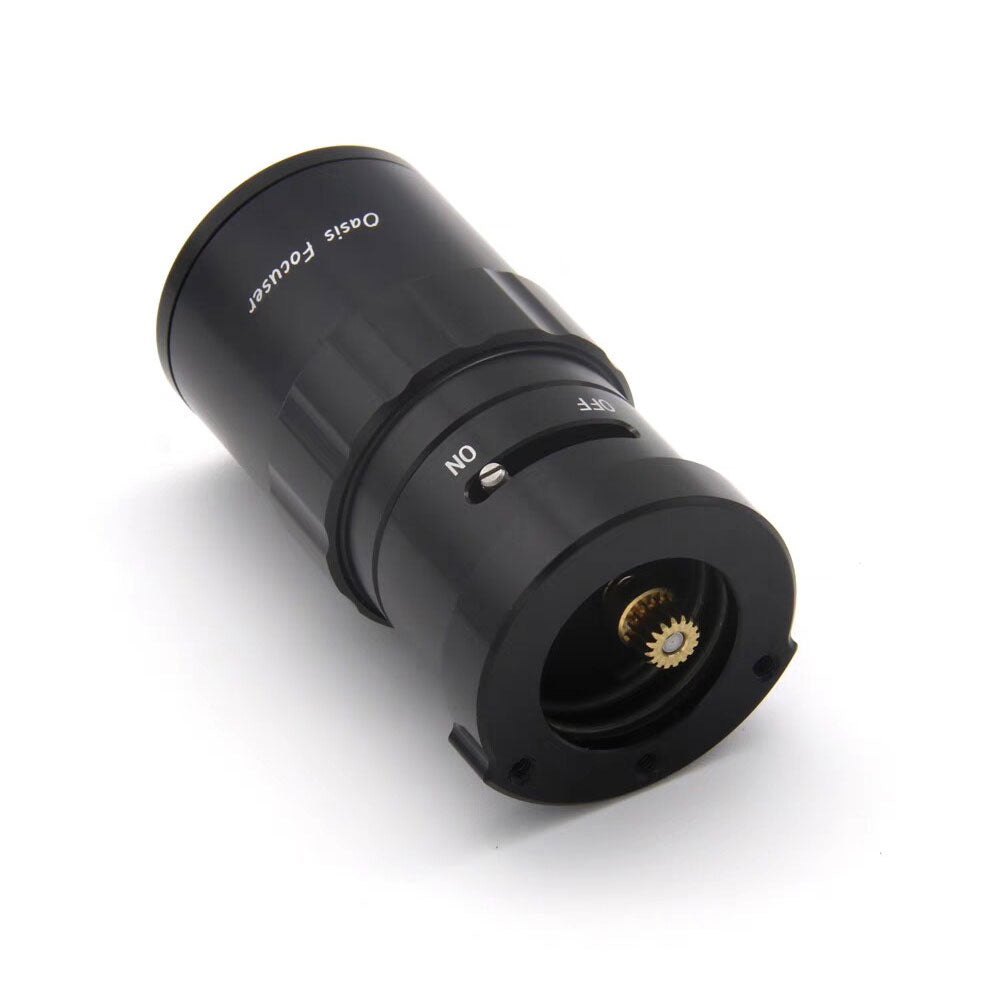

- Oasis Focuser is an electronic focuser with clutch mechanism, designed for astronomical observation and photography amateurs. It also has some other excellent features.
- This product features the use of two gears instead of coupling as driving parts. One of the gears is installed on the shaft of the telescope focuser, and the other is installed on the shaft of the motor. By holding the rear end of the Oasis Focuser and turning it, the two gears can be separated or meshed.
- The clutch of this product is self-locking. In most cases, as long as the Oasis Focuser is switched to ON or OFF state, it can be kept in meshing or locking state stably without other operations. It is very convenient to use in this way. In addition, a locking screw is provided to ensure that the focuser will always be in a stable state when it needs to work in a certain state for a long period of time. For example, it can be used when the equipment works in a remote observation station and the focuser needs to be in engaged state for a long time.
Features:
- Clutch function: Easy and fast switching between motor and manual focusing.

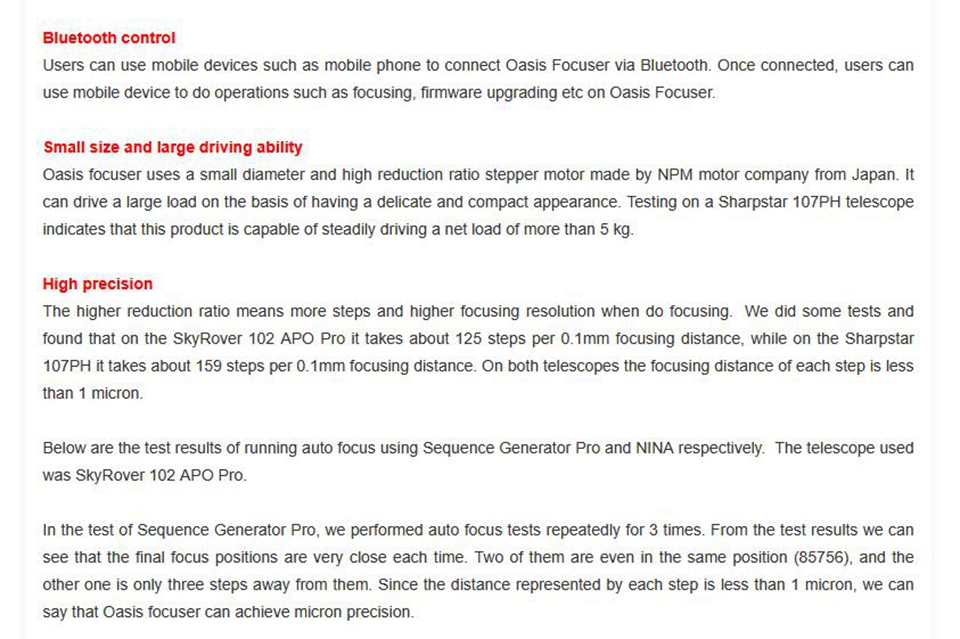

- Bluetooth function: Mobile devices such as mobile phones can be used to control the focuser via Bluetooth.
- Small size: Round appearance with small size.
- High precision: Micron precision for each motor step.
- Ability to drive heavy load: Testing indicates that it can driver net loads more than 5Kg.

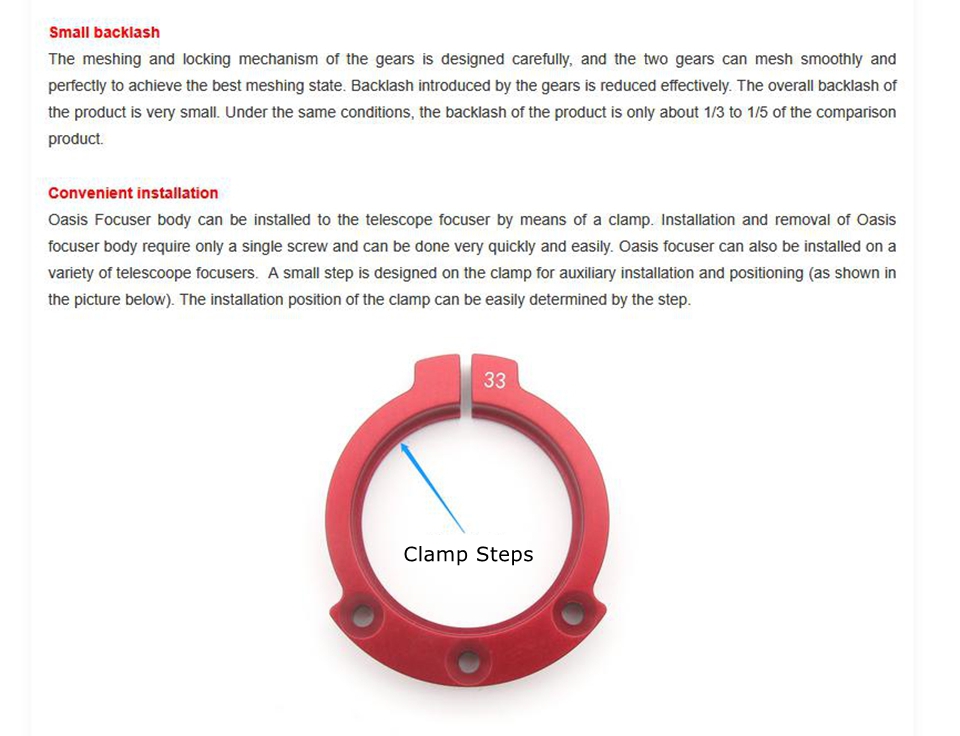

- Small backlash: Carefully selected motor model and product design results in small backlash.
- Easy to install: Easy to install or uninstall focuser body. Only one screw needs to be used to install or uninstall focuser body. And it can be installed on many telescope focusers.

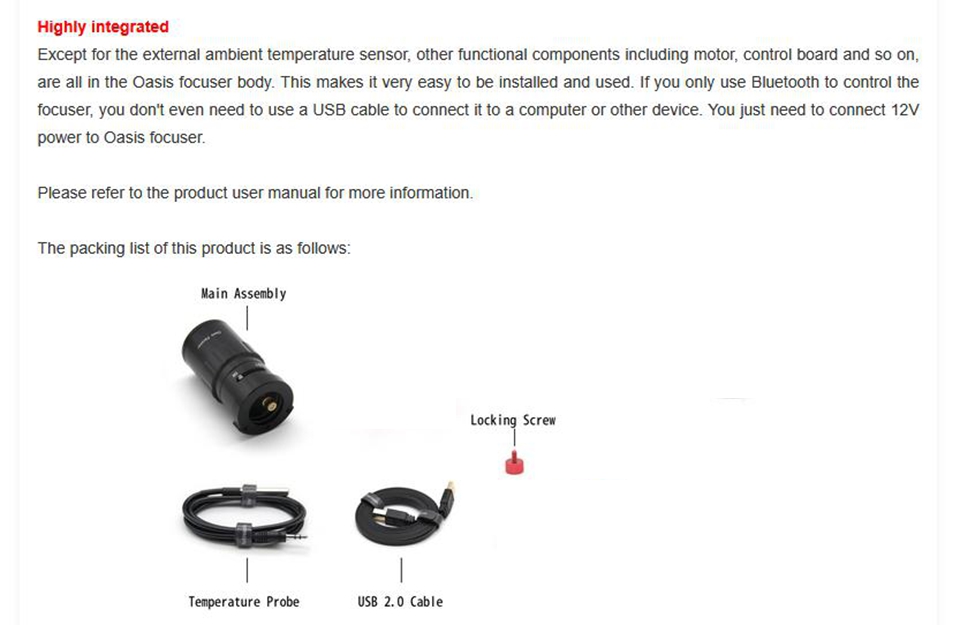

- High integrated: Except for the ambient temperature probe, all functions and components (including motor, controller board etc.) are implemented and integrated in the single small-sized focuser body.
- Support for ASCOM interface.
- Support for INDI.
- Support USB HID device interface, driver-free for Windows operation system.
- Has two temperature sensors, one monitors board temperature, the other monitors ambient temperature.
- Support backlash compensation.

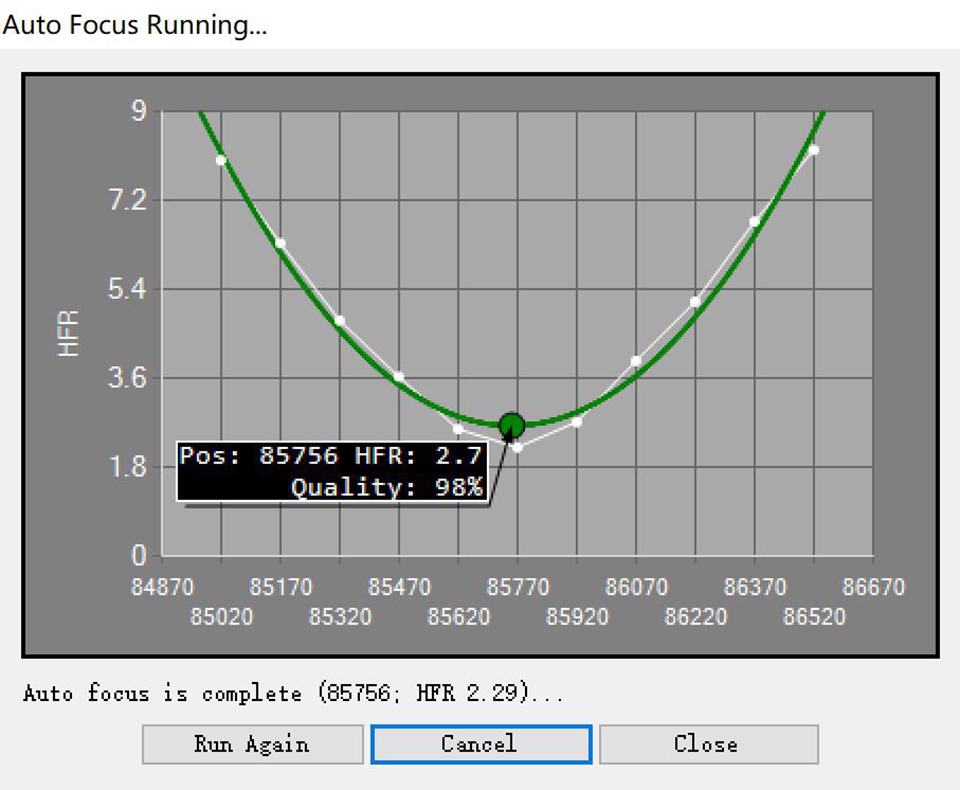

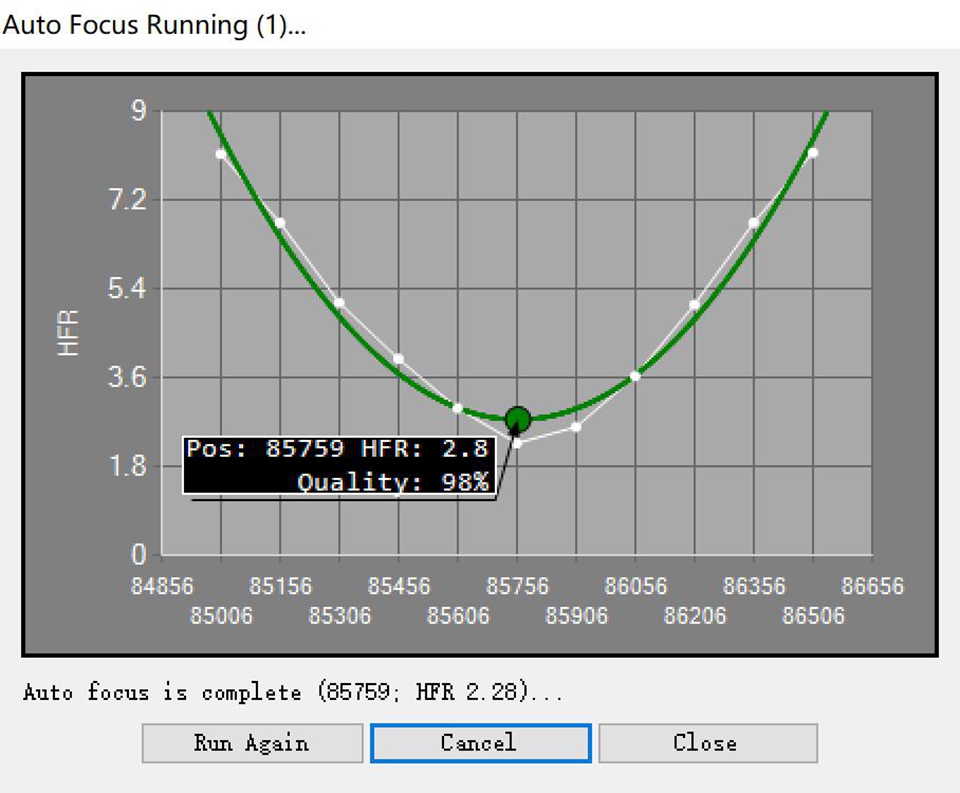

- Support electronic auto-focusing.
- Has beep generator for tips or alarms.
Note:
- The clamp and gears displayed in the pictures are not included.
Package Included:
- 1 x Focuser
- 1 x Temperature Probe
- 1 x USB2.0 Cable
