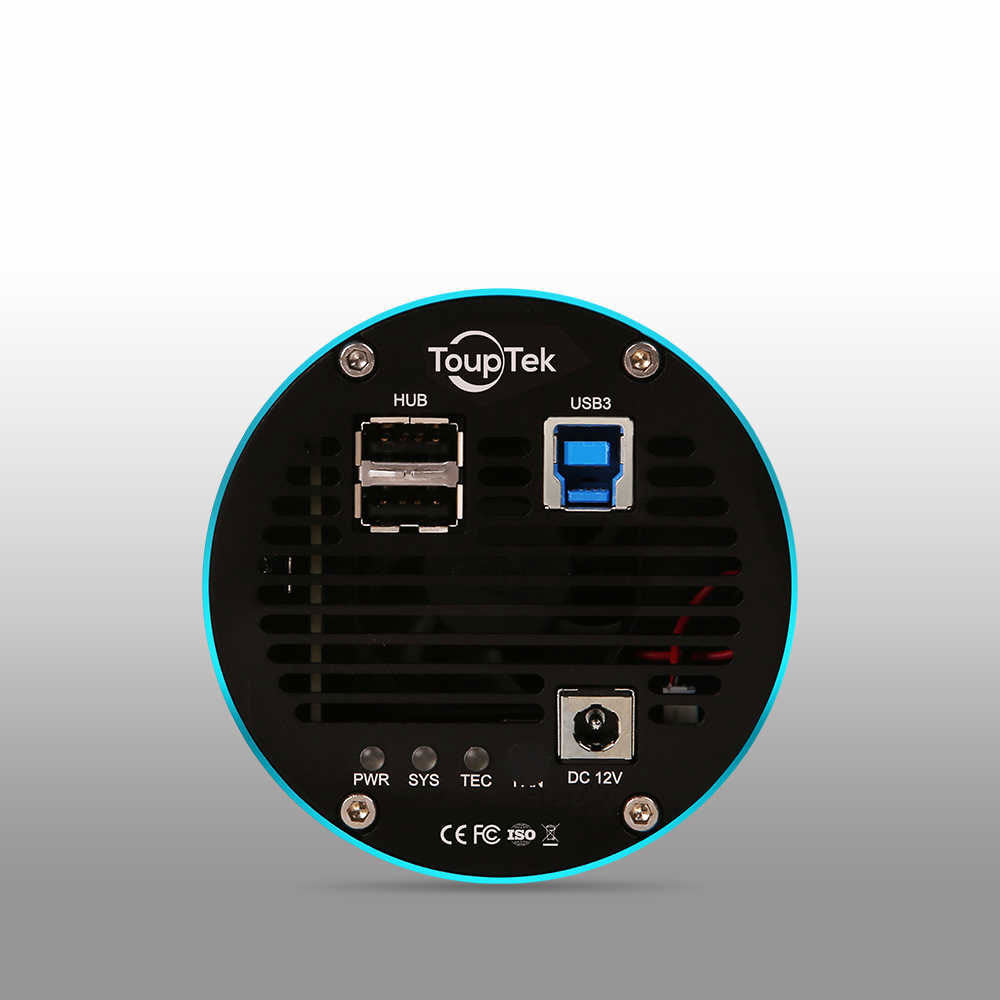

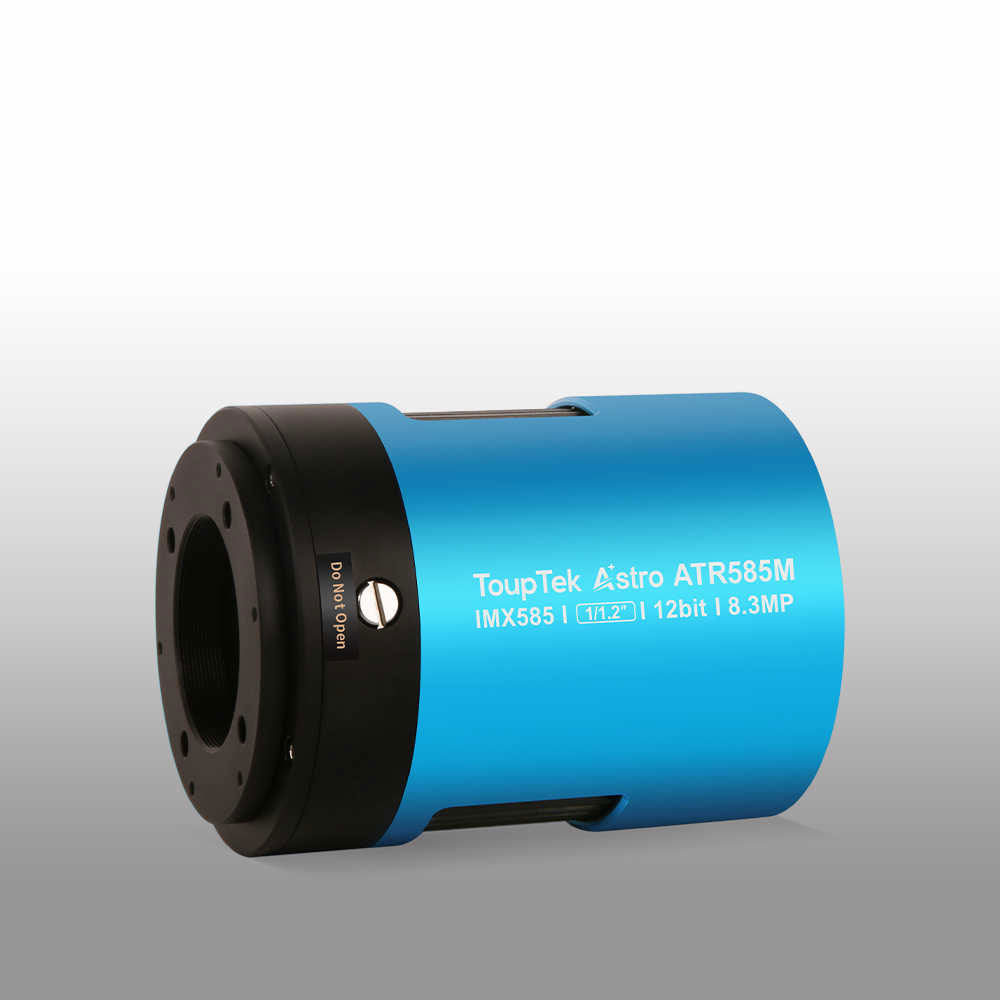

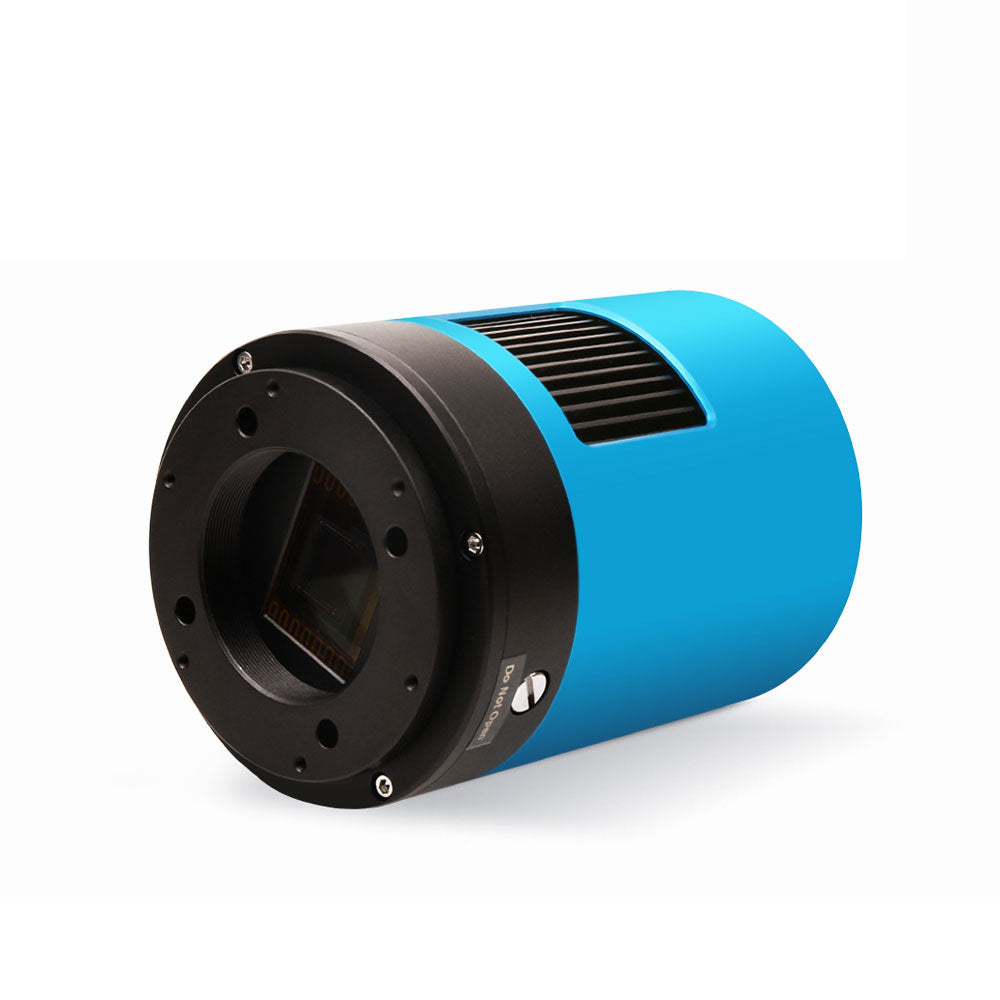

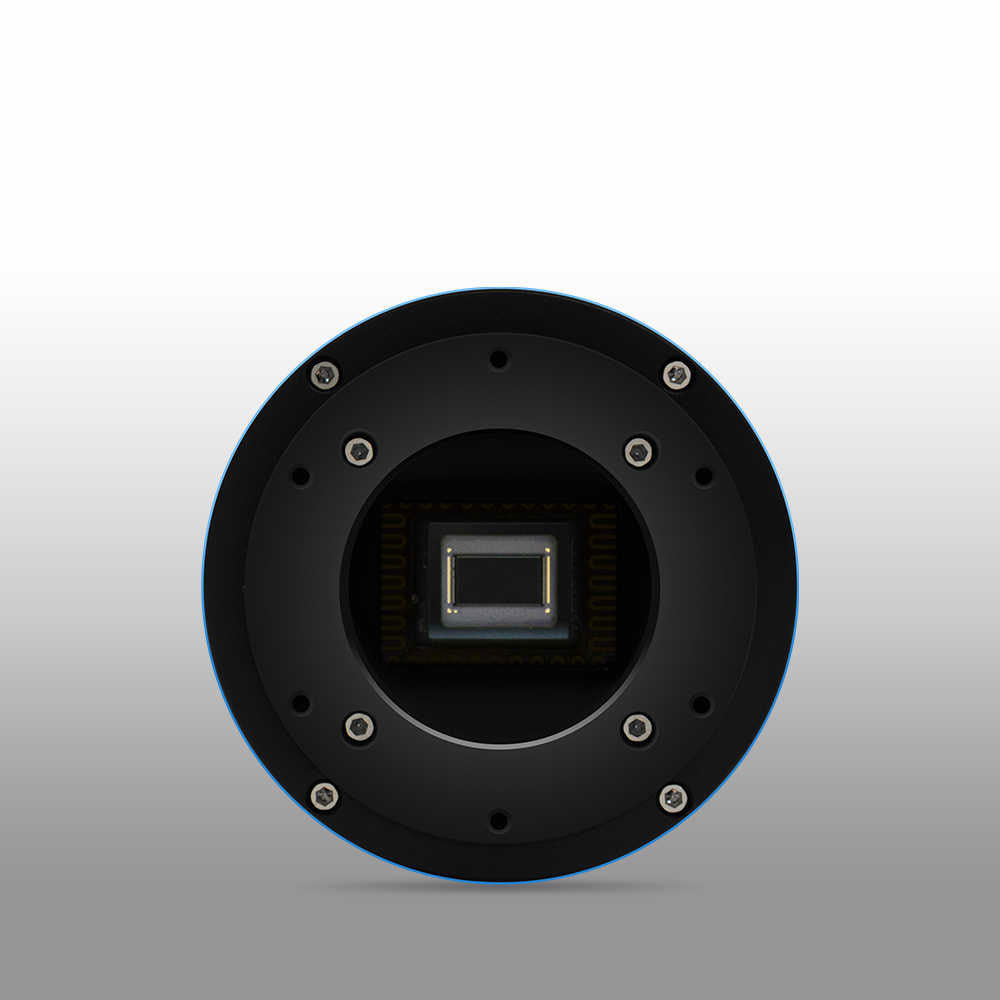

ToupTek ATR585M IMX585 Mono Camera Astronomical Research-grade Deep Space Cooling Camera 3840x2160 1/1.2 Inch Frame
픽업 사용 가능 여부를 로드할 수 없습니다.
Specifications
Brand
Product type
Technical specs
Design and durability
ToupTek ATR585M IMX585 Mono Camera Astronomical Research-grade Deep Space Cooling Camera 3840x2160 1/1.2 Inch Frame
Description:
- The ATR585M (ATR3CMOS08300KMA) camera is designed specifically for astrophotography. It is mainly used for deep sky photo shooting, since the camera has cooled CMOS sensor, ultra-low readout noise and zero amp-glow. It can be also used for planetary photo shooting. Its extraordinary performance and extensive usage will give you great astrophotography experience.
Features:
- IMX 585 mono CMOS sensor
- Resolution: 3840 x 2160
- 2.9μm square pixel
- 1/1.2-inch optical format
- 12-bit ADC
- 512Mbyte memory
- Precise temperature regulation
- G sensitivity: 59560970mv with 1/30s
- Zero amp-glow
- Low noise: 0.5046 to 3.045.18e-
- Support high frame rate mode (24 FPS at all pixel readout 12 bit)
- SNR max: 456dB
- Dynamic range: 885.6dB (HDR)
- -35°C below ambient under short exposure / -45°C under long exposure time (> 1s)
Specification:
- Diagonal: 12.85mm
- Image resolution: 8.3 mega pixels (3840x2160)
- Pixel size: 2.9mm x 2.9mm
- Image area: 11.2mm x 6.3mm
- Max FPS at resolution (USB 3.0)
12bit: 24FPS at 3840x2160; 70FPS at 1920x1080
8bit: 47FPS at 3840x2160; 70 FPS at 1920x1080
- Max FPS at resolution (USB 2.0)
14bit: 2.5FPS at 3840x2160; 7.3FPS at 1920x1080
8bit: 5.6FPS at 3840at2160; 7.9 FPS at 1920x1080
- Shutter type: rolling shutter
- Exposure time: 0.1ms - 3600s
- Gain: 1x - 100x
- SNR: 45dB
- Dynamic range: 88.6dB (HDR Mode)
- Read noise: 3.04 ~ 0.50e-
- QE peak: > 91%
- Full well: 38.9ke-
- ADC: 12bit (16bit at HDR)
- DDR3 buffer: 512MB (4Gb)
- Connection port: USB3.0/USB2.0
- Camera adaptor: M42 x 0.75mm
- Protect Windows: IR-cut filter/AR-window
- Spectral range: 380-1100nm (with AR-window)
- Acquisition/control SDK: for Windows/Linux/macOS/Android Multiple Platform SDK (Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc.)
- Recording system: still picture and movie
- Camera dimensions: diameter 80mm x height 107.1mm
- Camera weight: 0.577kg
- Back focus distance: 17.5mm
- Cooling: two stage TEC
- Effective cooling temp: -35℃ below ambient under short exposure/ -45℃ under long exposure (> 1s)
- Supported OS: for Microsoft Windows XP / Vista / 7 / 8 / 10 / 11 (32 & 64 bit), OS x (Mac OS X), Linux
Package Included:
- 1 x Camera
- 1 x Camera Cover
- 1 x M42 Adapter Ring
- 1 x 16.5mm Extension Tube
- 1 x 21mm Extension Tube
- 1 x M48 to M42 Adapter Ring
- 1 x Power Adapter
- 1 x Power Cable
- 1 x USB3.0 Data Cable
