ZWO ASI120MM Mini Guide Camera w/ USB2.0 ST4 Ports / ASIAIR Mini Wireless Controller for Photography
픽업 사용 가능 여부를 로드할 수 없습니다.
Specifications
Brand
Product type
Technical specs
Design and durability

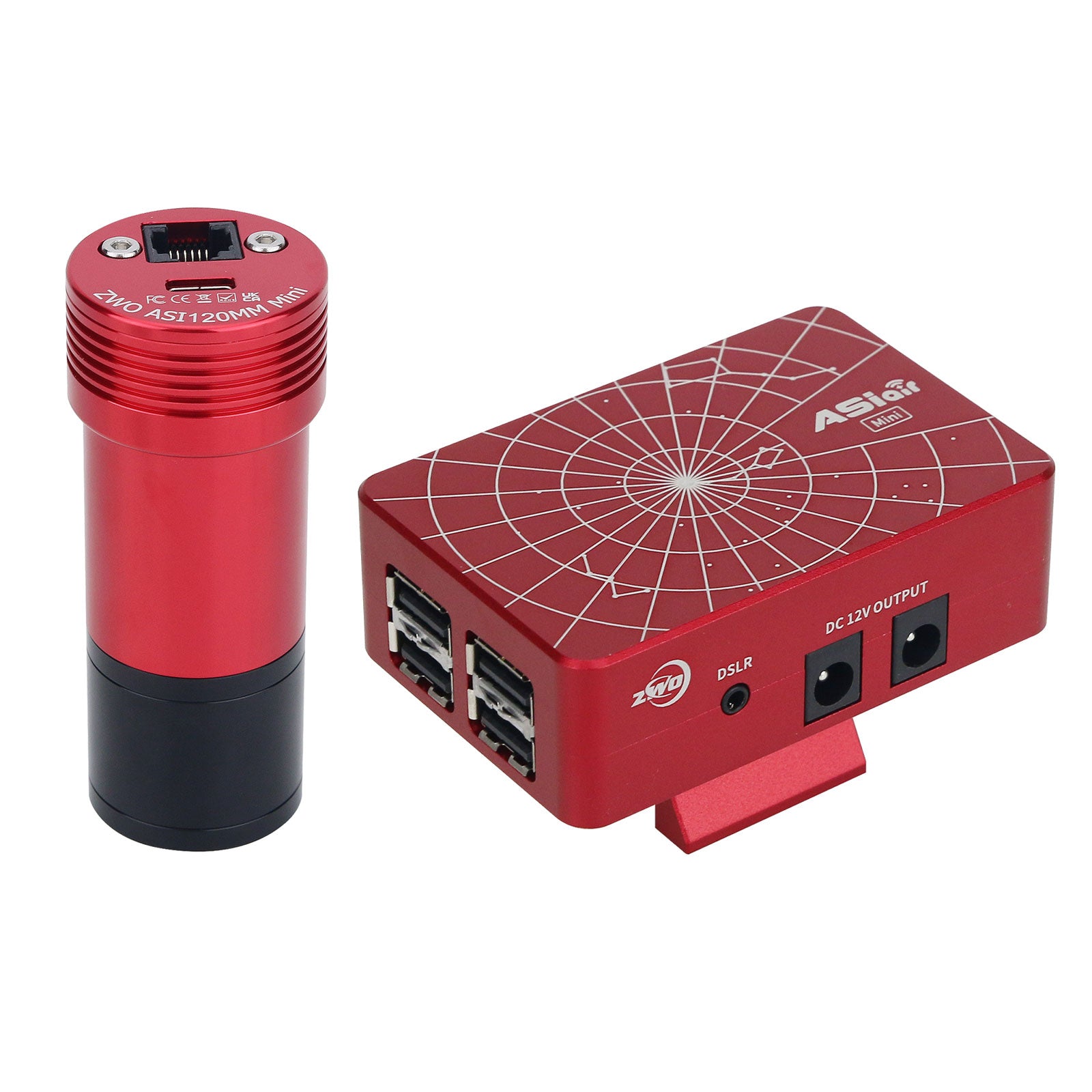

ZWO ASI120MM Mini Guide Camera w/ USB2.0 ST4 Ports + ASIAIR Mini Wireless Controller for Photography
ZWO ASI120MM Mini Guide Camera:
Description:
Camera Sensor
The ASI120MM Mini camera integrates the AR0130CS 1/3" sensor (4.8 mm x 3.6 mm). It is a new model in the "mini"-series of cameras from ZWO. This camera has 1280 x 960 pixels with a pixel size of 3.75 μm x 3.75 μm. It provides 12-bit ADC and the QE peak is almost 80%.
Astrophotography Performance
The ASI120 mini camera offers you very good performance for planetary imaging as well as for guiding. Low read noise, high dynamic range, AR protective window and much more are just some of the key characteristics that set it apart from the competition.
High QE
120Mini VS 120MM-S
Compared with the ASI120MM-S camera, the new 120-Mini has a sleeker design, less weight, and it can reach focus at the same position as an eyepiece.

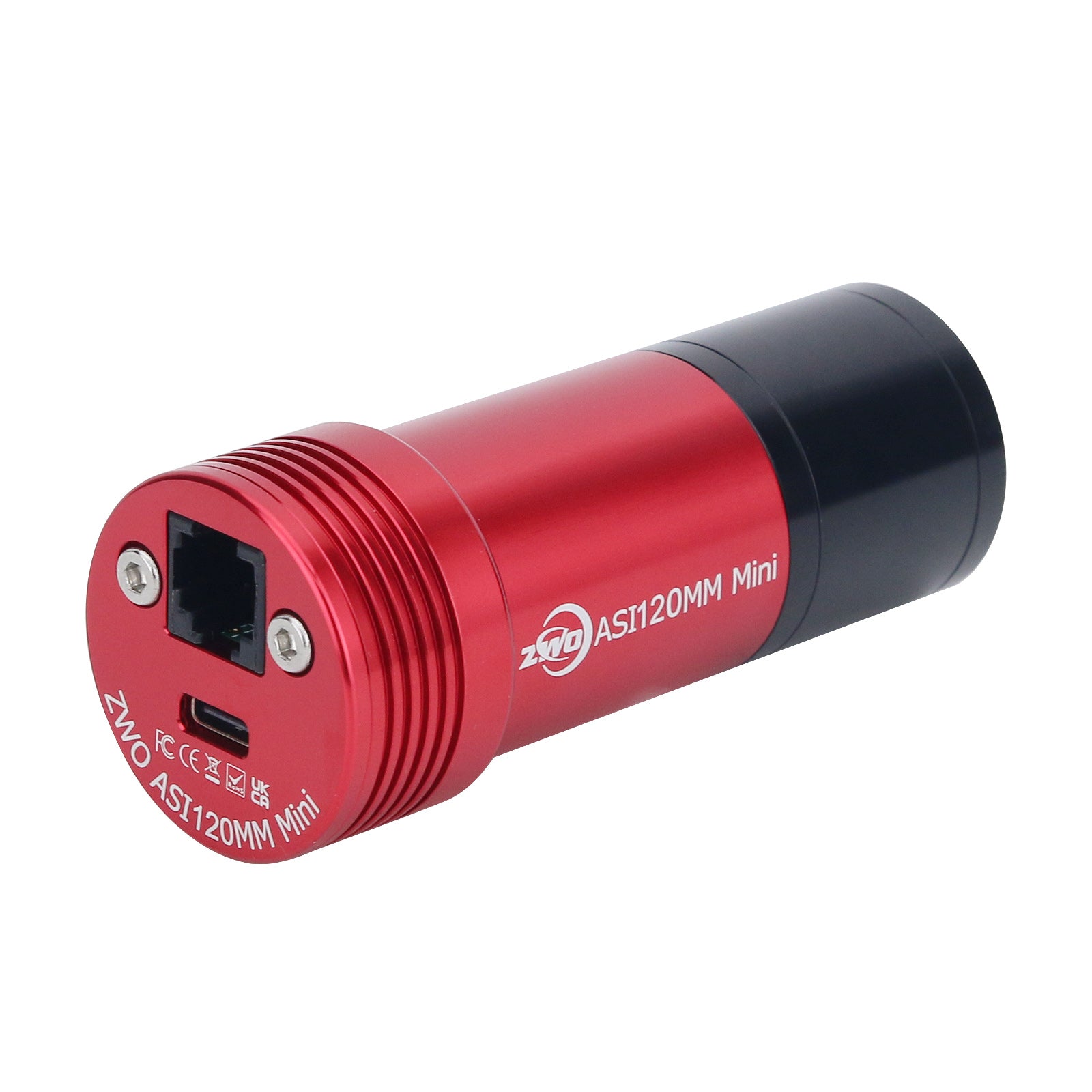

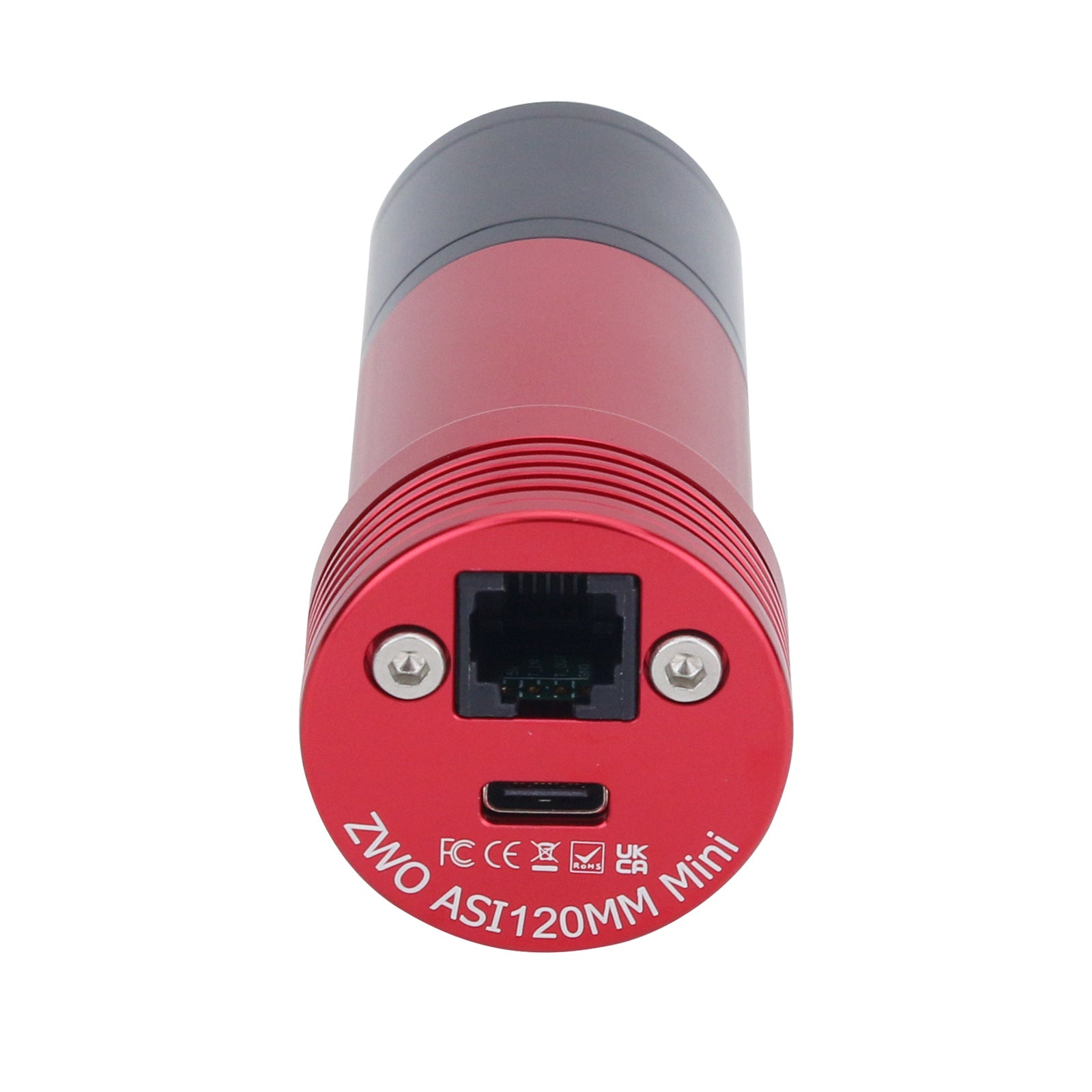

USB2.0 Port & ST4 Port
* USB 2.0 Port: Mini camera has one USB2.0 type-C port. Type-C port is very popular in mobile phones, as it doesn’t matter which way you connect it (unlike for example type-A or type-B)
* #USB-C to USB-A cable is required.
* ST4 Port: The camera can be connected directly to the auto-guider port of the mount.
Connecting Drawing:
1. M28.5-CS adapter
2. CS-C adapter
3. 1.25" extender
4. 1.25" filter
Mechanical Drawing:

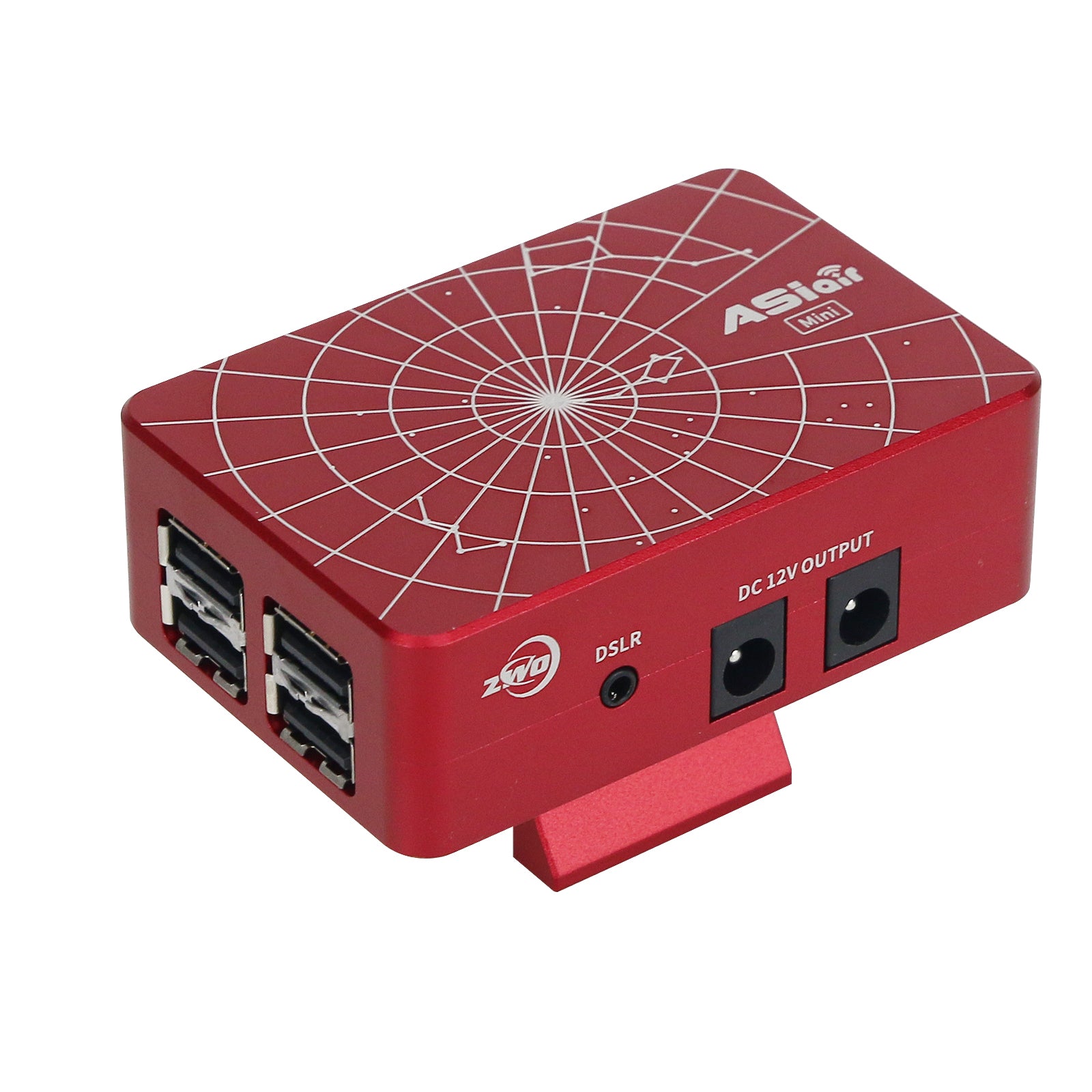

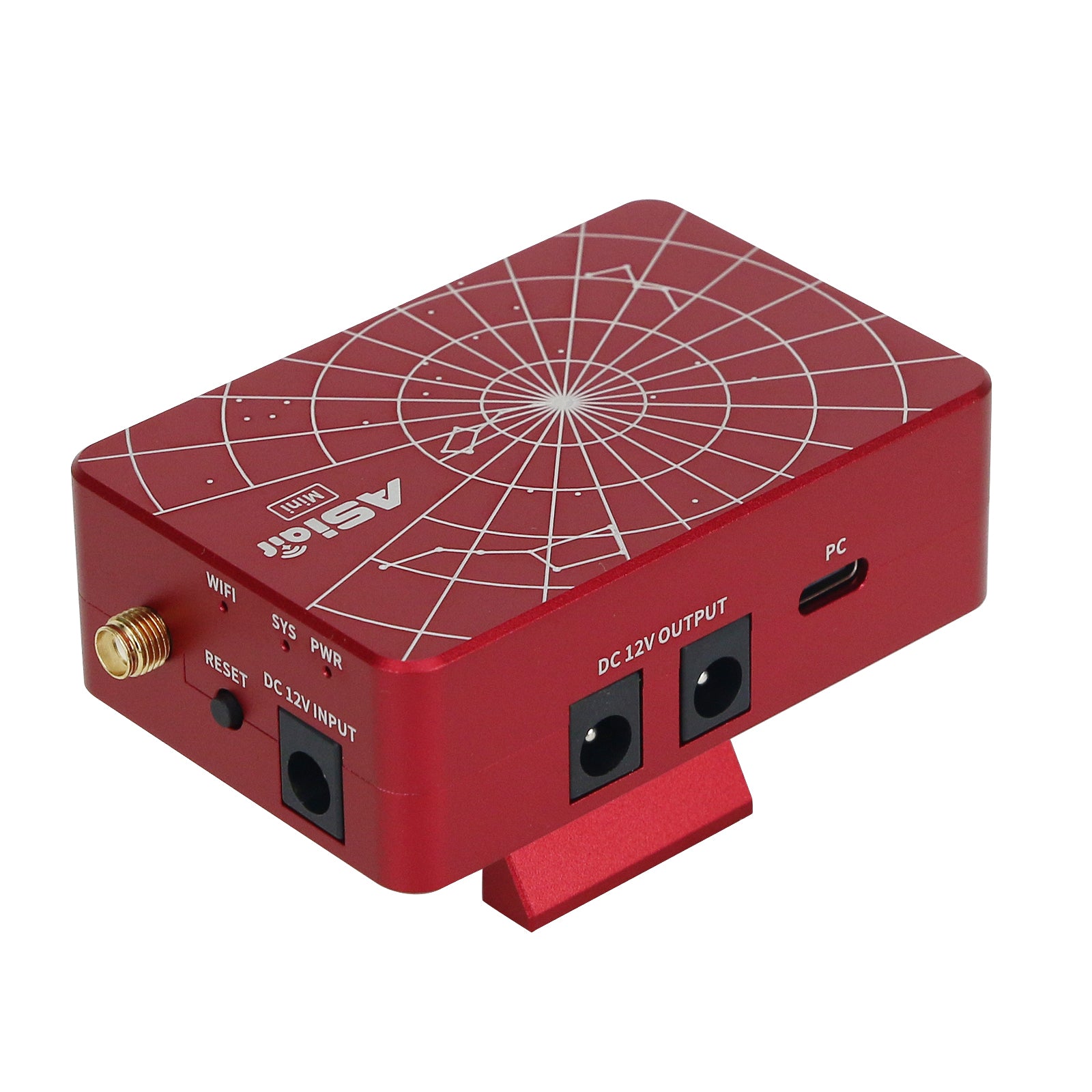

ASIAIR Mini Wireless Controller:
Package Included:
- 1 x Set of ZWO ASI120MM Mini
- 1 x ASIAIR Mini Wireless Controller (optional)
Packaging Details:
- Volume weight: 1.5KG
Note:
- SD card is not included.
