ZWO ASI183MM Mono Astronomical Camera IMX183CLK-J Sensor 1-inch High Speed USB3.0 Built-in 12Bit ADC
픽업 사용 가능 여부를 로드할 수 없습니다.
Specifications
Brand
Technical specs
Design and durability
ZWO ASI183MM Mono Astronomical Camera IMX183CLK-J Sensor 1-inch High Speed USB3.0 Built-in 12Bit ADC
Description:
- The ASI183 series is the highest quantum efficiency among all ZWO camera series, with a peak quantum efficiency of 84%.

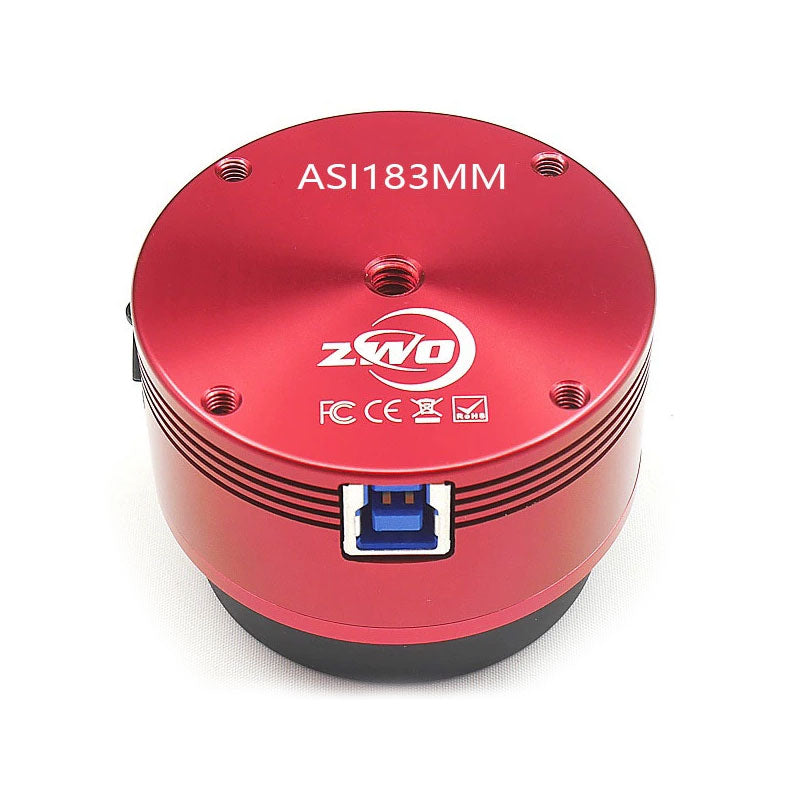

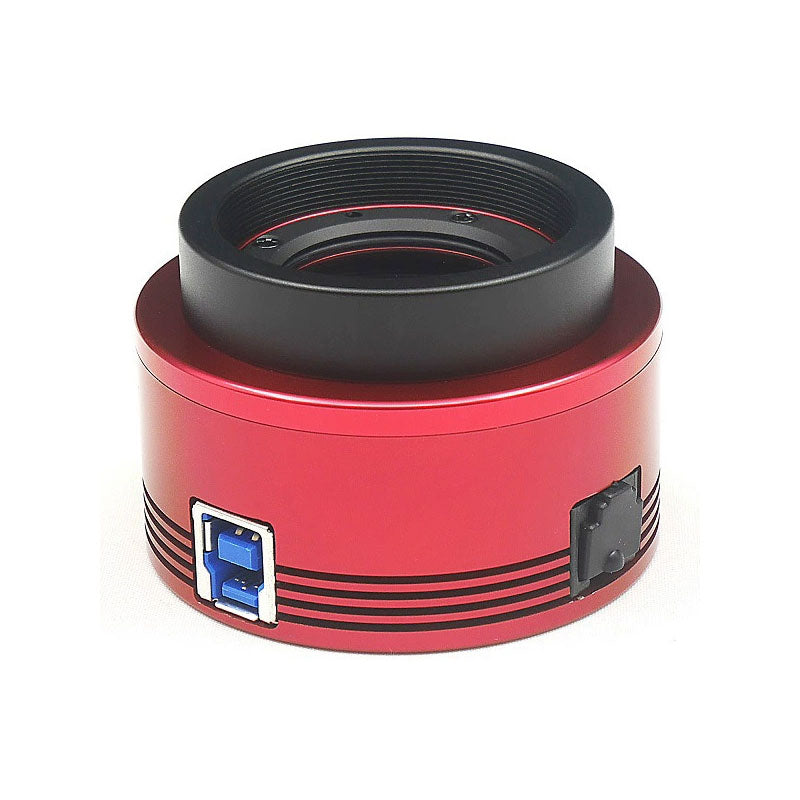

- The ASI183MM camera uses a Sony IMX183CLK-J (monochrome) sensor with a frame size of 1 inch (13.2mm x 8.8mm). This is a brand new high-speed USB 3.0 camera from ZWO. This camera has 5496 x 3672 pixels and supports BIN2, BIN3, and BIN4 modes. Pixel size is 2.4μm x 2.4μm. This camera has a built-in 12 bit ADC and a full well capacity of 15000e.
Camera Curve:
- Although ASI183 has a small pixel size, it still has a full well capacity of 15000e. Read out the noise as 1.6e at 30DB , with a dynamic range of 12 stops at gain=0.
High Frame Rate:
- The ultra-high frame rate can be used for surface photography of the sun and moon, as well as real-time live streaming and other fields. This high frame rate is very convenient for real-time focusing, playing lucky imaging, shooting binary stars and small deep space celestial bodies, and can also be used for planetary photography and so on.
High QE:
- ASI183 has a very high quantum efficiency (estimated peak QE exceeding 84%).
Specification:
- Sensor: 1” CMOS IMX183CLK-J/CQJ-J
- Diagonal: 15.9mm
- Resolution: 20.18Mega Pixels 5496 x 3672
- Pixel Size: 2.4μm
- Bayer Pattern: None
- Shutter:Rolling shutter
- Exposure Range: 32µs - 2000s
- ROI: Supported
- ST4 Guider Port: Yes
- Read Noise: 1.6e at 30db gain
- QE peak: 84%
- Full well: 15ke
- ADC:12bit
- Interface: USB3.0/USB2.0
- Adaptor: 2” / 1.25” / M42X0.75
- Dimension: φ62mm X 36mm
- Weight: 120g or 4.2 ounces (without lens)
- Working Temperature: -5°C - 45°C
- Storage Temperature: -20°C - 60°C
- Working Relative Humidity: 20% - 80%
- Storage Relative Humidity: 20% - 95%
- Max FPS at full resolution:
10Bit ADC: 5496 x 3672 19fps; 3840 x 2160 41.04fps; 1920 x 1080 80.10fps; 1280×720 117.30fps; 640 x 480 169.92fps; 320 x 240 308.17fps; etc.
12bit ADC: 5496 x 3672 19fps; 3840 x 2160 36.12fps; 1920 x 1080 70.48fps; 1280 x 720 103.23fps; 640 x 480 149.53fps; 320 x 240 271.19fps; etc.

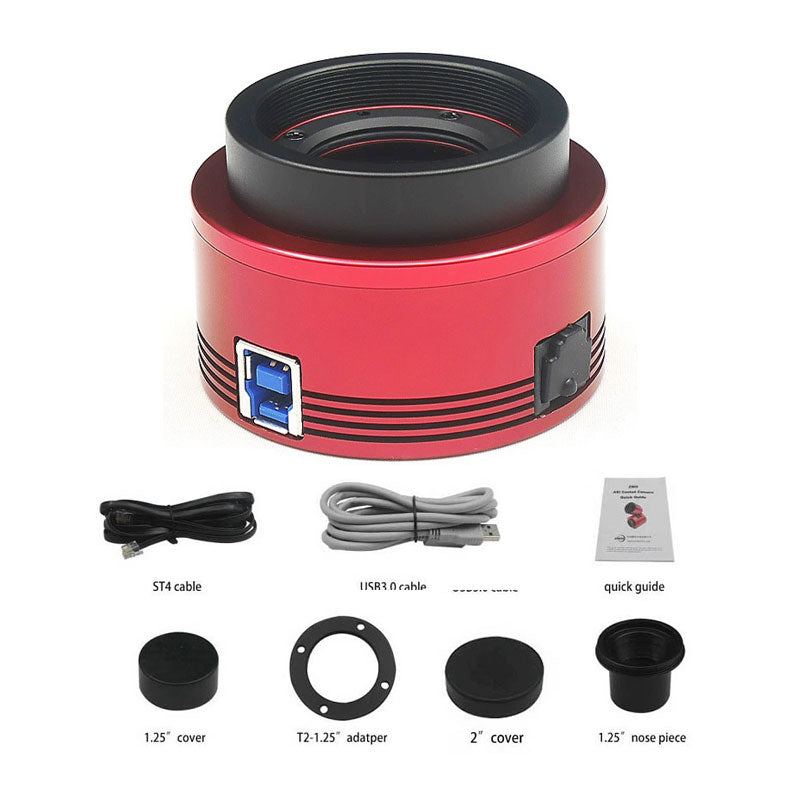

Package Included:
- 1 x Camera
- 1 x ST4 Cable
- 1 x USB3.0 Cable
- 1 x Quick Guide
- 1 x 1.25” Cover
- 1 x T2-1.25” Adapter
- 1 x 2” Cover
- 1 x 1.25” Nosepiece
