iOptron SkyTracker Pro Portable Single-axis Equatorial Mount High Precision Automatic Tracking Astronomical Accessory
Couldn't load pickup availability
Specifications
Brand
Product type
Technical specs
Design and durability
SkyTracker Pro Portable Single-axis Equatorial Mount High Precision Automatic Tracking Astronomical Accessory for iOptron
Description:

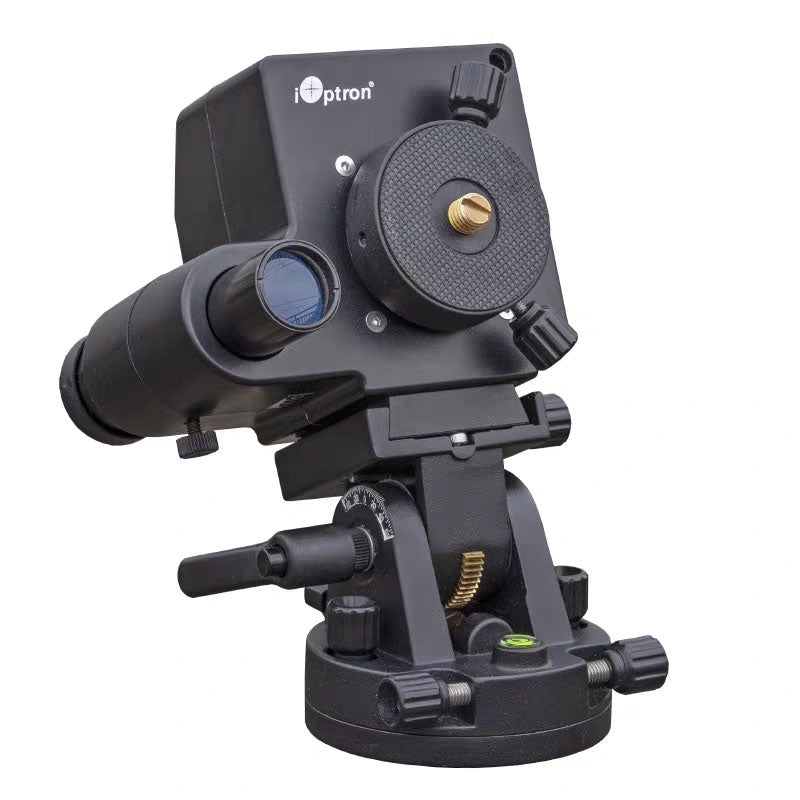

- The SkyTracker Pro ultra portable single axis equatorial tracker is a precision tracker developed specifically for astronomical photography.
- It has smaller size, better portability (the main body only weighs 685g, including the battery weight), higher accuracy, maximum effective load capacity of 3kg, built-in rechargeable lithium battery, long battery life (over 20 hours).
- After optimization design, the polar telescope has stronger applicability (reduced interference probability). The independent fine-tuning bottom of the split body makes the seat design more flexible to use. Suitable for long-term exposure shooting locations with various DSLR cameras, catching landscapes such as starry sky, Milky Way starry sky, Milky Way wide area deep space, etc.
- Note: When shooting wide area starry sky, it is best to add L-PRO built-in filters (not included), and UHC filters (not included) can also be added for urban light pollution. Be careful to avoid potential interference between the camera and the polar mirror during use.
Specification:
- Equatorial instrument type: single axis automatic tracking equatorial instrument
- Effective load capacity: up to 3kg
- Body structure material: aluminum alloy
- Red meridian axis: Ø25mm steel
- Number of bearings: 4
- Worm gear: aluminum 144 teeth Ø 74 Ø
- Worm: Copper Ø 11mm
- Cycle: 10 minutes
- Drive motor: DC servo motor
- Body base connection method: Vixen dovetail, 3/8" screw hole at the center of the base
- Ball head connector diameter: Ø 53mm
- Ball head connector screw hole: 3/8" or 1/4"
- Polar peephole: approximately 8° FOV
- Standard adjustable brightness dark field illumination polar telescope
- Tracking speed: sun time, moon time, stellar time, 1/2X, southern/northern hemisphere
- Electric fine-tuning speed: maximum 180X
- Battery life: over 20 hours (20℃)
- Battery charging interface: US (5V), charging for 5 hours, can reach over 80%
- Working environment temperature: -15 to 40℃
- Self weight of the body: 685g (including the battery weight)
- Body size: 115 x 115 x 95mm
- Fine tuning base: equipped with Vixen dovetail connection, independent pitch and azimuth fine tuning base (self weight 450g)
- Directional adjustment range: ±5°
- Pitch adjustment range: -30 to 65°
- Fine tuning base diameter: Ø80mm
- Fine tuning base screw hole: 3/8
Precaution:
- The operating temperature (discharge) of a rechargeable lithium battery is -20 ~ 40℃, but it should be kept above 0℃ during charging, otherwise it will damage the lithium battery and cannot be repaired. So do not charge the Sky Tracker Pro below 0℃. (including not inserting an external power bank below 0℃)
- The load of the equatorial instrument should be balanced as much as possible. When the effective load is greater than 1.2kg, a balance kit accessory must be used.
Package Included:
- 1 x Set of Equatorial Mount
