ClearSky ST14 Telescope Harmonic Equatorial Mount for 3/8" Tripods (Electronic Home Position/Mechanical home position Optional)

* ST14 ClearSky strain wave equatorial mount, the premier choice for professional astrophotography

* Features a full-metal, precision-engineered body weighing approximately 4kg net, perfectly balancing stability and portability.

* Equipped with the ONSTEP smart operating system, it offers seamless compatibility with leading astronomy software such as N.I.N.A. and ASIAIR for effortless, worry-free control.

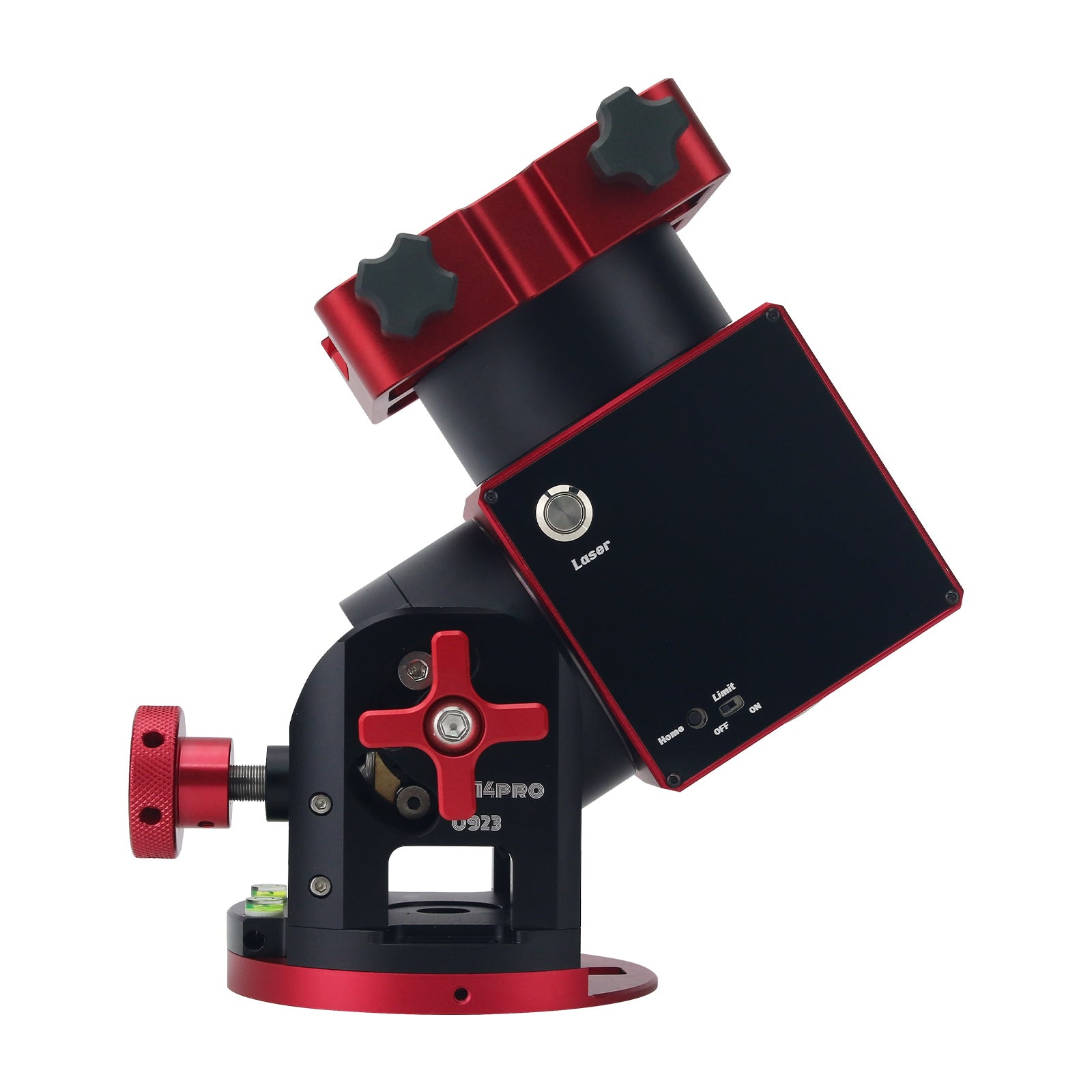

* Features independent switches for both the magnetic laser and the power supply, ensuring safe and convenient operation.

* The entire series comes standard with a world-first, patented mechanical limit function, effectively protecting your equipment for ultimate peace of mind.

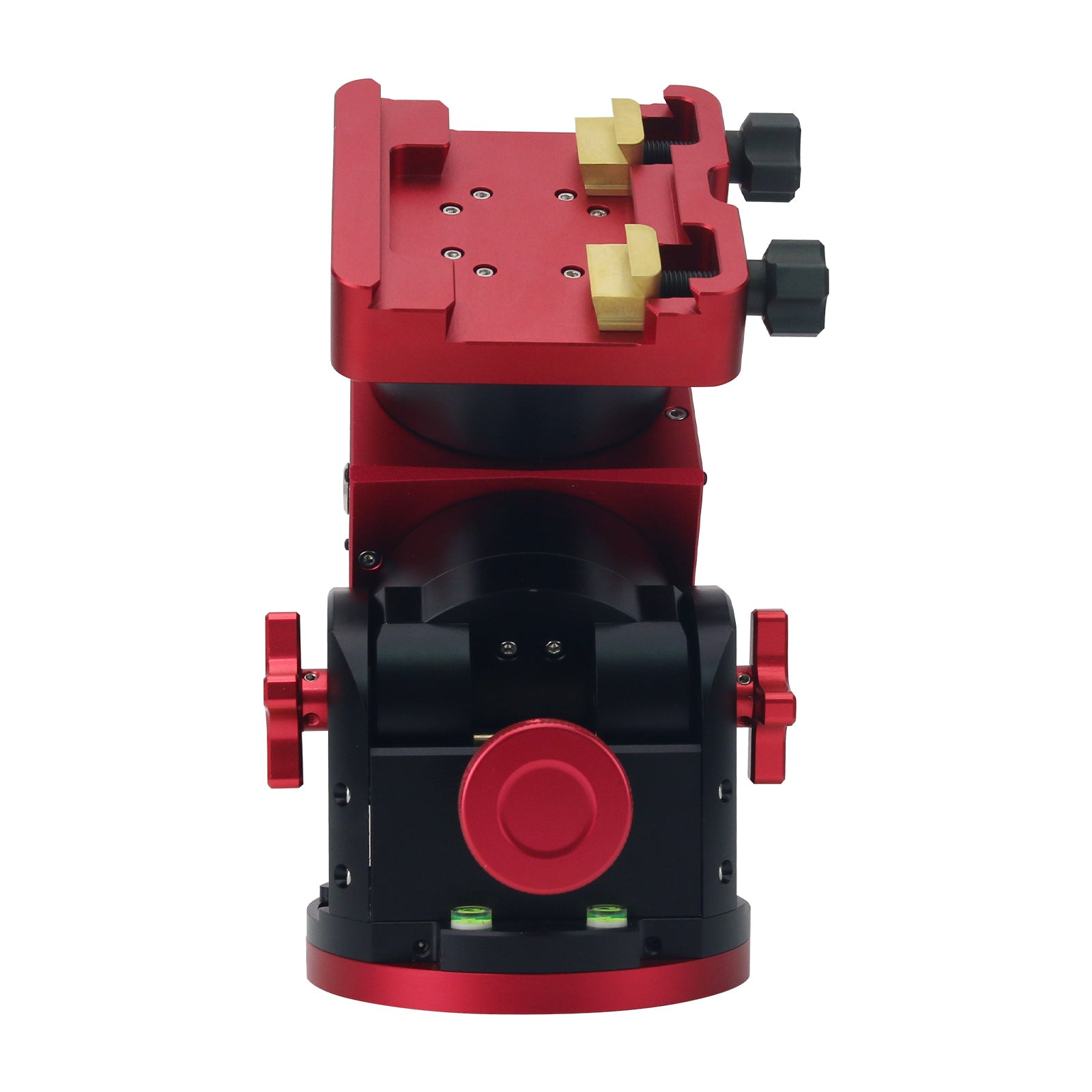

* Features a native dual-specification dovetail saddle paired with a proprietary cable management design, eliminating messy wiring for a cleaner, more organized setup.

* Utilizes a field-proven synchronous belt drive system coupled with a custom ultra-high-precision strain wave gear, delivering stable and reliable tracking accuracy to meet the demanding needs of deep-sky astrophotography.

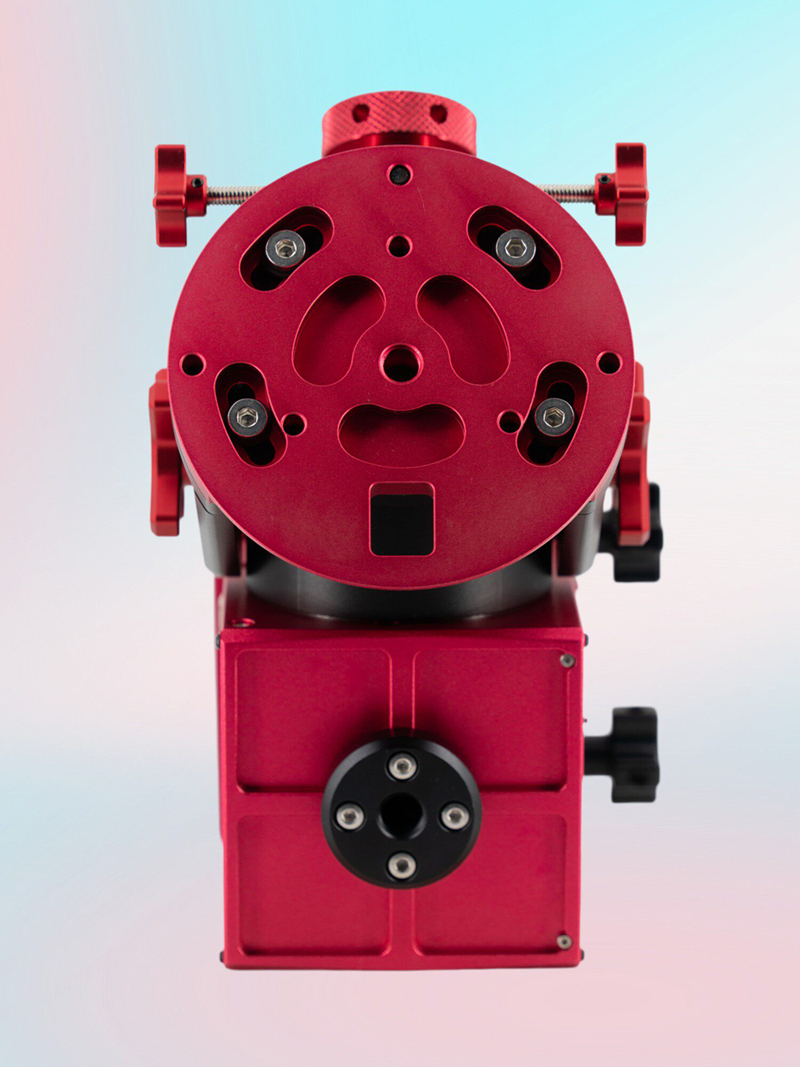

* Broad Tripod Compatibility: Can be directly mounted onto the ClearSky carbon fiber tripod, HEQ5/EXOS2/EQ3D steel tripods, TC40, or any standard 3/8" tripod, offering exceptional adaptability.

* Comes standard with an electronic home position + mechanical limit, with the option to upgrade to a mechanical home position + mechanical limit to satisfy diverse user requirements.

* Model: ST14

* Mount Type: Equatorial Mount/Alt-Azimuth Mount

* Drive Mode: Ultra-high precision strain wave gear (harmonic drive) + Synchronous belt

* Material: Anodized 6061 aluminum, 304 stainless steel, Brass

* Right Ascension (RA): NEMA 17 stepper motor, Size 14 strain wave gear, 300:1 reduction ratio

* Declination (DEC): NEMA 17 stepper motor, Size 14 strain wave gear, 300:1 reduction ratio

* Payload Capacity: 10-13kg

* Mount Weight: 3.9kg

* Dovetail Saddle Configuration: Mount data port, Power output port

* GOTO Speed: 2°/s (6°/s MAX)

* Electronic Polar Scope: iPolar/PoleMaster

* Power Supply: 12-15V 3-5A

* Power-off Brake: RA & DEC electronic brake, ≥ 35 N·m

* Optional Zero Position: Electronic zero position/mechanical zero position

* Limit Position: Standard patented mechanical limit

* Communication: USB, BT, WiFi, ST4

* Control System: ONSTEP/ONSTEPX

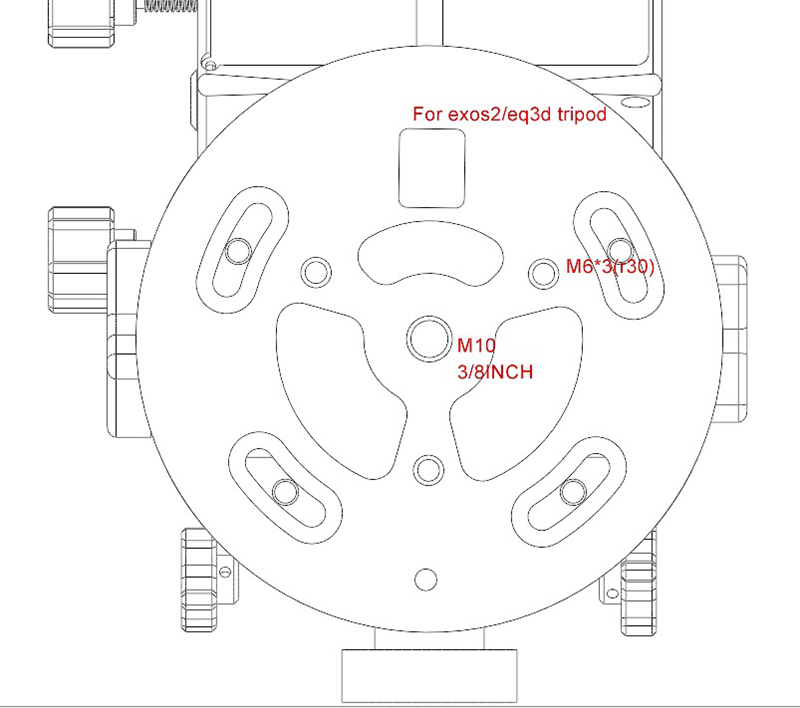

* Tripod Connection: 3/8", M6, TC40, ClearSky 40, EQ3D/HEQ5 steel tripod, EQ6R steel tripod (ST25 compatible)

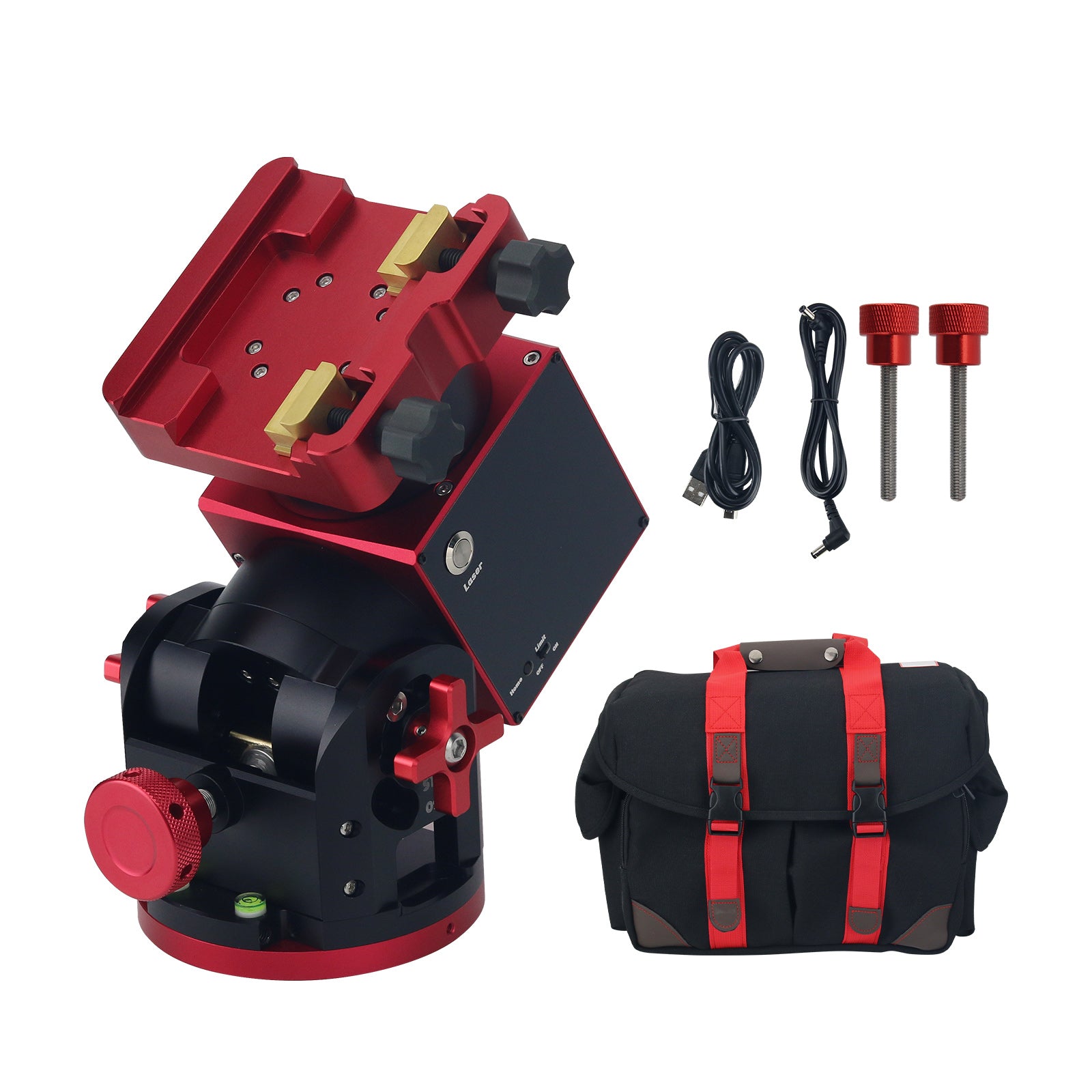

* 1 x Equatorial Mount

* Package weight: 5.5kg
