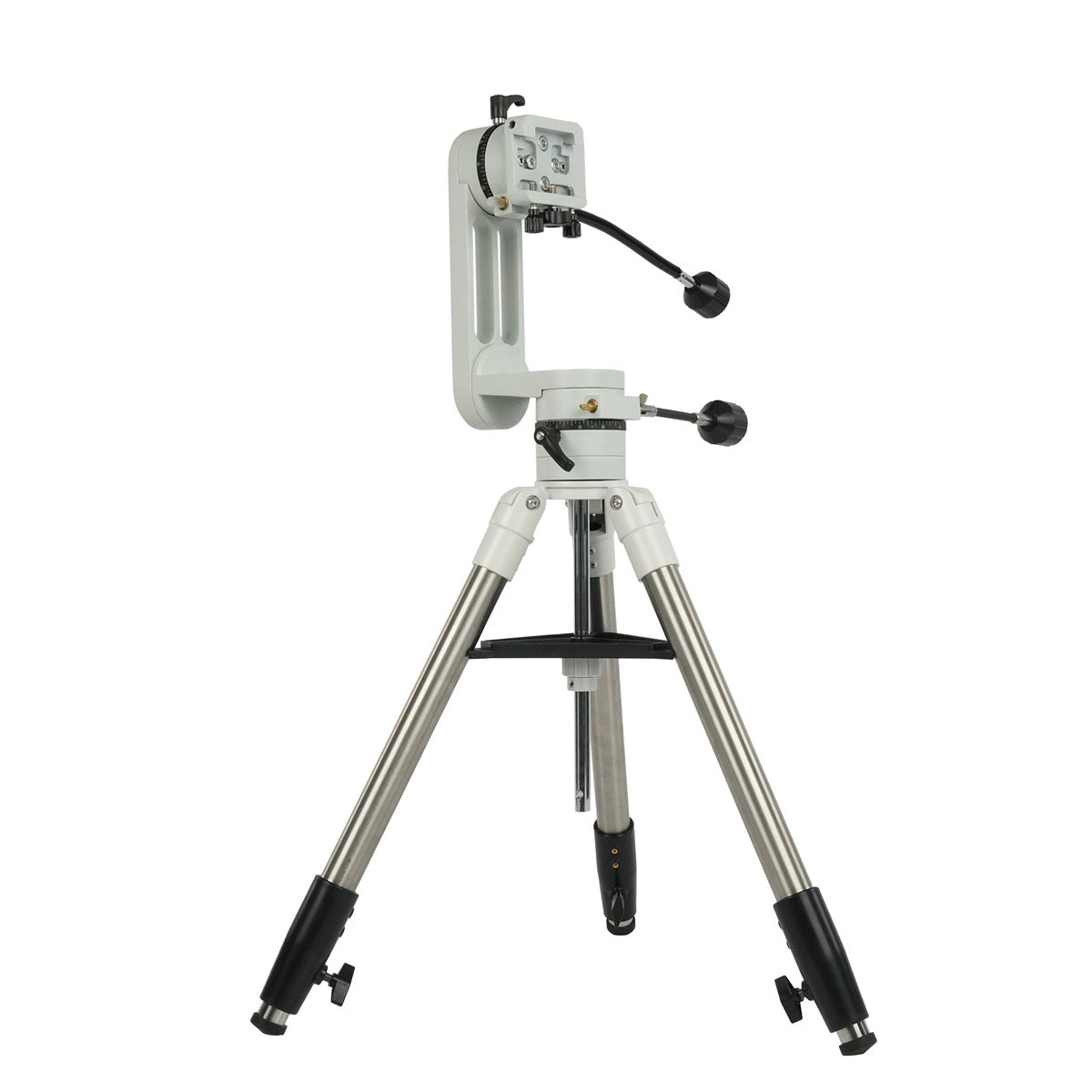

SVBONY SV225 Alt-Azimuth Telescope Mount Vixen Standard Dovetail with SV225T Extendable Aluminum Tripod
Description:
- CNC Hollow Structure: CNC metal construction, durable steady for a long-term use.
- UNC 3/8-16 Thread Specification: UNC 3/8-16 thread specification is compatible with Celestron/Skywatcher/Orion/Vixen & most mainstream astronomical OTAs.
- Vixen Standard Dovetail: With the Vixen Standard Dovetail, SV225 can be used with many telescopes, such as MK105, SV48P, SV503, SV550.
- Variable Speed Gear: The newly added variable speed gear increases the torque, and the customer reduces the idle adjustment during use, which makes the operation feel more comfortable. With low motion controls on both axes to let you smoothly follow the motion of the Moon and planets.
- Strong & Durable: Metal structure, sturdy and durable, suitable for long-term use.

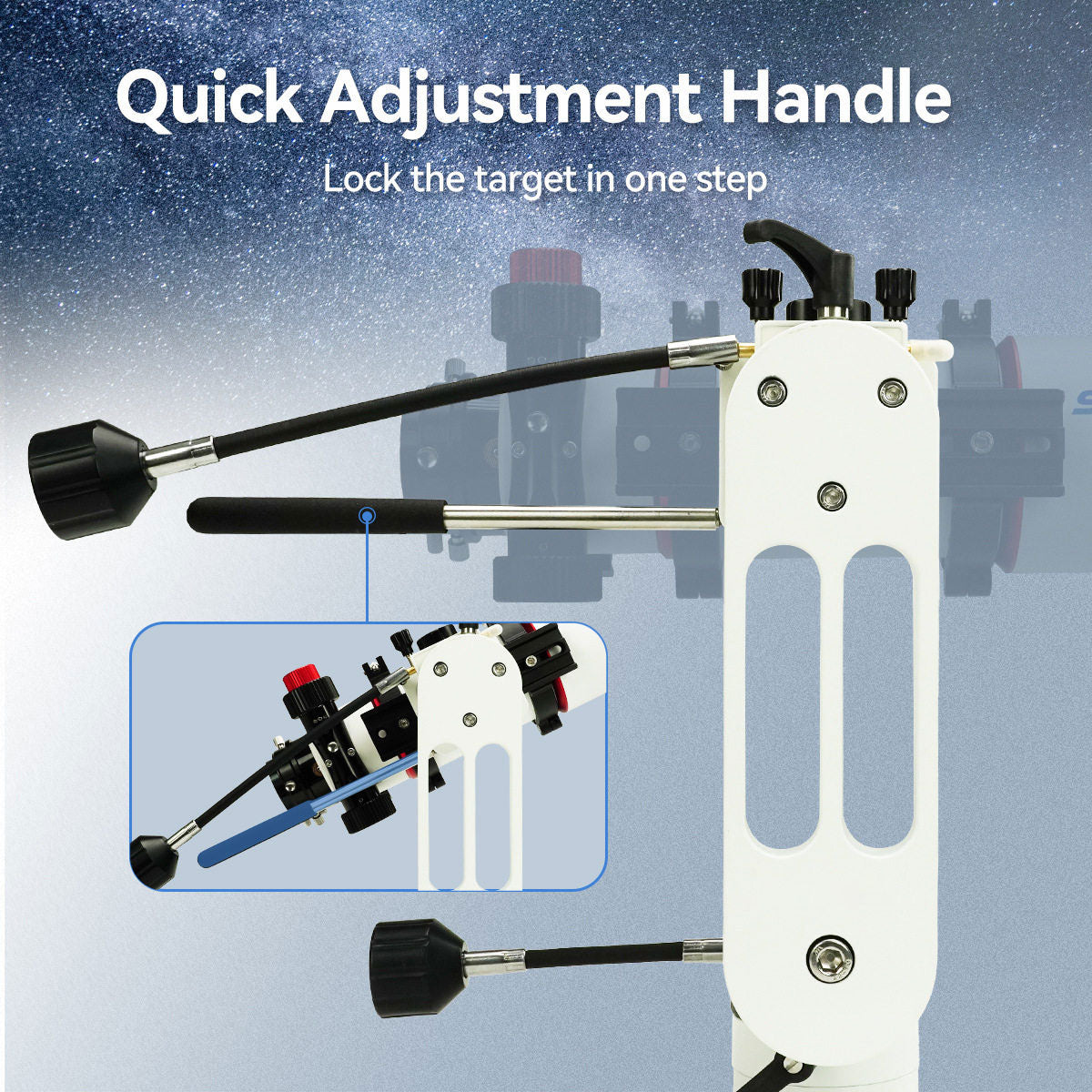

- Quick Adjustment Handle: The handle helps you position quickly and is easy to use and operate.
- Payload Capacity: 10KG load bearing makes sure you can have a smooth load operation even with the 122mm aperture SV550 OTA.
- 360° Azimuth & Elevation: Adjustable all-round viewing angle, observe as one pleases. Helical turbine drive supports 360° all-round adjustment, -60° to +60° altitude adjustment, all-round visual adjustment angle to meet your visual observation needs.

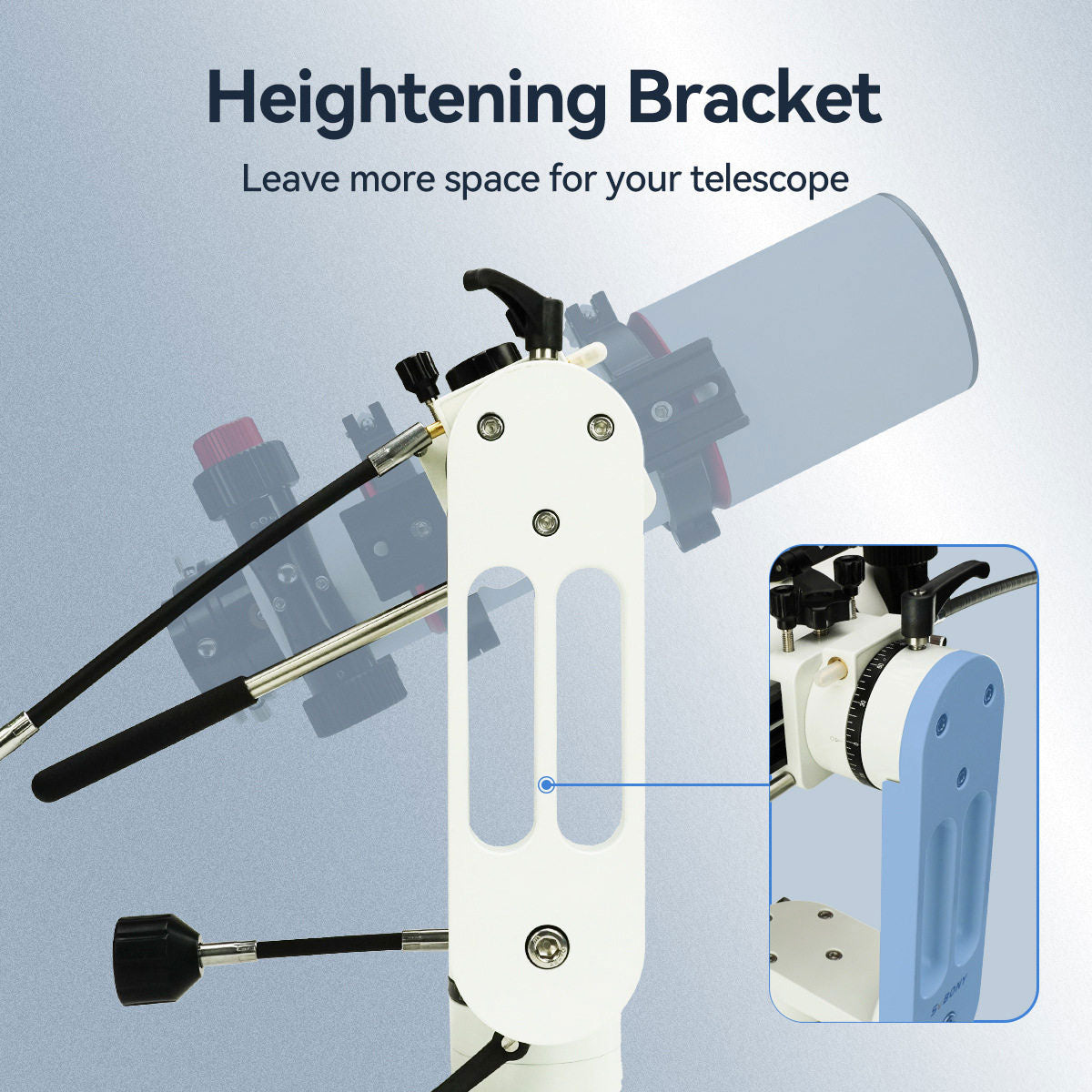

- Heightening Bracket: Larger telescopes can be installed to meet the installation and adjustment needs of OTA equipment under different visual observations.

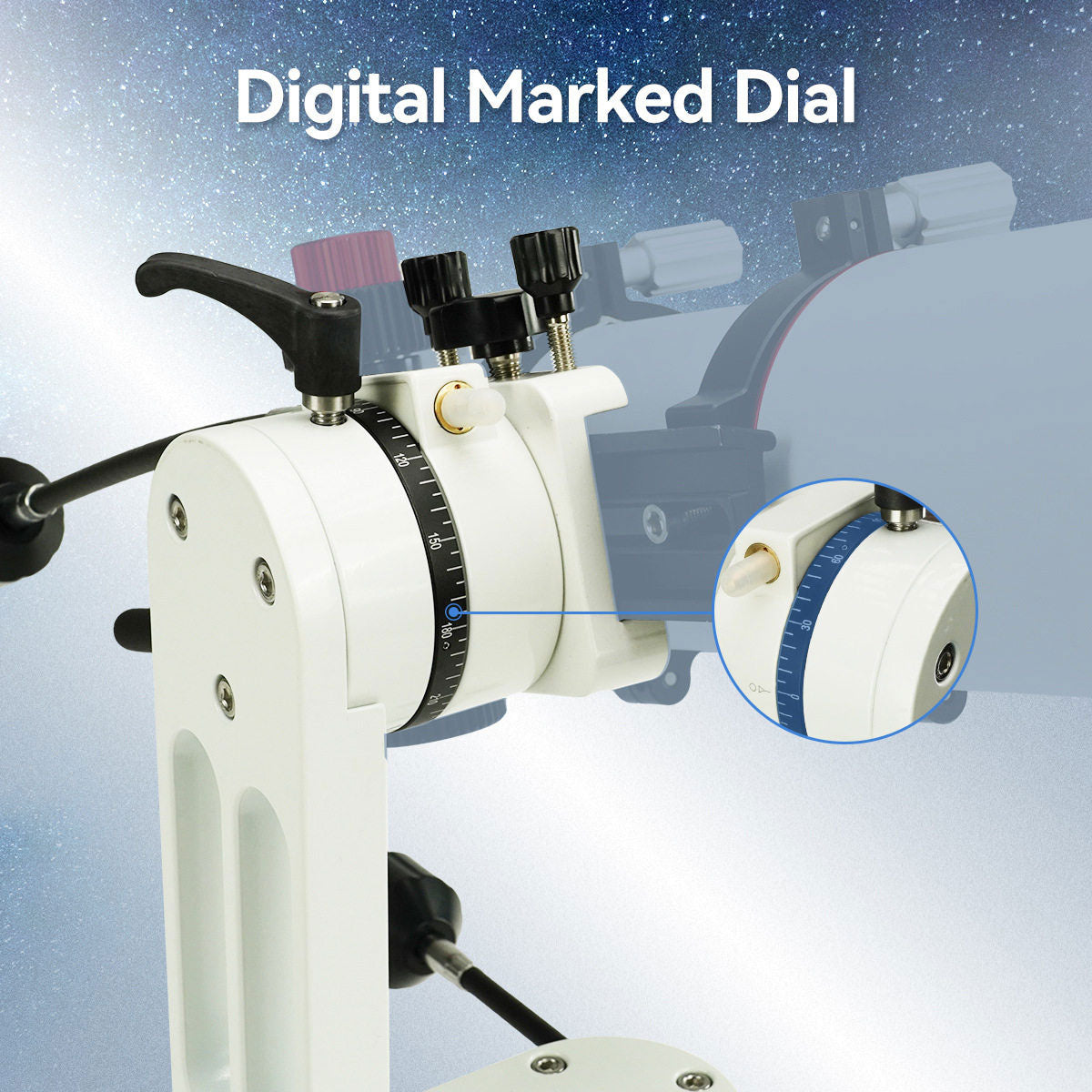

- Digital Marked Dial: Digital scale mark is convenient for customer positioning and adjustment; quickly point to the observation target.
- Fine-tuning Control Lever: Fine-tuning control lever is designed to meet the adjustment efficiency of customers in different scenarios.
- Applicable Scenes: The Alt azimuth mounts Alt-Az is suitable for many scenarios; like astronomical visual observation and surface observation.
Telescope Mount Specification:
- Model: SV225
- Maximum load capacity: 10kg
- Installation base: Vixen standard
- Fine tuning: support
- Manual tracking: support
- Bottom thread: UNC 3/8-16 internal thread
- Worm gear teeth number (RA): 120
- Height installation rotation angle: -60° to +60°
- Azimuth installation rotation angle: 360°
- Material: aluminum 6061T
- Net weight: 2.34kg
Package Included:
- 1 x Set of Telescope Mount with Tripod
