TeSeek HM-17PE Harmonic Equatorial Mount EQ Mount with 18KG Load Capacity or with Pier Extension
Couldn't load pickup availability
Specifications
Brand
Product type
Technical specs
Design and durability
This can be used in the southern hemisphere. Please leave a note or email us when placing your order, and we will set it up for you before shipping
Download User Manual:
https://teseek.comseek.com/download/97103_watermarked_User_Manual.pdf
Features:

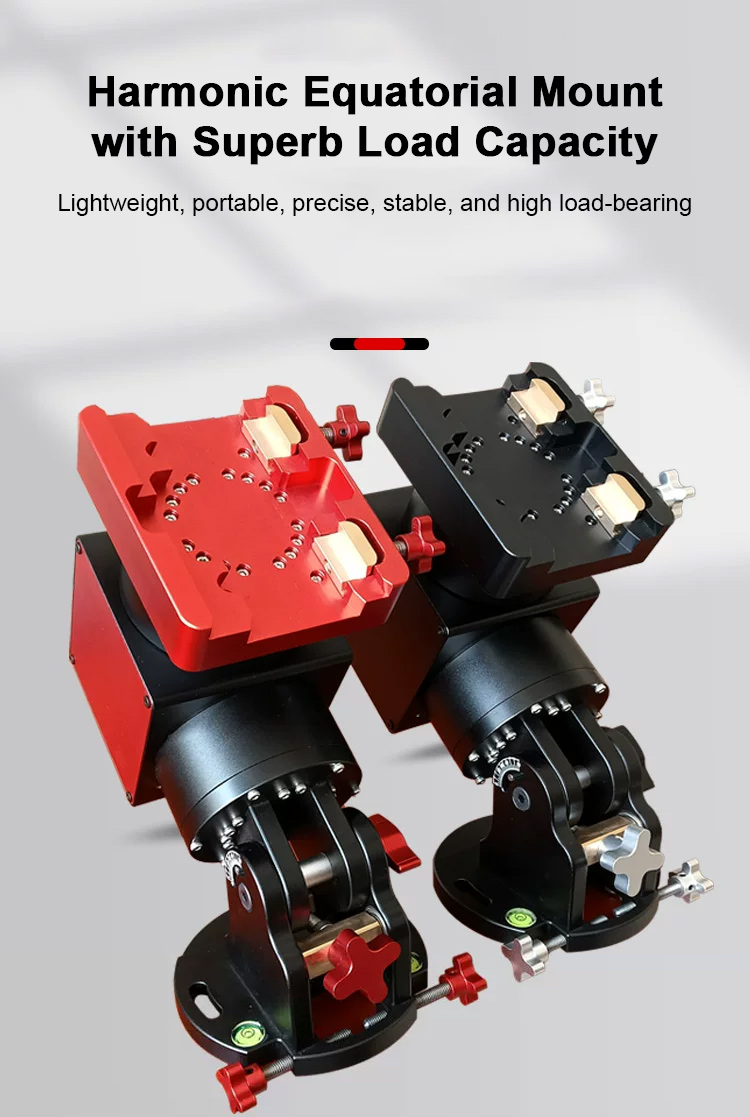

* Harmonic equatorial mount for deep space telescopes
* Your ideal stargazing companion
* Lightweight, portable, precise, stable, and high load-bearing
* High-quality materials
* Durable and sturdy

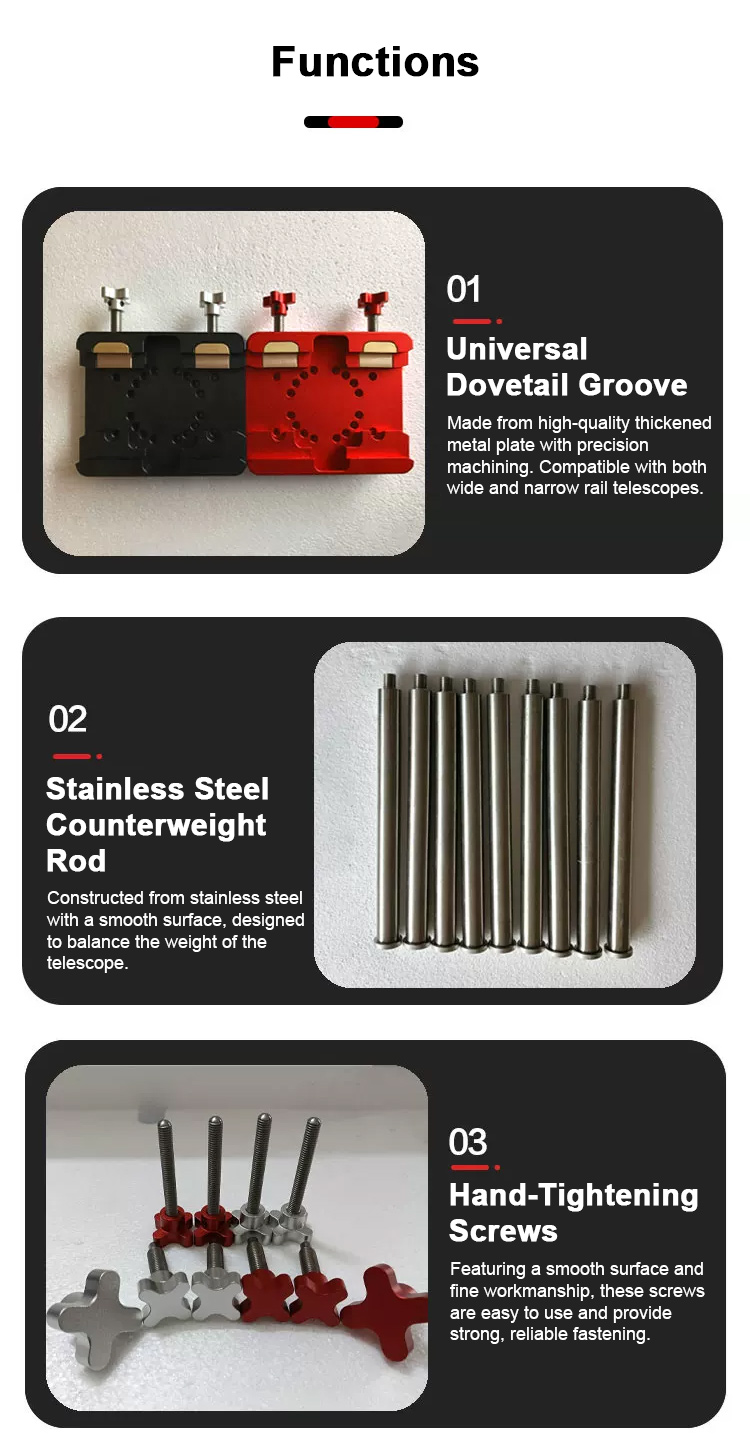

Functions:
* Universal Dovetail Groove: Made from high-quality thickened metal plate with precision machining. Compatible with both wide and narrow rail telescopes.
* Stainless Steel Counterweight Rod: Constructed from stainless steel with a smooth surface, designed to balance the weight of the telescope.
* Hand-Tightening Screws: Featuring a smooth surface and fine workmanship, these screws are easy to use and provide strong, reliable fastening.
Technical Parameters:
* Mode: Equatorial Mount
* Latitude Adjustment Base: Built-in
* Load Capacity (without Counterweight): 13kg
* Load Capacity (with Counterweight): 18kg
* PE (Periodic Error): < ±10"
* Drive Type: Harmonic + Timing Belt (400:1 Reduction Ratio)
* RA Drive: 42-48 Stepper Motor + 17-100 Reduction Harmonic + Electronic Brake
* DEC Drive: 42-40 Stepper Motor + 17-100 Reduction Harmonic
* Base Diameter: 125mm
* Latitude Adjustment Range: 0-90°
* Azimuth Adjustment Range: ±9°
* Electronic Polar Scope: iPolar/QHY
* GOTO Speed: 2.5°/s
* Counterweight Rod Interface: M12×1.75 Coarse Thread
* Counterweight Rod Diameter: 20mm
* Counterweight Rod Length: 230mm
* Power Interface: DC5.5-2.1 (12-15V and 2-5A)
* Data Interface: USB2.0/WiFi
* Guiding Interface: Hand Controller & ST4
* Compatible OnStep System: Supports PC, Mobile, ZWO ASIAIR Smart Controller, NINA, WiFi, Bluetooth, Hand Controller, etc.
* Other Features: Bubble Level/Mechanical Home Position
* Material: Aluminum Alloy
* Net Weight of EQ Mount: 4.8kg
Packing List:
* 1 x EQ Mount
* 1 x Pier Extension (optional)
Packaging Details:
* Weight: 7kg
