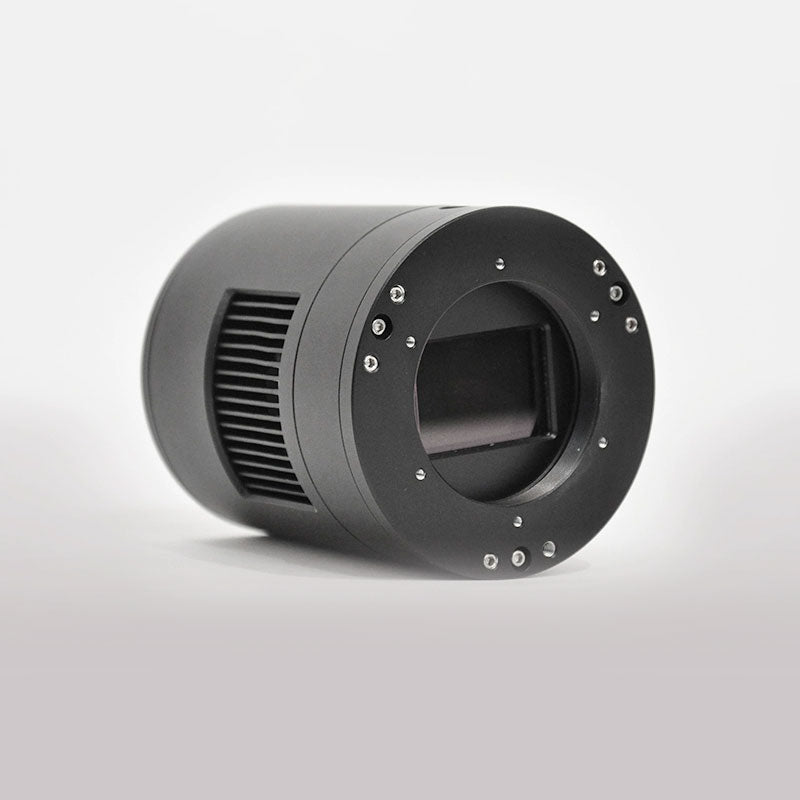

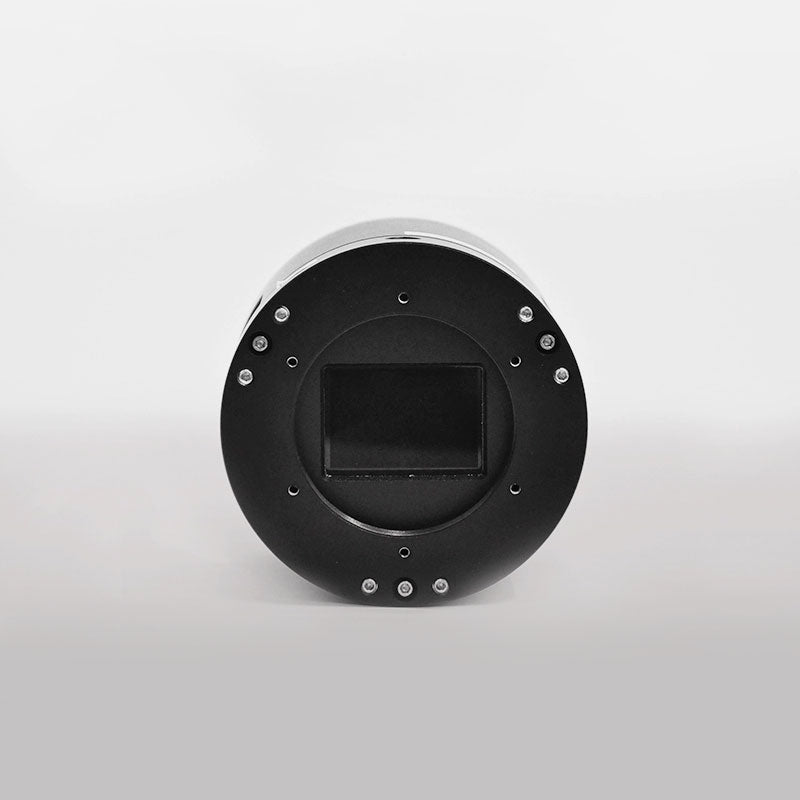

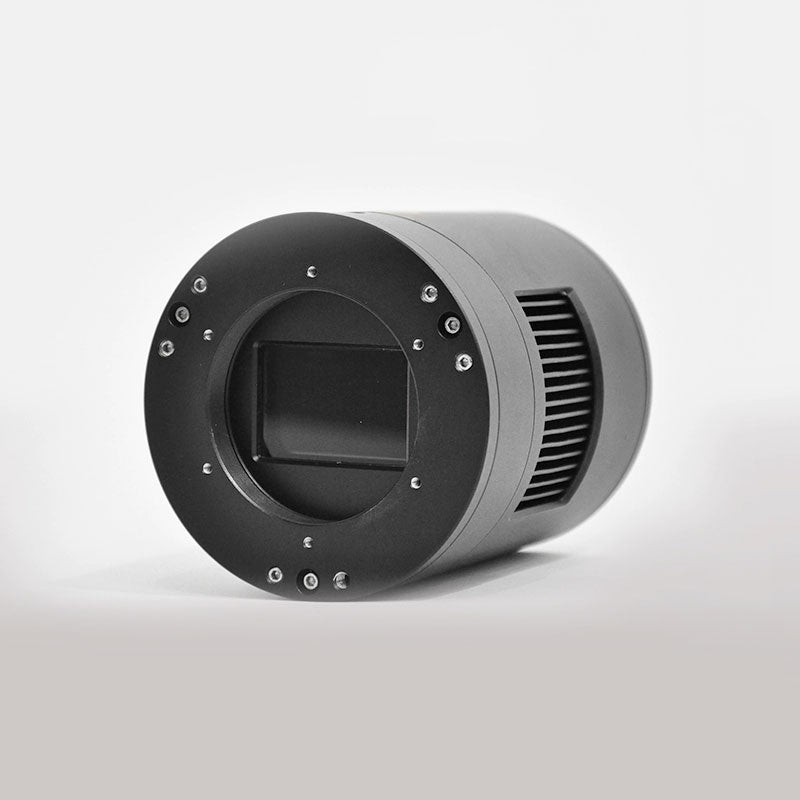

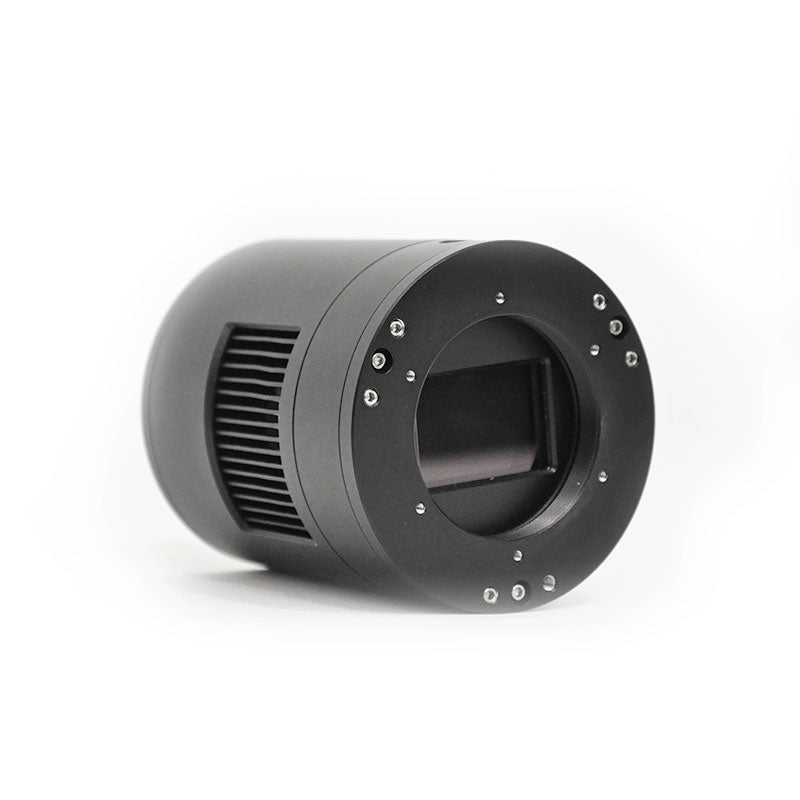

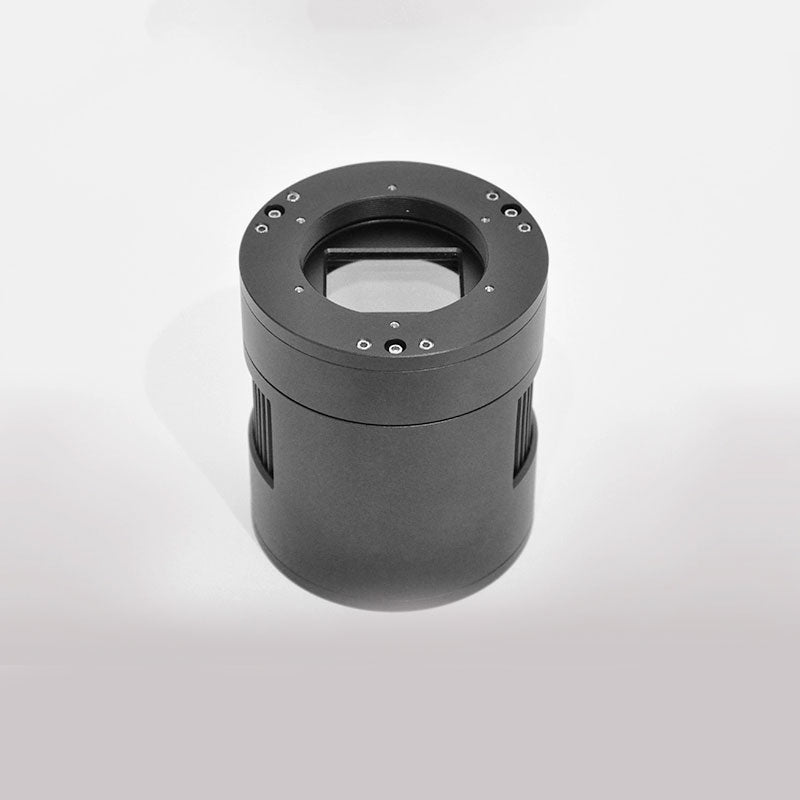

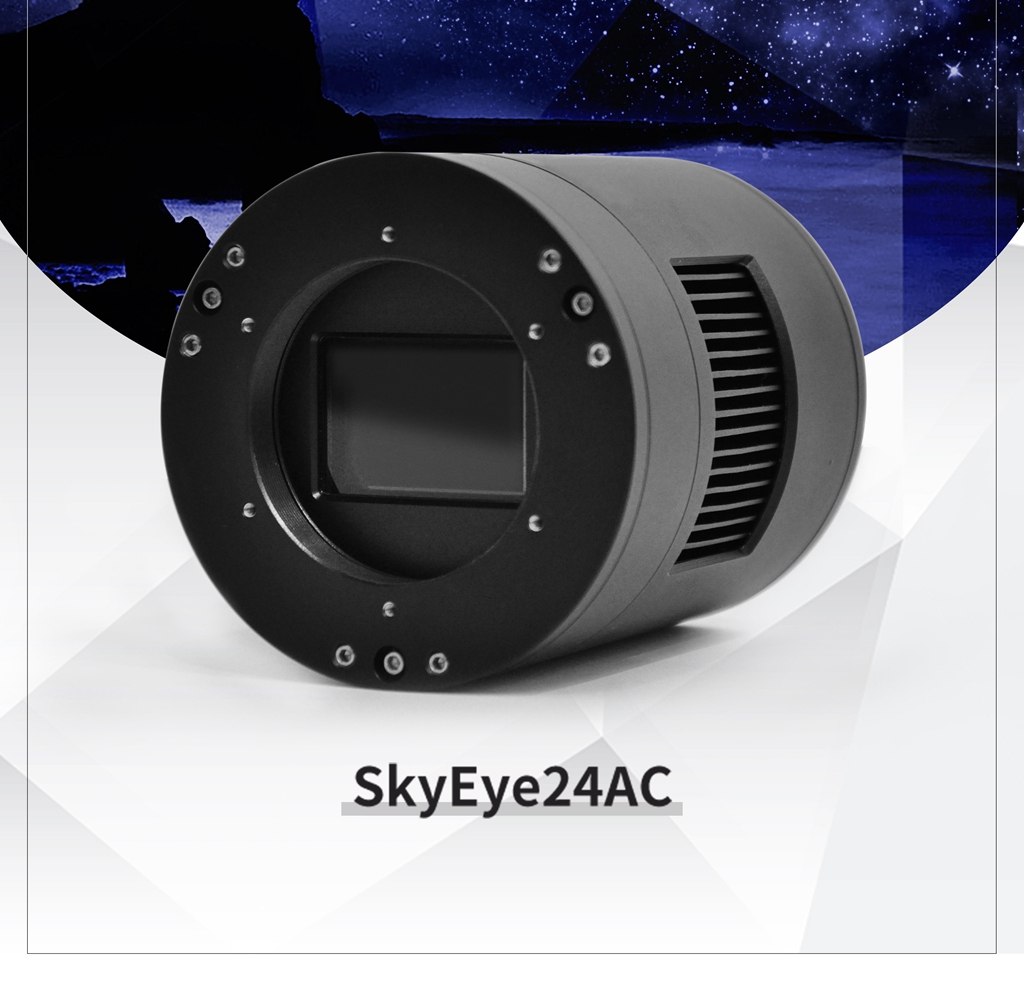

ToupTek SkyEye24AC Astronomical IMX410 Colorful Camera Full Frame TEC Cooling for Deepsky Photography
Description:
- With full frame sensor, precise temperature regulation, ultra-low readout noise and zero amp-glow, The SkyEye24AC camera is mainly used for deep sky photo shooting. Its extraordinary performance and extensive usage will give you great astrophotography experience.
Features:
- IMX 410 Color CMOS Sensor
- Resolution: 6064 x 4040
- 5.94 um Square Pixels

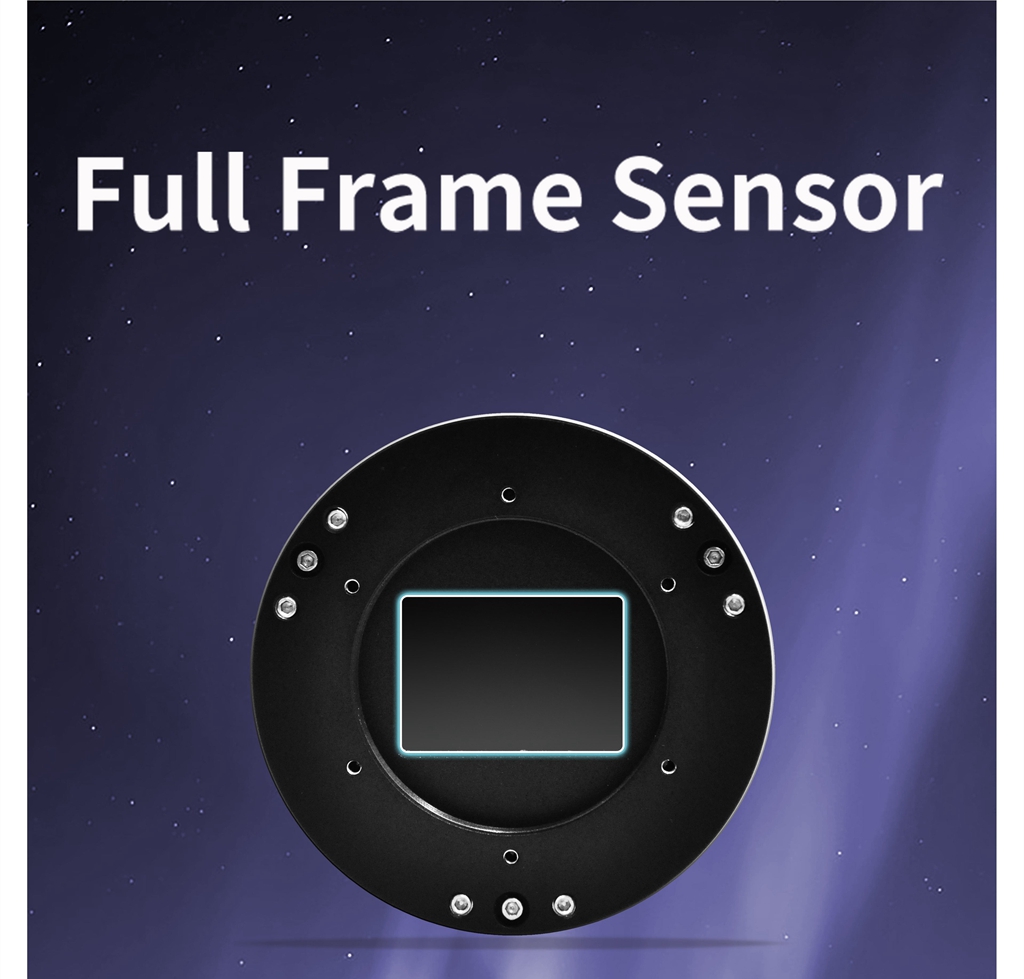

- 43.3mm Full Frame Optical Format
- 14-bit ADC
- 512Mbyte Memory Onboard
- Precise Temperature Regulation
- Zero Amp-Glow
- G Sensitivity: 572.76mV with 1/30s
- Ultra-Low Noise: 1.95 to 4.48 e- (Low Noise Mode)
- Support Low Noise Mode/ High Frame Rate Mode (15.2 FPS at all Pixel Readout 8 bit)
- Support HCG Mode/ LCG Mode
- SNR Max: 50.2 dB (Low Noise Mode)
- Dynamic Range: 87.3 dB (Low Noise Mode)
- -30°C below ambient under short exposure/ -35°C under long exposure time (> 1s)
Specification:
- Sensor: for Sony IMX410 Color CMOS
- Diagonal: 43.3 mm
- Image Resolution: 24 mega pixels, 6064 x 4040
- Pixel Size: 5.94µm x 5.94µm
- Image Size 36.02mm x 23.998mm
- Shutter Type: Rolling Shutter
- Exposure Time: 0.1ms - 3600s
- Gain: 1x - 150x
- SNR: 50.2dB
- Dynamic Range: 87.3dB (Low Noise Mode)
- Read Noise (LCG): 4.48 - 1.95 e-
- Read Noise (HCG): 0.68 - 0.3 e-
- QE Peak: > 80%
- Full Well: 104ke- (20ke- at HCG)
- ADC: 14bit
- DDR3 Buffer: 512MB (4Gb)
- Connection Port: USB3.0/USB2.0
- Camera Adaptor: M54 x 0.75
- Protect Windows: IR CUT

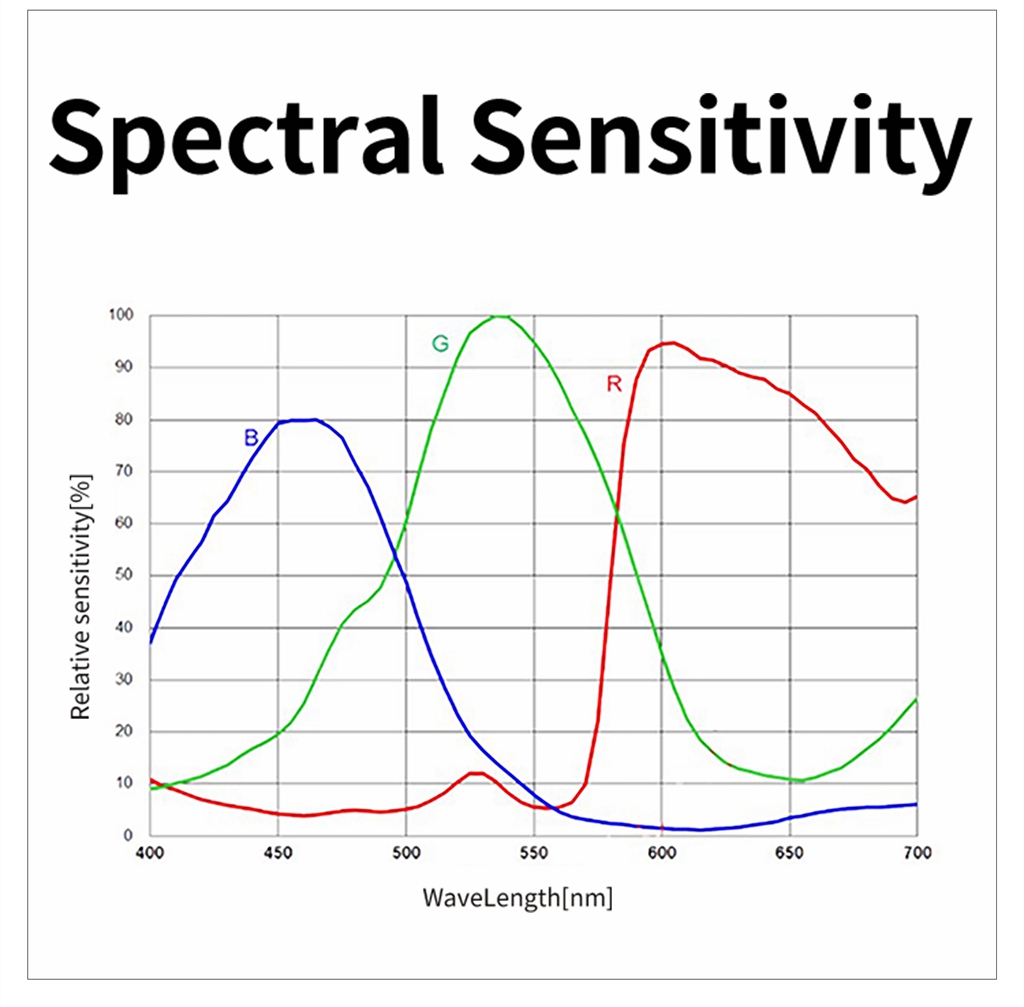

- Spectral Range: 380 - 690nm (with IR-cut Filter)
- Control SDK: for Windows/Linux/macOS/Android Multiple Platform SDK (for Native C/C++, for C#/VB.NET, for Python, for Java, for DirectShow, for Twain, etc.)
- Recording System: Still Picture and Movie
- Camera Dimensions: (diameter) 89 x (height) 103 (mm)
- Camera Weight: 0.718kg

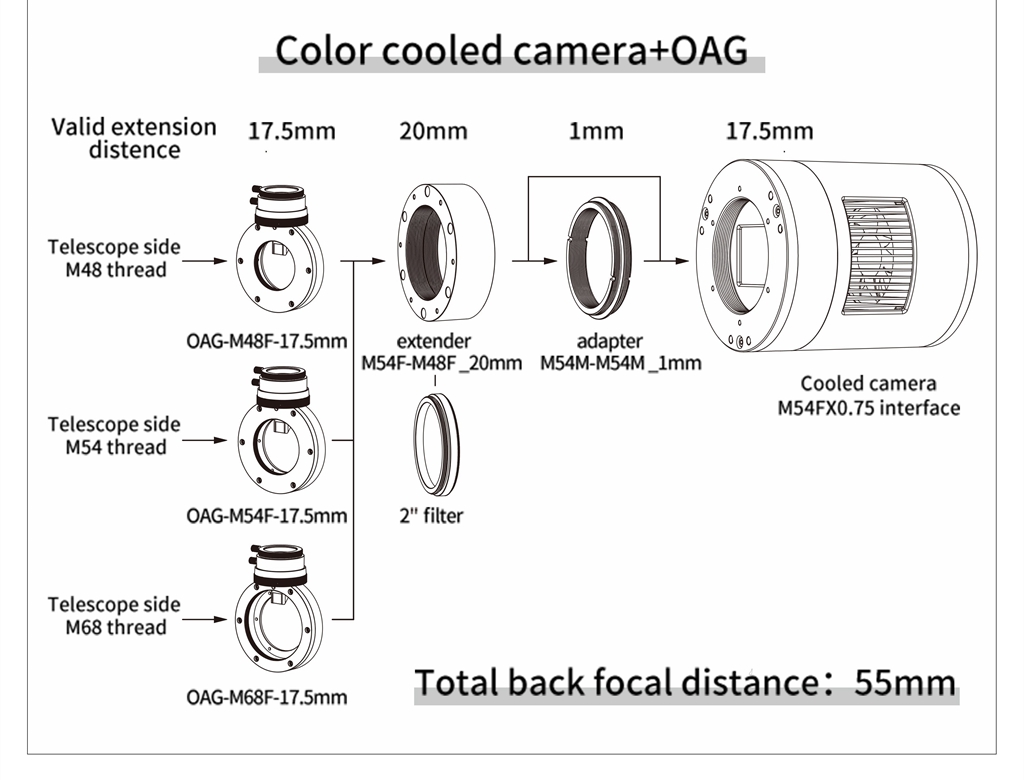

- Back Focus Distance: 17.5mm
- Cooling: Two stage TEC
- Effective Cooling Temp: -30°C below ambient under short exposure/ -35°C under long exposure (> 1s)
- Supported OS:
For Microsoft Windows XP / Vista / 7 / 8 /10 (32 & 64 bit)
For OSx (Mac OS X)
For Linux
Max FPS at Resolution (USB 3.0):
- 14bit: 8.0 FPS at 6064 x 4040; 19.5 FPS at 3024 x 2012; 64.3 FPS at 2016 x 1342
- 8bit: 16.0 FPS at 6064 x 4040; 38.8 FPS at 3024 x 2012; 114.6 FPS at 2016 x 1342
Max FPS at Resolution Low Noise (USB 3.0):
- 14bit: 4.6 FPS at 6064 x 4040; 9.7 FPS at 3024 x 2012; 32.2 FPS at 2016 x 1342
- 8bit: 9.2 FPS at 6064 x 4040; 19.4 FPS at 3024 x 2012; 57.3 FPS at 2016 x 1342
Max FPS at Resolution (USB 2.0):
- 14bit: 0.9 FPS at 6064 x 4040; 3.7 FPS at 3024 x 2012; 8.3 FPS at 2016 x 1342
- 8bit: 1.8 FPS at 6064 x 4040; 7.4 FPS at 3024 x 2012; 16.5 FPS at 2016 x 1342
Max FPS at Resolution Low Noise (USB 2.0):
- 14bit: 0.4 FPS at 6064 x 4040; 2.5 FPS at 3024 x 2012; 5.8 FPS at 2016 x 1342
- 8bit: 0.8 FPS at 6064 x 4040; 5.0 FPS at 3024 x 2012; 11.6 FPS at 2016 x 1342

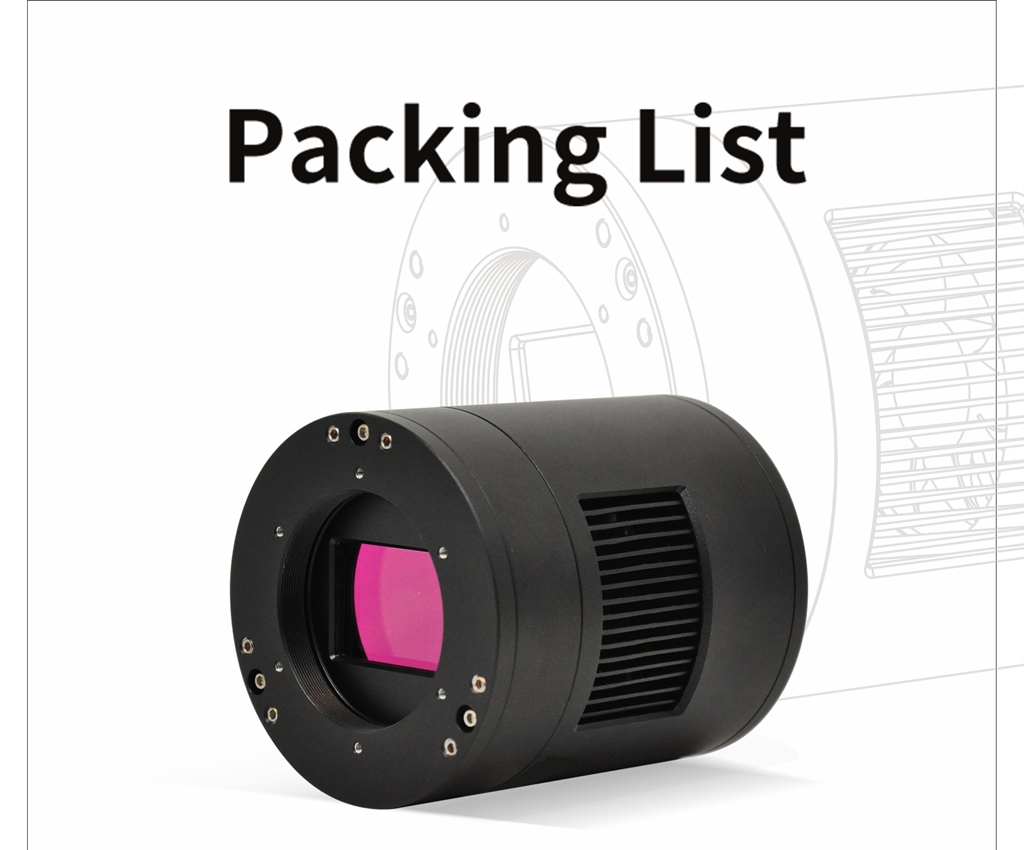

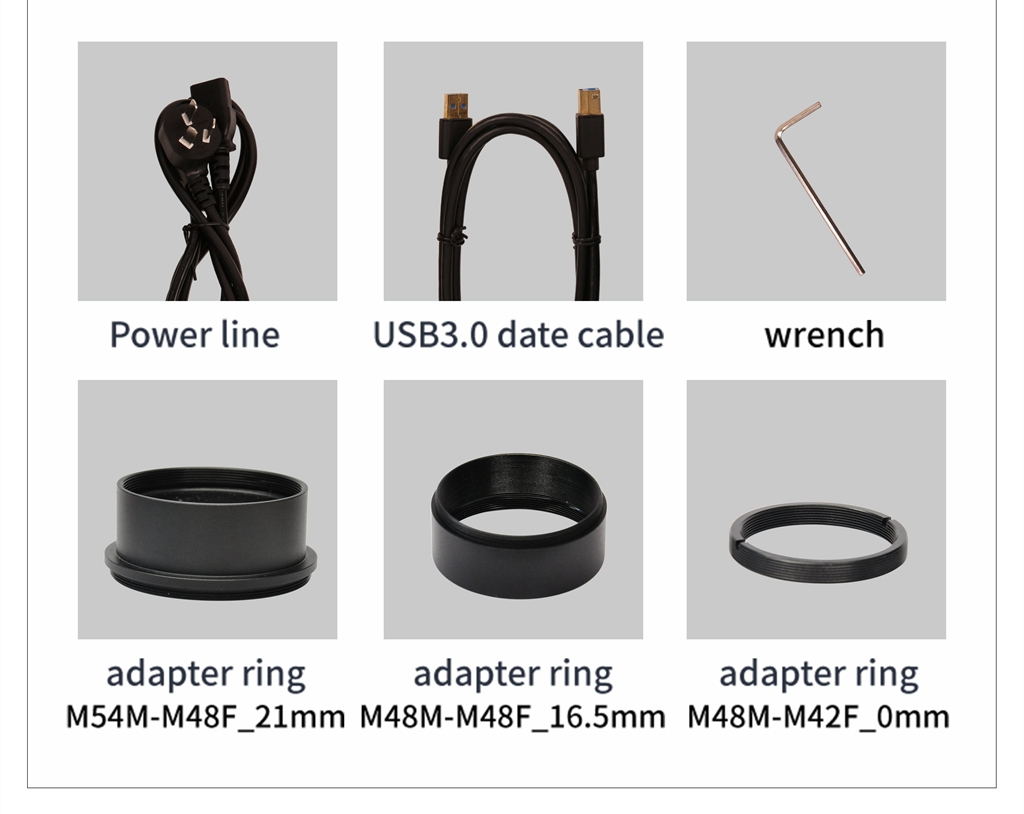

Package Included:
- 1 x Camera
- 1 x Power Line
- 1 x USB3.0 Data Cable
- 1 x Wrench

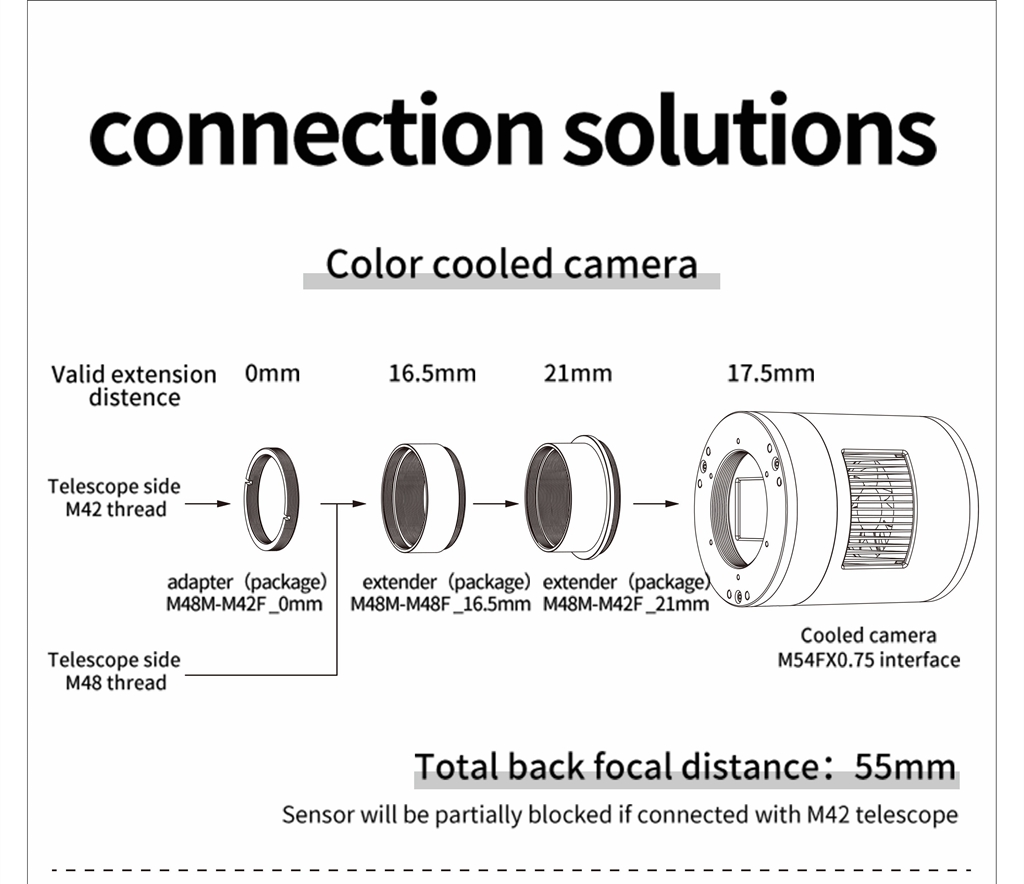

- 1 x Adapter Ring M54M-M48F_21mm
- 1 x Adapter Ring M48M-M48F_16.5mm
- 1 x Adapter Ring M48M-M42F_0mm
