Wanderer ETA M54 Electric Tilt and Back Focus Adjuster High Precision Astronomical Telescope Adjustment Accessory
Description:

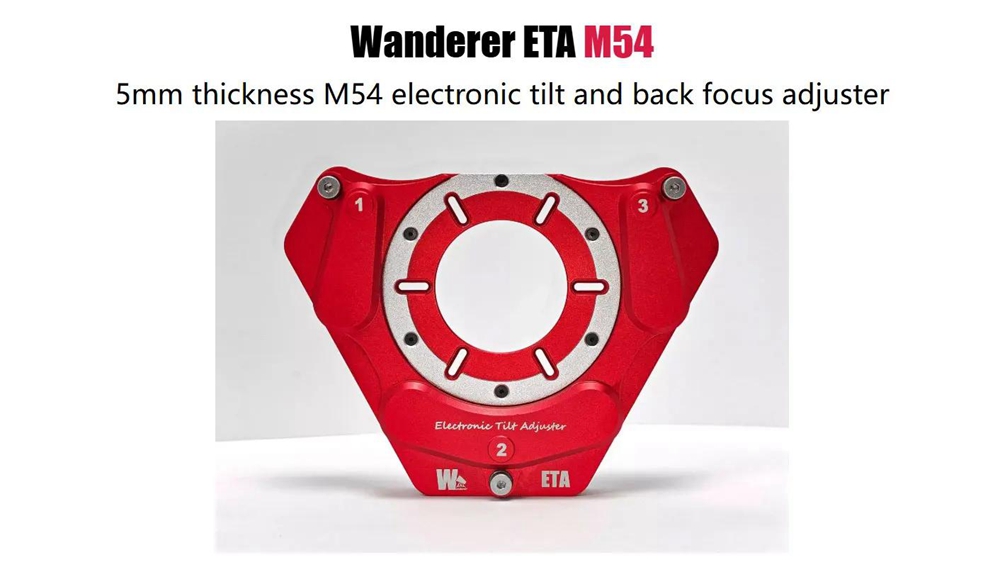

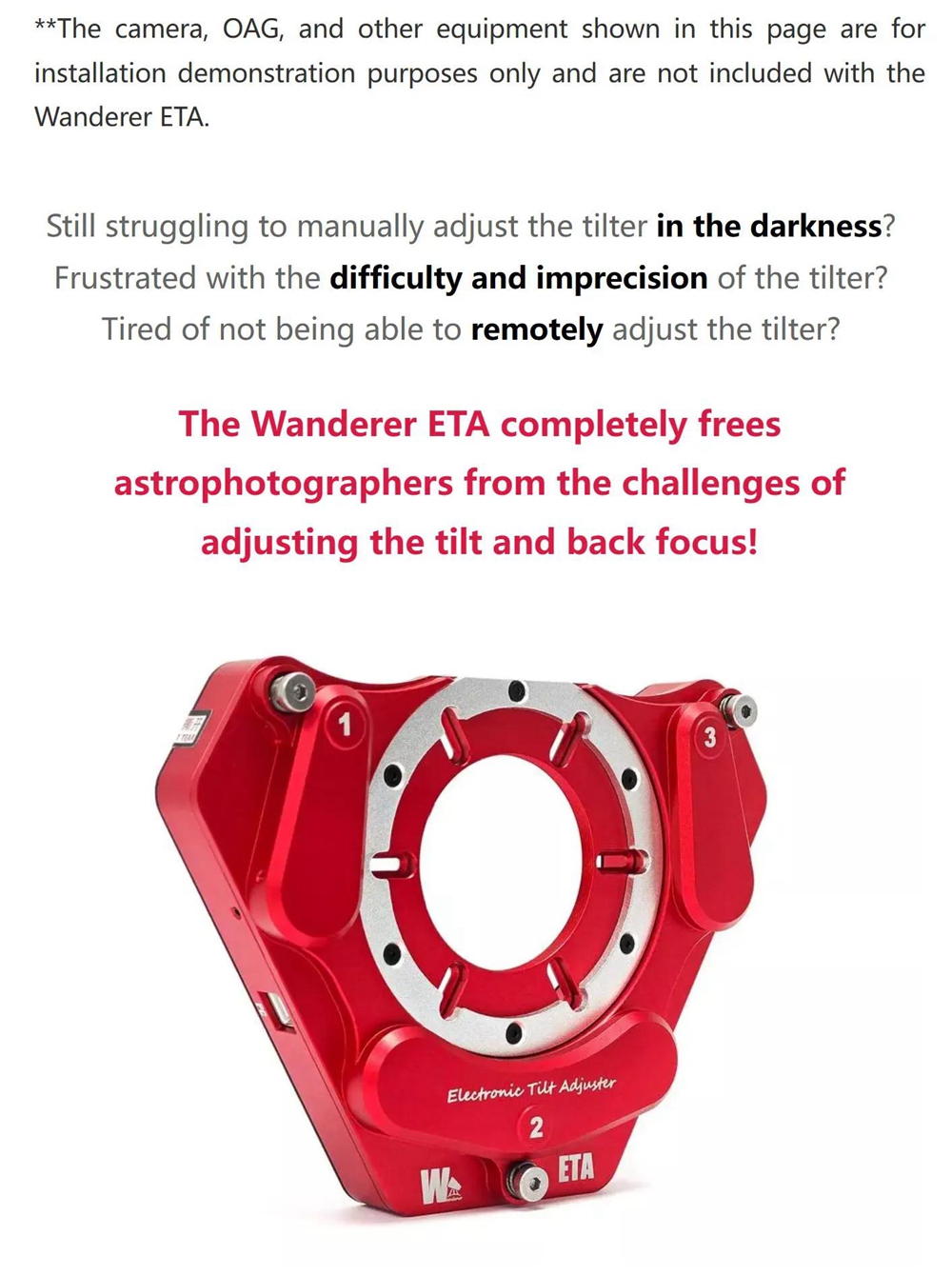

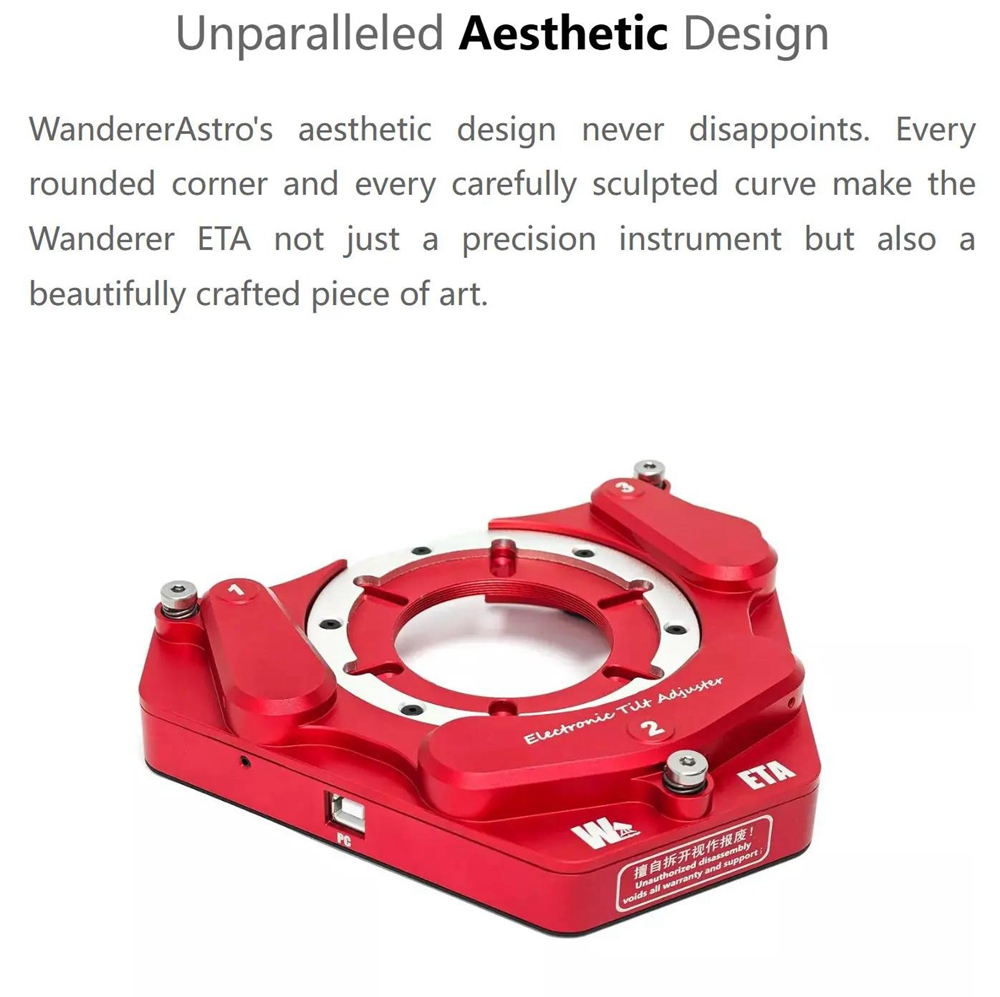

- Wanderer ETA M54 (Electronic Tilt Adjuster) is an innovative electronic tilt and back focus adjuster that allows users to precisely, quickly, and remotely adjust the camera's tilt and back focus.

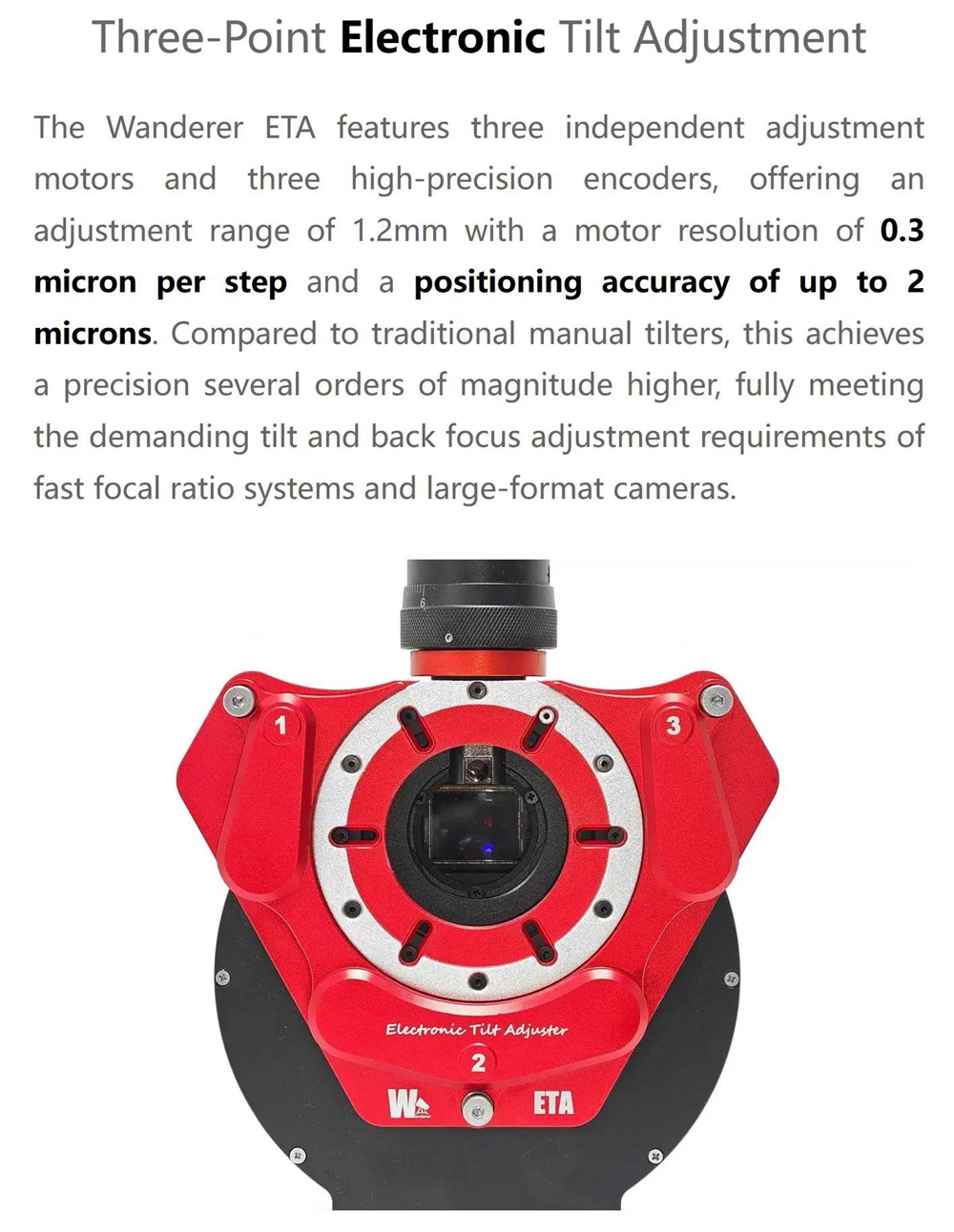

- The Wanderer ETA features three independent adjustment motors and three high-precision encoders, offering an adjustment range of 1.2mm with a motor resolution of 0.3 micron per step and a positioning accuracy of up to 2 microns. Compared to traditional manual tilters, this achieves a precision several orders of magnitude higher, fully meeting the demanding tilt and back focus adjustment requirements of fast focal ratio systems and large-format cameras.

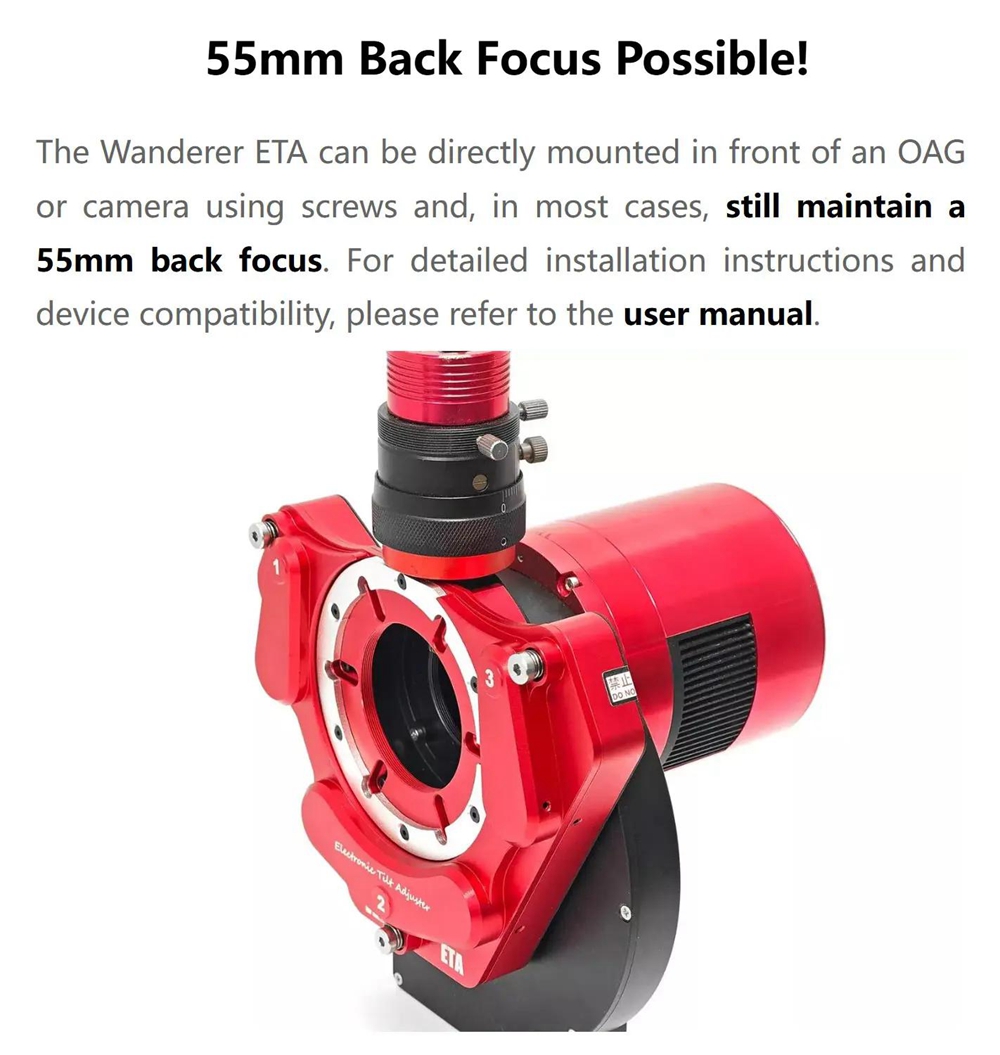

- The Wanderer ETA can be directly mounted in front of an OAG or camera using screws and, in most cases, still maintain a 55mm back focus. For detailed installation instructions and device compatibility, please refer to the user manual.

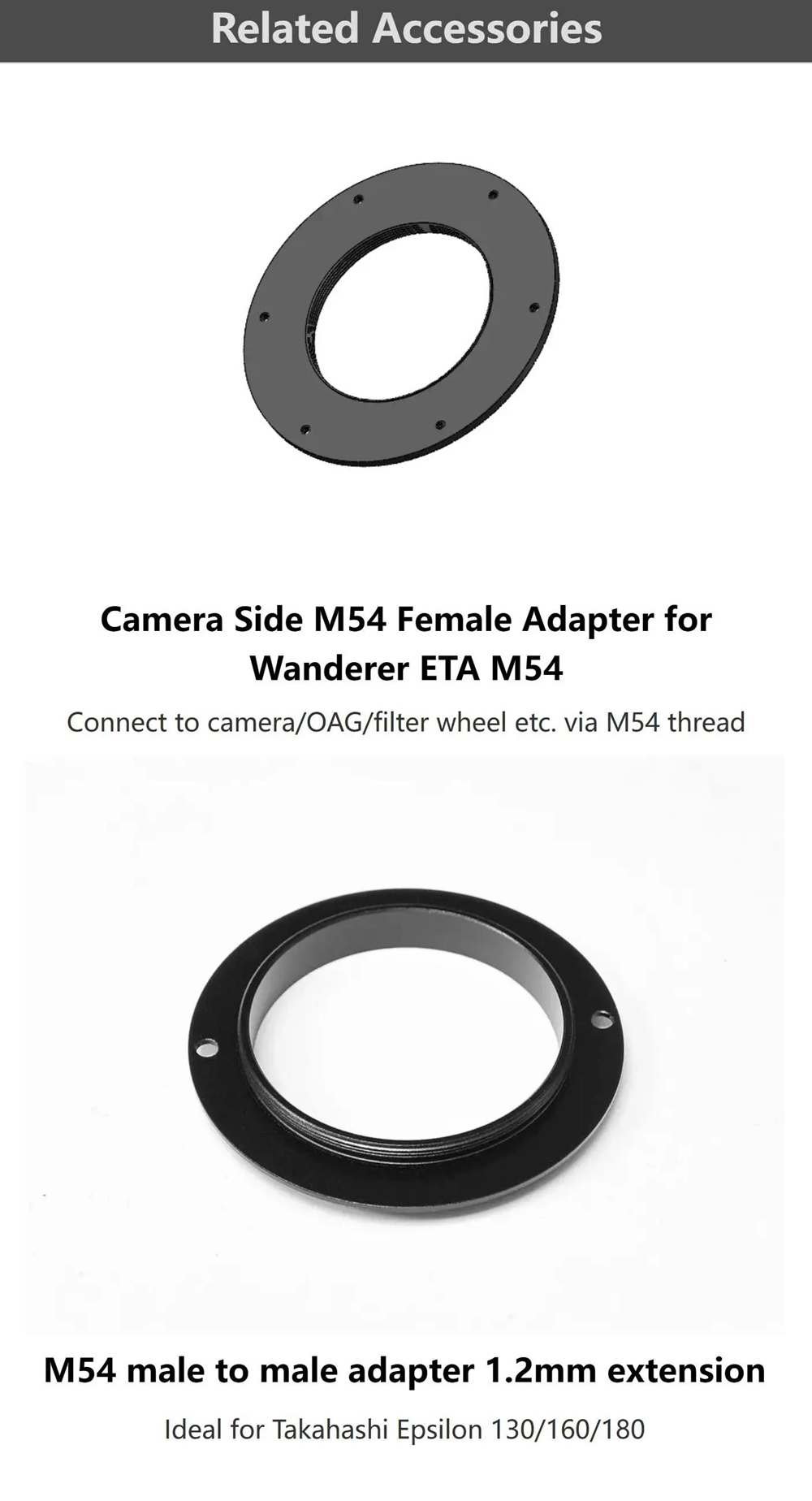

- The Wanderer ETA can also be connected to OAG/filter wheel/camera with M54 threads, you need to purchase our Camera Side M54 Female Adapter for Wanderer Electronic Tilt Adjuster M54 (WETA54-M54F.Sold separately)

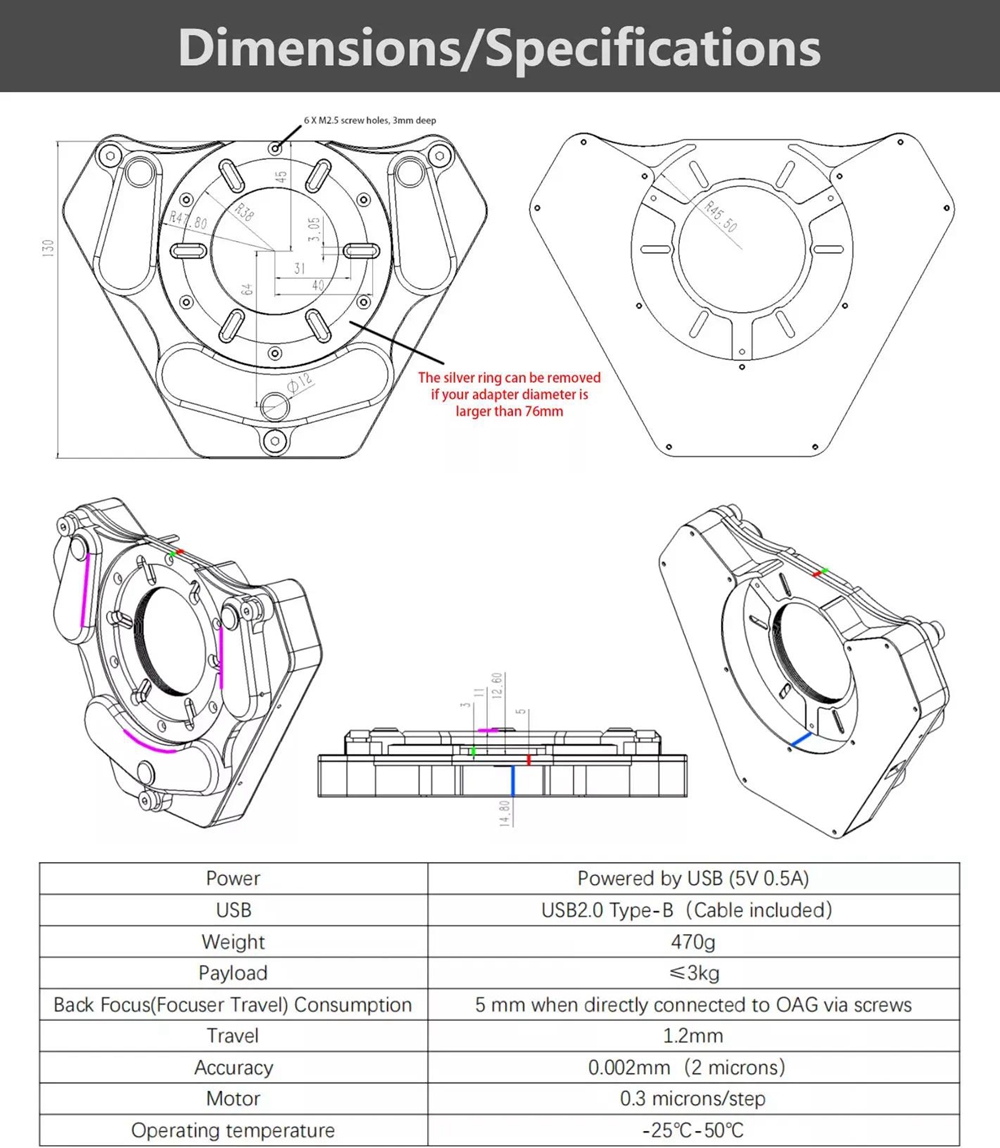

Specification:
- Telescope side connection: M54 female threads
- Camera side connection: M2.5/M3 screws (M54 female adapter optional, WETA54-M54F)
- Load capacity: ≤3kg
- Motor: 0.3 microns/step
- Positioning accuracy: 2 microns
- Travel: 1.2mm
- Aperture: M54

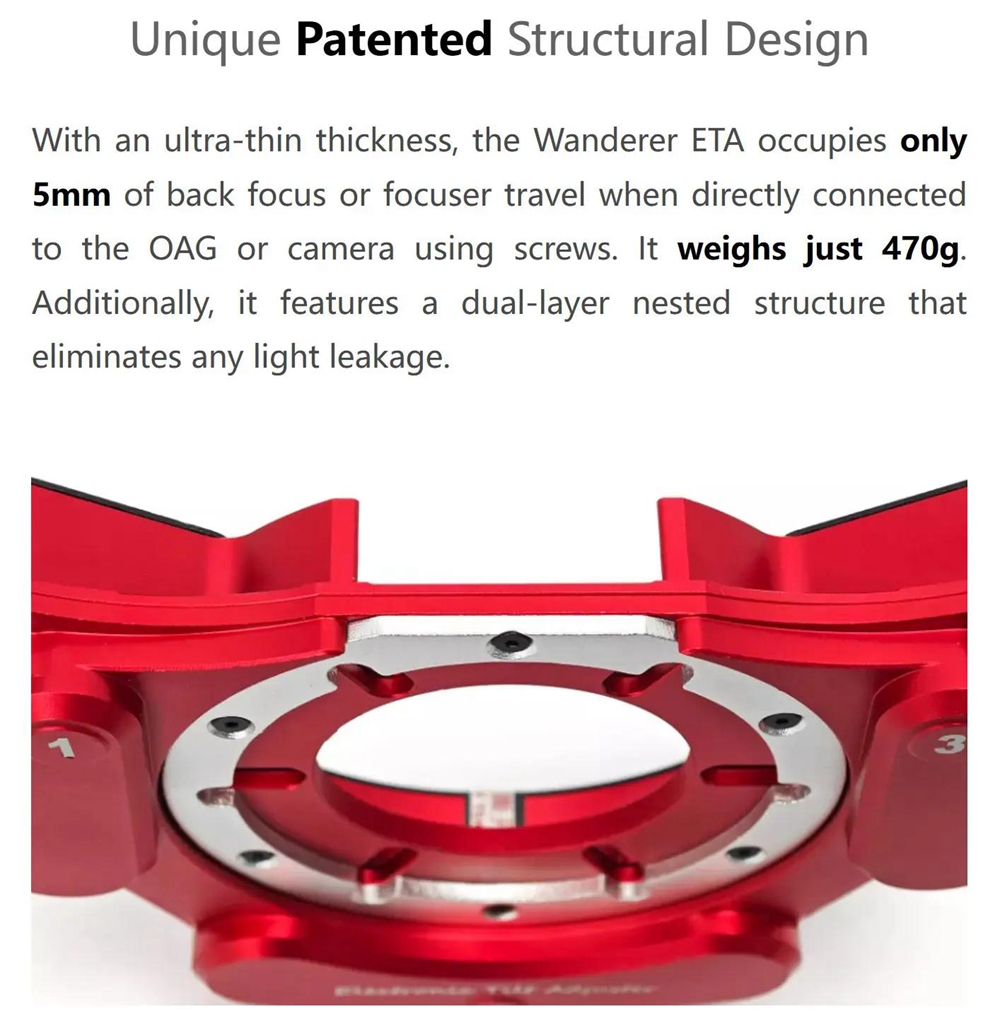

- Back focus for calculation: 5mm (when connected to OAG/camera with screws)
- Weight: 1.03 lbs (470 g)
- Ports: USB Type-B
- Power: USB (5V 0.5A)

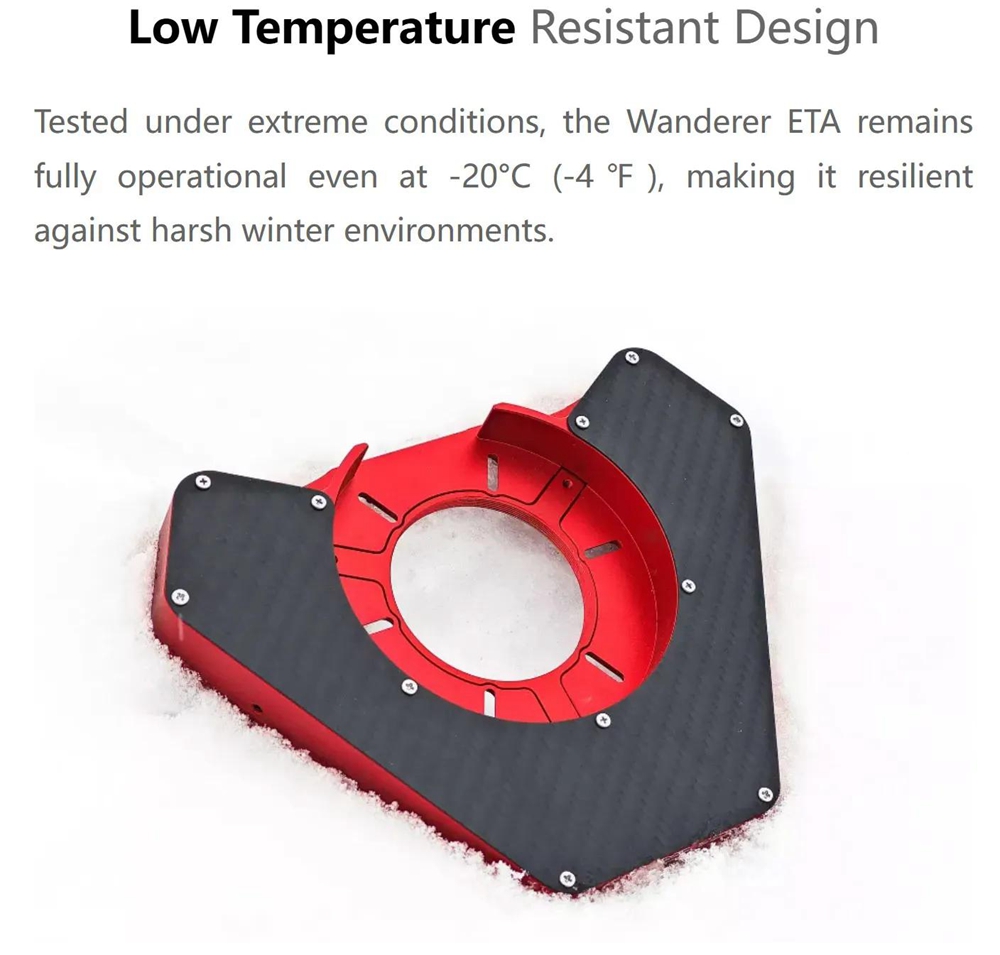

- Operating temperature: -25°C ~ 50°C (-13°F ~ 122°F)

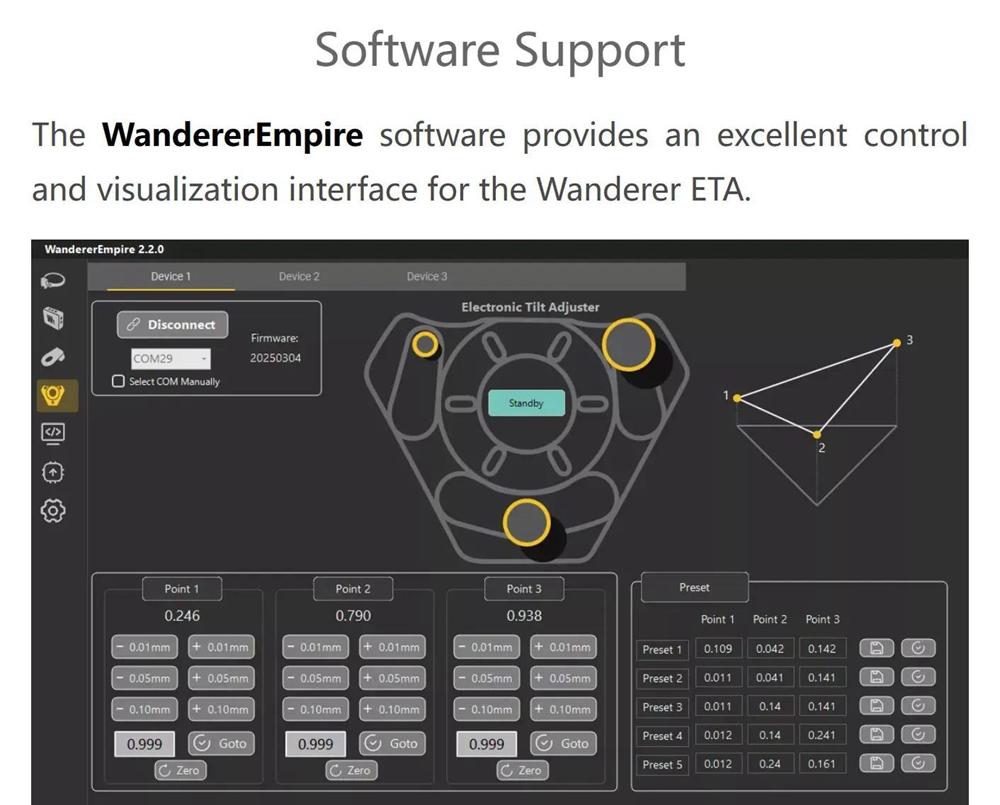

- Software supported: for WandererEmpire

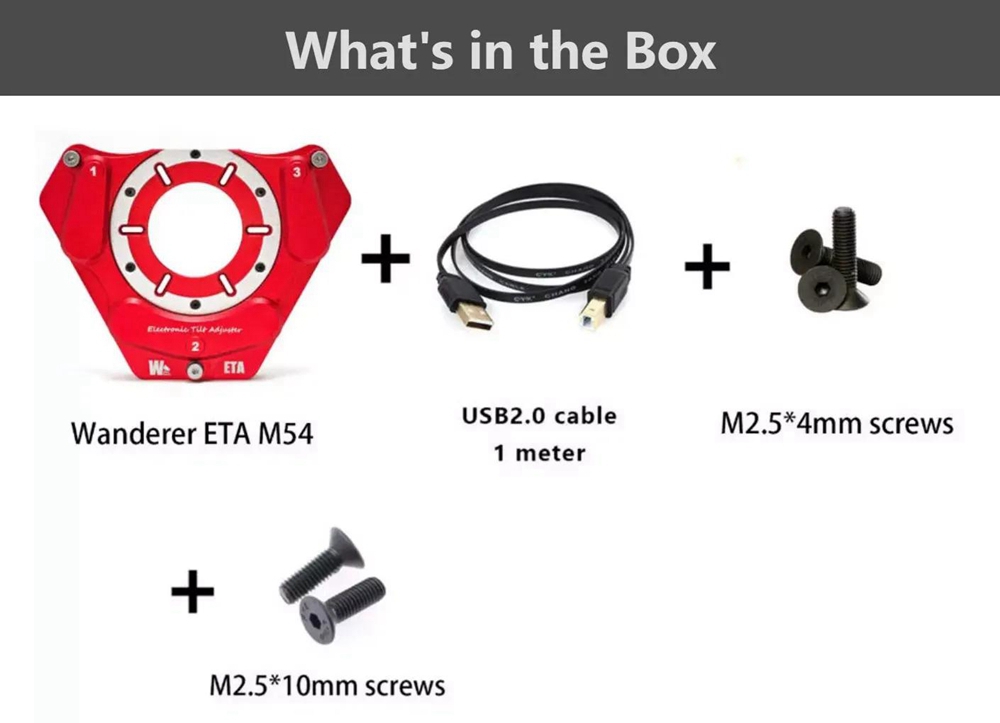

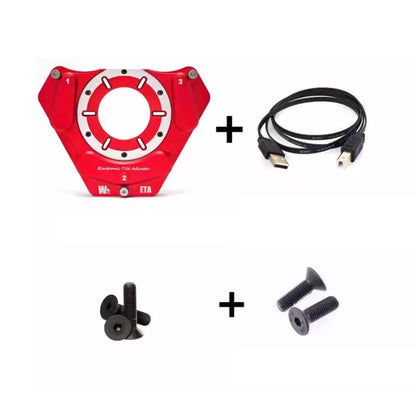

Package Included:
- 1 x Electric Tilt Adjuster
- 1 x USB2.0 Data Cable
- 1 x Screw Pack
