ToupTek X8FCAM4K16MPA High Precision Autofocus Astronomy Camera IMX383C Color Camera (16MP 5440x3060)

Introduction:
- The X8FCAM4K series cameras come with an integrated high-precision autofocus system and support an extensive range of optical magnifications, enabling autofocus on designated areas of the field of view. Featuring high resolution, high output frame rates and superior image quality, they are perfectly suited for professional applications with stringent requirements for fine detail acquisition and accurate color reproduction.

Features:
- For Sony large target surface / STARVIS 2 back-illuminated CMOS sensor.
- High-precision autofocus adjustment, supports an even wider range of optical magnifications; motor operating stroke: 17.46 mm.
- With 10-bit ISP processing, it offers better color reproduction, remarkable sharpening and 3D noise reduction effects, and more accurate ROI white balance.
- 4K HDMI-compatible/NETWORK/USB multiple video synchronous outputs.
- 4K/1080P auto switching according to monitor resolution.
- Supports 4K 60 fps low-delay HDMI-compatible output mode, with an average delay of 80ms (X8FCAM4K8MPB)
- SD card/USB flash drive for shot image and video storage, customizable storage location and support for local preview and playback.
- Supports customized development based on neural network capabilities, including object recognition, counting and detection functions.
- Supports network storage function: images shot or videos recorded by the camera are saved in real time to network storage drives.
- Supports shoot and display of JPEG, TIFF, PNG and RAW format images.
- Supports external USB3.0 solid-state drive and automatic saving of recorded videos in case of sudden power failure.
- Supports USB voice control module, enabling real-time control of the camera through voice commands for taking photos, recording videos, freezing and other operations.
- Provides real-time video EDF and real-time Stitch functions.
- Provides two sets of default ISP parameters for biological microscopes and stereo microscopes.
- Provides multiple focusing methods; the focus mode and the size of the focusing area can be modified; provides AF+EDF and Auto EDF, facilitating the synthesis of high-depth-of-field images in multiple focus areas at high magnification.
- New UI interface: the browsing interface provides rich file operation functions, image-to-image comparison, image-to-real-time-video comparison, multi-image EDF and multi-image Stitch.
- Embedded XCamView for the control of the camera and image processing, supporting automatic edge finding and measurement functions.
- ToupView/ToupLite software for PC.
- For iOS/Android applications for smartphones or tablets.

Specifications:
- Camera Type: Color Camera
- Sensor Model: for Sony IMX383 (C)
- Sensor Size: 1/1.1" (13.06x7.34 mm)
- Pixel Size: 2.4µm x 2.4µm
- Resolution: 16 MP (5440x3060)
- Sensitivity: 470mV at 1/30s
- Dark Current: 0.21mV at 1/30s
- Frame Rate: 60 fps at 5440x3060
- Exposure Time: ≥41µs

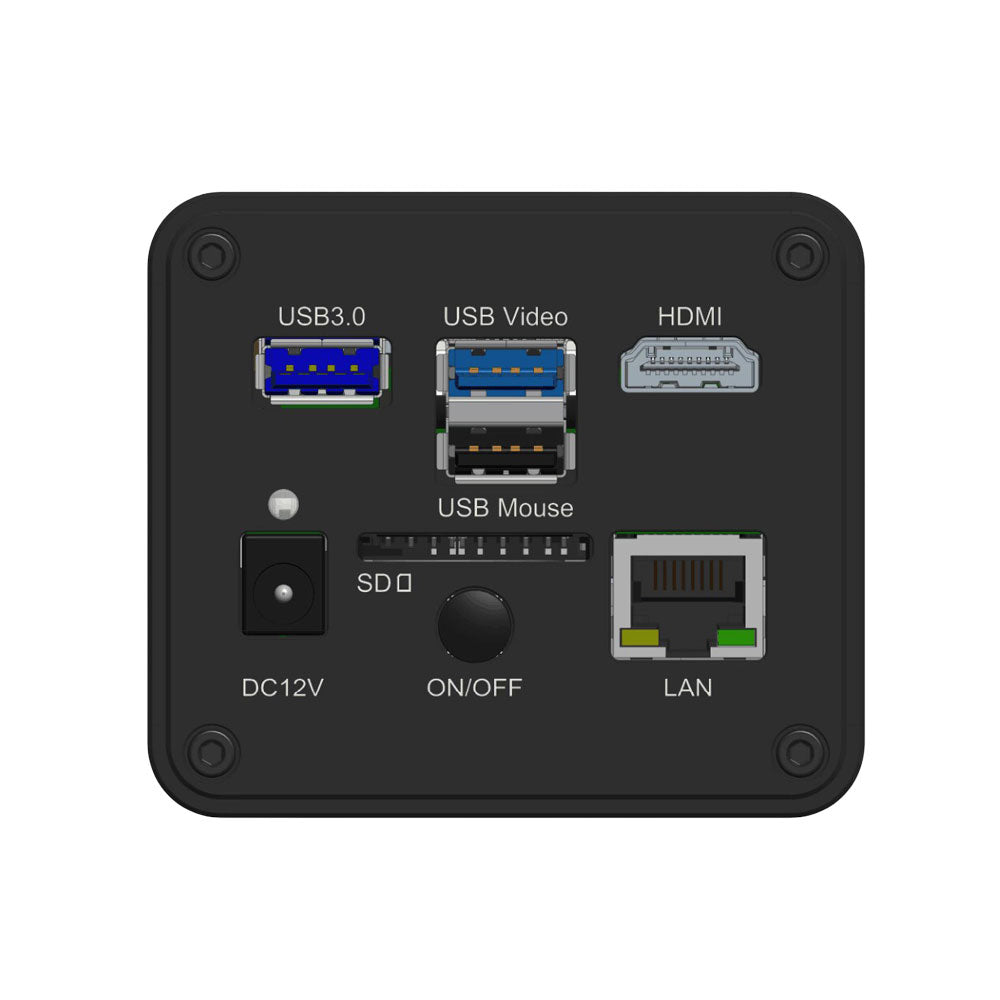

- Output Interfaces: HDMI-compatible2.0; USB3.0; NETWORK
- Sampling / Binning: 1x1
- Storage: SD card; USB flash drive; USB3.0 SSD; Network storage
- Sensor Output: 60fps at 5440x3060
- Video Recording: 60fps at 3840x2160
- Photo Resolution: 5440x3060
- HDMI-compatible Output: 60fps at 3840x2160; 60fps at 1920x1080
- USB Output: 25 fps at 5440x3060; 45 fps at 2688x1512; 60 fps at 1920x1080
- Network Output: 30 fps at 3840x2160; 60 fps at 1920x1080; 60 fps at 1280x720
- Lens Mount: C-mount
- Autofocus Travel: 17.46 mm
- Power Supply: DC 12V / 2A
- Operating Temperature: -10 °C ~ +50 °C
- Storage Temperature: -20 °C ~ +60 °C
- Operating Humidity: 30% - 80% RH
- Storage Humidity: 10% - 60% RH
- Software: for XCamView; ToupView; ToupLite

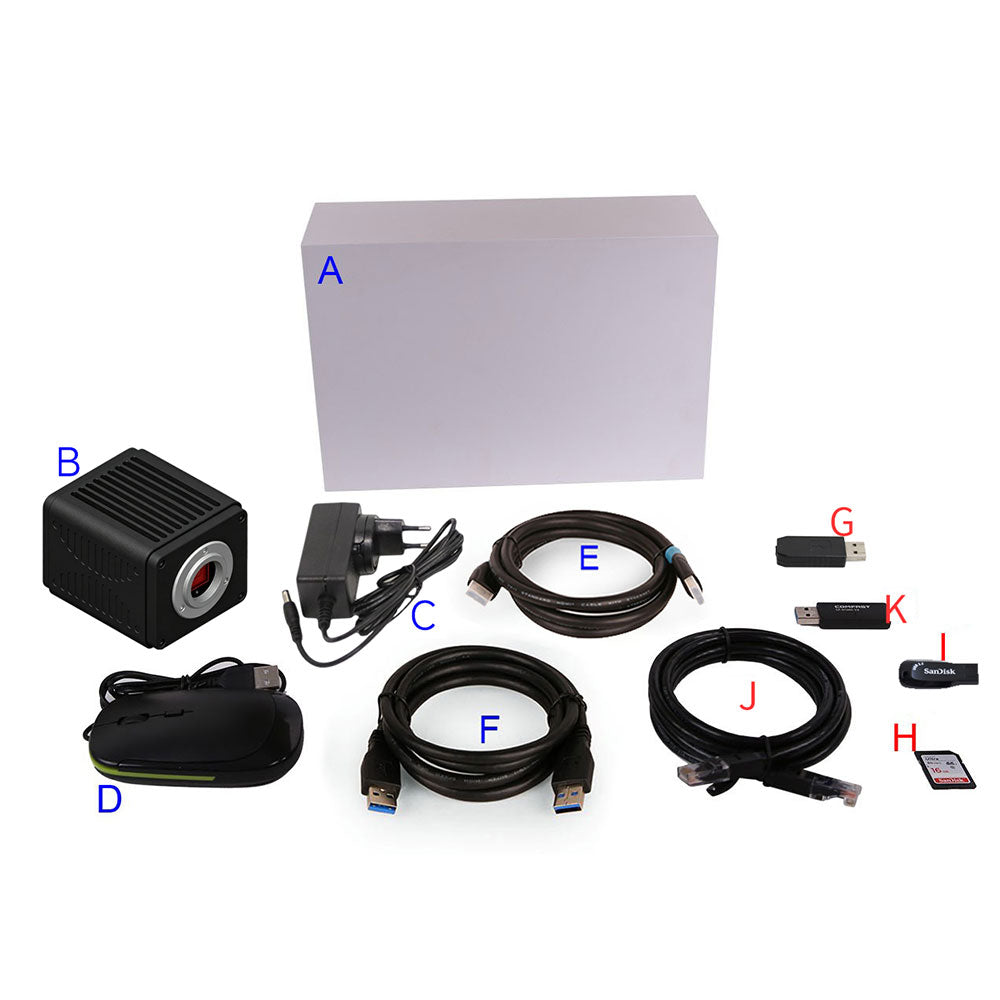

Package Included:
- 1 x Camera
- 1 x Power Adapter
- 1 x USB Mouse
- 1 x HDMI-compatible2.0 Cable
- 1 x USB3.0 Type-A Male to Type-A Male Cable (1.5m)
